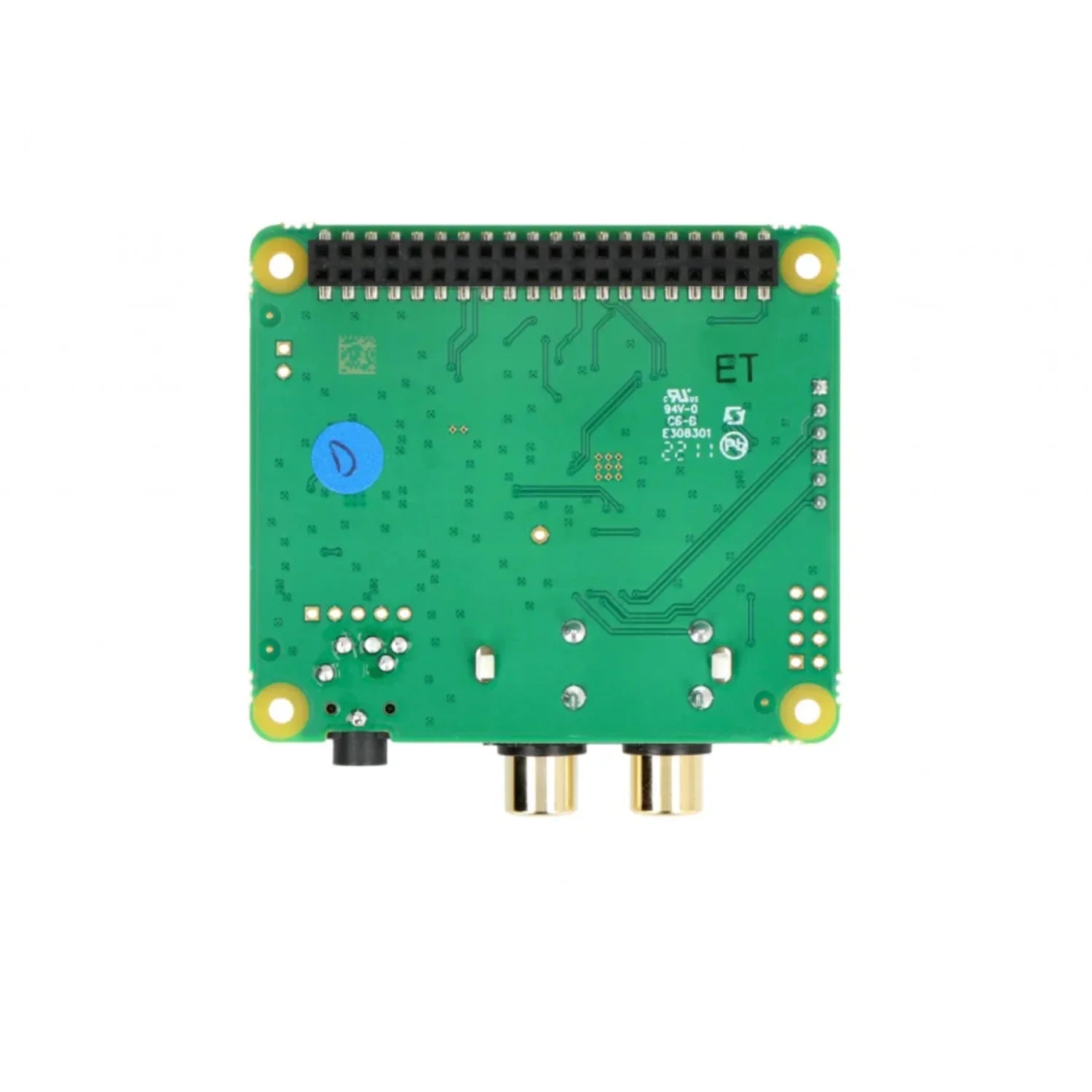

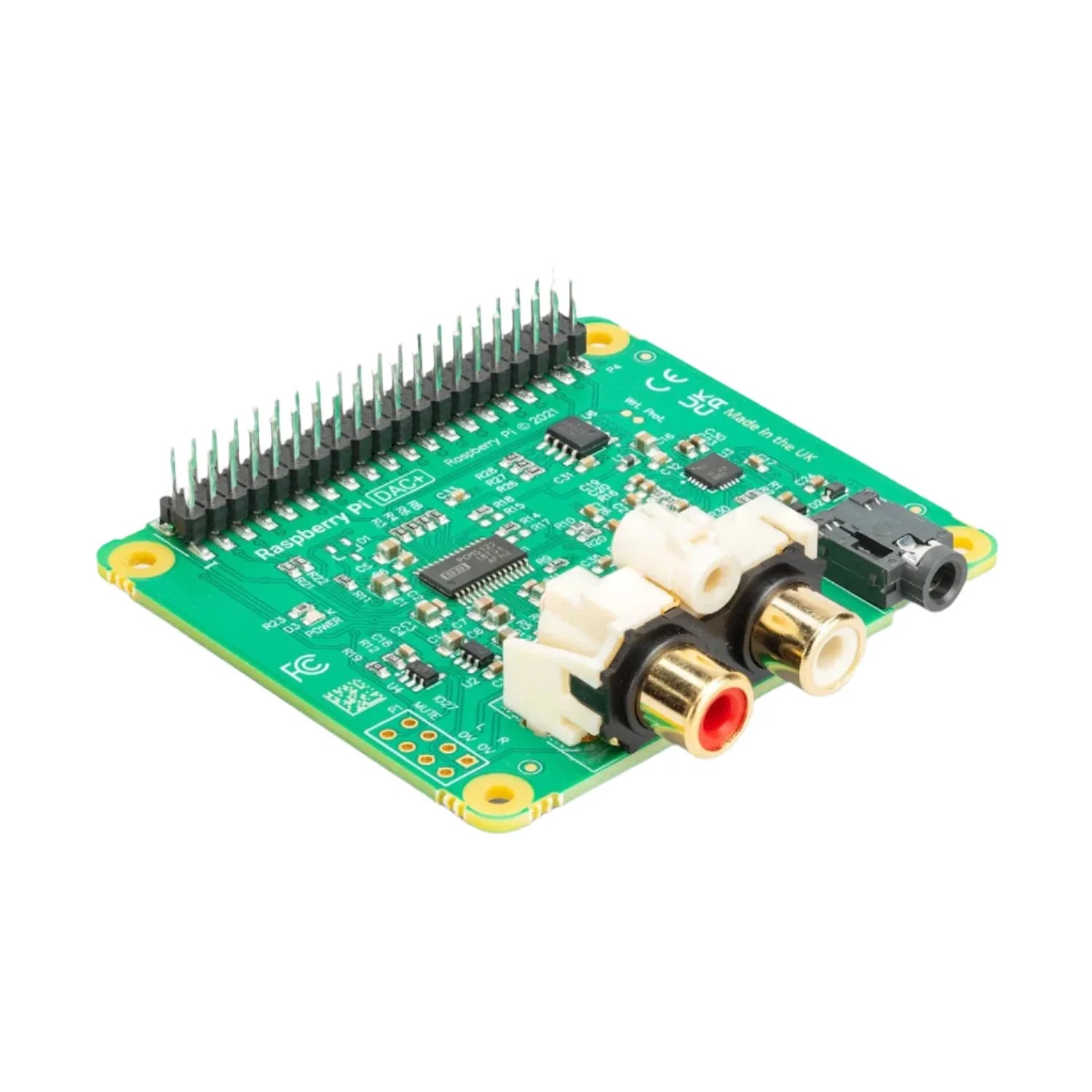

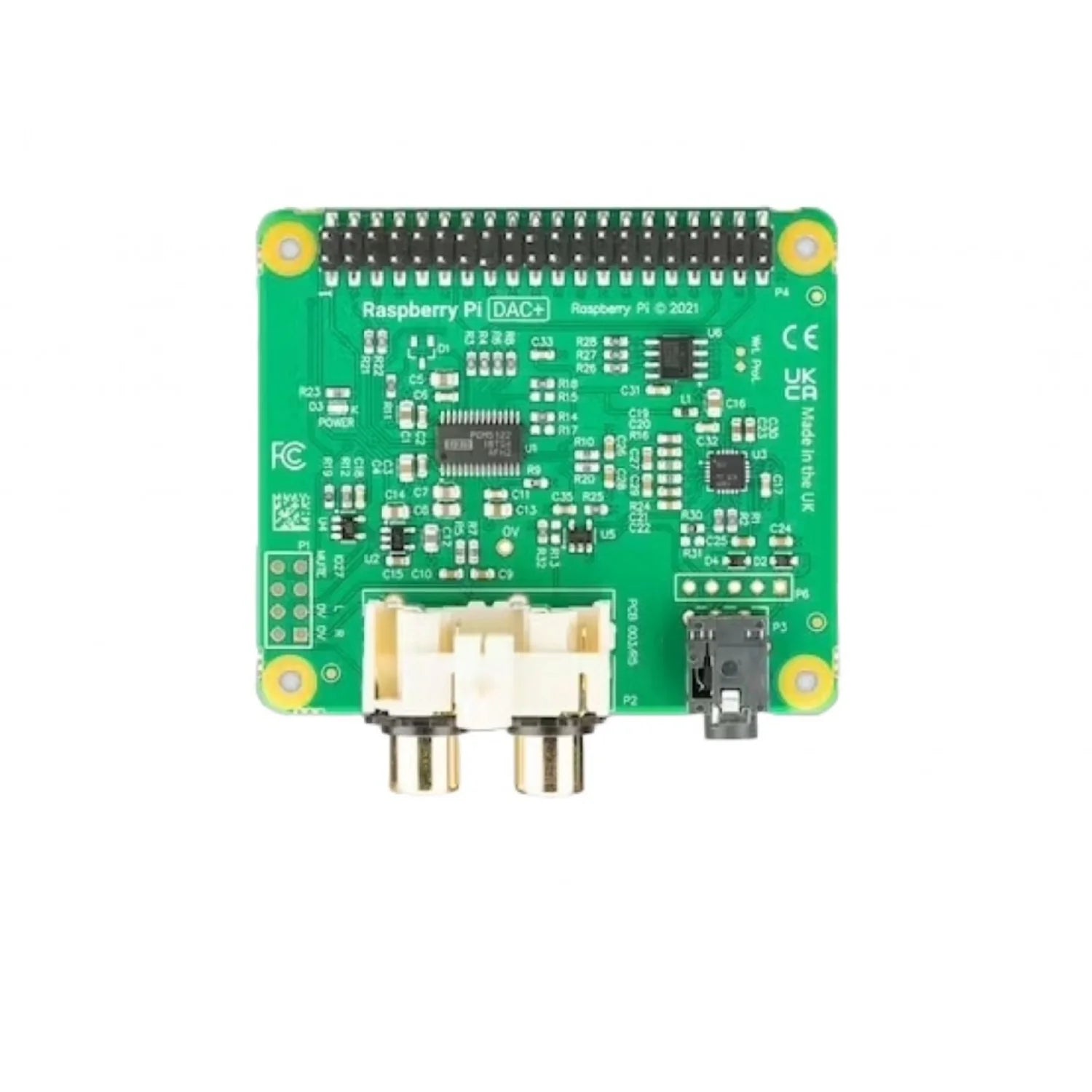

Raspberry Pi IQaudio DAC+ RPI IQaudio DAC+ Audio Board IQaudio DAC Plus Enhance Your Pi's Sound Quality With The IQaudio DAC Plus - RS7169/RS7116

Raspberry Pi IQaudio DAC+ RPI IQaudio DAC+ Audio Board IQaudio DAC Plus Enhance Your Pi's Sound Quality With The IQaudio DAC Plus - RS7169/RS7116

RS7169/RS7116

46 in stock

Rs. 1,599.00
Rs. 1,599.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

IQaudio DAC+ for Raspberry Pi is an audio output HAT for all generations of Raspberry Pi starting from Raspberry Pi 1 Model B+ and supports high-resolution 24-bit 192kHz digital audio. It uses the Texas Instruments PCM5122 DAC to deliver analog stereo audio to a pair of RCA connectors, and also supports a dedicated headphone amplifier.

Specification:

  • Form factor: 58 mm × 65 mm
  • Operating temperature: 0°C–50°C
  • Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5122 digital audio codec (DAC)
  • Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required

Features:

  • Fully compatible with the HAT standard
  • Sound in Full HD format - 24 bit / 192 kHz
  • Hardware Volume Control (ALSA), full 2 V rms
  • High quality headphone amplifier (TI TPA6133A)
  • High-quality sound 112 dB SNR and THD 0.0019
  • DAC TI Burr Brown 32 bit / 384 kHz (TI PCM5122)
  • Protection against electrostatic discharge
  • It uses the I2S interface to reduce the CPU load
  • Powered directly from the Raspberry Pi, no external power supply required
  • Two connectors for connecting a phonograph/tulip connector

Pin Description:

Raspberry Pi DAC+

Useful Links:

Package Included:

1 x Raspberry Pi DAC+
