Description:
High quality camera for Raspberry Pi with higher resolution and frequency than the underline official Raspberry Pi v2. It has been designed to work with different C- and CS-mount lenses. The camera has been equipped with Sony IMX477R sensor with 12.3 MPx resolution and IR filter.
Specifications:
- Brand: Raspberry Pi
- Resolution: 12.3 MegaPixel
- Image Sensor: Sony IMX477 sensor

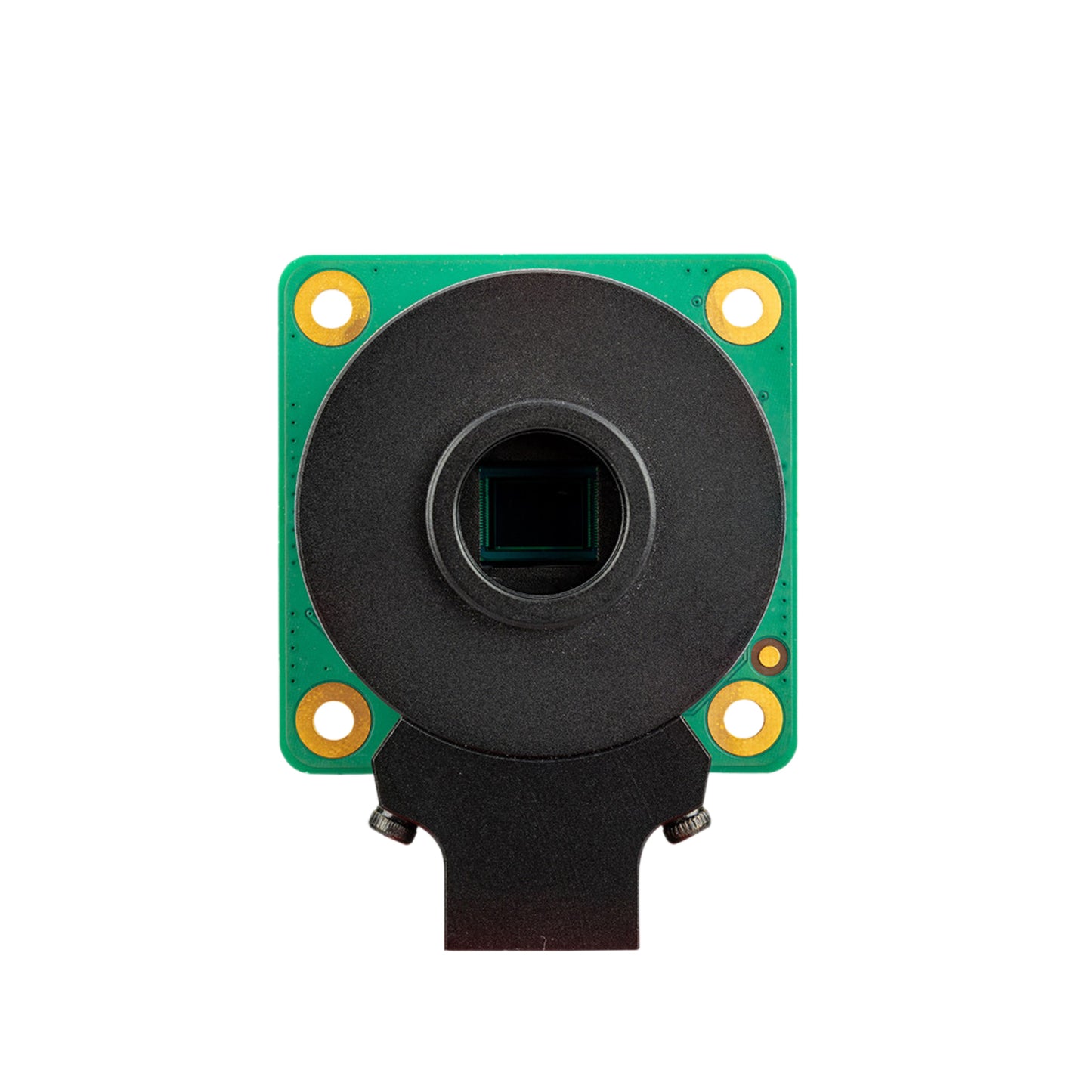

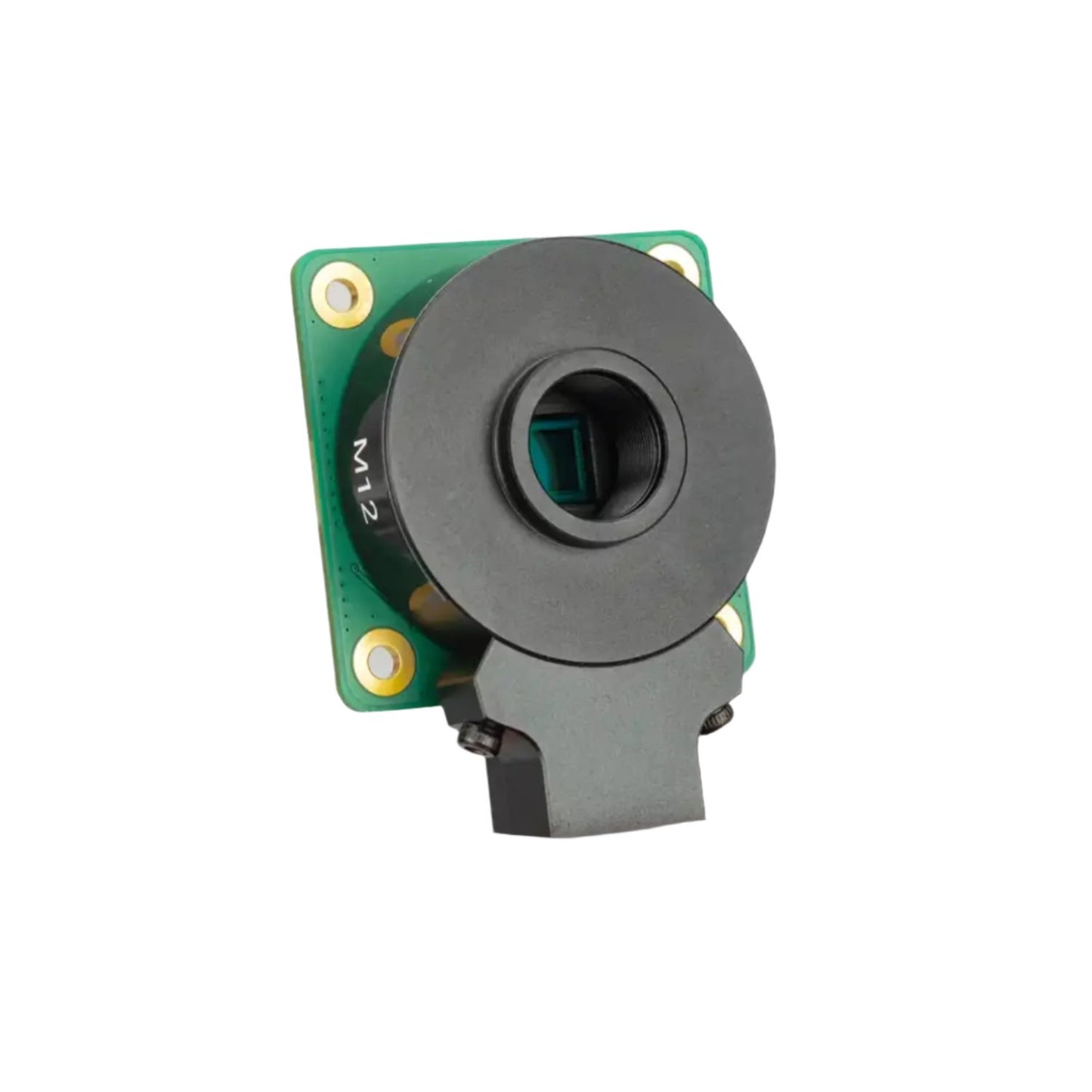

- Back focus length of lens:2.6mm–11.8mm (M12 Mount variant), 12.5mm–22.4mm (CS Mount variant)
- SENSOR: IMX477R , 12.3MP, 4056 (H) x 3040 (V)., 7.9mm CMOS diagonal size , 1.55µm (H) x 1.55µm (V) pixel size
- LENS SUPPORT: C-mount / CS-mount
- IR cut filter: Integrated
- Ribbon cable length:200 mm
- Tripod mount: 1/4”-20
How To Install Lens:

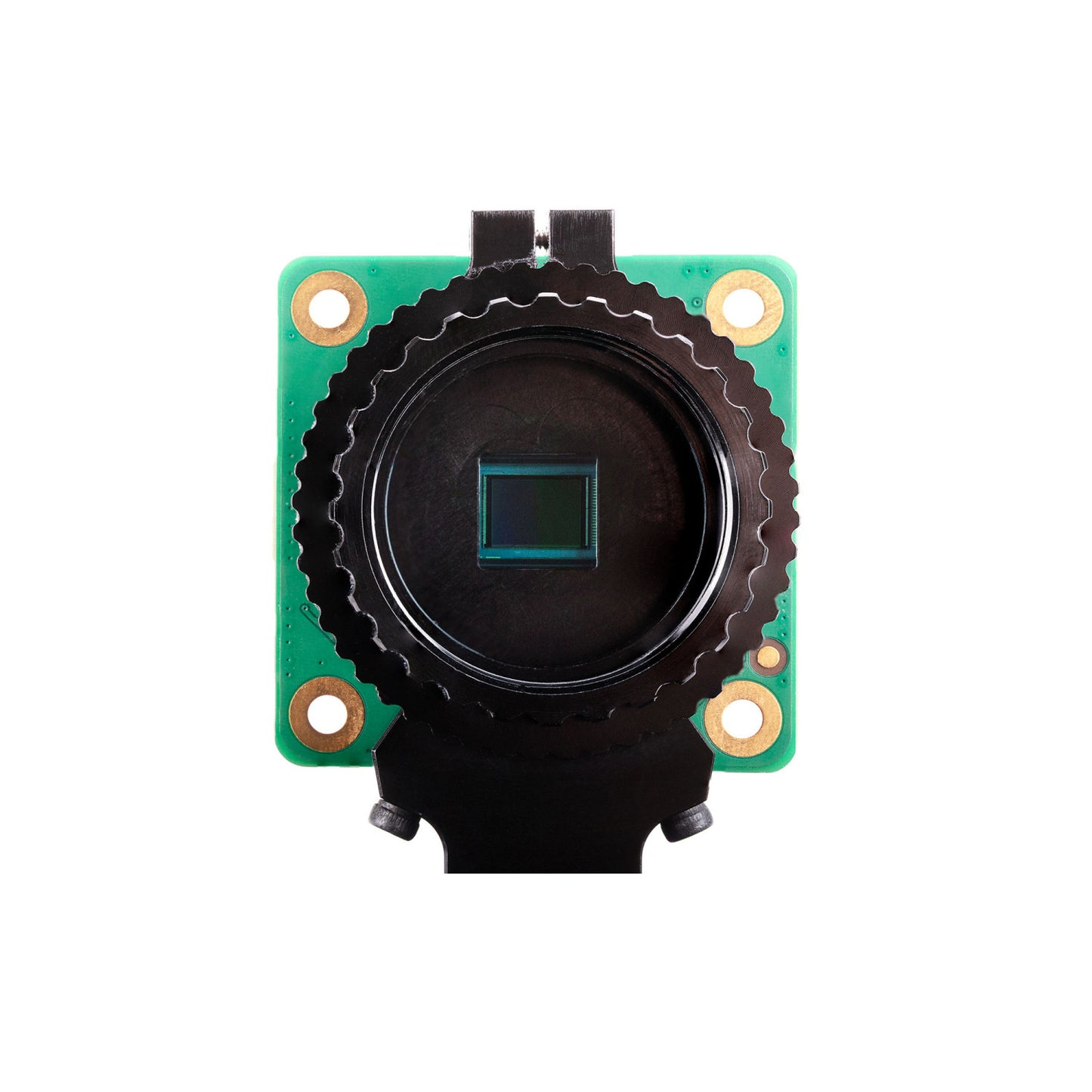

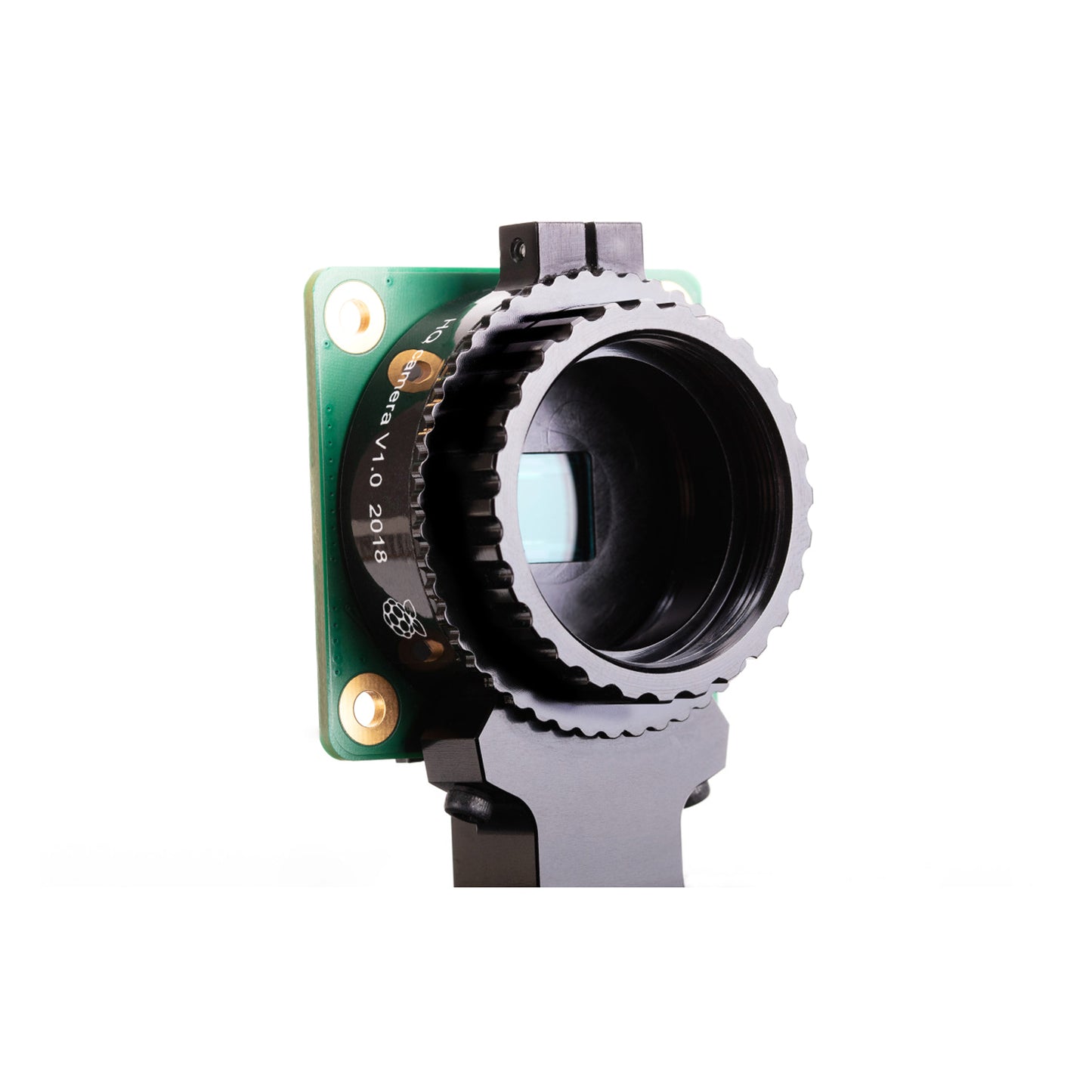

The High Quality Camera CS Mount variant is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses.
Useful Links:
- Raspberry Pi High-Quality Camera
- Raspberry Pi High-Quality Camera CS Mount Mechanical Diagram
- Raspberry Pi High-Quality Camera M12 Mount Mechanical Diagram
- Fitting Instructions For a Typical C Mount lens
Package Included:
1 x Raspberry Pi High-Quality Camera RPi Cam High-Quality High-Resolution Premium Camera Module C/CS Mount Or M12 Mount For Your Pi Projects
