Description:

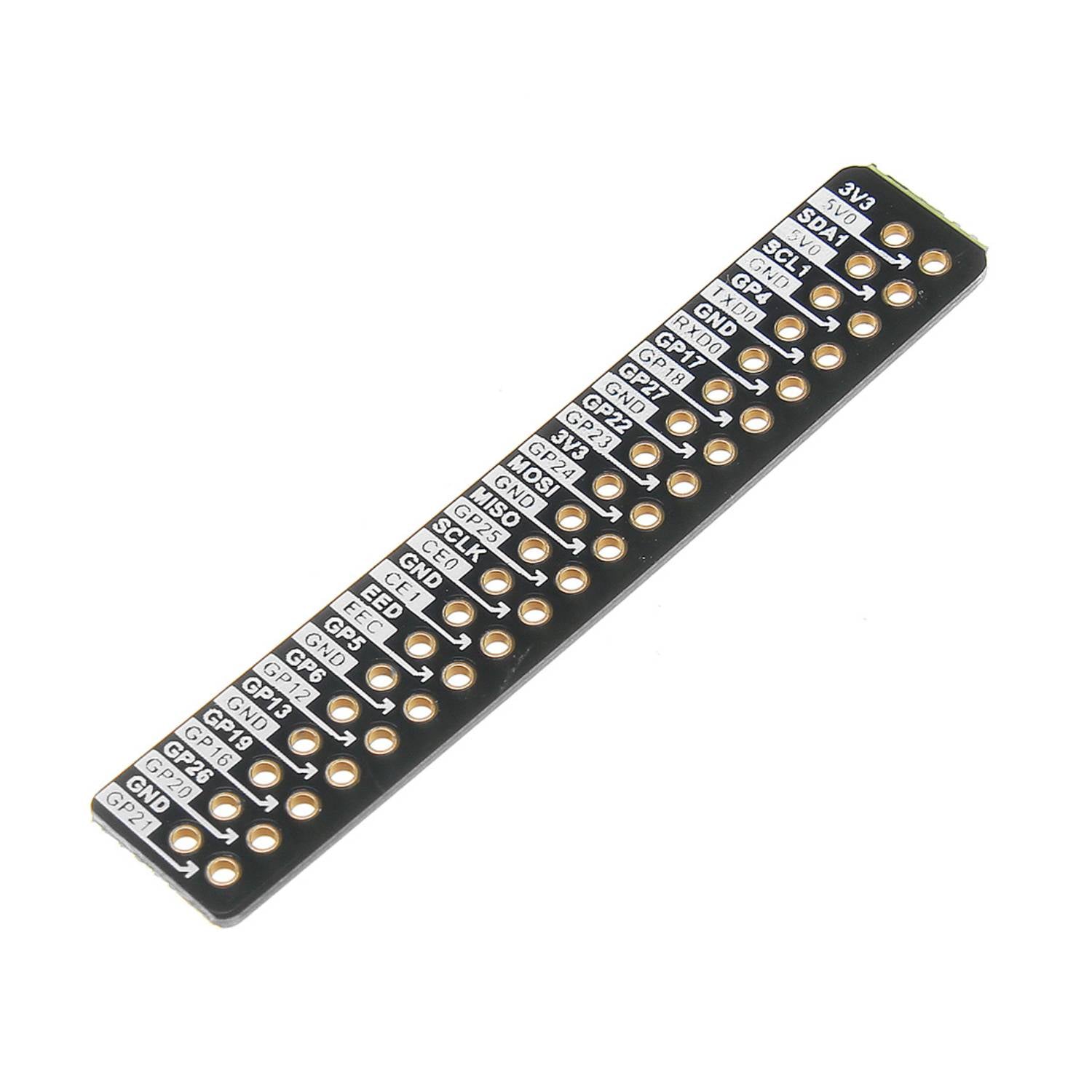

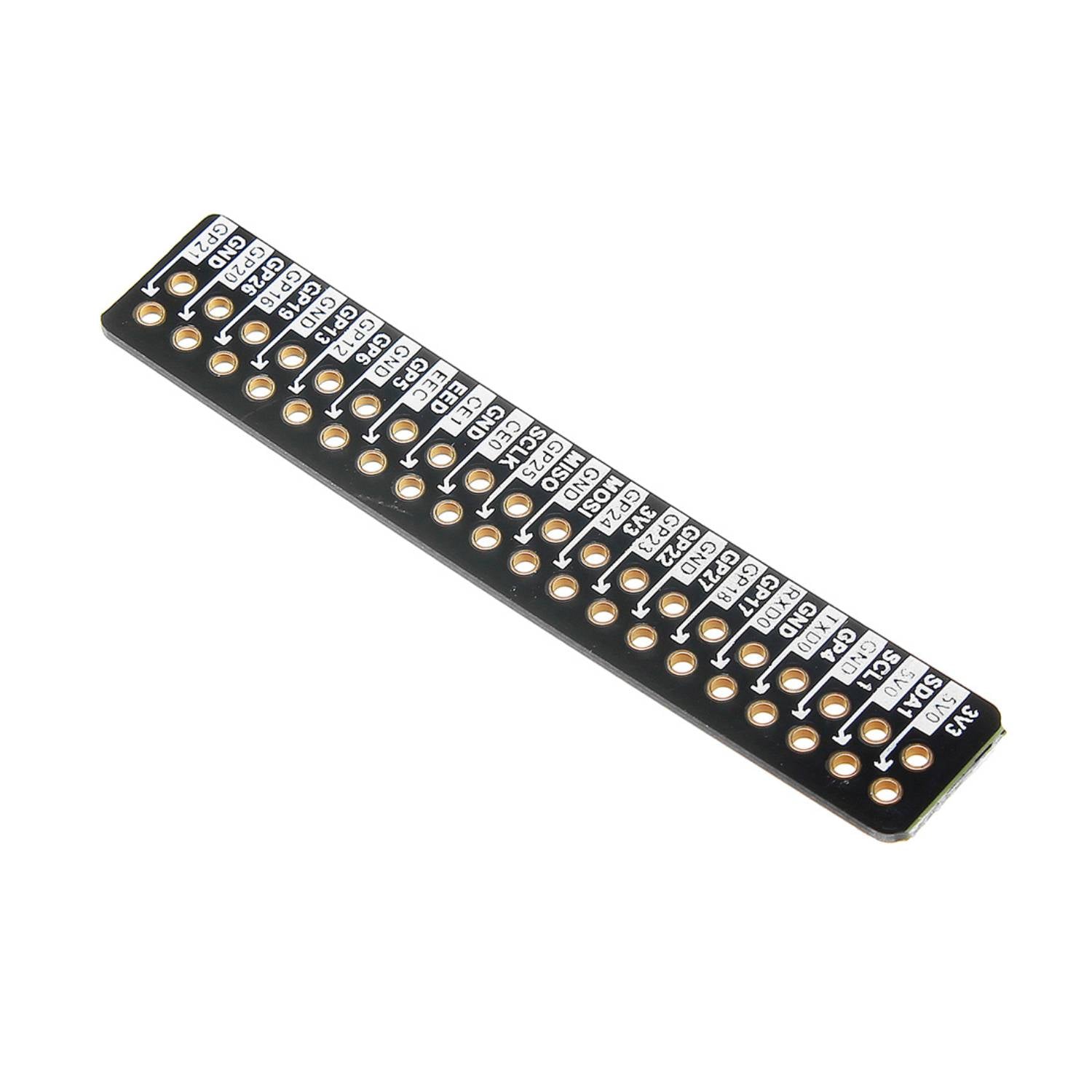

This robust Raspberry Pi GPIO reference board simplifies wiring projects significantly. Crafted from a durable 0.8mm thick PCB, it provides a clear visual guide to all GPIO pins, making it effortless to identify and connect wires correctly. This board eliminates the guesswork, ensuring accurate connections and preventing potential short circuits. Whether you're a beginner or an experienced maker, this reference board is an invaluable tool for streamlining your Raspberry Pi projects.
Specifications:
- Compatibility: Pi 4B+/ Pi 3B/ Pi 2B/ B+/ A+/ Zero
- Pinout: BCM
Features:
- BCM Pinout Reference: Clearly displays BCM GPIO pin numbers.
- Wide Compatibility: Supports Raspberry Pi A+, B+, Zero, 2, 3, 3B+, and 4B.

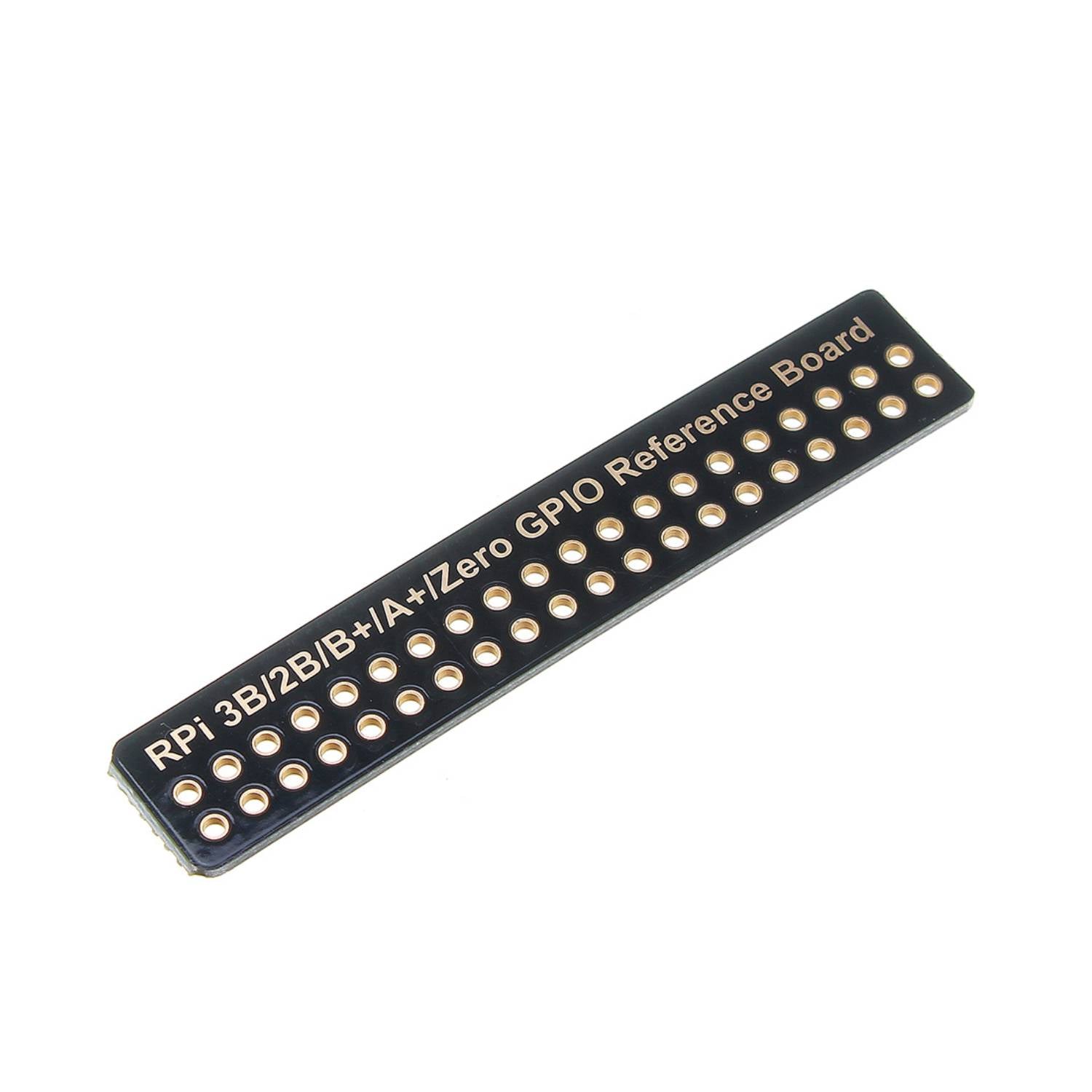

- Double-Sided Design: Information is printed on both sides for quick reference.
- Error-Proof Wiring: Simplifies connections and prevents wiring mistakes.
Package Included:
1 x Raspberry Pi GPIO Reference Board
