Description:

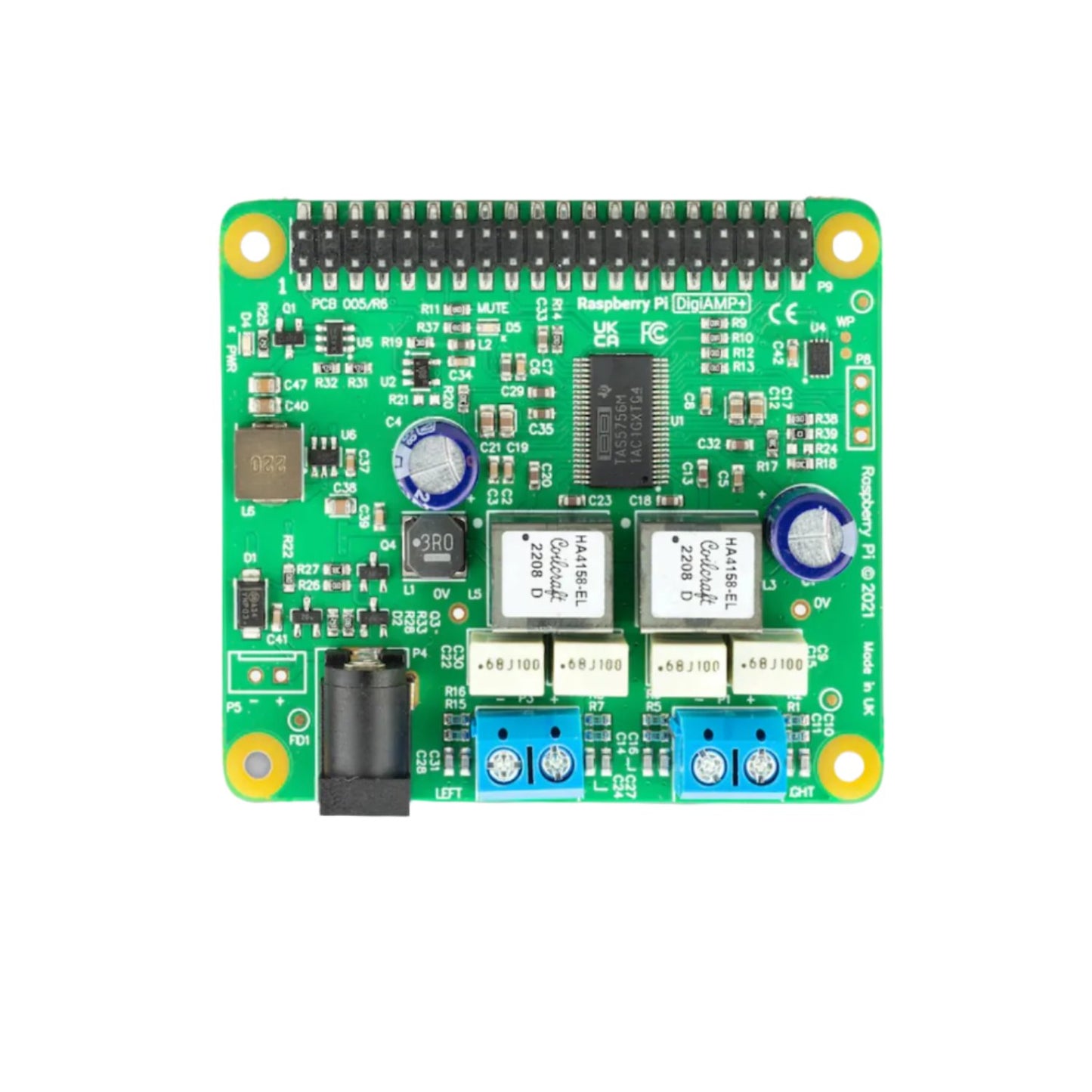

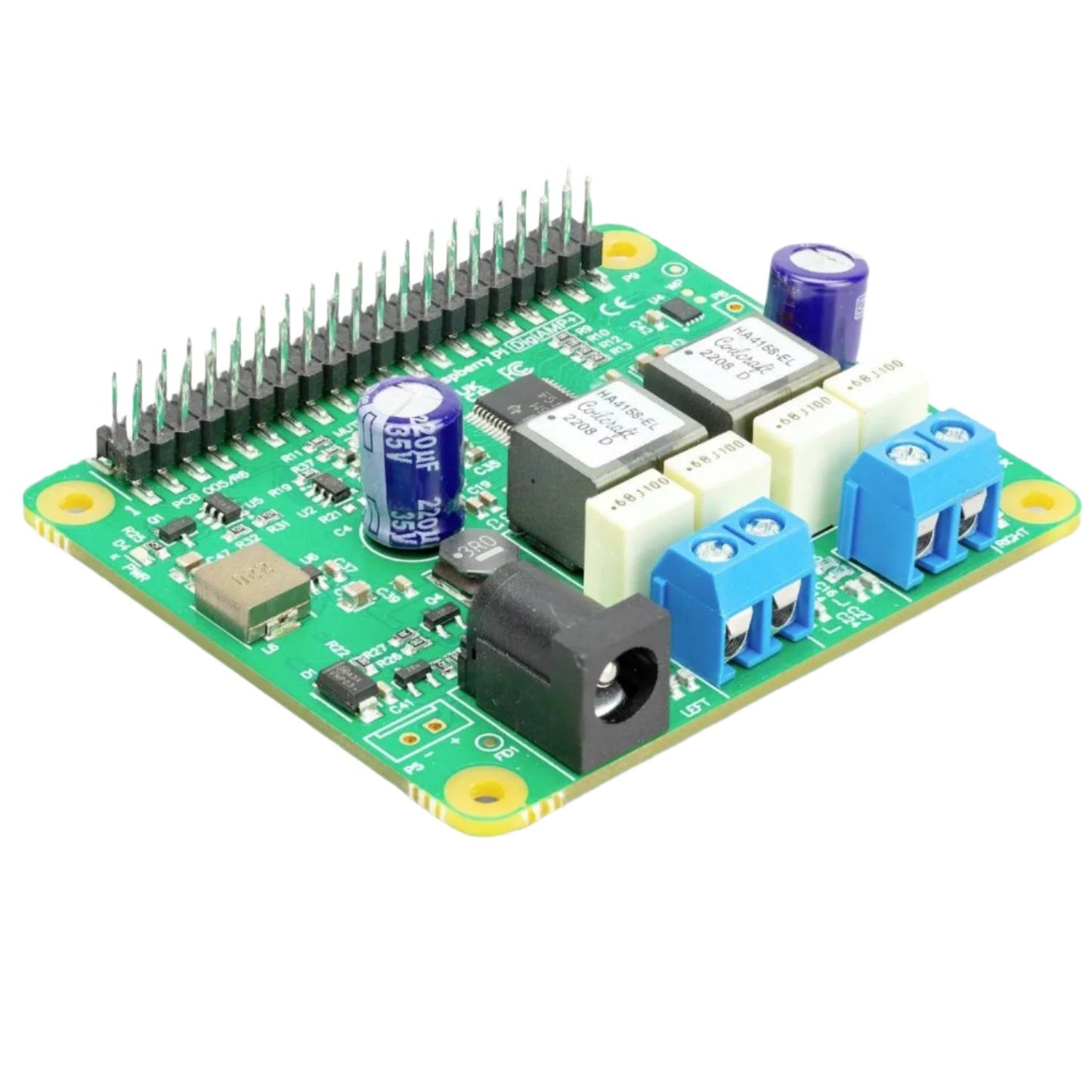

Raspberry Pi DigiAMP+ is a high-performance audio HAT. With its on-board Texas Instruments TAS5756M stereo amplifier, it delivers a direct connection to passive stereo speakers at up to 35 Watts per channel with variable output, and is ideal for use in Raspberry Pi-based hi-fi systems. Powered by an external 12–24V DC power supply, it connects directly to Raspberry Pi’s GPIO header, providing power to your Raspberry Pi itself. Previously known as IQaudio DigiAMP+.
Specifications:
- The Raspberry Pi DigiAMP+ is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
- Form factor:58 mm × 65 mm
- Interface: I2S
- Operating temperature: 0°C–50°C
- Performance: Full high definition 24-bit 192kHz Texas Instruments TAS5756M digital audio codec (DAC)
- Input power: 12–24V DC external power source required via panel-mounted 5.5 mm × 2.5 mm barrel connector. Do not apply power to your Raspberry Pi’s own power input when using DigiAMP+ 5.1V @ 2.5A power is provided from your DigiAMP+ to your connected Raspberry Pi
Features:
- Power LED
- Alternative power input for hard-wired installations via P5
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
Pin Descriptions:
- P5: Alternative power input for hard wired installations (polarity must be observed)
- P8: TAS5756m Internal GPIO1/2/3
Note: Do not apply power to the Raspberry Pi’s own power input when using DigiAMP+.
Useful Links:
Package Included:
1 x Raspberry Pi DigiAMP+ RPi DigiAMP Plus Powerful Amplification For Your Raspberry Pi DigiAMP+ For Advanced Audio Projects Sound Card For Raspberry Pi A-4B+
