Description:

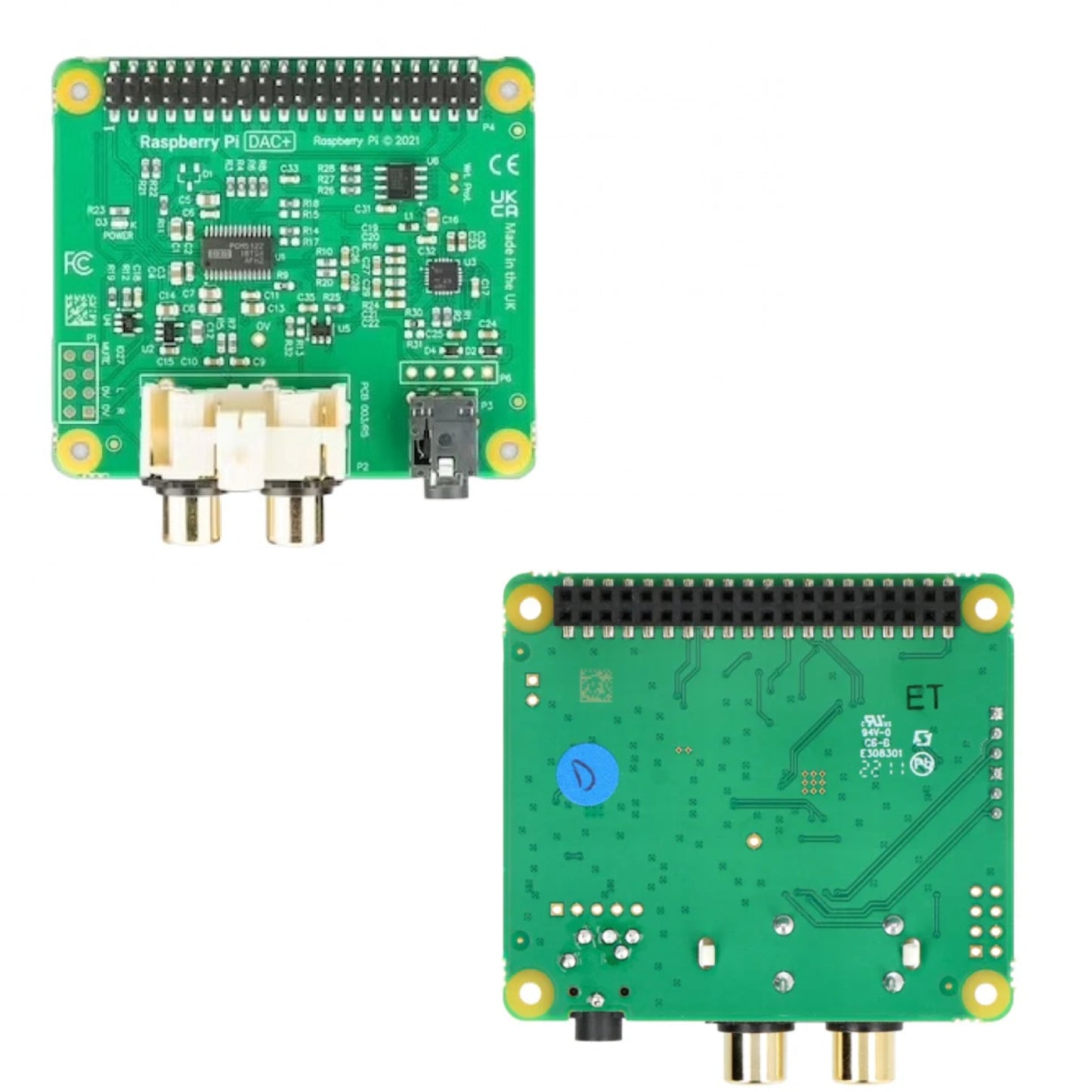

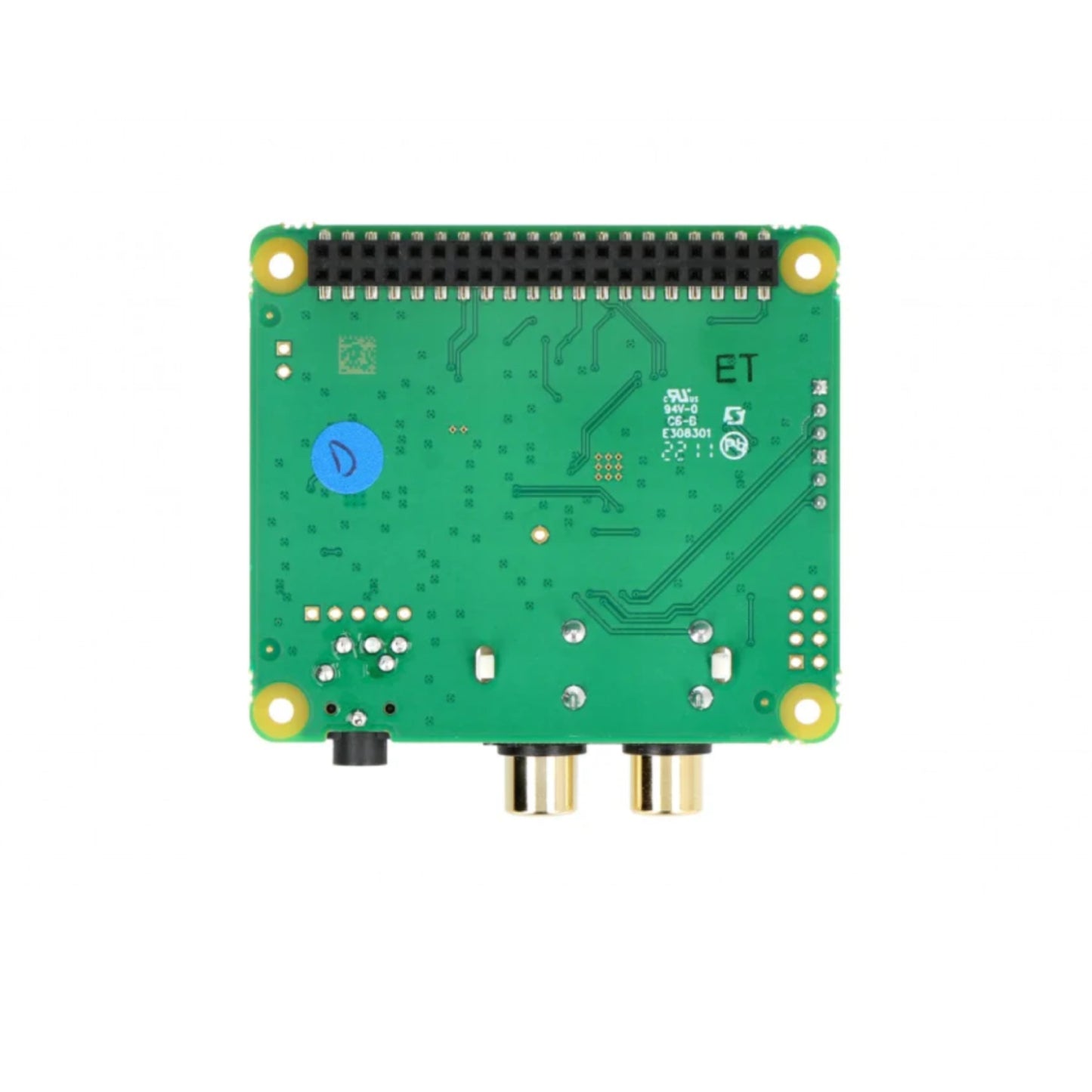

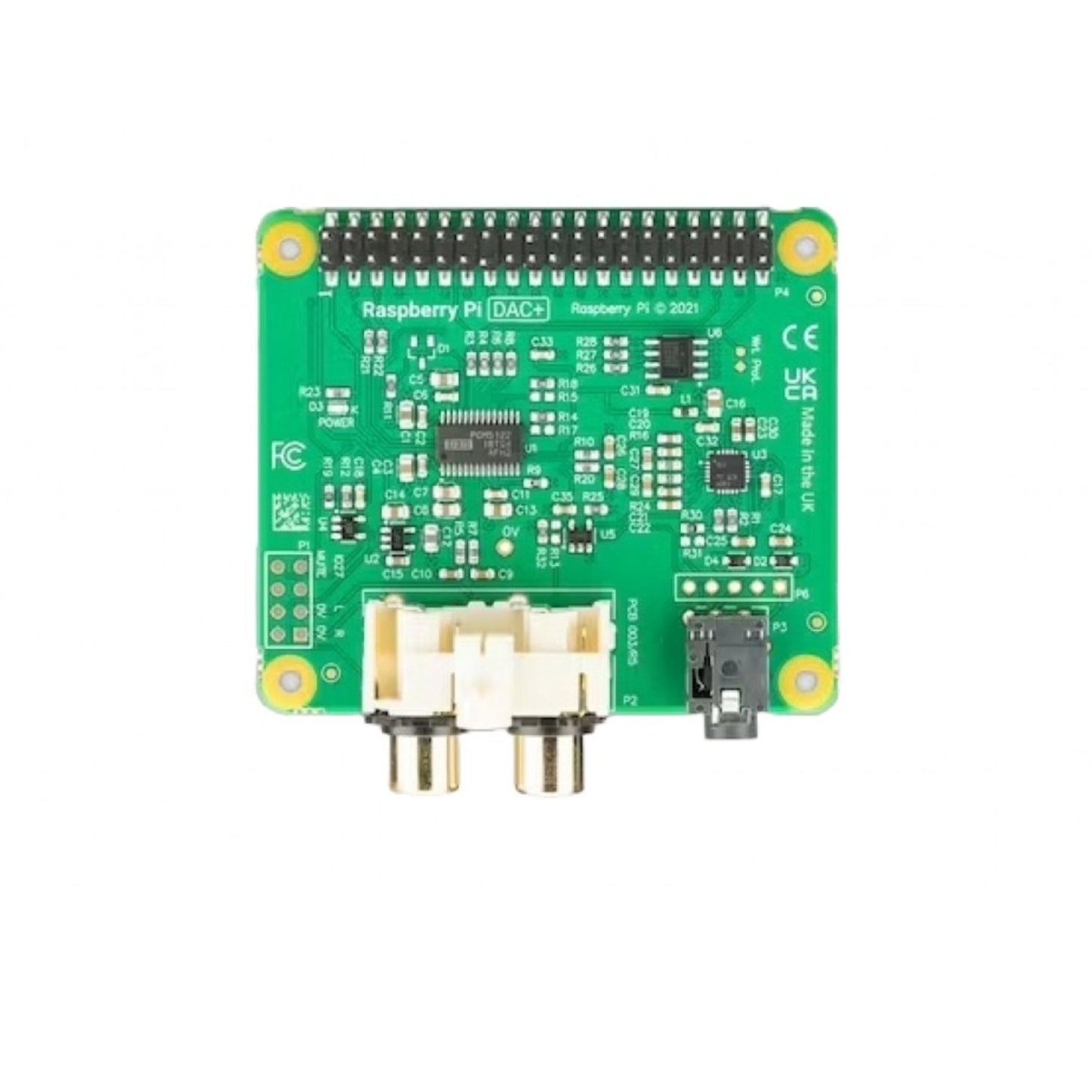

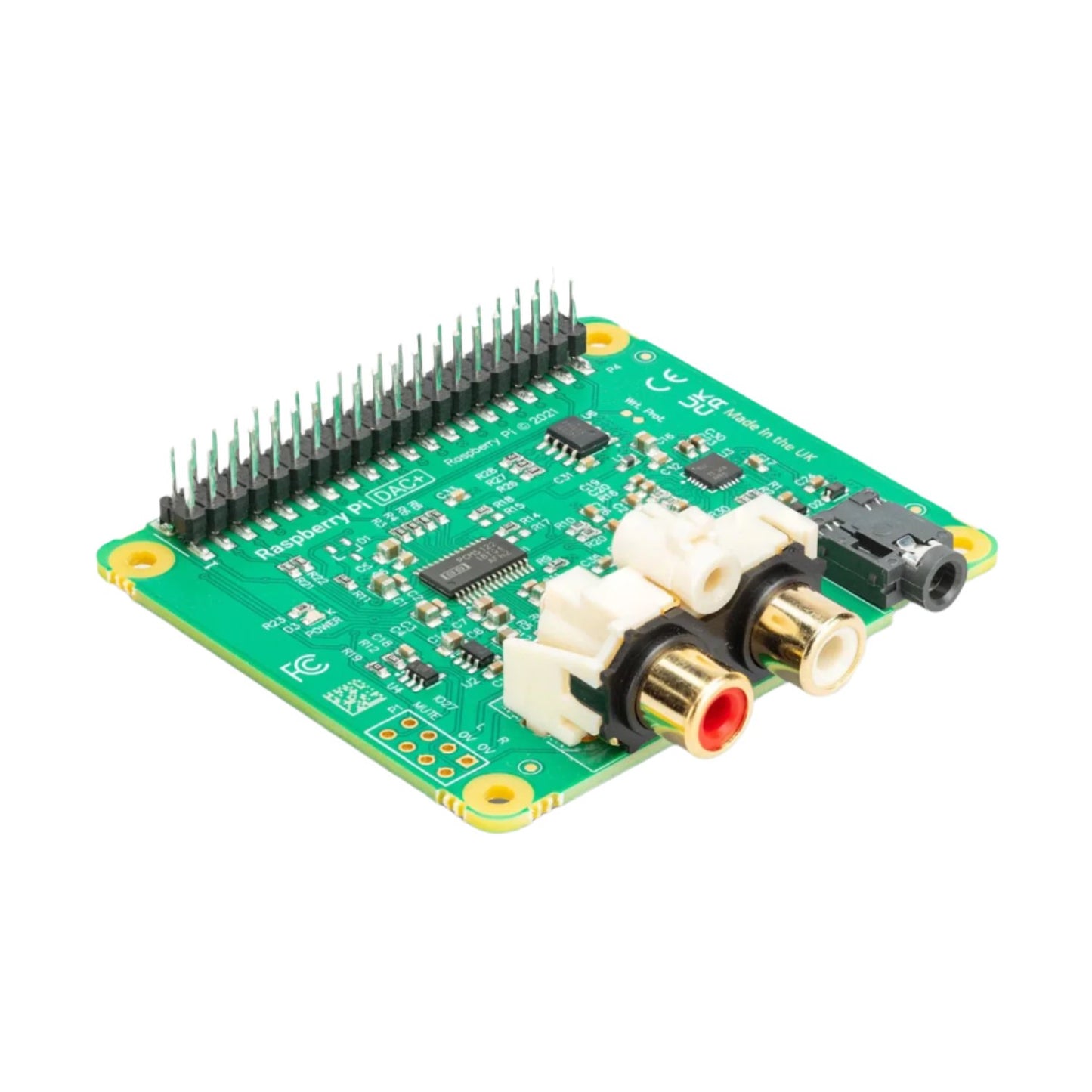

Raspberry Pi! The Raspberry Pi DAC+ is your go-to for high-resolution 24-bit 192kHz digital audio, all in an easy-to-use, low-cost HAT. It's compatible with any Raspberry Pi that has a 40-pin header, making it super versatile.
Powered by a Texas Instruments PCM5122 DAC, this HAT provides crisp stereo analogue audio via phono connectors. It also includes a dedicated headphone amplifier for direct listening.
This DAC+ works with any 40-pin Raspberry Pi and features no-solder installation for effortless setup.
For those who demand the highest possible audio fidelity, we recommend considering the Raspberry Pi DAC Pro. It features a more advanced Texas Instruments PCM5242 DAC, delivering an even superior signal-to-noise ratio that makes every note sing with incredible clarity.
Specifications:
- Form Factor: 58 mm × 65 mm
- Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5122 digital audio codec (DAC)
- Input Power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
Features:
- Standard 40-pin header (compatible with any 40-pin Raspberry Pi)
- PCM5122 DAC
- 24-bit depth 192kHz (Full HD) audio
- Dedicated headphone amplifier
- Phono RCA output
- Powered by the Raspberry Pi PSU
- Onboard EEPROM for auto-configuration
- Power LED
- No soldering required
- Standoffs included
Pin Description:
Useful Links:
- Raspberry Pi DAC+ Product Brief
- Raspberry Pi IQAudio Acquisition Announcement
- Raspberry Pi Audio Documentation
- Raspberry Pi DAC+ Section
Package Included:
1 x Raspberry Pi DAC+
