Description:

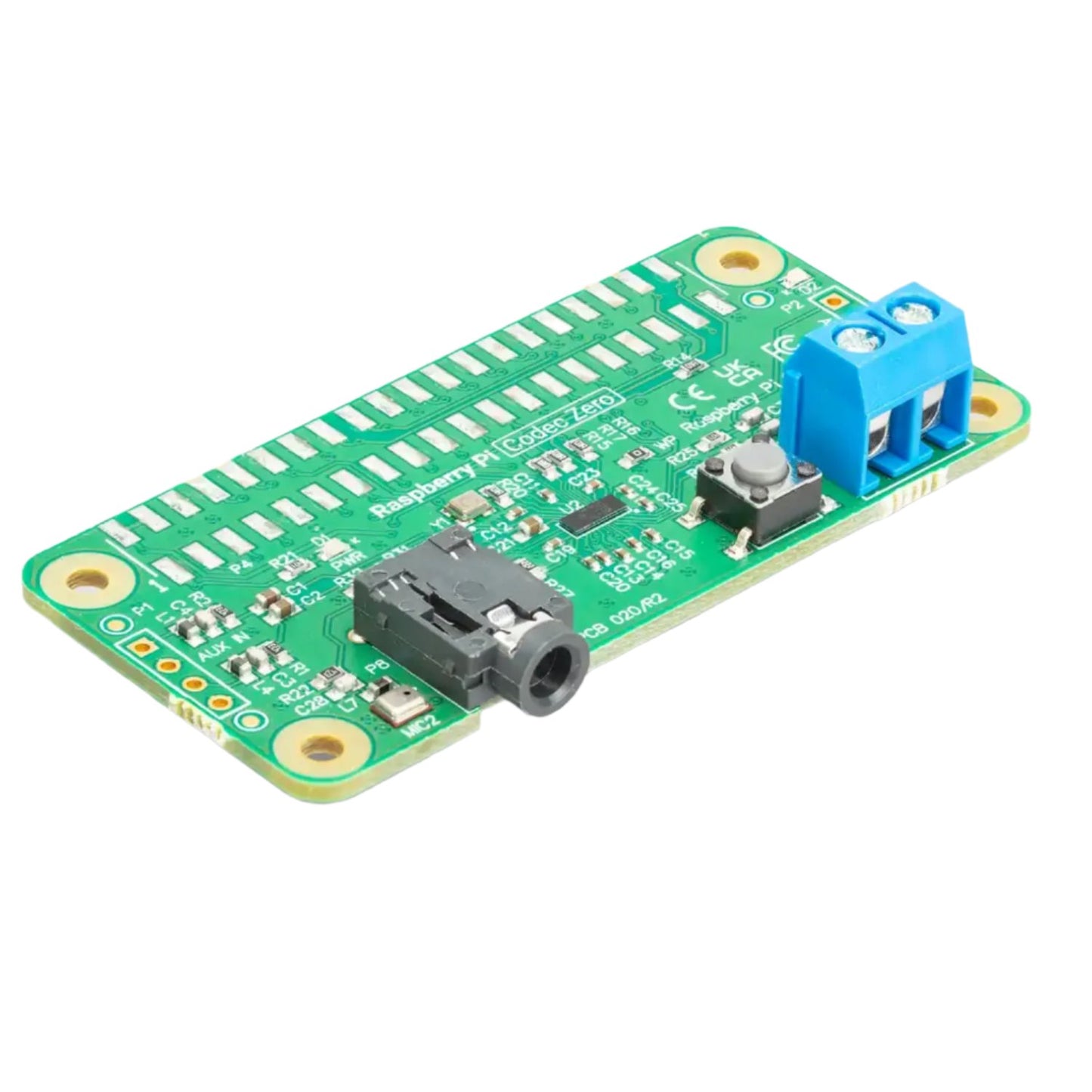

Raspberry Pi Codec Zero is a Raspberry Pi Zero-sized audio HAT that delivers bi-directional digital audio signals (I2S) between a Raspberry Pi and the Codec Zero’s on-board Dialog Semiconductor DA7212 codec, and allows you to use a variety of input and output devices. With features such as programmable green and red LEDs, plus a tactile button for user input, Codec Zero makes a great starting point for audio projects such as a walkie-talkie, intelligent doorbell, smart speaker, or vintage radio hack. Previously known as IQaudio Codec Zero.
Specifications:
- The Raspberry Pi Codec Zero is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
- Form Factor: 65 mm × 31 mm
- Operating Temperature: 0°C–50°C
- Performance: High definition 24-bit 96kHz Dialog Semiconductor DA7212 digital audio codec (DAC)
- Input Power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
Features:
- Power LED
- Additional green (GPIO23) and red (GPIO24) LEDs for status
- Tactile button (GPIO27) for user input
- Built-in mono electret microphone (MEMS)
- HAT EEPROM write-enabled
Supports:
- Additional external mono electret microphone via 3.5mm panel-mounted barrel socket
- 1.2W 8Ω mono speaker via panel-mounted screw terminals
- Stereo input and output channels, including external phono (RCA) sockets, via AUX IN and AUX OUT pins

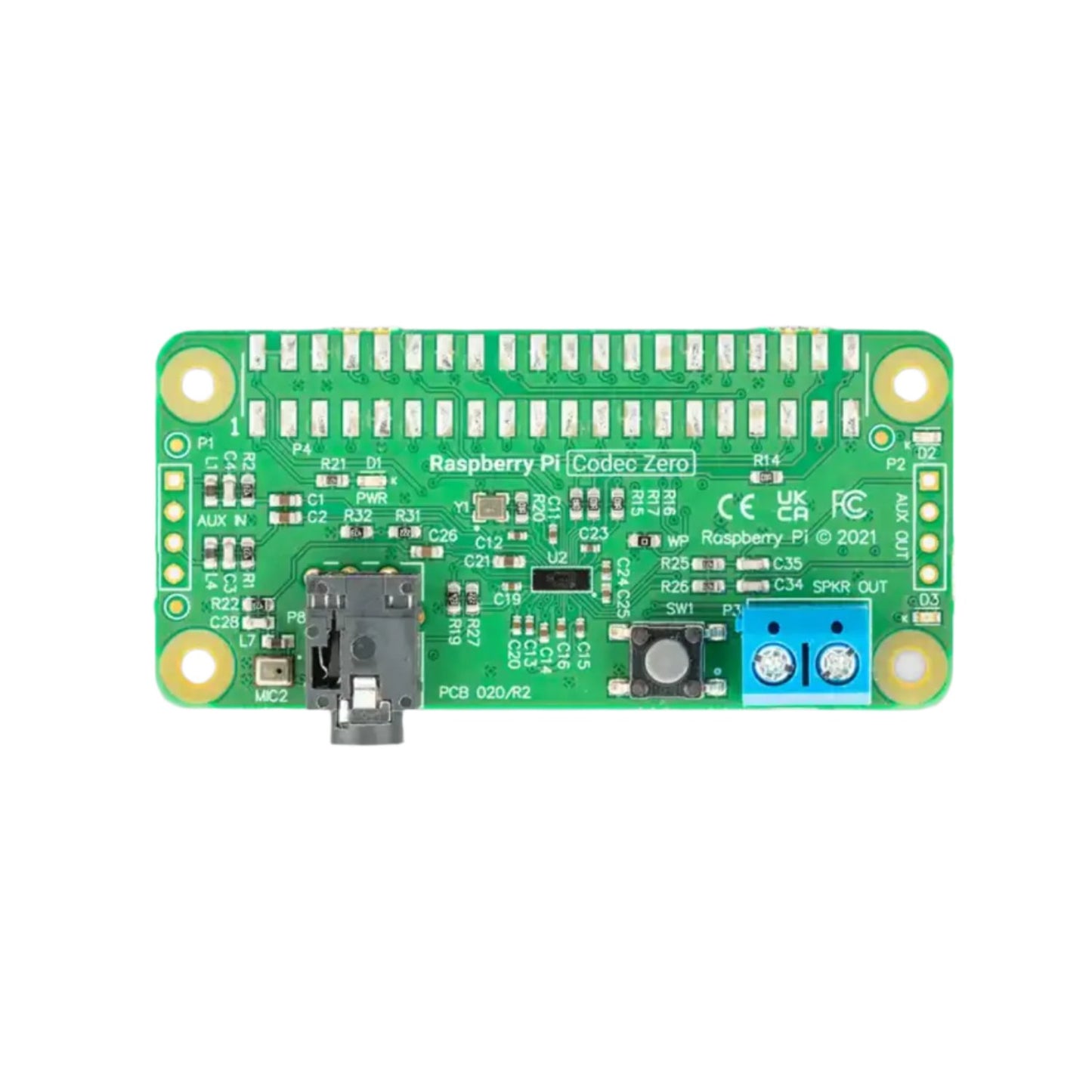

Pin Description:
- P1/2: Support external PHONO/RCA sockets if needed. P1: AUX IN, P2: AUX OUT
- P1: Pin 1 is square.
Useful links:
Package Included:
1 x Raspberry Pi Codec Zero RPi Codec Zero IQaudio Codec Zero Compact Audio Codec For Your Raspberry Pi Zero IQaudio Codec Zero Sound Card
