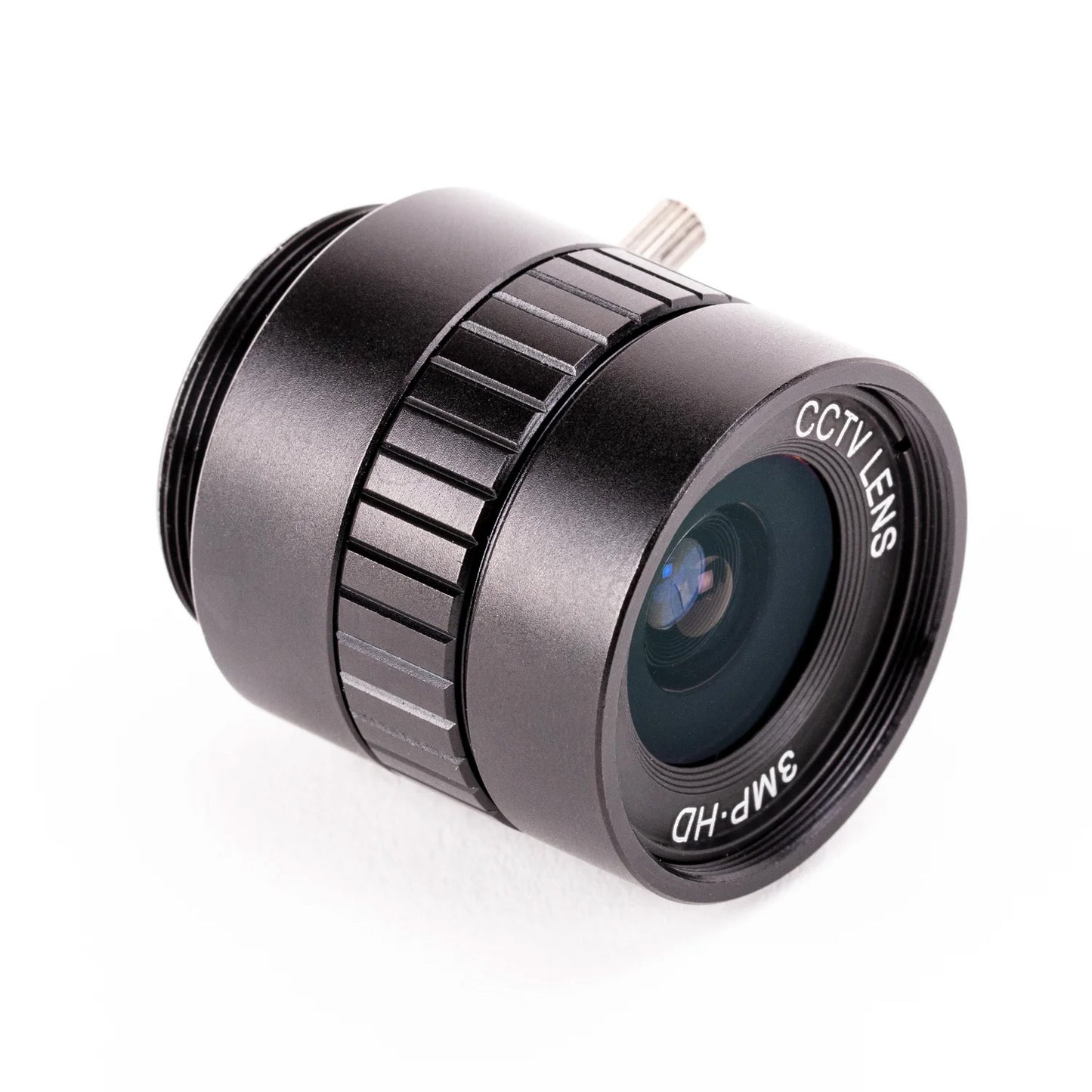

Raspberry Pi Camera Lens 6mm Wide Angle Lens For Raspberry Pi Camera High Quality Camera Manual Adjustable Aperture CS Mount Lens For Surveillance DIY Camera - RS3580

Raspberry Pi Camera Lens 6mm Wide Angle Lens For Raspberry Pi Camera High Quality Camera Manual Adjustable Aperture CS Mount Lens For Surveillance DIY Camera - RS3580

SKU:RS3580

In stock

Regular price Rs. 2,399.00
Regular price Sale price Rs. 2,399.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description :

Raspberry Pi camera lens Another cost-effective choice adding to your Raspberry Pi's high-quality camera module, with a 6mm focal length and manual focusing The back focus adjustment ring should be screwed in fully for the shortest possible back-focal length. Use the back focus lock screw to make sure it does not move out of this position when adjusting the aperture or focus.

To adjust focus, hold the camera with the lens facing away from you. Hold the outer two rings of the lens; this is easier if the aperture is locked as described above. You may find you need to adjust the aperture again after this.

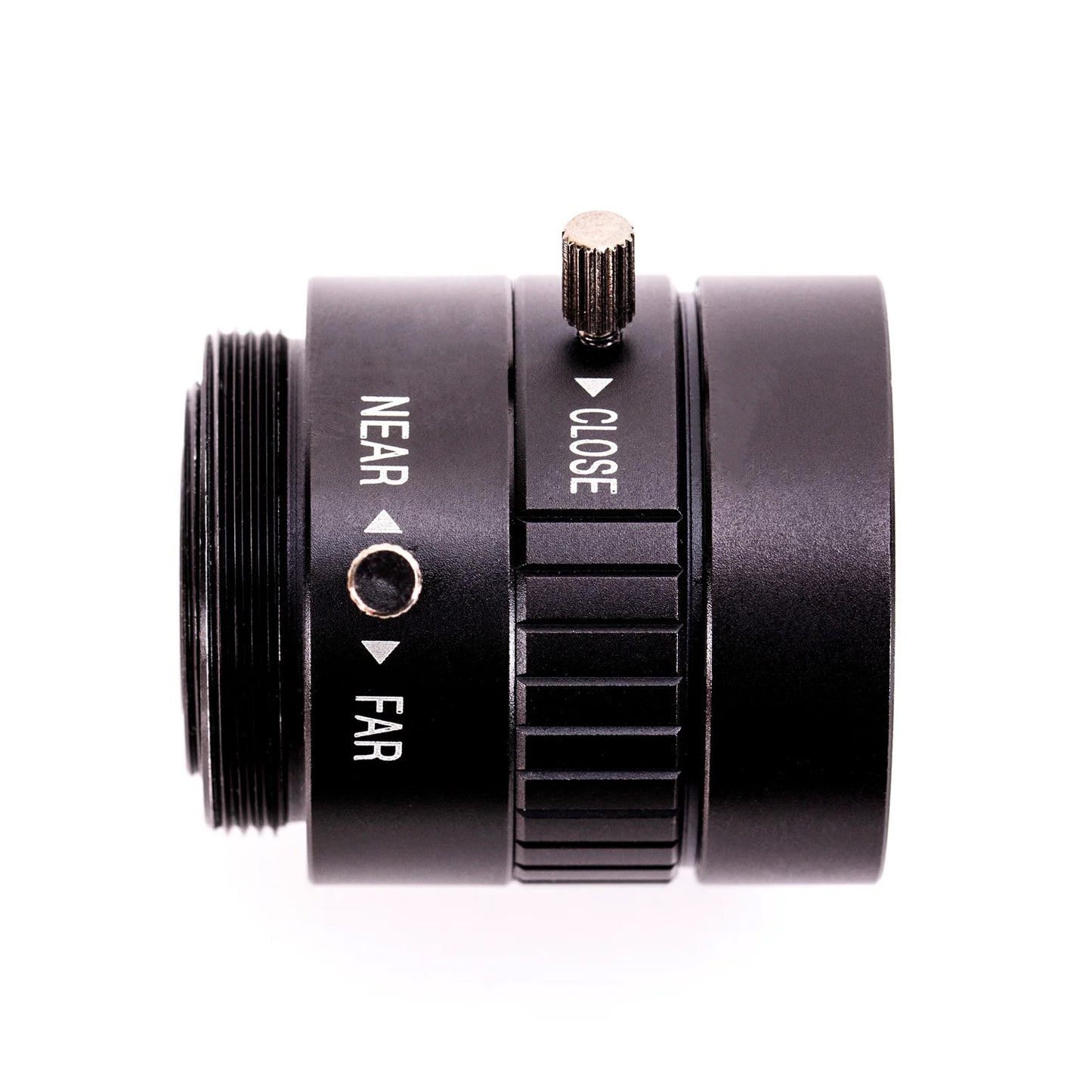

The 6mm Wide angle lens for the Raspberry Pi camera is to turn the middle ring while holding the outer ring, furthest from the camera, steady. Turn clockwise to close the aperture and reduce image brightness. Turn anti-clockwise to open the aperture.

Once you are happy with the light level, tighten the screw on the side of the lens to lock the aperture. To adjust focus, hold the camera with the lens facing away from you. Raspberry Pi camera High-Quality Camera  Hold the outer two rings of the lens; this is easier if the aperture is locked as described above.

Specifications:

  • Image Format: 1/2"
  • Focal length: 6mm
  • Resolution : 3 Megapixel
  • ApertureF: 1.2
  • Mount: CS
  • Field Angle: 63°
  • M.O.D: 0.2m
  • Back focal length: 7.53mm

Features:

  • Raspberry Pi camera is High-Quality Camera Wide Field of View suitable for CCTV applications
  • Thumbscrew Adjustment for easy fitting
  • Front and back covers for protection

Package Included:

1 x Raspberry Pi Camera Lens 6mm Wide Angle Lens For Raspberry Pi Camera High Quality Camera Manual Adjustable Aperture CS Mount Lens For Surveillance DIY Camera
