Description:

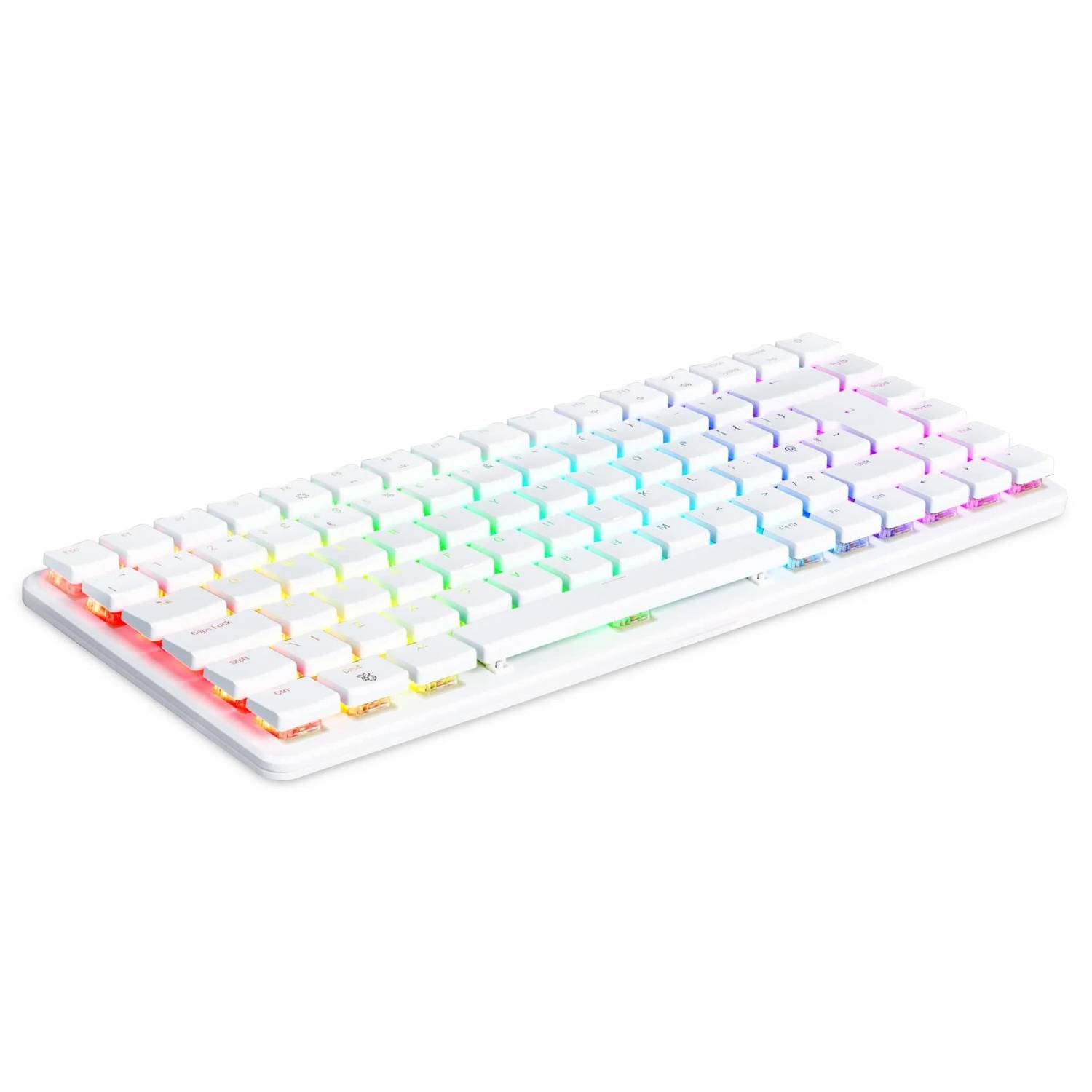

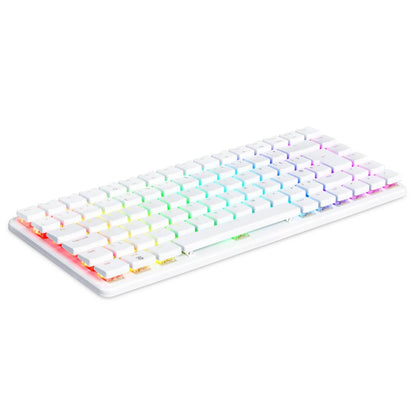

The Raspberry Pi 500+ redefines the compact PC experience, transforming the iconic keyboard computer into a premium, high-performance powerhouse for enthusiasts and power users.

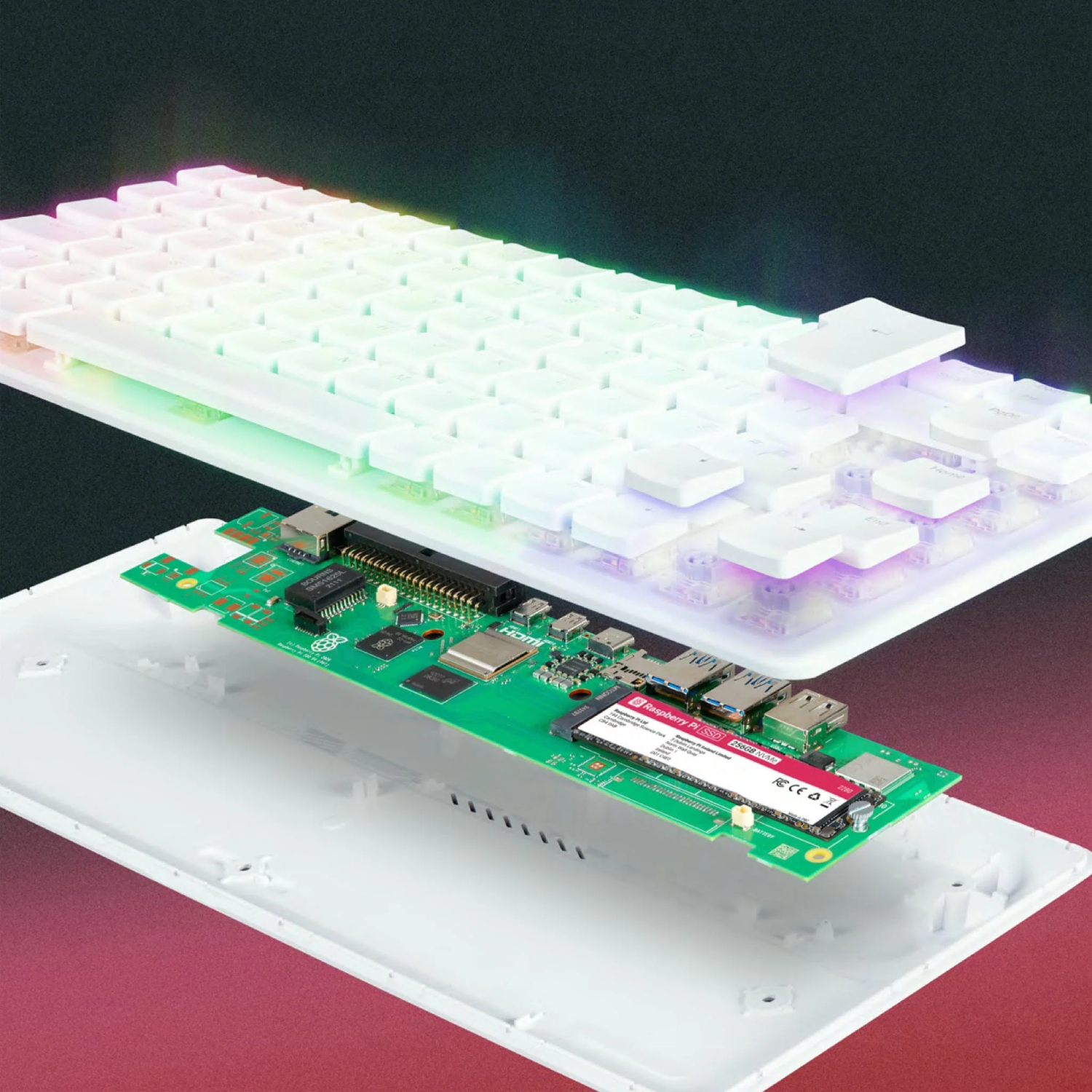

Forget the limits of yesterday's compact computers. The Raspberry Pi 500+ is built around the core quad-core 64-bit ARM processor and RP1 I/O controller from the latest Raspberry Pi 5, but supercharged with upgrades:
- Massive 16GB RAM: Handle memory-intensive workloads, multi-tab browsing, and complex applications without slowdowns.
- Blazingly-Fast 256GB SSD: Enjoy nearly instant boot times and rapid data access with the pre-installed Raspberry Pi SSD.
- Superior Thermal Management: An integrated one-piece aluminium heatsink keeps performance fast and smooth, even during heavy compilation or multi-tasking.
More than just a computer, the 500+ is a joy to type on, making it a perfect daily driver:
- Premium Mechanical Switches: Features genuine Gateron KS-33 Blue switches for a satisfying, clicky tactile feel.

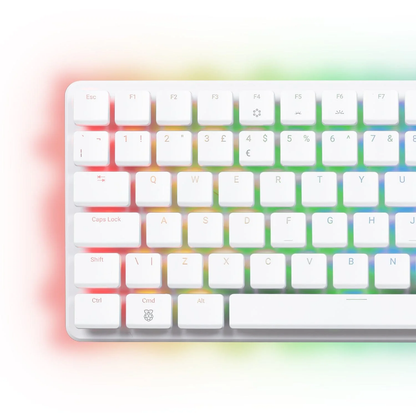

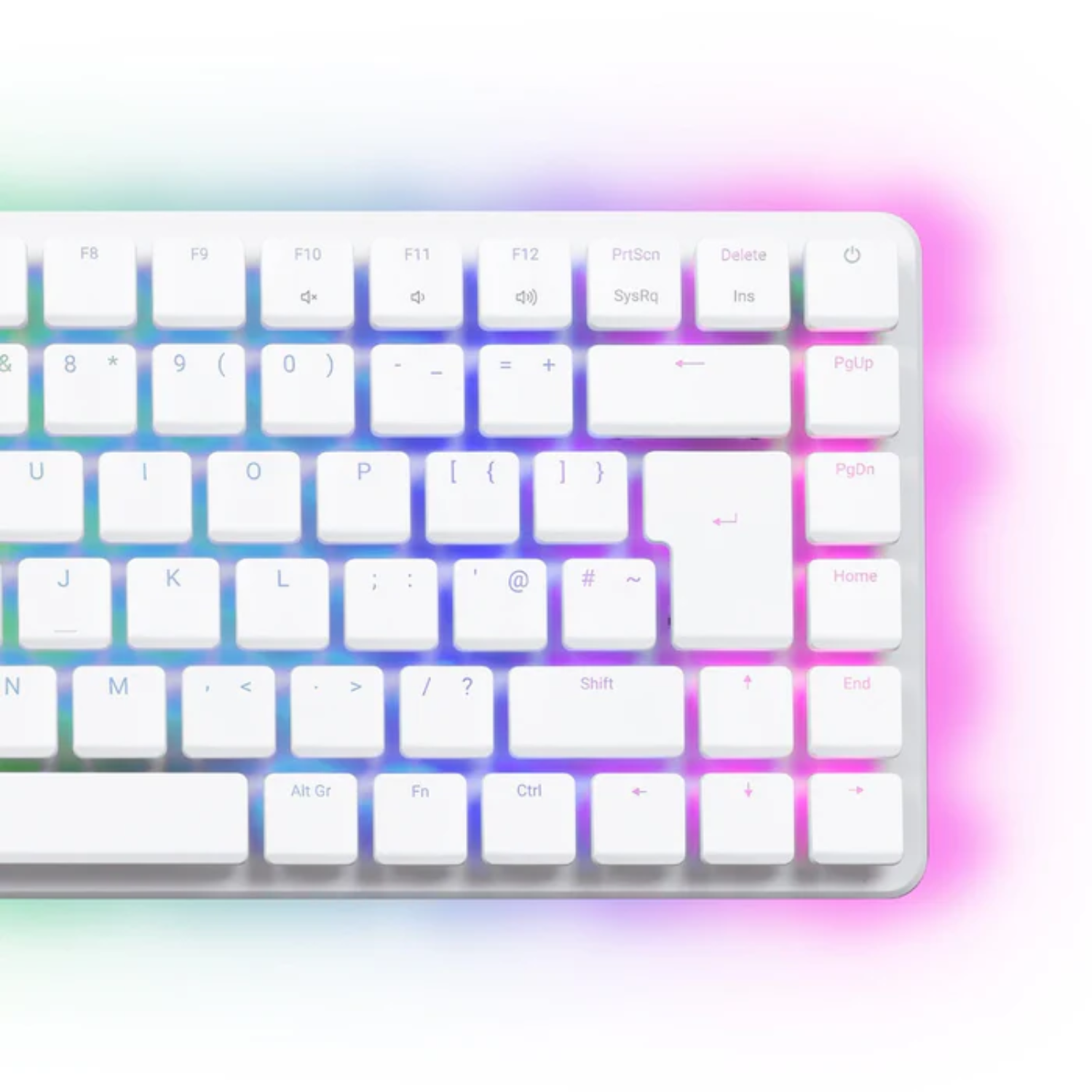

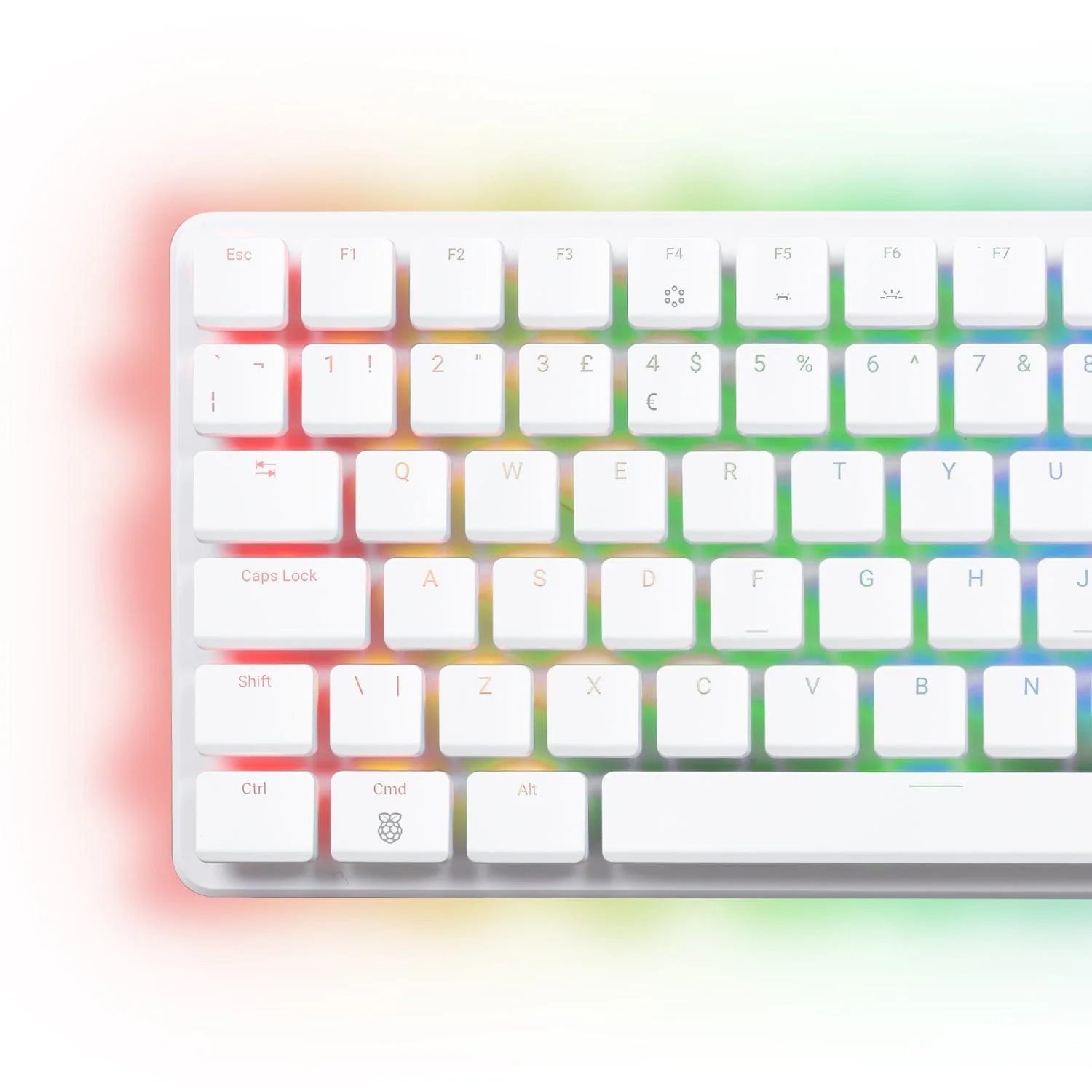

- Customizable Aesthetics: Personalise your setup with low-profile changeable keycaps and programmable RGB LED backlighting for a unique look.
- Ergonomic Design: The high-quality keyboard and US Layout are built directly into the computer chassis for a sleek, compact desktop solution.

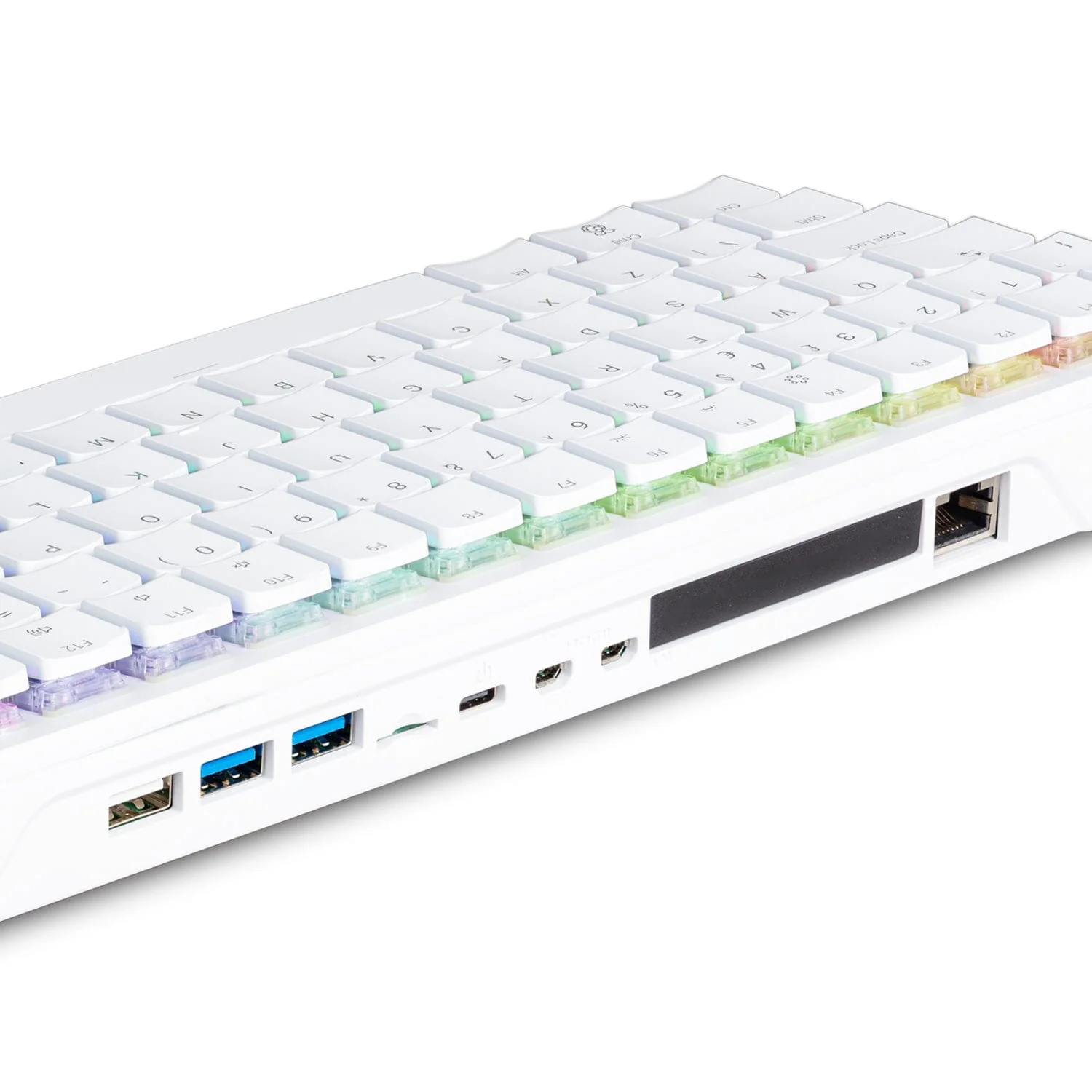

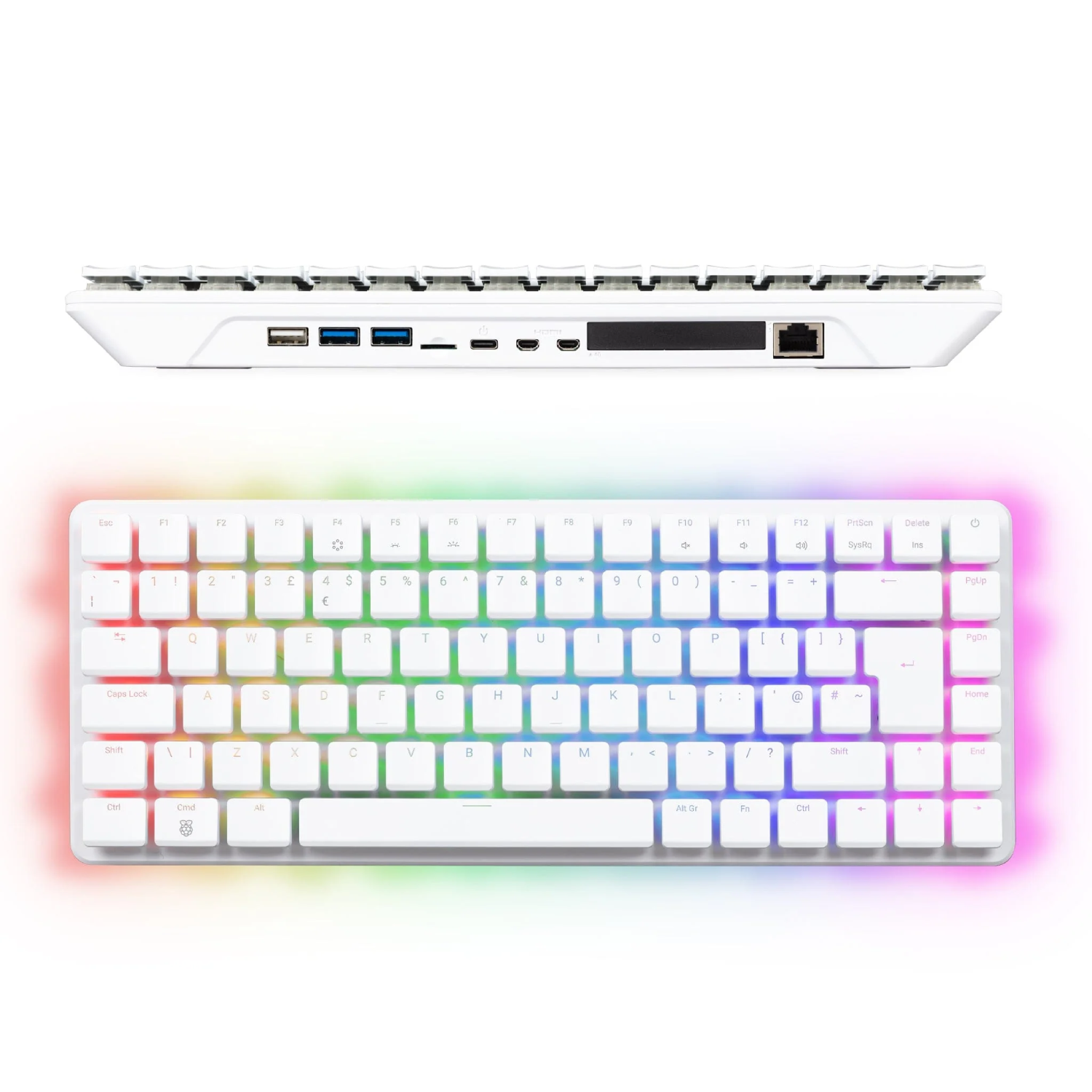

Enjoy full desktop functionality with robust I/O capabilities, including glorious dual 4K display output for impressive multi-monitor setups.
The Raspberry Pi 500+ supports OTA updates (Over-the-Air) to keep your system current and secure.
Specifications:
Processor | 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache |
Memory | 16GB LPDDR4X-4267 SDRAM |
Connectivity | Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi® Bluetooth 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports and 1 × USB 2.0 port 2 × micro HDMI ports |
GPIO | Horizontal 40-pin GPIO header |
Display Output | Supports up to dual 4Kp60 |
Multimedia | H.265 (4Kp60 decode) OpenGL ES 3.0 graphics |
Storage | 256GB Raspberry Pi SSD pre-installed with Raspberry Pi OS Support for M.2 NVMe SSDs up to 2280 (22mm × 80mm) form factor microSD card slot for operating system and data storage |
Keyboard | 84-, 85- or 88-key mechanical keyboard (depending on regional variant) Gateron KS-33 Blue low-profile switches |
Power | 5V DC via USB connector |
Operating Temperature | 0°C to +50°C |
Dimensions | 312mm × 123.06mm × 35.76mm |


Features:
- 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- 16GB LPDDR4X-4267 SDRAM
- Internal 256GB Raspberry Pi SSD
- Support for M.2 NVMe SSDs up to 2280 form factor
- 84-, 85- or 88-key mechanical keyboard (depending on regional variant)
- Gateron KS-33 Blue low-profile switches
- Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
- Bluetooth 5.0, BLE
- Gigabit Ethernet
- 2 × USB 3.0 port and 1 × USB 2.0 port
- Horizontal 40-pin GPIO header
- 2 × micro HDMI® port (supports up to 4Kp60)
- H.265 (4Kp60 decode)
- OpenGL ES 3.1 graphics, Vulkan 1.3
Useful Links:
Package Included:
1 x Raspberry Pi 500+ PC (Unit Only)
