Description:

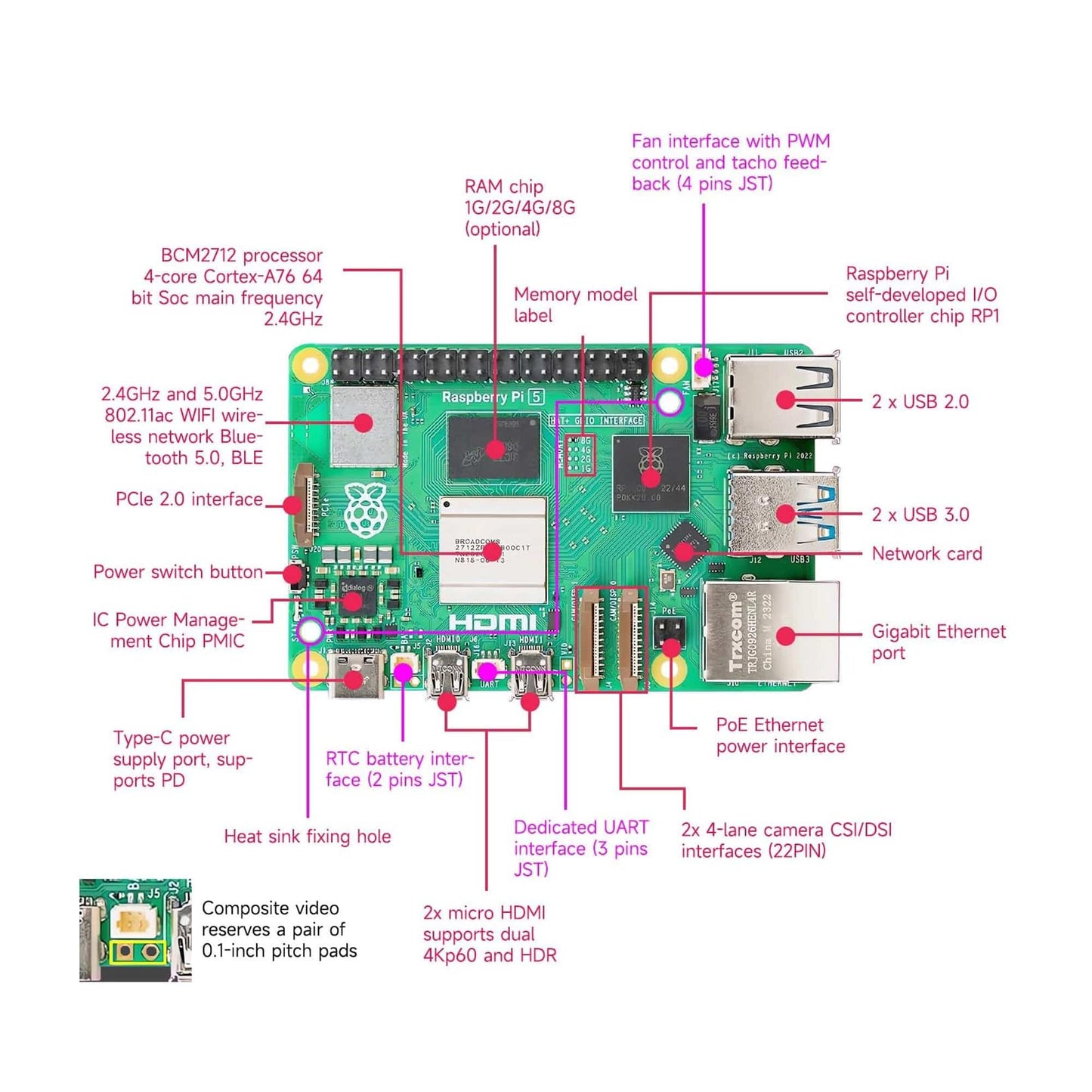

Raspberry Pi 5 builds on the phenomenal success of Raspberry Pi 4. Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU. Other enhancements include improvements to camera i/o, display, and USB interfacing (Aggregate USB bandwidth is more than doubled). The Raspberry Pi 5 delivers a smoother desktop experience and performance that opens the door to new applications for industrial customers.
2x-3x Increased CPU Performance -
Blazing-fast performance is here with the Raspberry Pi 5! Its advanced 64-bit quad-core processor makes everything smoother and quicker.
Driven by the latest Broadcom BCM2712 SoC, the Raspberry Pi 5 delivers a significant 2-3x performance uplift compared to its predecessor.
Improved graphics performance-
Experience stunning visuals! The Raspberry Pi 5 boasts a significant boost in graphics performance thanks to its new 800MHz VideoCore VII GPU.
The Raspberry Pi 5 supports two simultaneous 4Kp60 displays via micro HDMI, delivering a fluid desktop and seamless video streaming.
Enhanced I/O capabilities including PCI-E!
The Raspberry Pi 5 is the first full-size Raspberry Pi computer powered by our very own in-house designed silicon.
The Raspberry Pi 5's new RP1 "southbridge" chip delivers significantly improved peripheral performance and functionality.
- Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals - check out our range of SSD HATs available!
- Peak MicroSD card performance is doubled through support for the SDR104 high-speed mode.
- Single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals such as the Raspberry Pi M.2 HAT+, Raspberry Pi SSD Kit and Raspberry Pi AI HAT+
Including dual camera/display (CSI/DSI) ports-
The Raspberry Pi 5's new RP1 chip triples MIPI bandwidth, enabling versatile dual CSI/DSI ports to connect any combination of up to two cameras or displays.
The Raspberry Pi 5's boosted image performance and versatile dual display/camera support create exciting new project opportunities and deliver significant advantages for commercial and industrial users.
With the Power button (finally!)-
The wait is over! Raspberry Pi 5 finally delivers the dedicated onboard power button that makers and enthusiasts have been asking for! Enjoy this much-requested convenience.
With RTC (Real-time clock)-
Never lose track of time! The Raspberry Pi 5 features a built-in real-time clock (RTC), keeping date and time accurate even when powered off (with a backup battery).
A dedicated header is ready for an optional RTC backup battery (available separately).
Dedicated UART port-
Debug and control your Raspberry Pi 5 effortlessly! The new dedicated UART port allows for headless operation without using your valuable GPIO pins.
The dedicated UART header is designed for quick and convenient debugging with the Raspberry Pi Debug Probe.
We also sell a handy Raspberry Pi 5 Starter Kit with everything you need to get up and running.
Specifications:
- CPU: 2.4GHz quad-core, 64-bit Arm Cortex-A76, with 512KB L2 cache and a 2MB shared L3 cache.
- GPU: 800MHz VideoCore VII GPU supporting OpenGL ES 3.1, Vulkan 1.2.
- RAM: LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB or 16GB).
- WiFi: Dual band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi.
- Bluetooth: Bluetooth 5.0 / Bluetooth Low Energy (BLE).
- Storage: Micro SD card slot, with support for high-speed SDR104 mode.
- USB 3.0: 2 x USB 3.0 ports, supporting simultaneous 5Gbps operation.
- USB 2.0: 2 x USB 3.0 ports.
- Ethernet: Gigabit Ethernet, with PoE+ support (requires PoE+ HAT).
- HDMI: 2 x micro-HDMI® ports (up to 4kp60 supported) HEVC decoder and HDR support.
- DSI/CSI: 2 × 4 lane MIPI camera/display transceivers (3x bandwidth improvement).
- PCle: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter).
- Power: 5V/5A DC power via USB-C, with Power Delivery support.
- GPIO: Raspberry Pi standard 40-pin header (Backwards compatible).
- RTC: Real-Time Clock (RTC), powered by an external battery.
- On/Off Switch: On-board power button
Features:
- The Raspberry Pi 5 is the latest model of everyone's favourite single-board computer.
- The Raspberry Pi 5 sees significant upgrades and speed increases (2-3x in CPU performance) over its predecessor, the Raspberry Pi 4 Model B. A full feature comparison can be found here.
- The Raspberry Pi 5 board is available in 2GB, 4GB, 8GB or 16GB versions.
- It offers performance that rivals entry-level PCs at a fraction of the cost.
- The Raspberry Pi 5 offers the perfect platform for learning/teaching; coding, Linux, IoT systems, streaming media, playing games, automated domestic and industrial applications, or your complete desktop solution and much more.
- It is the first time the flagship product has features Raspberry Pi silicon, the RP1 I/O controller chip has been designed in-house at Raspberry Pi HQ.
- Each board will include a marking on the upper side of the PCB to identify what memory density is fitted to a specific board.
- All boards now carry a unique serial number on the PCB.
Useful Links:
Package Included:
1 x Raspberry Pi 5 Single Board Computer
