Description:

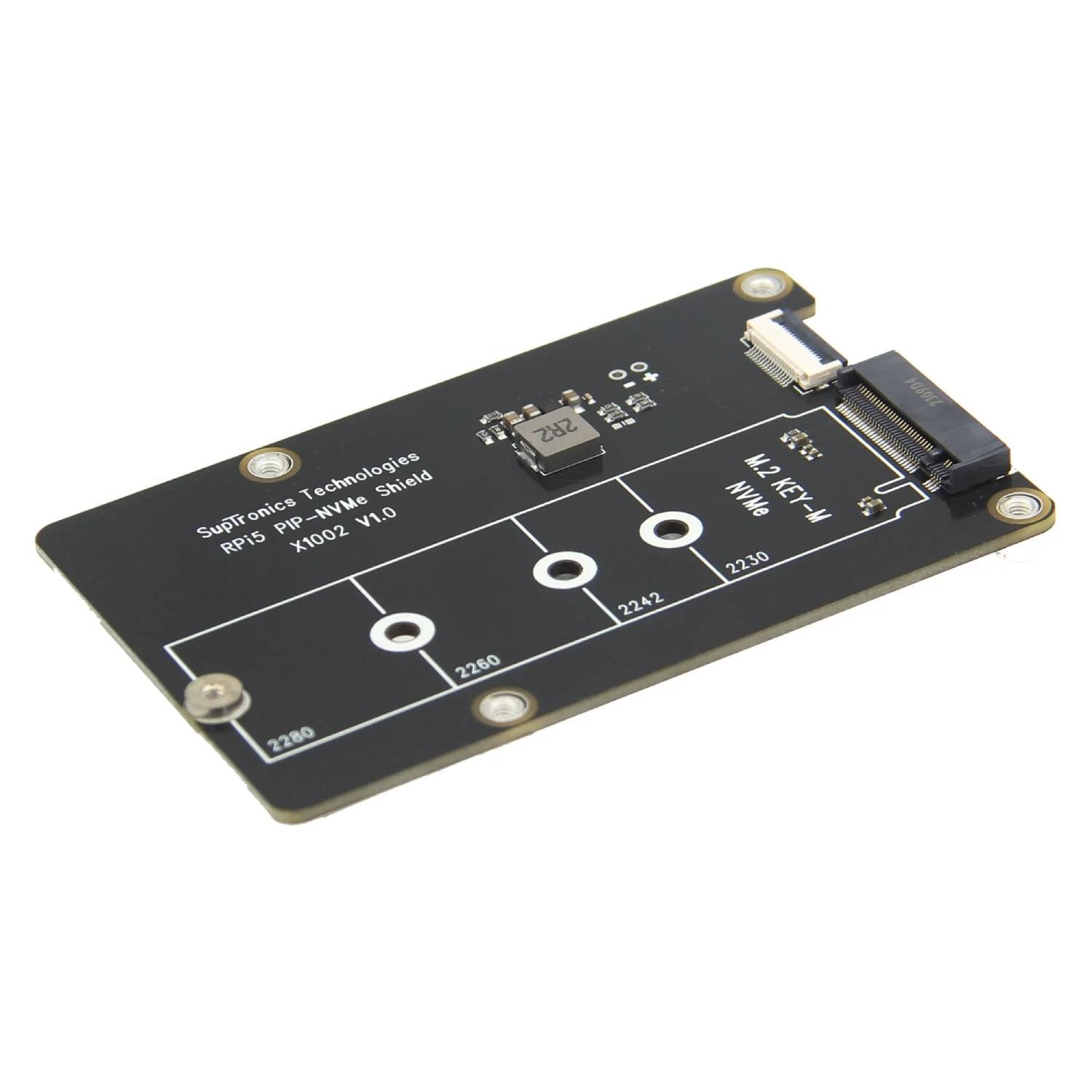

The X1002 V1.0 shield transforms your Raspberry Pi 5 into a high-performance storage powerhouse. This PCIe Peripheral Board (PIP) utilizes the RPi 5's new PCIe connection to interface with NVMe M.2 SSDs. By bypassing the limitations of traditional storage methods, the X1002 V1.0 enables ultra-fast data transfer speeds and dramatically reduces boot times, unlocking the full potential of your Raspberry Pi 5.
Specifications:
- Model: X1002
- Model Type: NVMe
- Hardware Interface: PCI
Features:
- HAT Compatibility: Works seamlessly with other Raspberry Pi HATs.
- Easy TF Card Access: Features a custom FPC cable for convenient TF card use.
- Active Cooling Support: Compatible with official active coolers for enhanced thermal management.

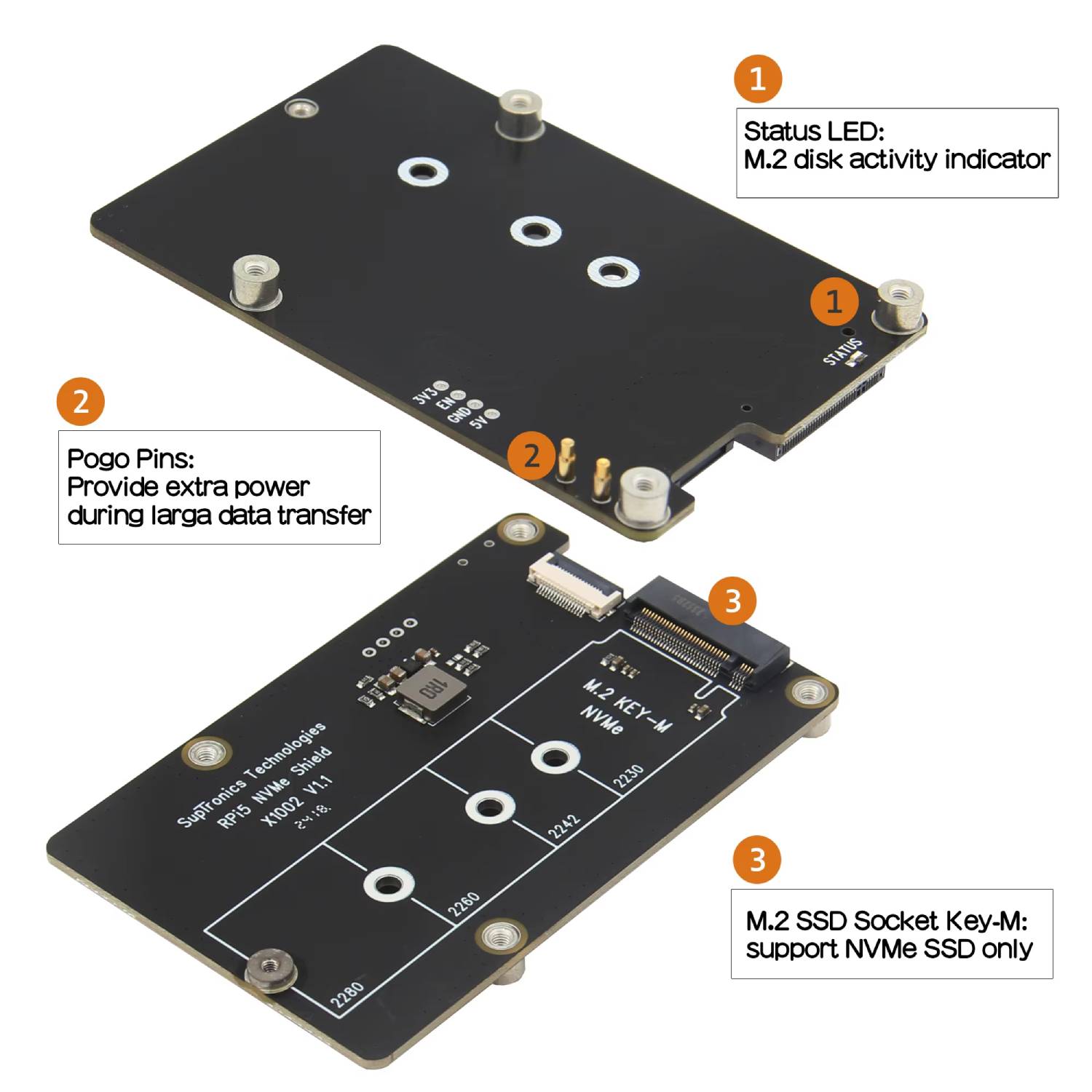

- Status LED: Includes an "ACT" LED indicator for clear status feedback.

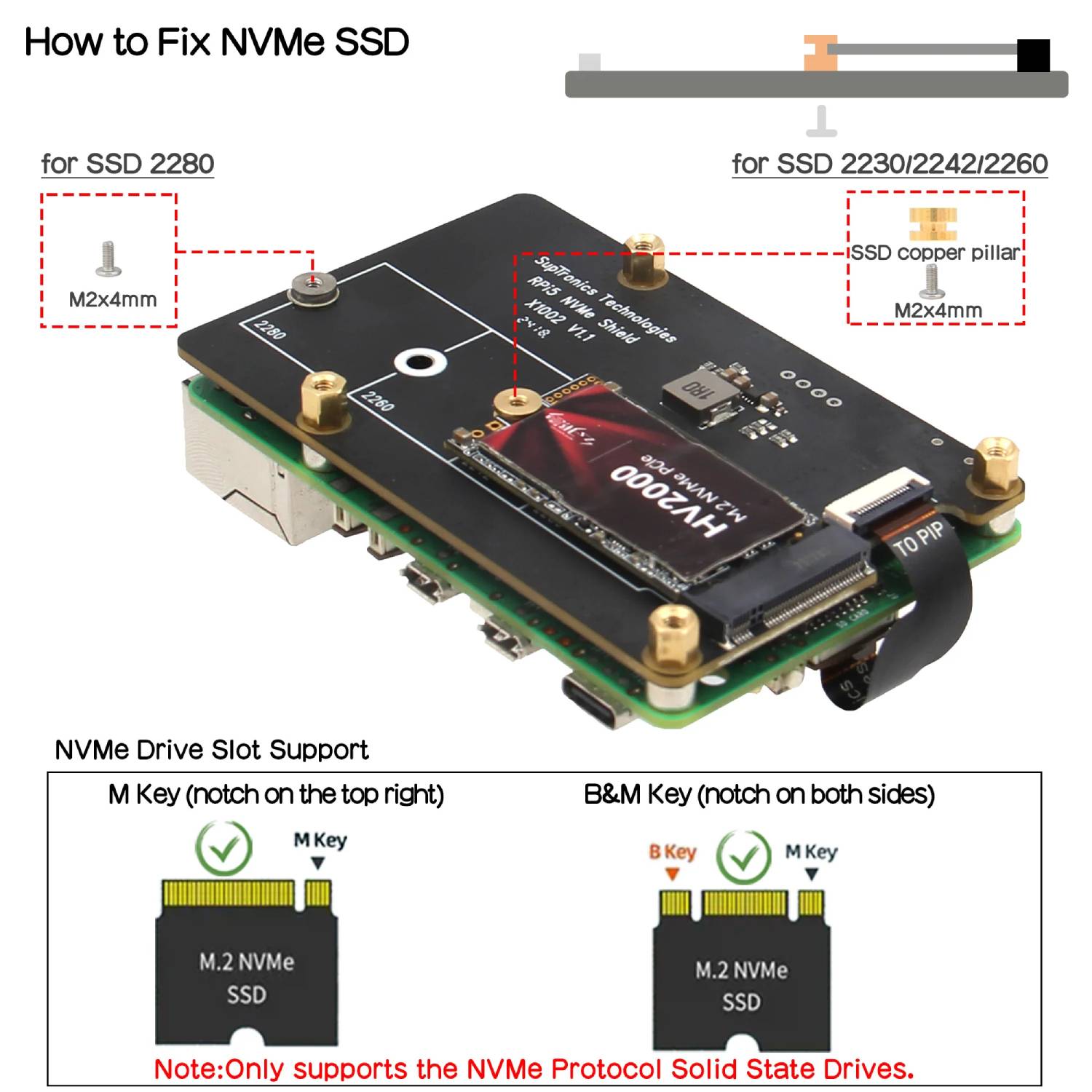

- Wide SSD Support: Supports various NVMe M.2 SSD sizes (2230, 2242, 2260, and 2280).
- PCIe Powered: Powered directly from the PCIe ribbon cable (up to 5W).
Notes:
- Compatible with M.2 NVMe SSDs
- Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
- Older NVMe drives with less efficient flash media may not perform as well as newer drives
- New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry
- Pi before they will be accessed in the Explorer.

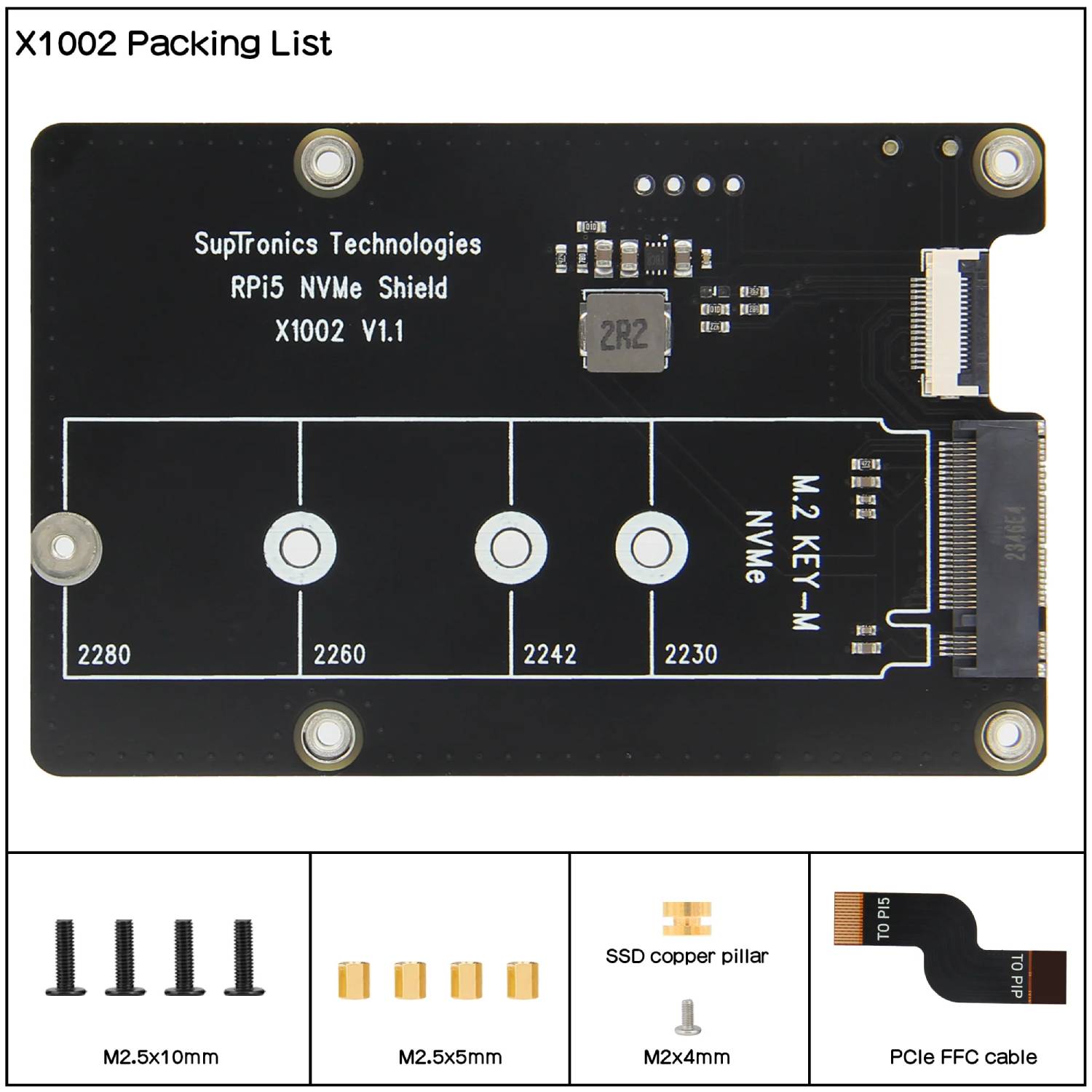

Package Included:
1 x Raspberry Pi 5 PCIe to M.2 NVMe Adapter
