Description:

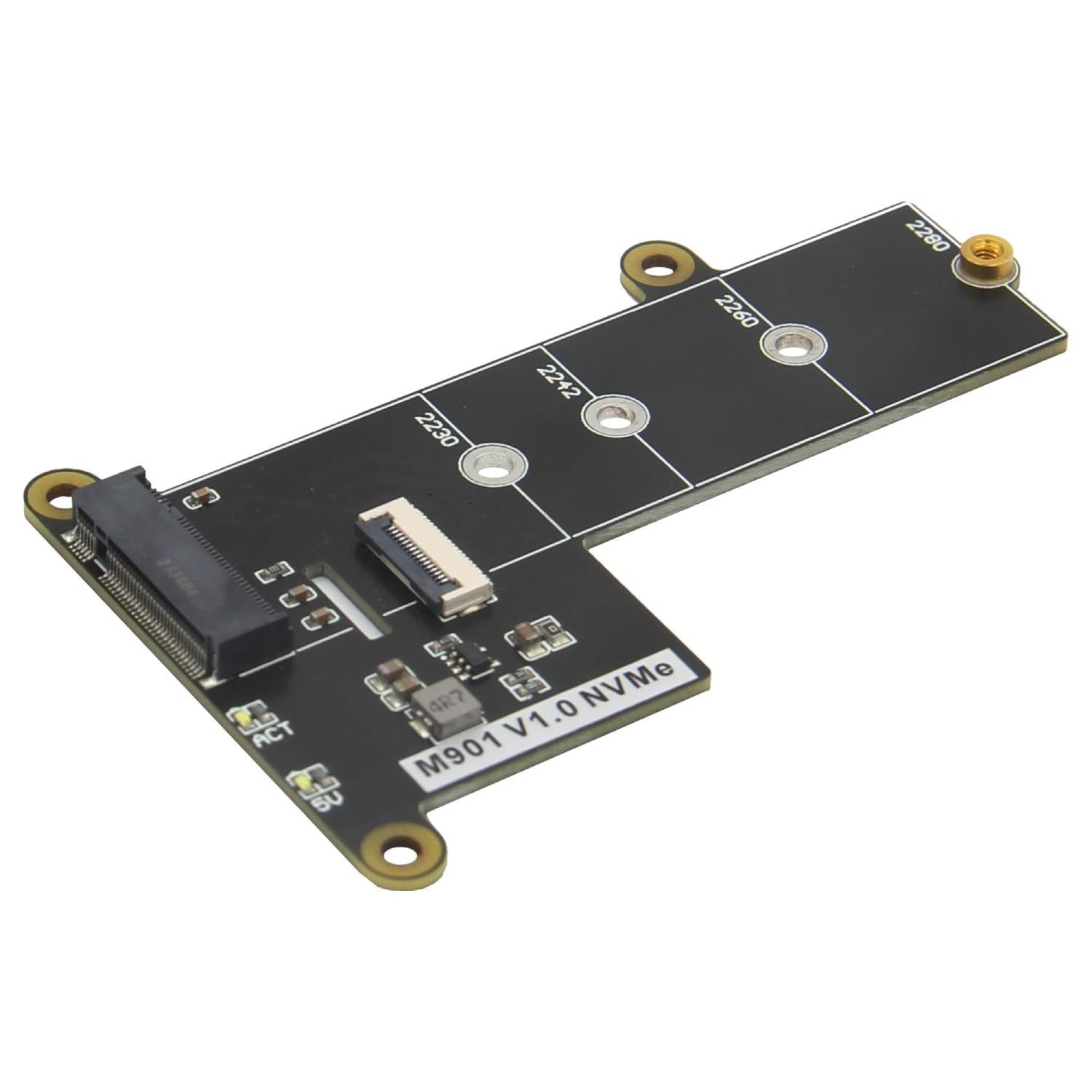

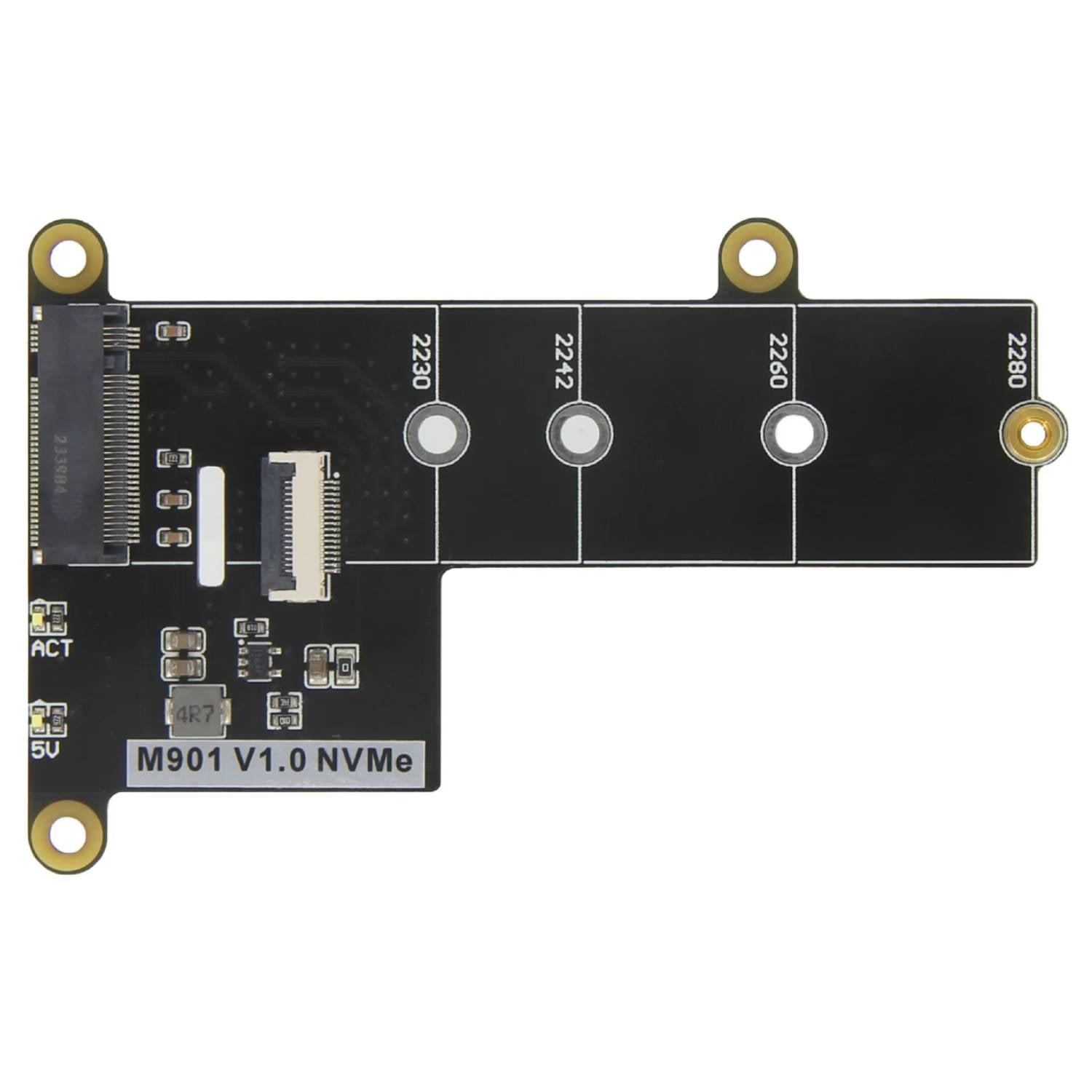

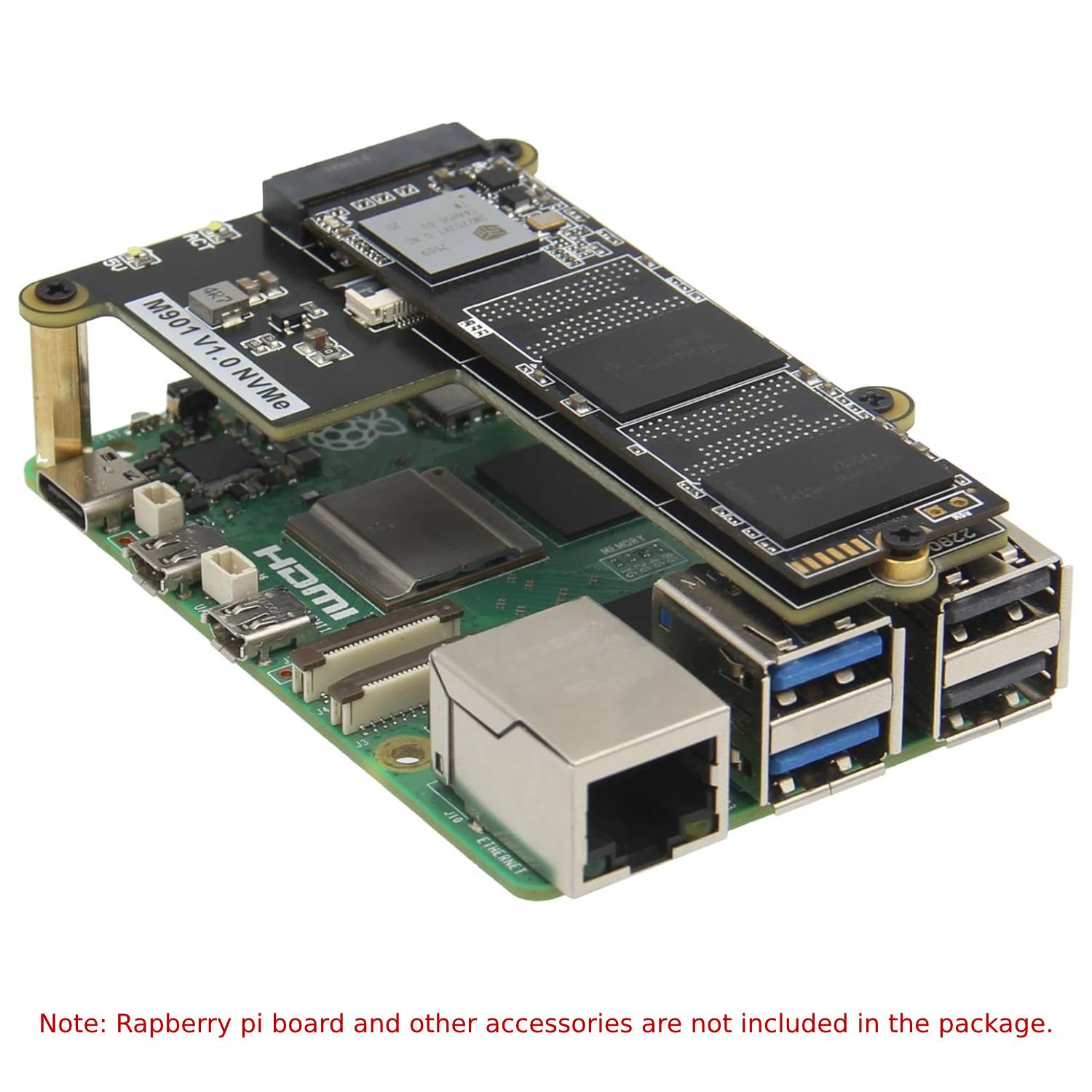

Unlock the full potential of your Raspberry Pi 5 with the M901, an NVMe M.2 SSD PCIe Peripheral Board (PIP). This shield utilizes the Pi 5's high-speed PCIe interface to connect NVMe M.2 solid-state drives, providing significantly faster data transfer speeds and dramatically reducing boot times compared to traditional storage solutions.
Following the Raspberry Pi Foundation's new "PIP" (PCIe Peripheral Board) design guidelines, the M901 is designed for seamless integration and future compatibility with Raspberry Pi OS updates. While the PCIe ecosystem on the Pi 5 is still evolving, the M901 offers a robust and forward-looking solution for high-performance storage.
Specifications:
- Model: M901
- Model Type: NVMe
- Protocol: USB, Ethernet
- USB Type C, Ethernet, HDMI
Features:

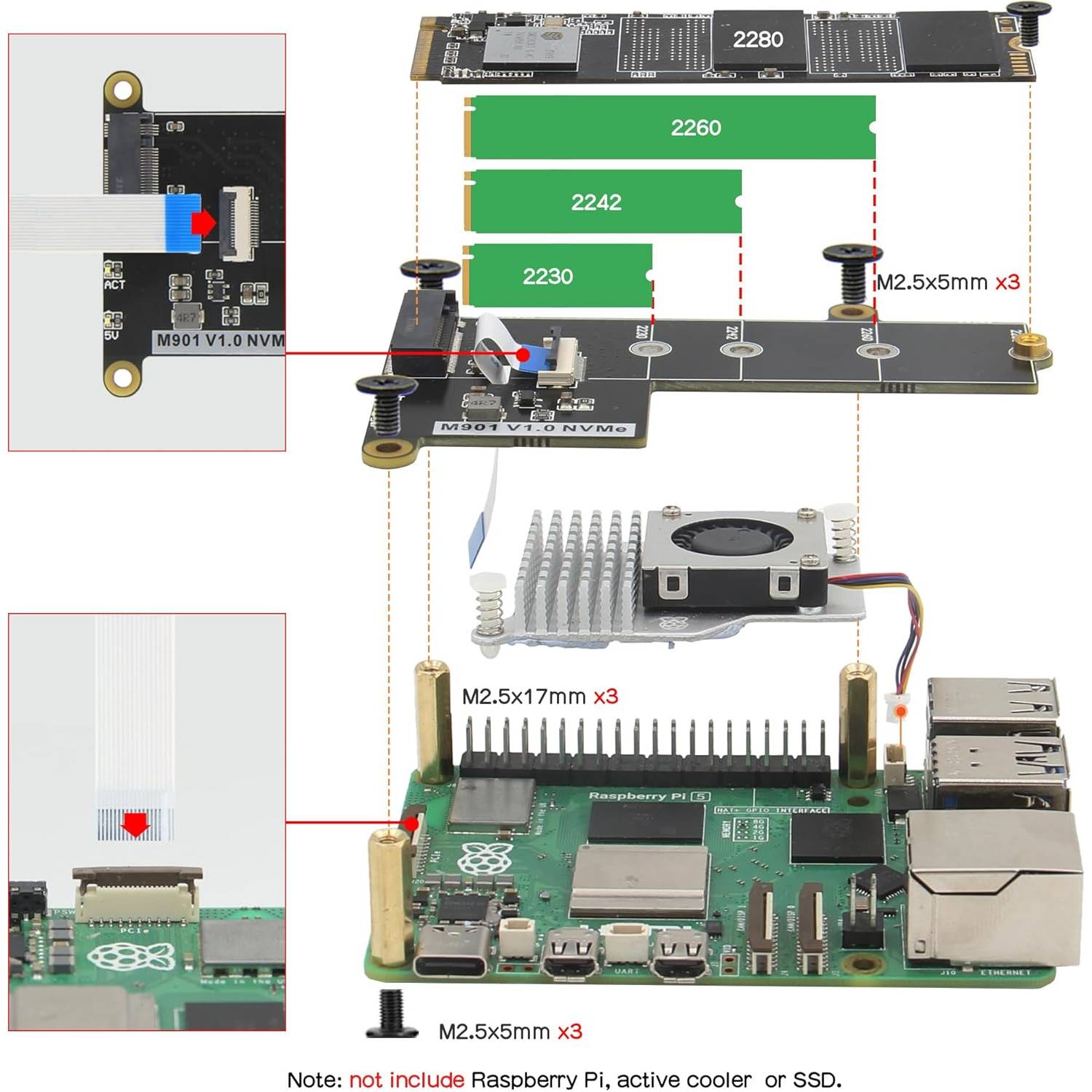

- Minimalist design, easy installation: Streamlined design for simple setup.
- HAT compatible: Works seamlessly with other Raspberry Pi HATs.
- Active cooler support: Accommodates official Raspberry Pi active coolers.
- SSD activity LEDs: Clear indicators for power (on) and read/write activity (flashing).
- Supports multiple M.2 sizes: Compatible with 2230, 2242, 2260, and 2280 NVMe M.2 SSDs.
- PCIe bus-powered: Draws power directly from the Raspberry Pi 5's PCIe FFC ribbon (up to 5W).

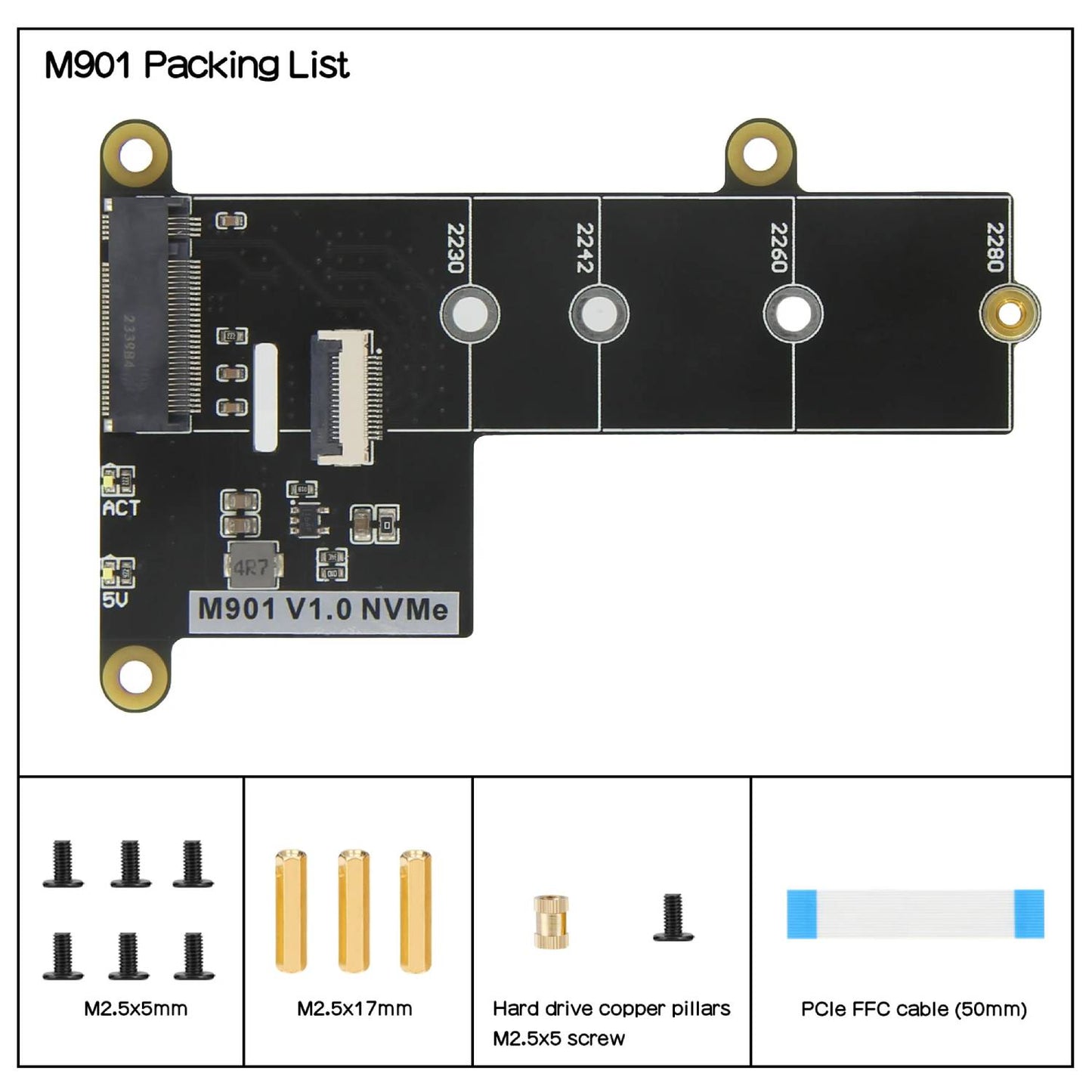

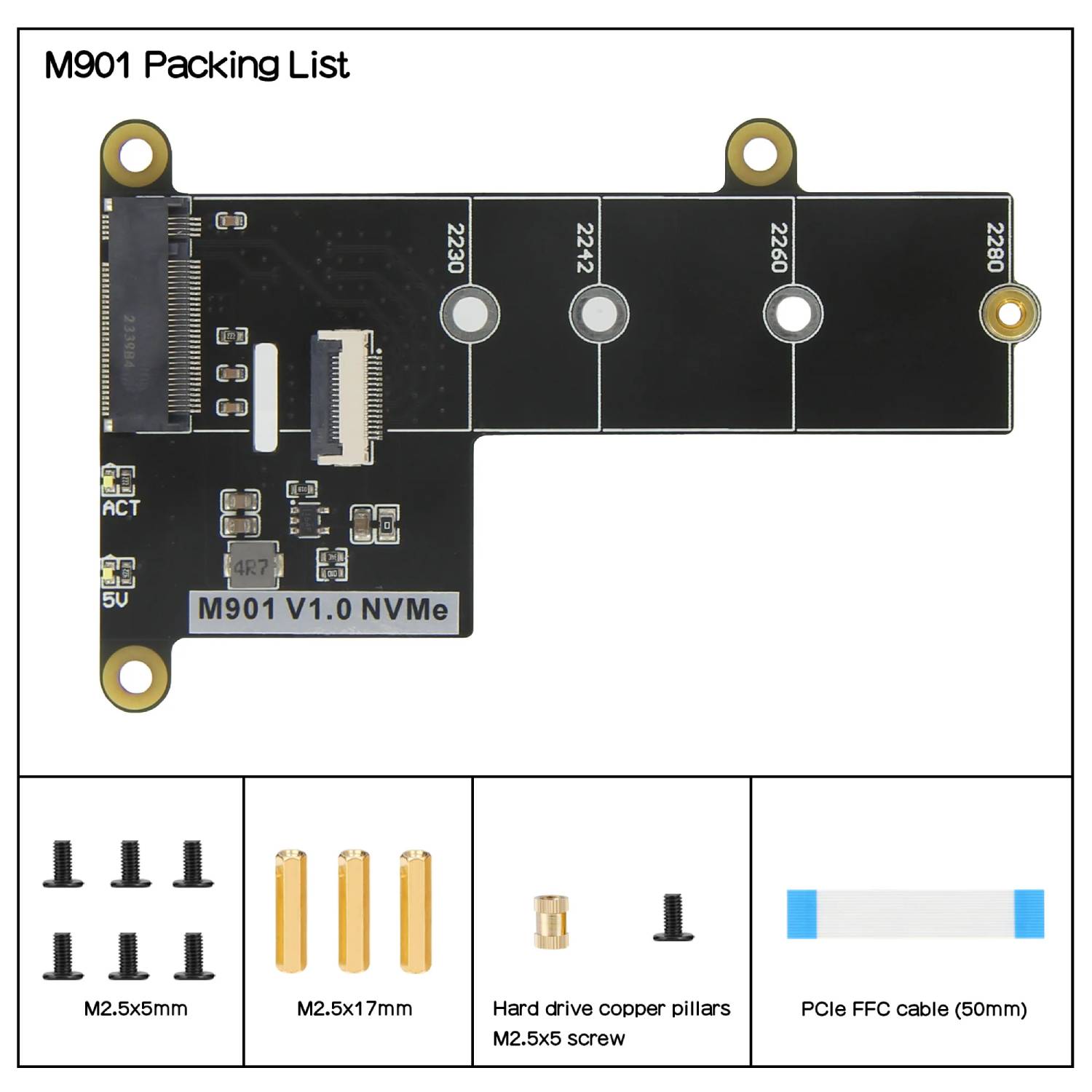

Package Included:
1 x Raspberry Pi 5 M.2 NVMe SSD Adapter M901
