Description:
This Raspberry Pi 5 Inch Touchscreen Display is designed for Raspberry Pi 3 2 model B RPI 1 b + a + can't work with Raspberry Pi zero directly Can work with all standard HDMI devices but the touch function is just for Raspbian and Ubuntu systems.

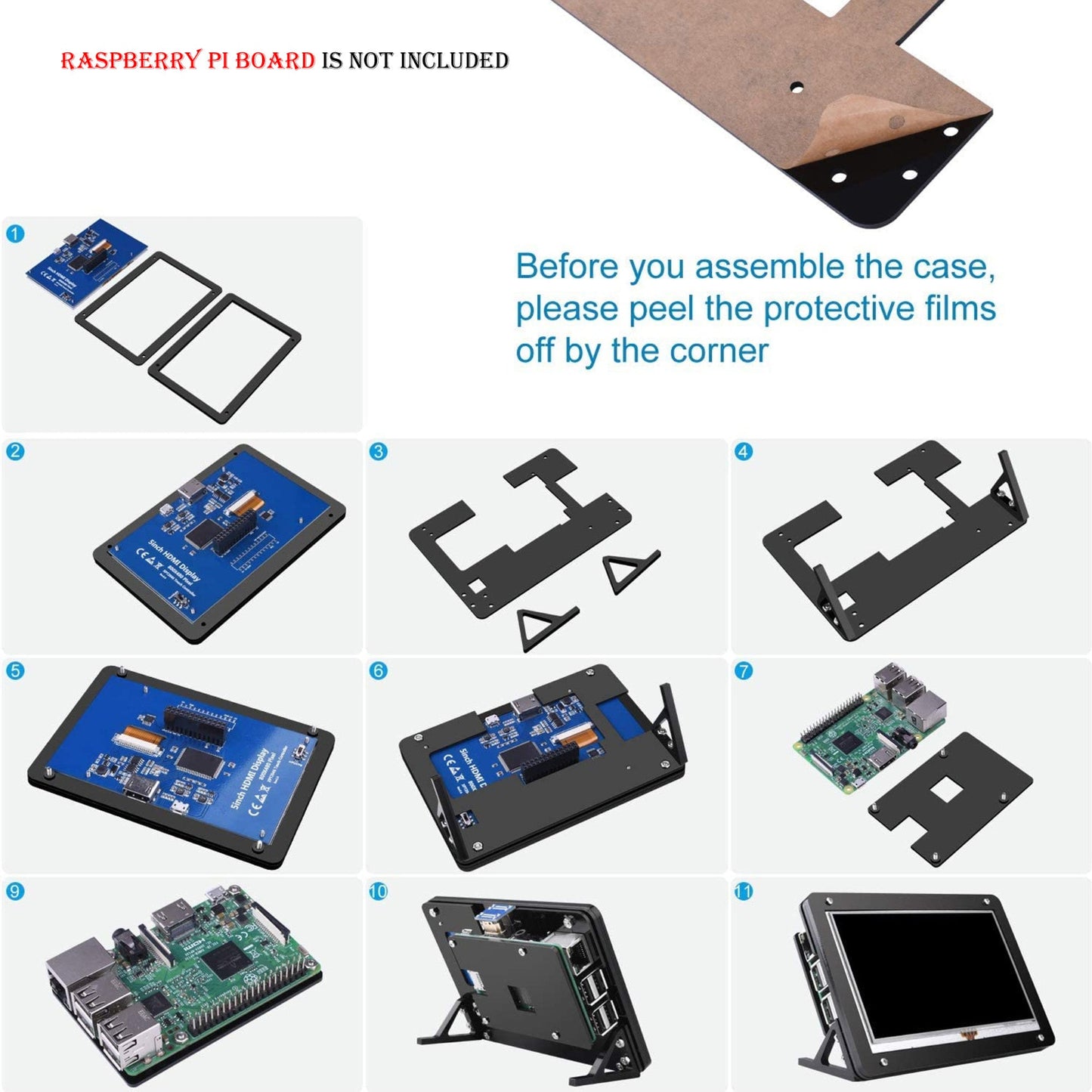

This Raspberry Pi screen is with 800 x 480 resolution We designed a protective case for it and it needs you to assemble it When the 5-inch monitor works with RPI it doesn't need an external power supply This Raspberry Pi screen power supplied and can be touched by GPIO display by HDMI If it is powered by external power there will be no touch function and please use a 5V2A power supply to power it

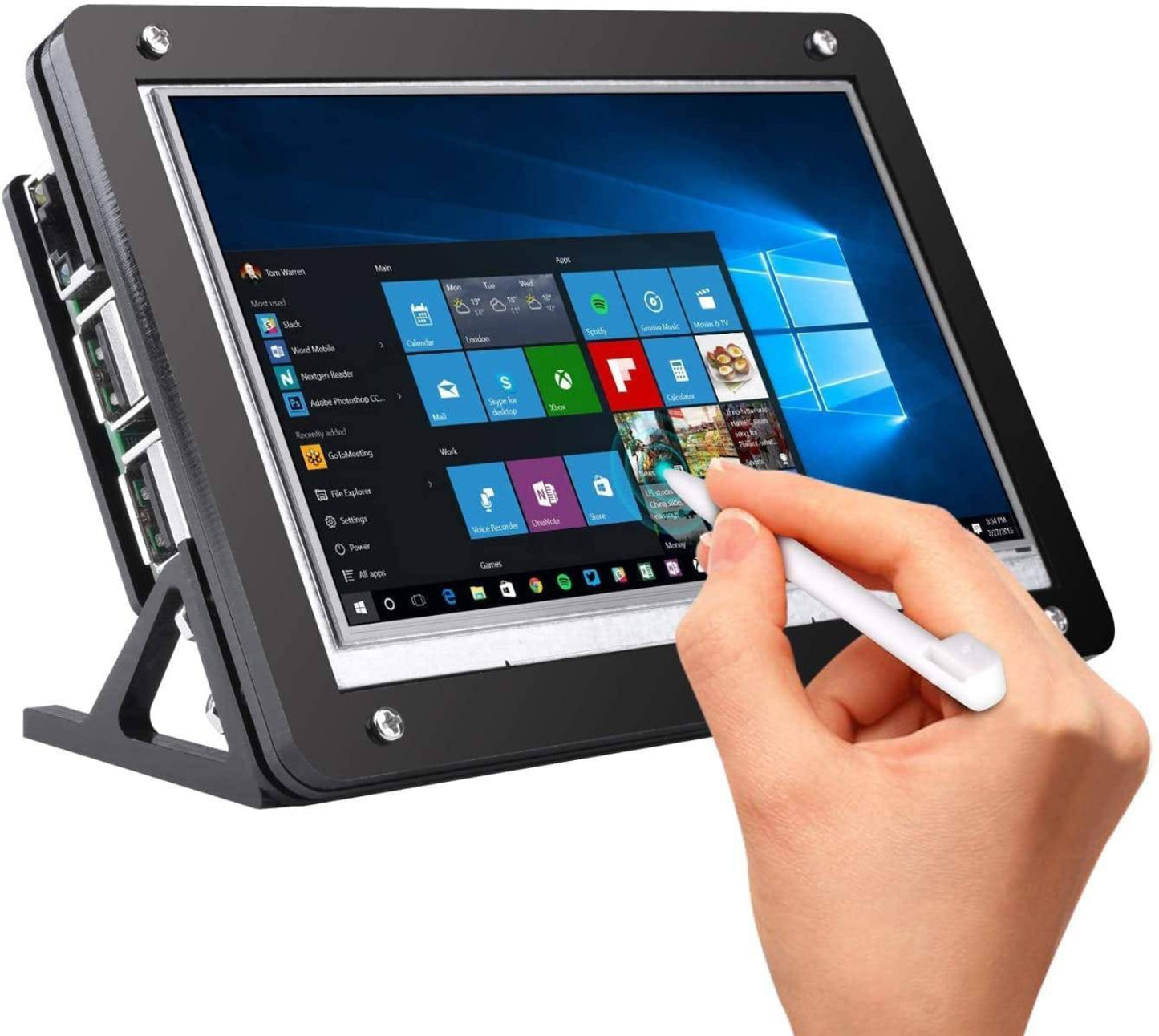

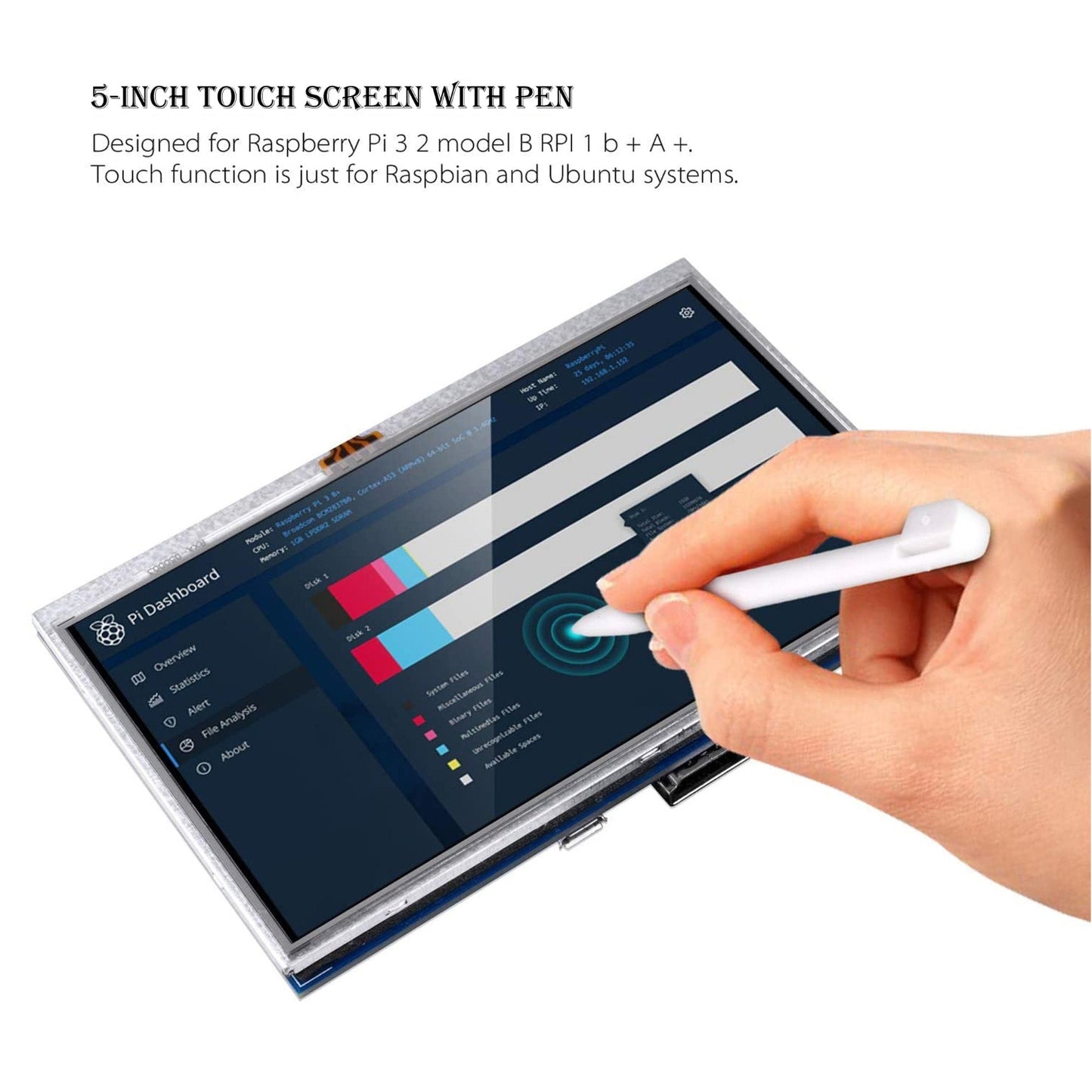

The screen is a resistive touch screen that needs a touch pen to touch it it is hard to touch with a finger The touch pen is for easily controlling and using.
Specifications:
- Item Type: Display
- Display Size (Inch): 5
- Touchscreen (Y/N): Yes
- Resolution: 800×480
- LCD Type: TFT Transmissive Normal White super wide viewing angle
- LCD Panel: HannStar HSD050IDW1
- Interface: 8/16bit parallel bus interface
- PCB Color: Blue
Features:
- 5.0" TFT LCD Module, Resolution 800x400, SSD1963 Controller

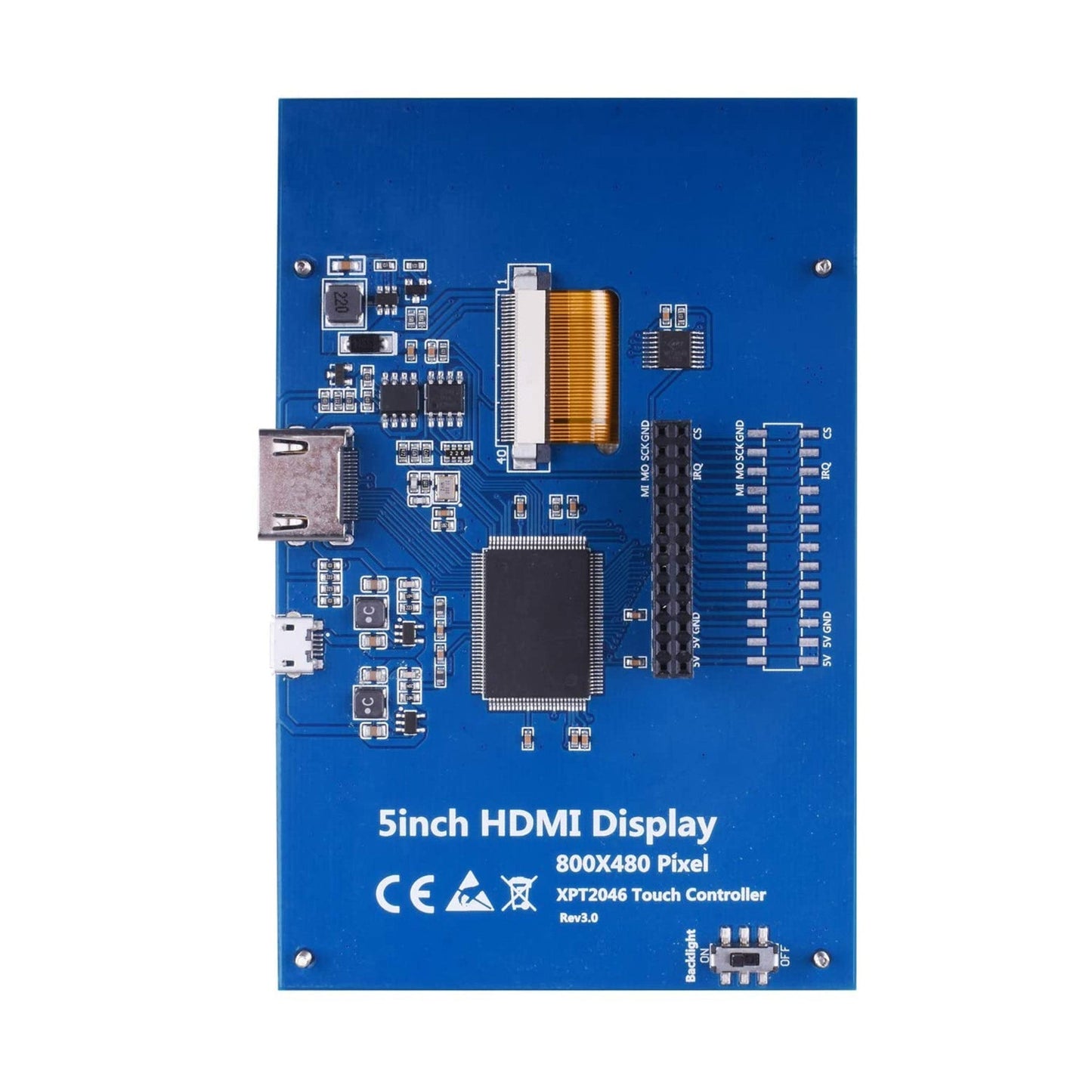

- Onboard DC-DC Boost regulator TPS61040 to provide power supply to LCD backlight
- Standard 2x20 2.54mm pin header for connection to MCU/development board

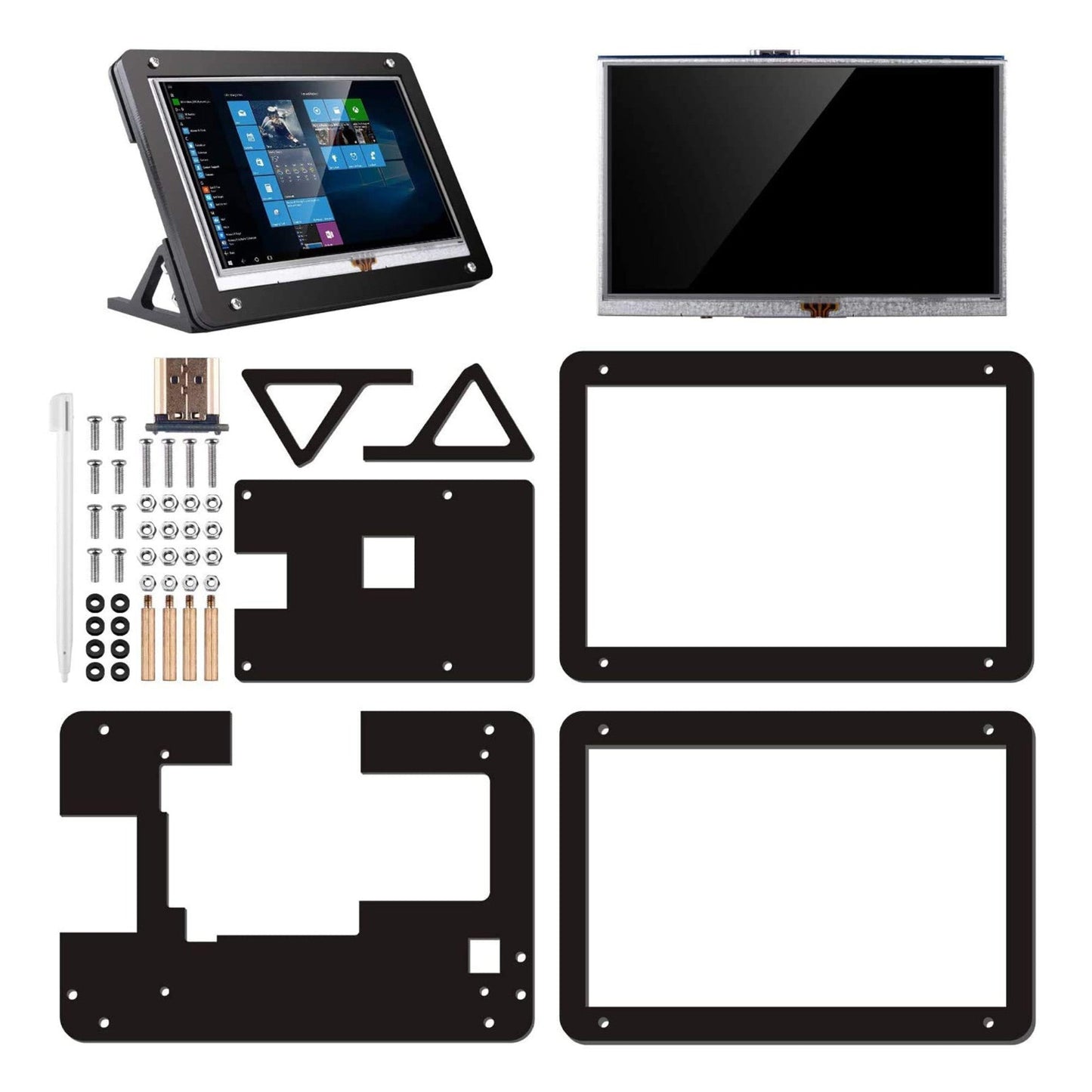

Package Included:
- 1 x 5-inch Touch LCD Display
-
1 x HDMI connector
- 1 x Touch pen
- 1 x Protective case
- 1 x Manual instruction
