- Material: Aluminium
- Colour: Black
Description:
This Raspberry Pi 4 Model B embedded armour aluminium alloy heatsink solve Pi 4 excessive heat generation problem when using Raspberry Pi 4 Model B with its expansion board. This heatsink can also be used with a cooling fan above. The Embedded Armor Aluminum Alloy Heatsink Radiator is 7mm high (designed with negative tolerance) and is equipped with M2.5*5+5 copper spacers; so the total height is 12mm, which can support most of Raspberry Pi 4 expansion boards; if you use expansion board with other height, you only need to replace the copper spacers with the right height.
Specification:
- Material: Aluminium
- Colour: Black
Features:
- Only supports Raspberry Pi 4 Model B;
- Supports cooling down the Raspberry Pi 4 board when using the Pi 4 expansion board;
- Equipped with a variety of screws and copper spacers;
- Raspberry Pi HAT positioning hole is M2.5 internal thread; (this design is convenient to fix)
- Supports the installation of 25mm fans; a Cooling fan can be added when the heat dissipation of a single aluminium heat sink is not enough so that all heat dissipation problems can be solved.
Package Included:

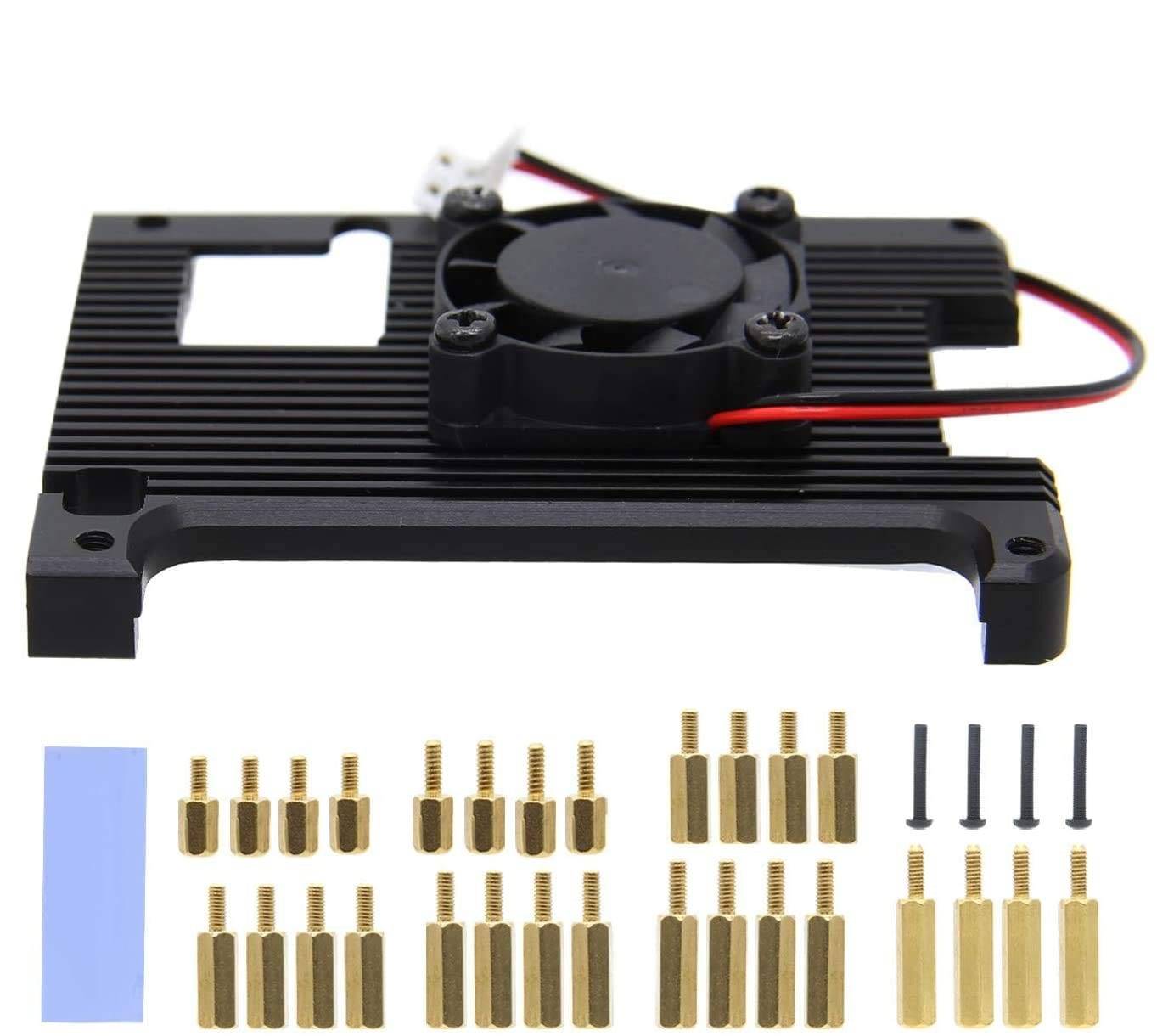

1 x Raspberry Pi 4 Embedded Heatsink with Fan (P165-A), Raspberry Pi 4B Armor Aluminum Radiator with 5V Cooling Fan
