Description:

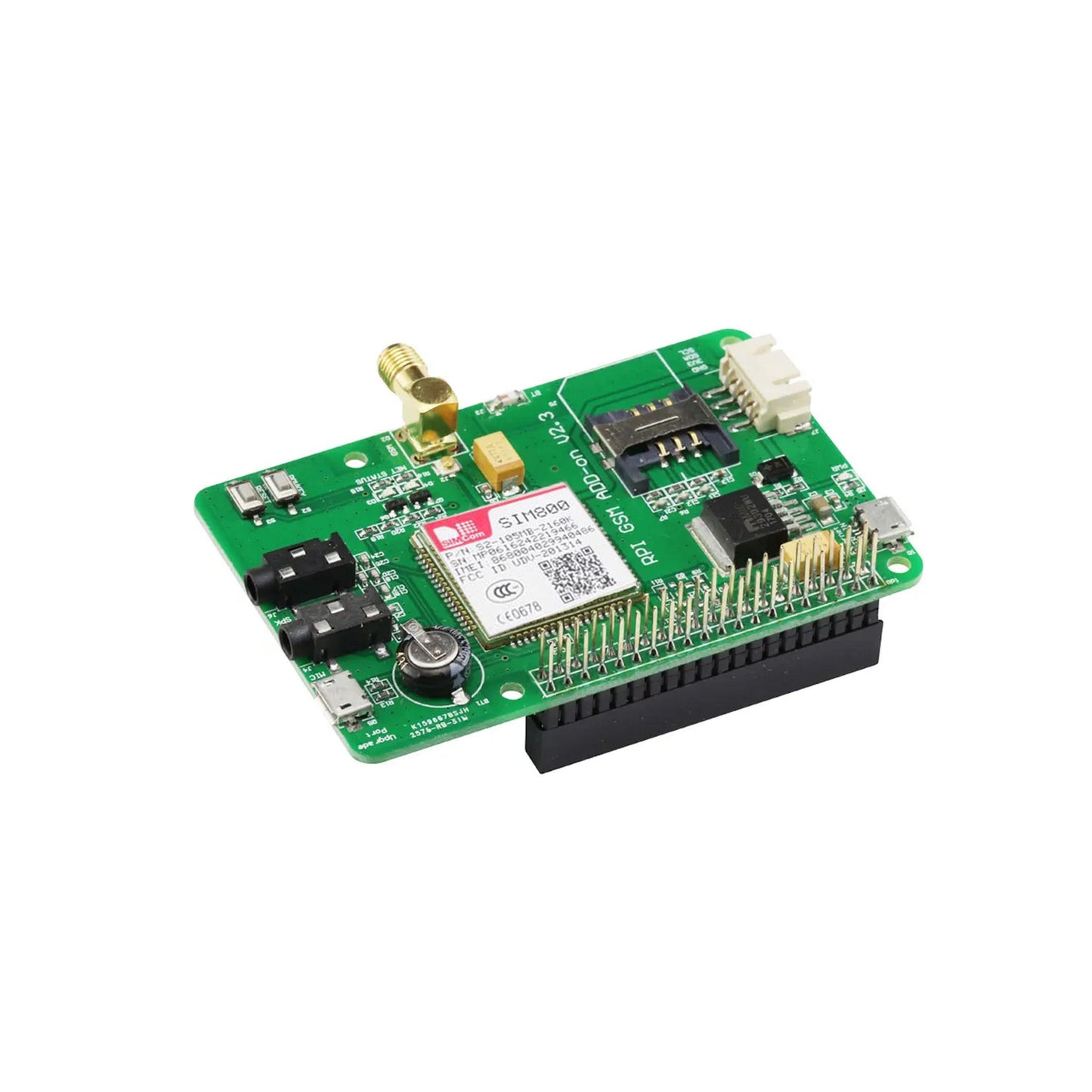

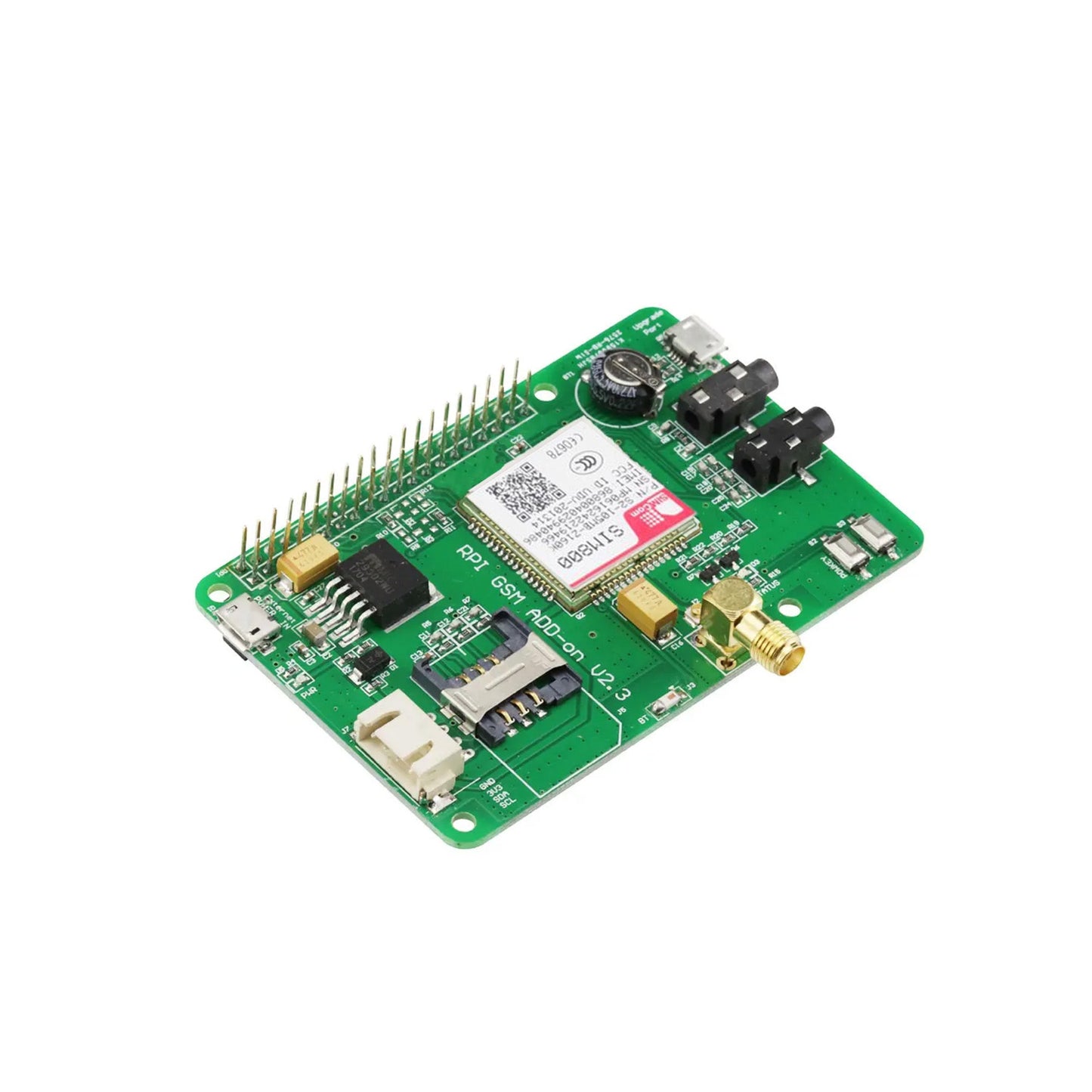

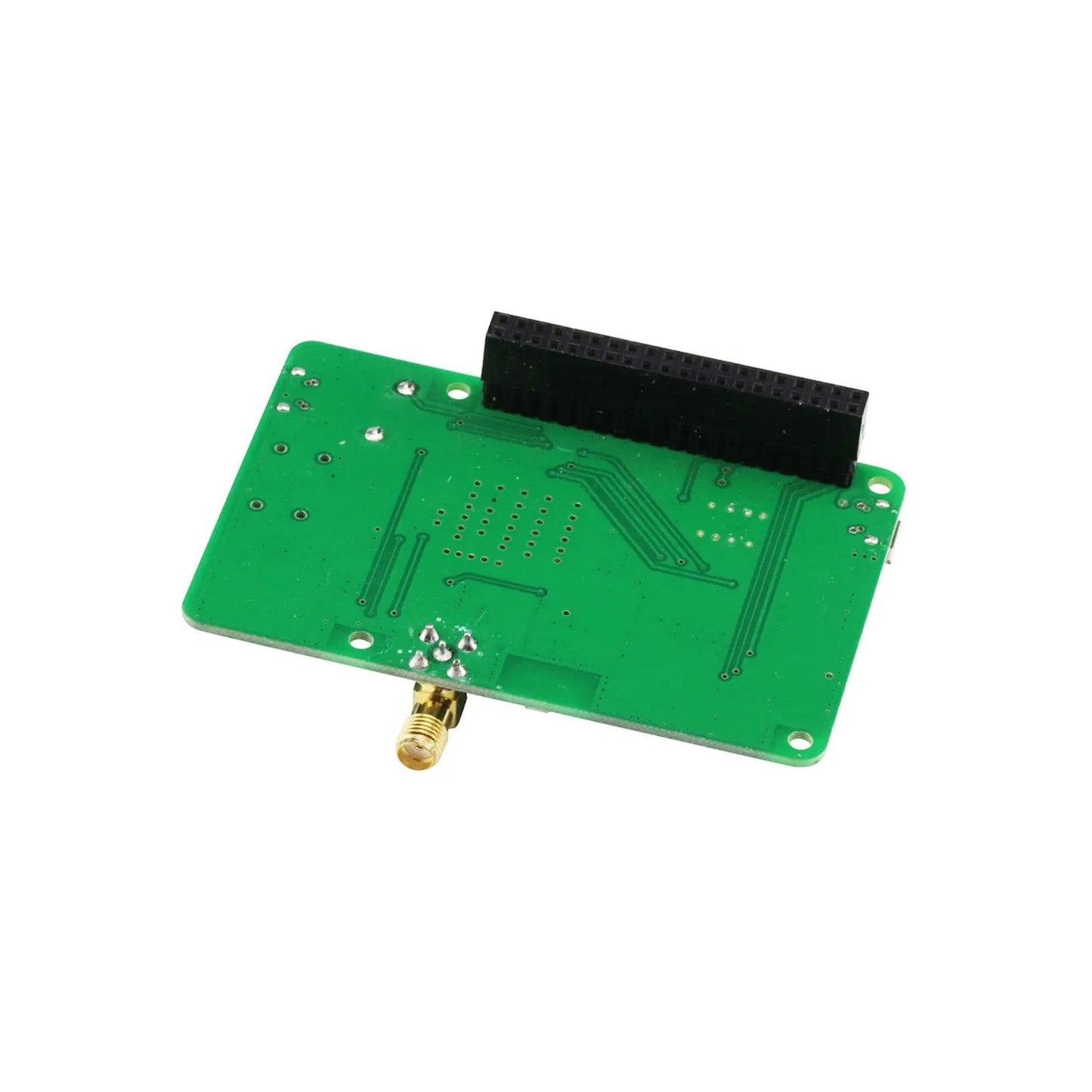

Raspberry PI SIM800 GSM/GPRS Module Add-on V2.0 is customized for the Raspberry Pi interface based on the SIM800 quad-band GSM/GPRS/BT module. AT commands, can be sent via the serial port on Raspberry Pi, thus functions such as dialing and answering calls, sending and receiving messages and surfing online can be realized. Moreover, the module supports powering on and resetting via software.
Specifications:
- Operation Level: Digital 3.3V DC
- Operation Temperature: -40°C to +85 °C
- Interface: UART
- Baud rate: 9600(default)
Features:
- Quad-Band 850/ 900/ 1800/ 1900 MHz
- GPRS multislot class 12
Indicators:
- PWR (Power): When there is a normal supply to the board, the indicator keeps on.
- 8STATUS (SIM800 status): When SIM800 works normally, the indicator keeps on.
- NET (SIM800 network status): used to indicate network status, the working status of the indicator is as below:
|
Status |
SIM800 behavior |
|
OFF |
SIM800 does not work |
|
64ms on/800ms off |
SIM800 does not find network |
|
64ms on/3000ms off |
SIM800 registers the network |
|
64ms on/300ms off |
GPRS communicates |
Useful Link:
Package Included:

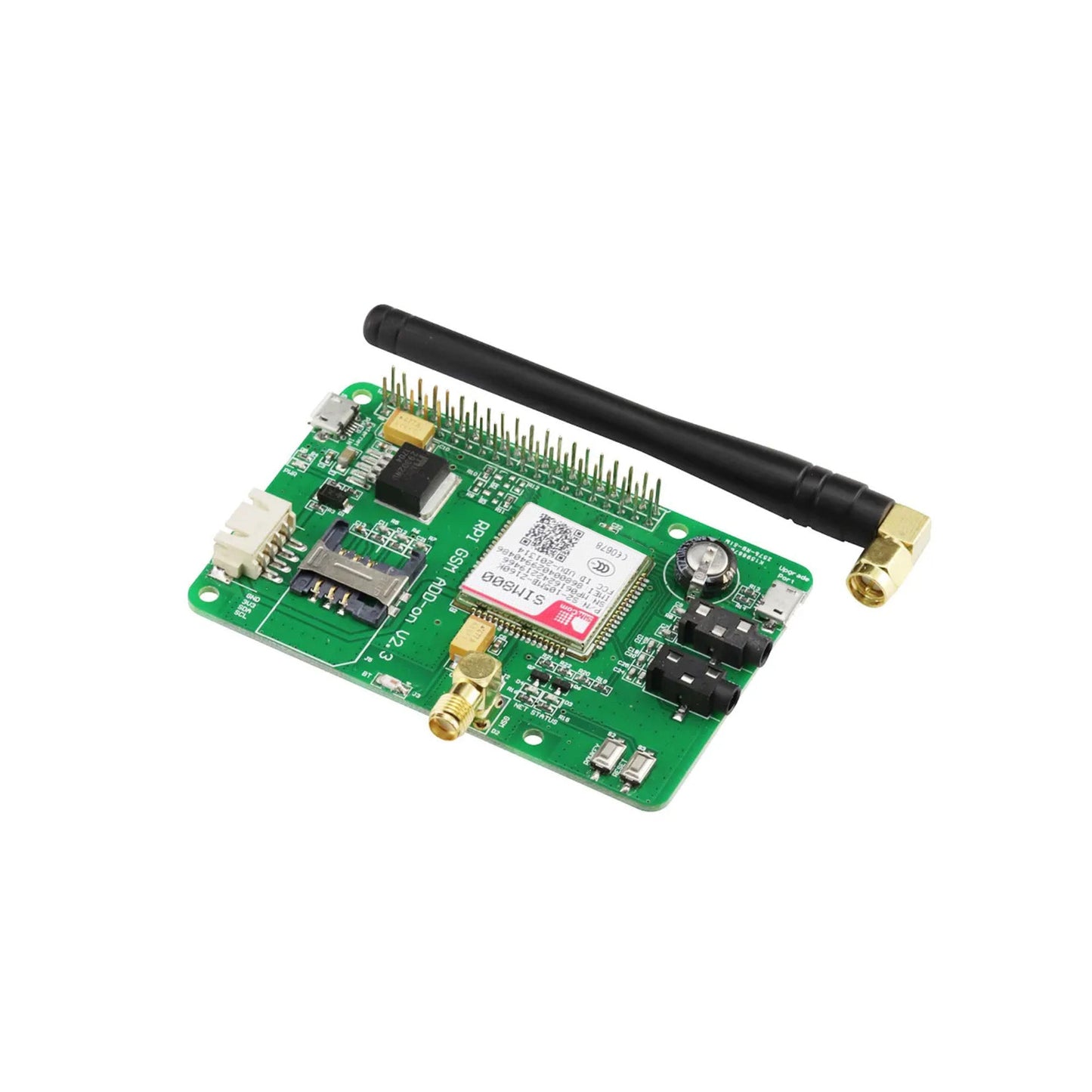

- 1 x SIM800 Module
- 1 x Antenna
