- Operating Voltage: 12V
- Operating Power: 200W
- Patch MOS tube: B55NF06
Description:

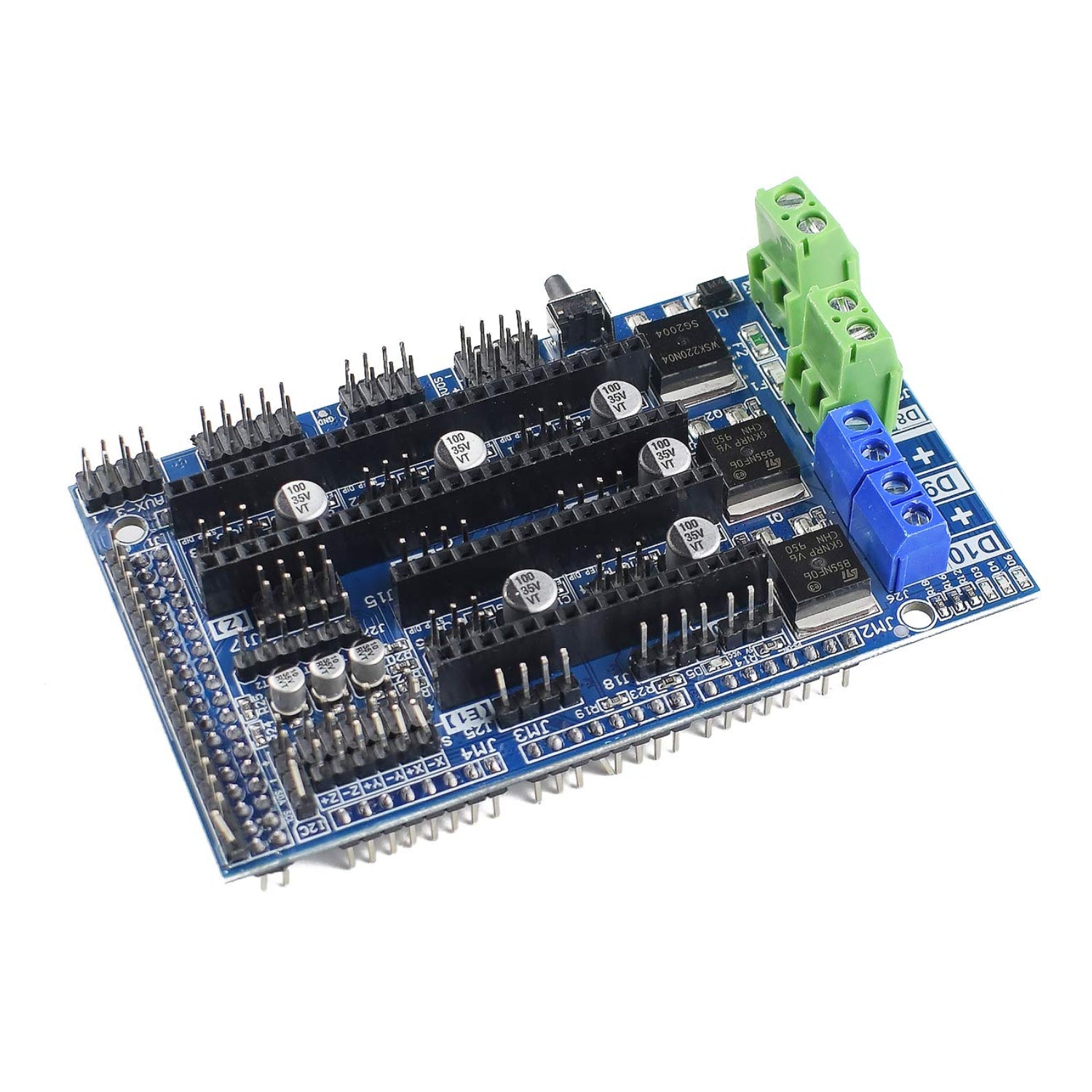

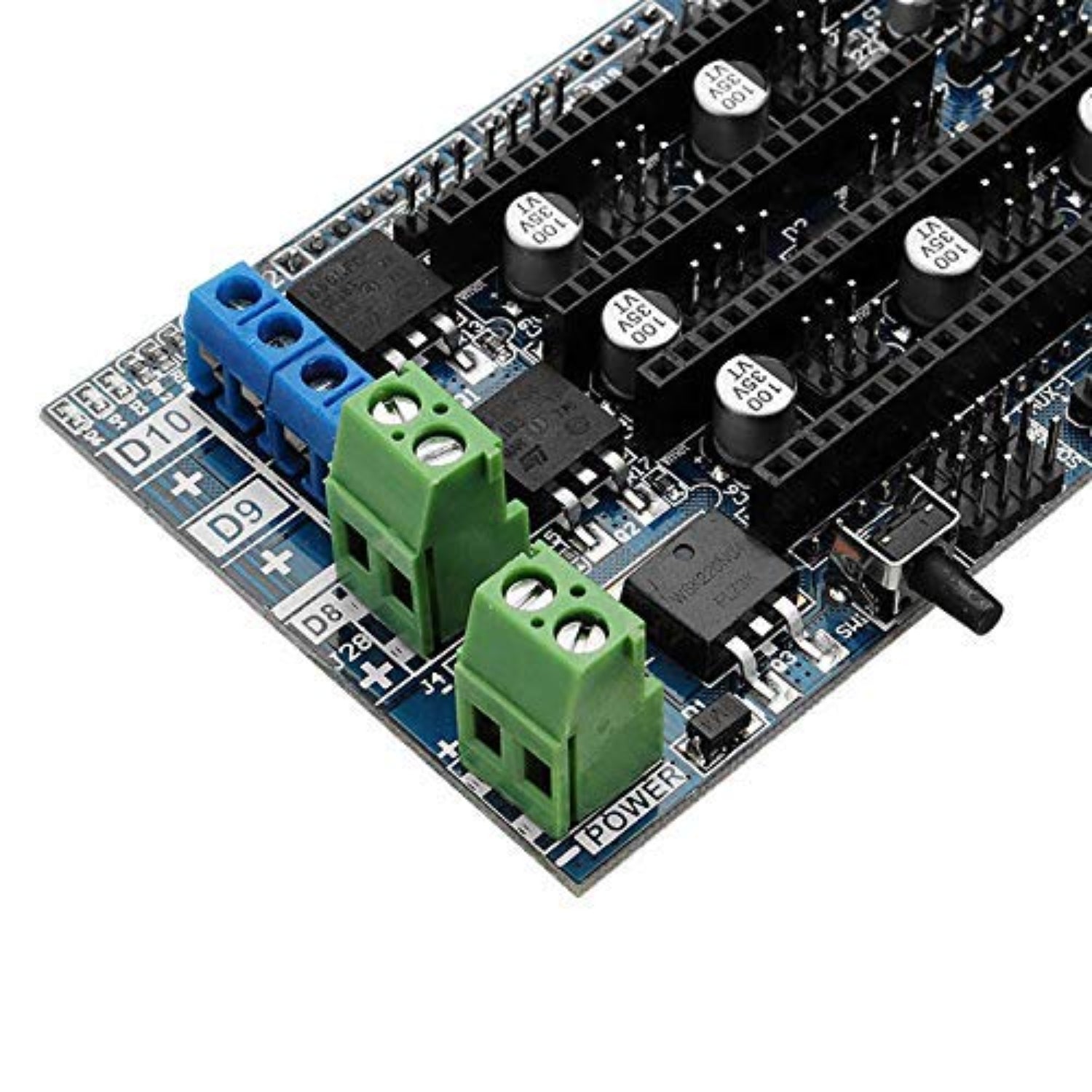

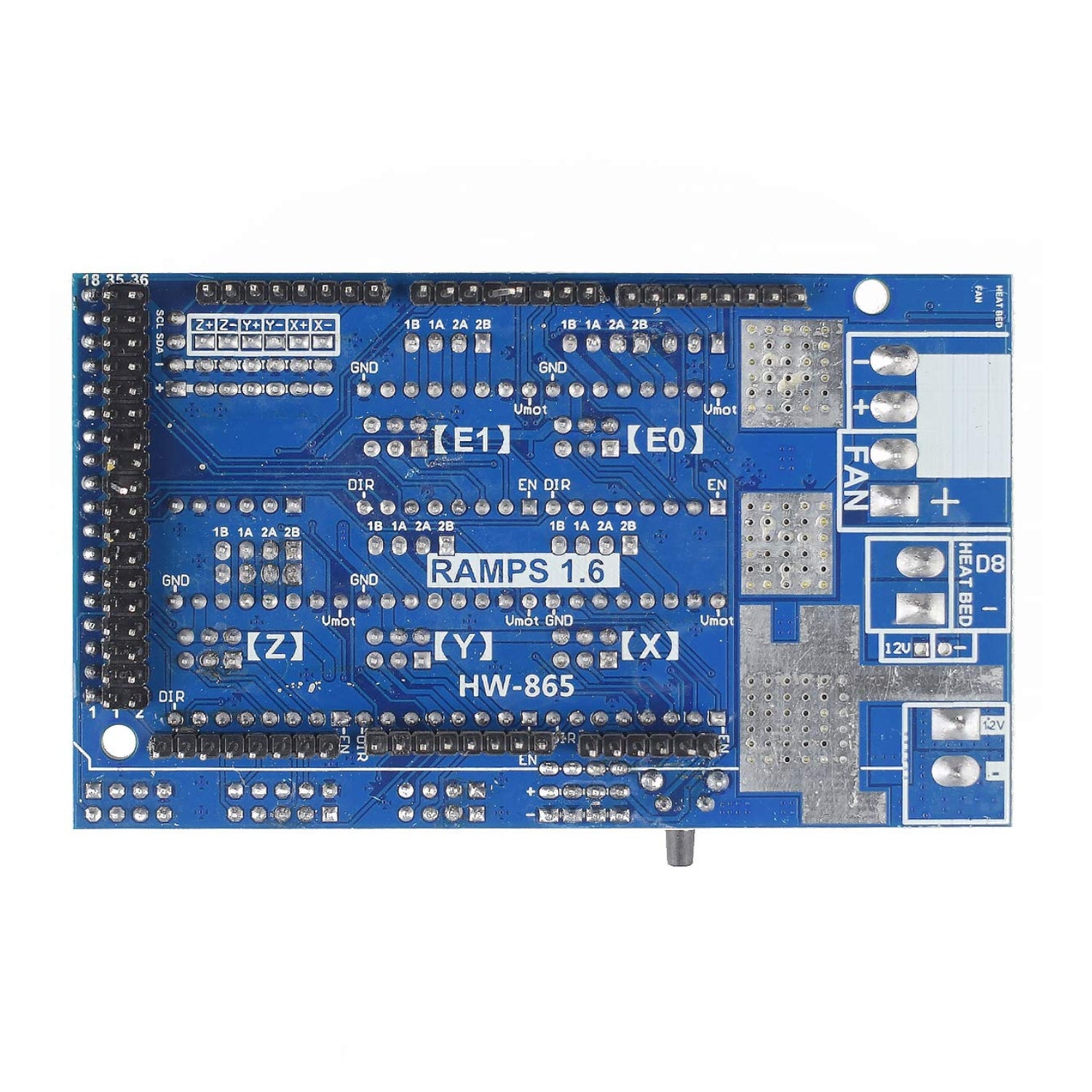

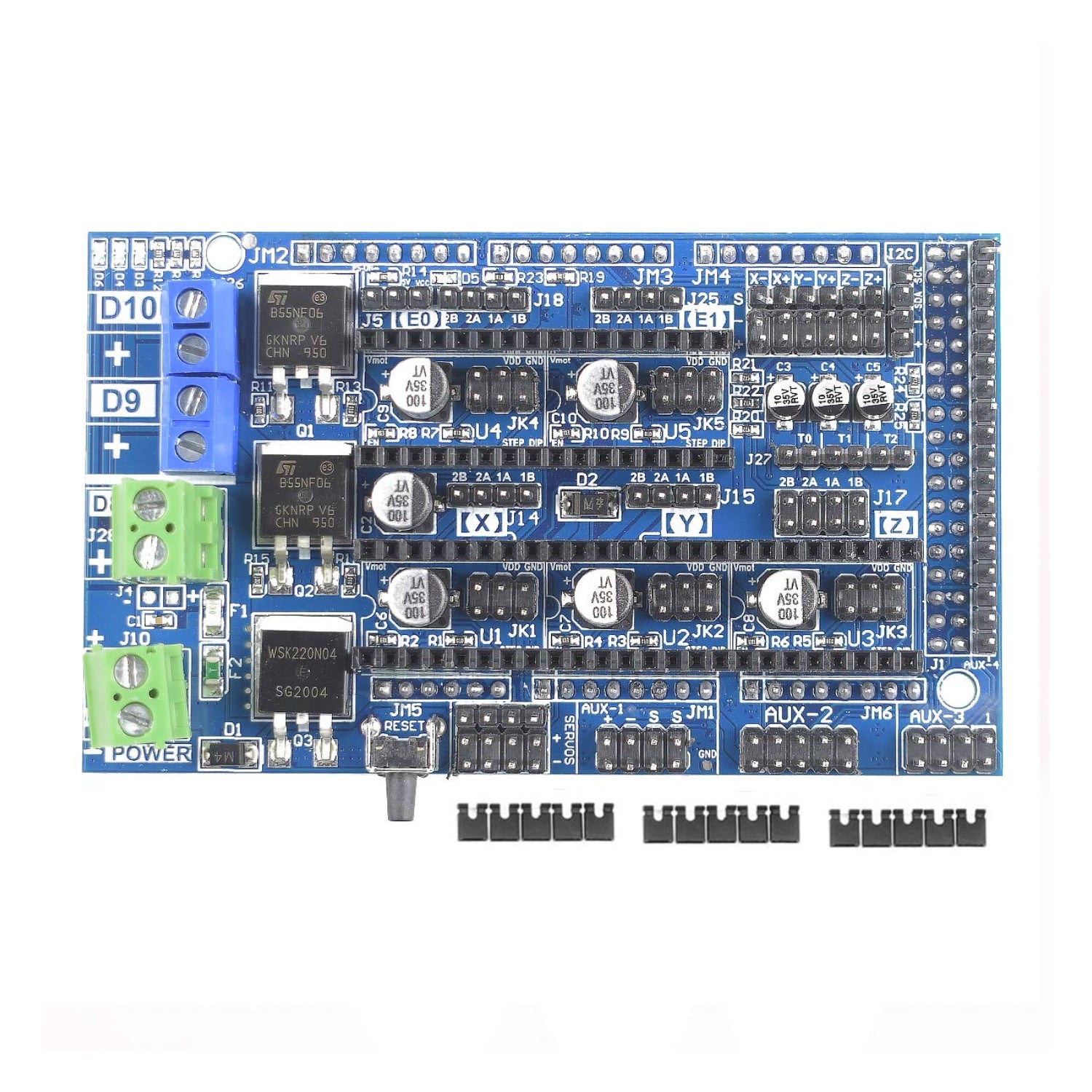

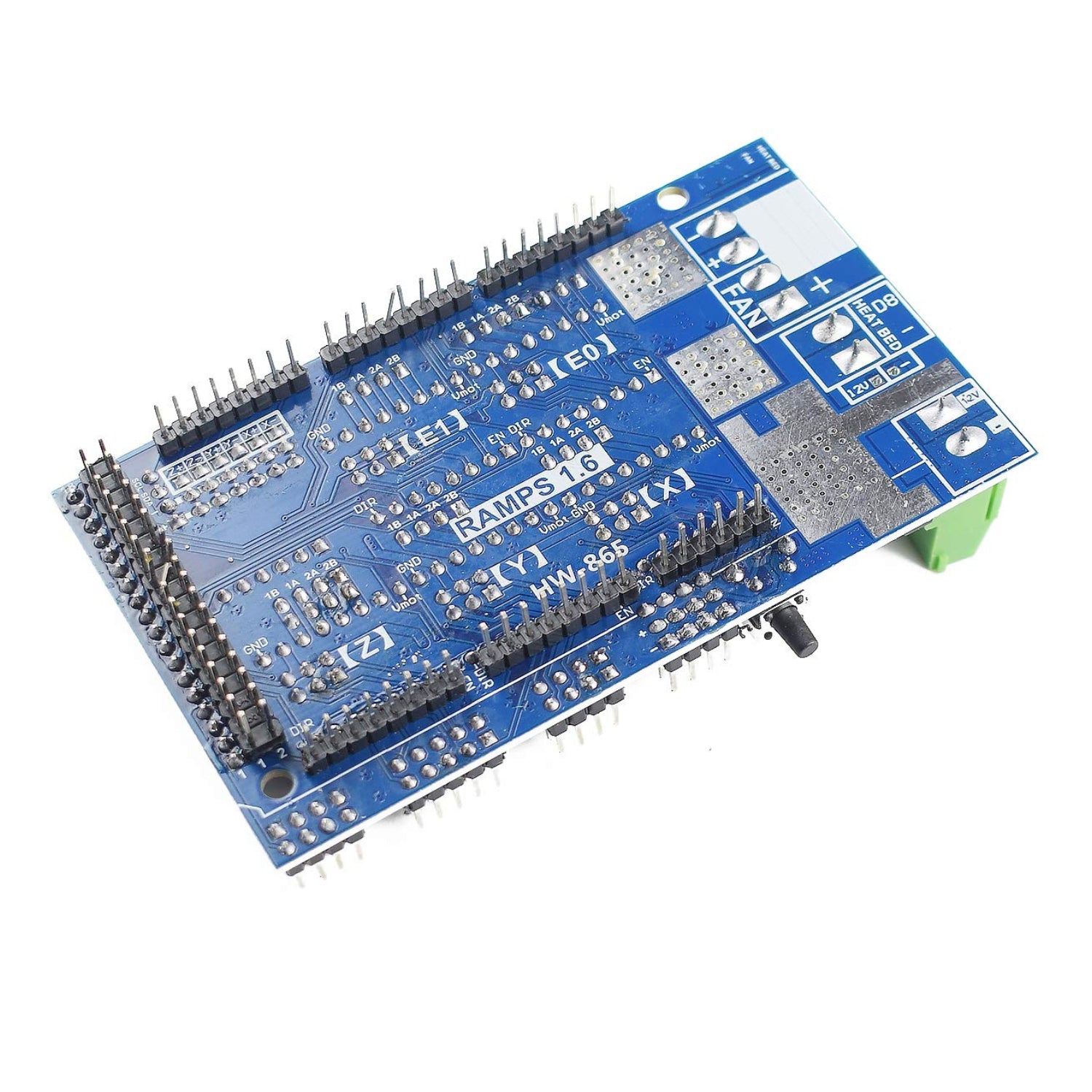

This is Ramps 1.6 Expansion Control Panel With Heatsink Ramps 1.4/1.6 For 3D Printer Board Arduino Mega Shield. It has changed original plug-in MOS tube to patch-type MOS tube in order to solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation, which can improve the stability and aesthetics of the board. The features of multiple extended interface and replaceable parts make RAMPS1.6 become a control board with powerful upgrade capability and scalable modularity. The controller board can be used when the pins on the back of the board are connected to the arduino mega and the front is connected to stepper motor drives. It has servo connectors which are used for connecting limit stops, motors and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.
Specifications:
- Operating Voltage: 12V
- Operating Power: 200W
- Patch MOS tube: B55NF06
- Support Motor Drivers: A4988, DRV8825 and other motor drivers
Features:
- There are heater and fan MOSFET outputs and 3 thermistor interfaces.
- 5A additional security and component protection fusion.
- Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
- Heated bed controls additional 11A fuses.
Package Included:
1 x Ramps 1.6 Expansion Control Panel With Heatsink Ramps 1.4/1.6 For 3D Printer Board Arduino Mega Shield For 3D Printers
