• RP3 V2 ExpressLRS 2.4GHz Nano Receiver
  • ELRS Long Range PWM Receiver
  • 2.4GHz Nano Receiver
1 3

Radiomaster

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver ELRS Long Range PWM Receiver for FPV Drones, RC Airplanes & Helicopters - RS9335

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver ELRS Long Range PWM Receiver for FPV Drones, RC Airplanes & Helicopters - RS9335

RS9335

Low stock: 5 left

Rs. 2,509.00
Rs. 2,509.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The RadioMaster RP3 V2 ExpressLRS (ELRS) 2.4GHz Nano Receiver is a high-performance receiver engineered for FPV pilots who demand exceptional range, ultra-low latency, and reliable signal stability. Powered by the ExpressLRS open-source firmware, the RP3 V2 combines advanced RF technology with a compact, lightweight design, making it an excellent choice for FPV racing drones, freestyle quads, fixed-wing aircraft, helicopters, and other RC models.

Equipped with a Temperature-Compensated Crystal Oscillator (TCXO), the RP3 V2 delivers stable and accurate signal reception even under changing environmental conditions. Built around the ESP8285 MCU and Semtech SX1280 RF chipset, it supports both LoRa and FLRC communication modes, providing outstanding long-range performance while maintaining extremely low latency for precise control.

The RP3 V2 also features the Skyworks SE2431L RF Front-End Module, which includes a Low Noise Amplifier (LNA) for improved receiver sensitivity, a Power Amplifier (PA) capable of delivering up to 100mW telemetry output, and antenna diversity switching to ensure a stronger and more reliable radio link.

Built-in Wi-Fi connectivity enables fast and convenient firmware updates without removing the receiver from your aircraft. ExpressLRS Bind Phrase support eliminates the need for bind plugs or manual bind buttons, making setup quick and hassle-free.

Whether you're flying long-range missions, racing competitively, or performing freestyle maneuvers, the RadioMaster RP3 V2 offers dependable performance, excellent signal quality, and advanced telemetry in an ultra-compact package.

Specifications:

  • Item: RP3 Diversity Receiver
  • Type: ISM
  • MCU: ESP8285
  • RF Chip: SX1281
  • Telemetry RF power: Max 100mw
  • Antenna: 65mm 2.4ghz T Antenna x 2
  • Frequency Range: 2.404 - 2.479 Ghz
  • Maximum receive refresh rate: 500Hz / F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: DC 5V
  • Weight: 4.6g (Including two antenna)
  • Dimension: 22mm*13mm*4mm
  • Firmware Version: ExpressLRS v3.0 pre-installed
  • FW Target: RadioMaster RP3 Diversity 2400 RX
  • Bus interface: CRSF

Features:

  • Optimized PCB design for better heat dissipation.
  • LNA for better receiver range.
  • PA for better telemetry range.
  • Antenna Diversity for improved signal stability and range.
  • Built-in a TCXO (temperature-compensated crystal oscillator)
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

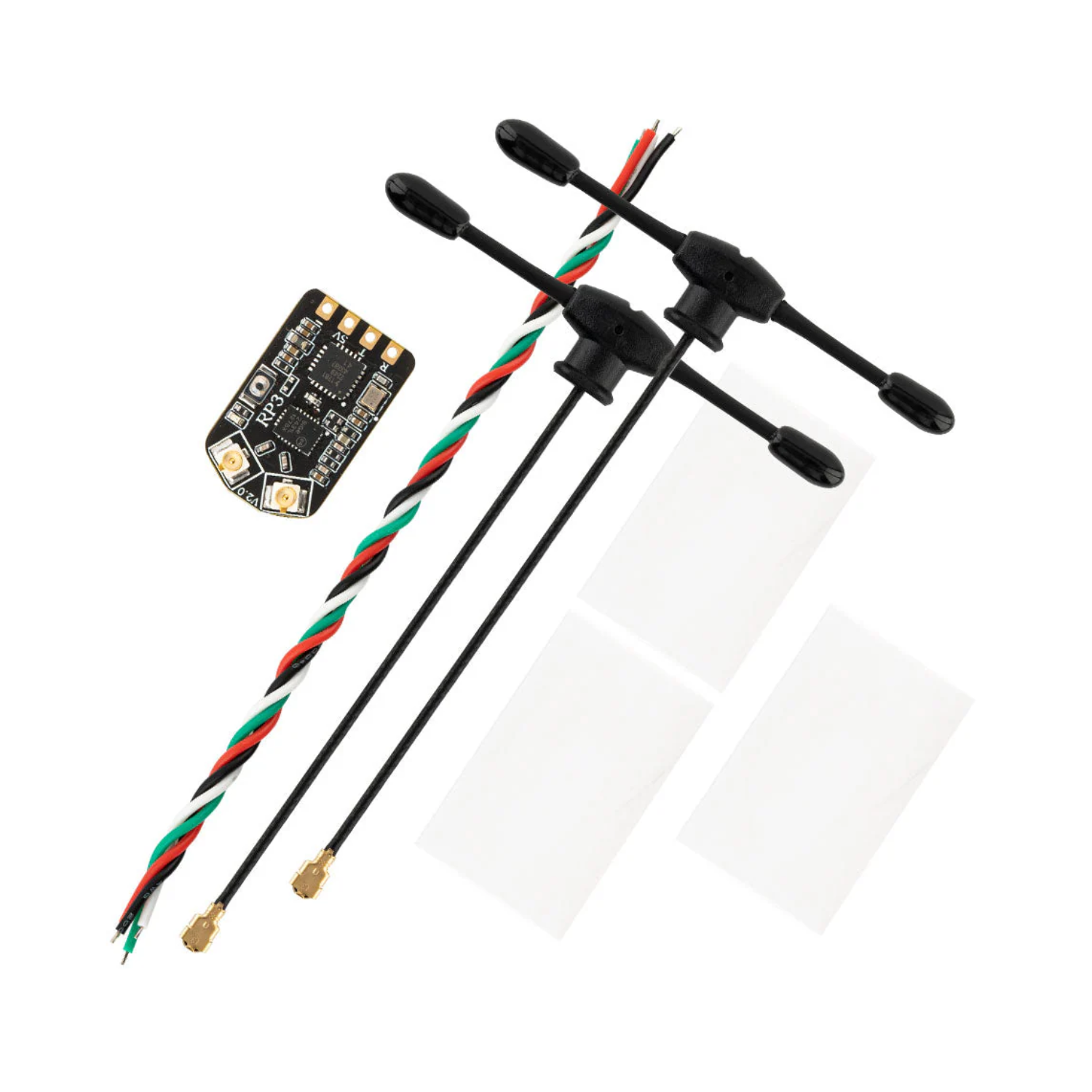

Package Included:

  • 1 * RP3 ExpressLRS 2.4ghz Nano Receiver
  • 2 * 65mm UFL 2.4Ghz T Antenna
  • 1 * User Manual
  • 1 * CRSF wire
