RadioMaster Ranger 2.4GHz ELRS RF Module / Combo Optional Long Range High Performance TX For Long Range RC Control

RadioMaster Ranger 2.4GHz ELRS RF Module / Combo Optional Long Range High Performance TX For Long Range RC Control

In stock

Rs. 12,100.00
Rs. 12,100.00
Sale Sold out
Shipping calculated at checkout.
Type

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

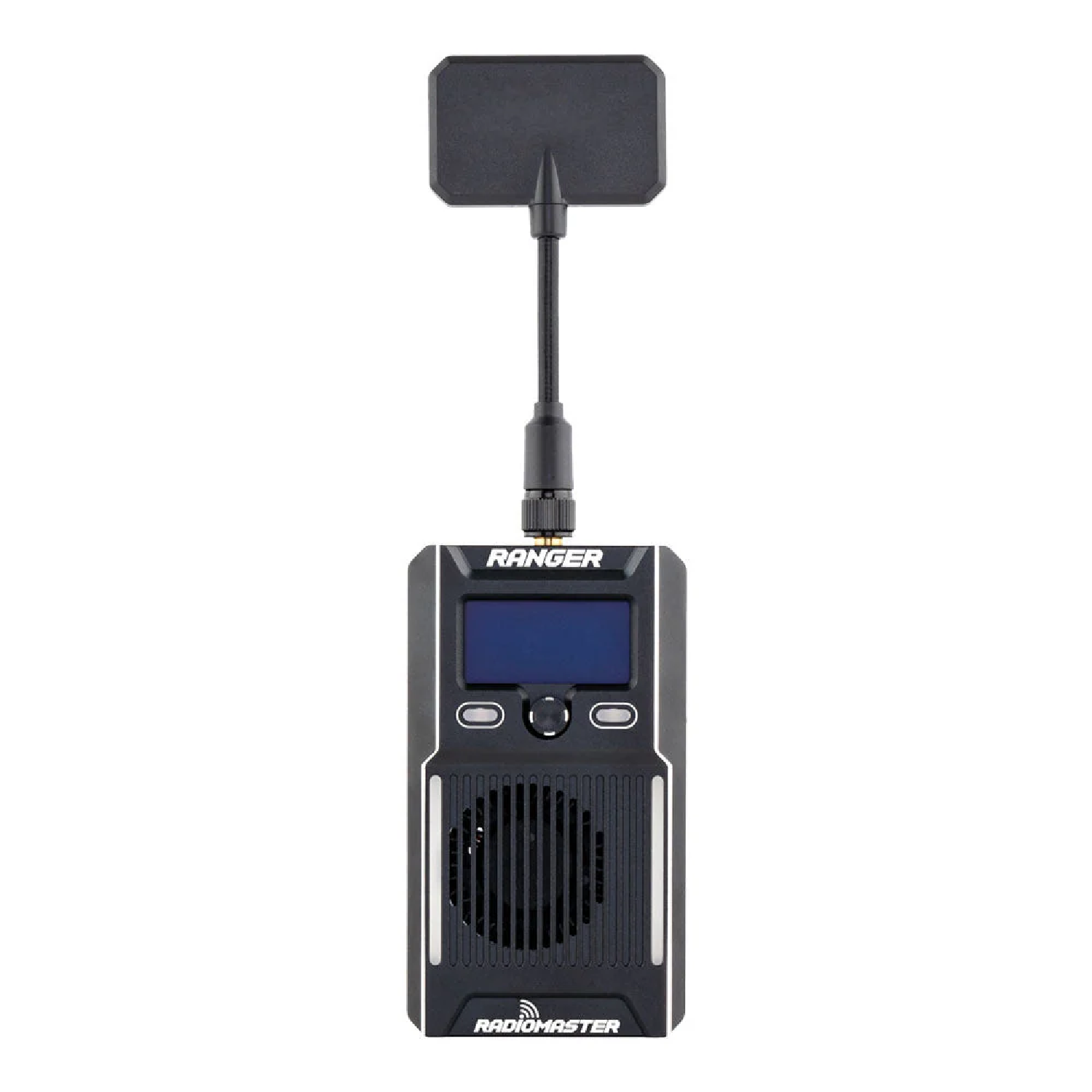

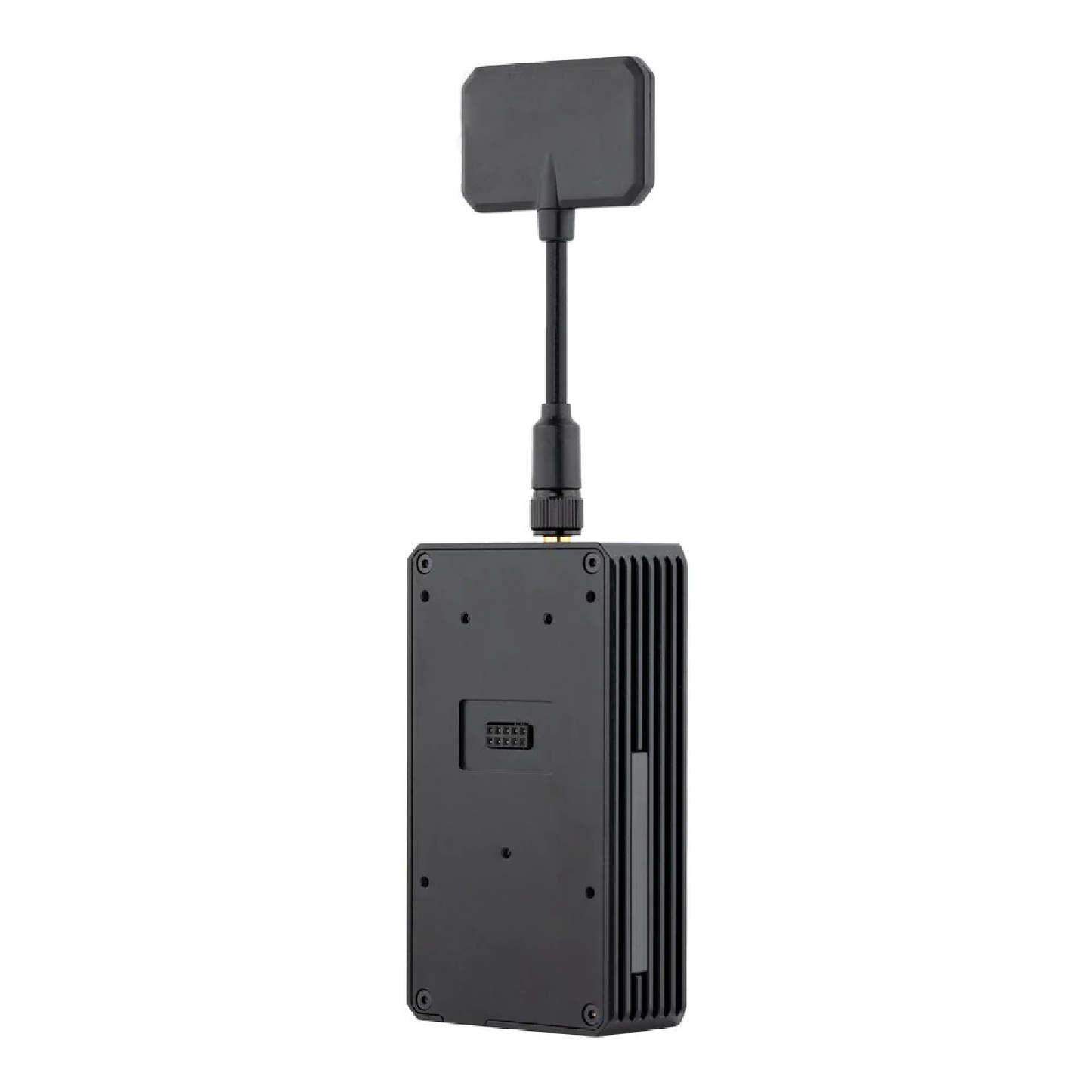

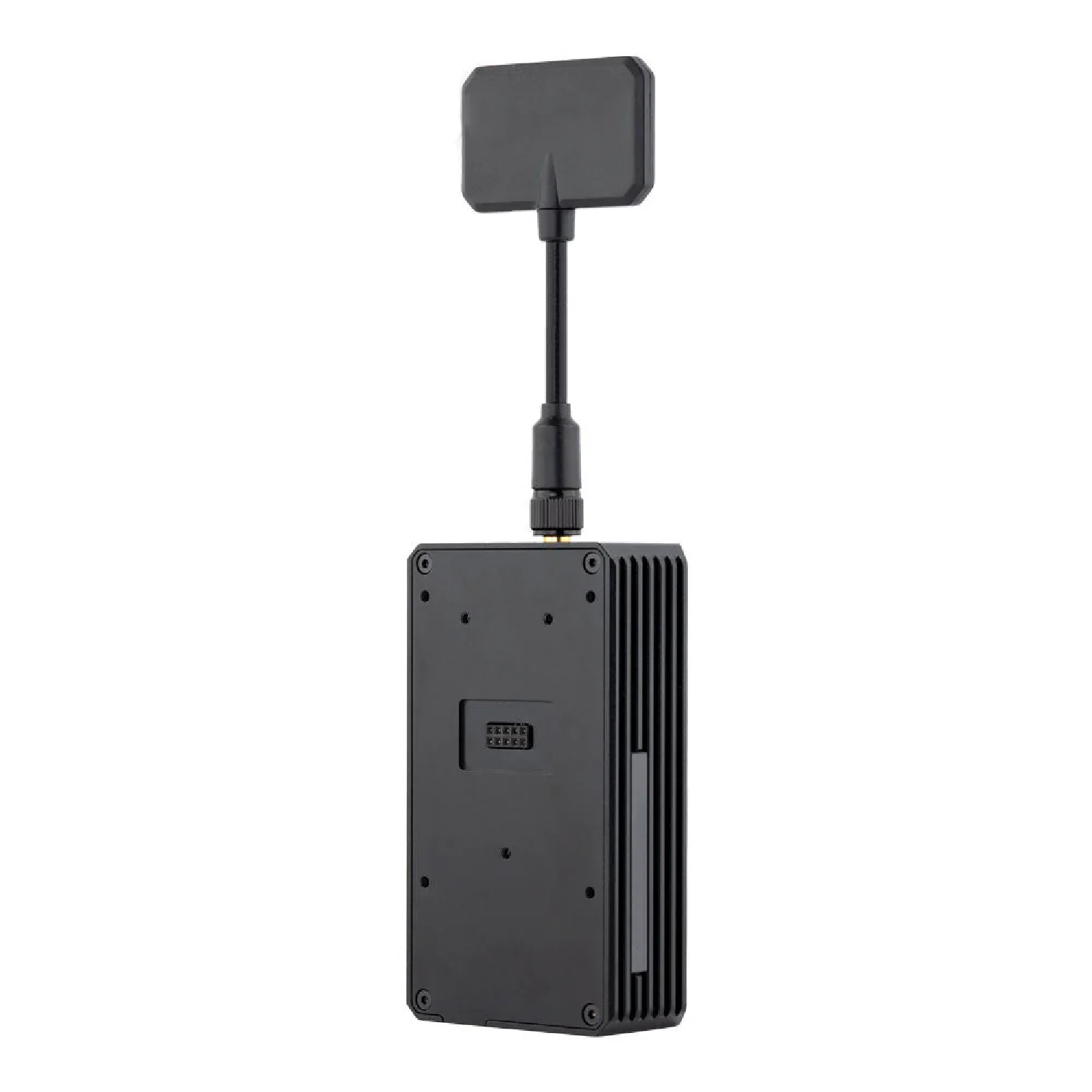

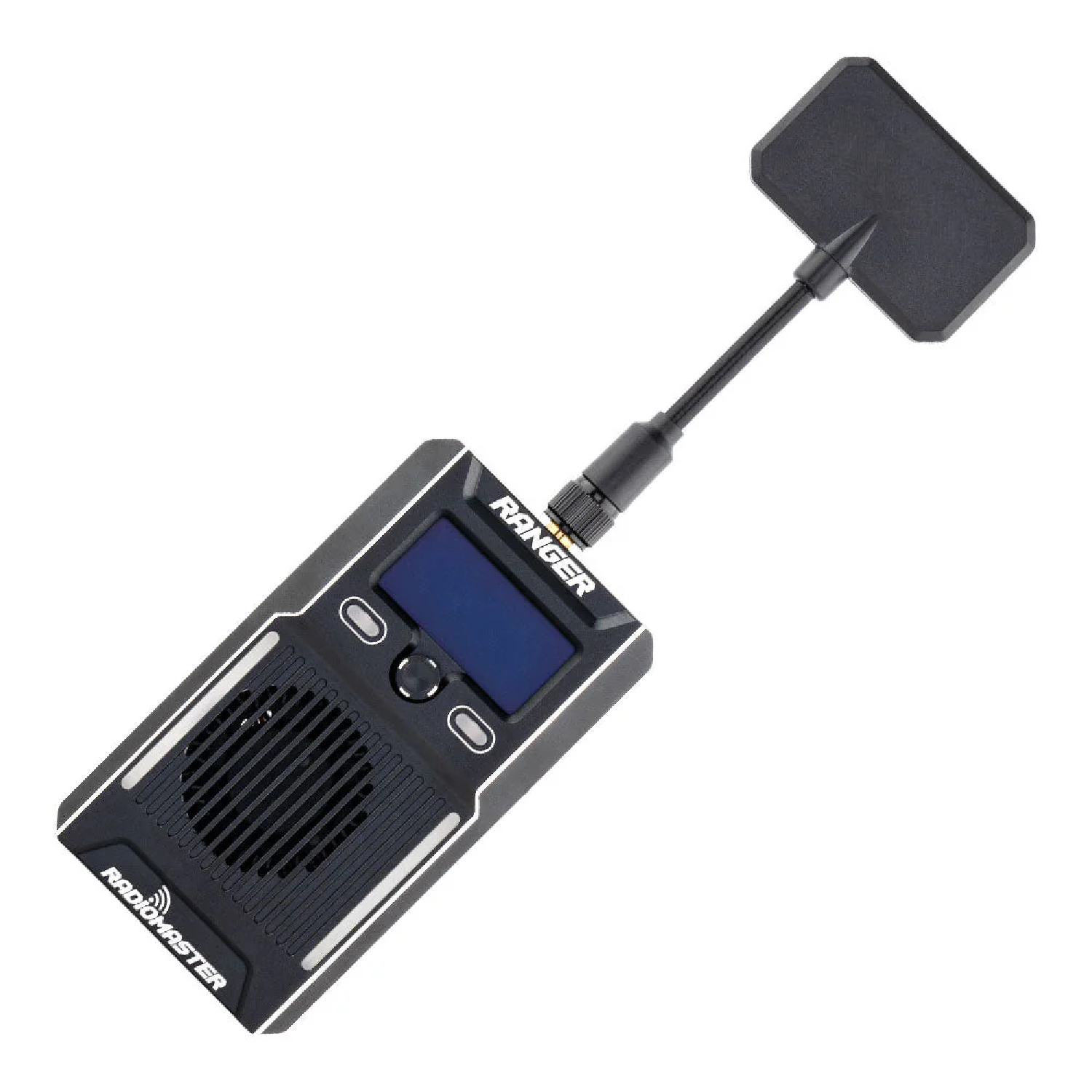

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC-machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

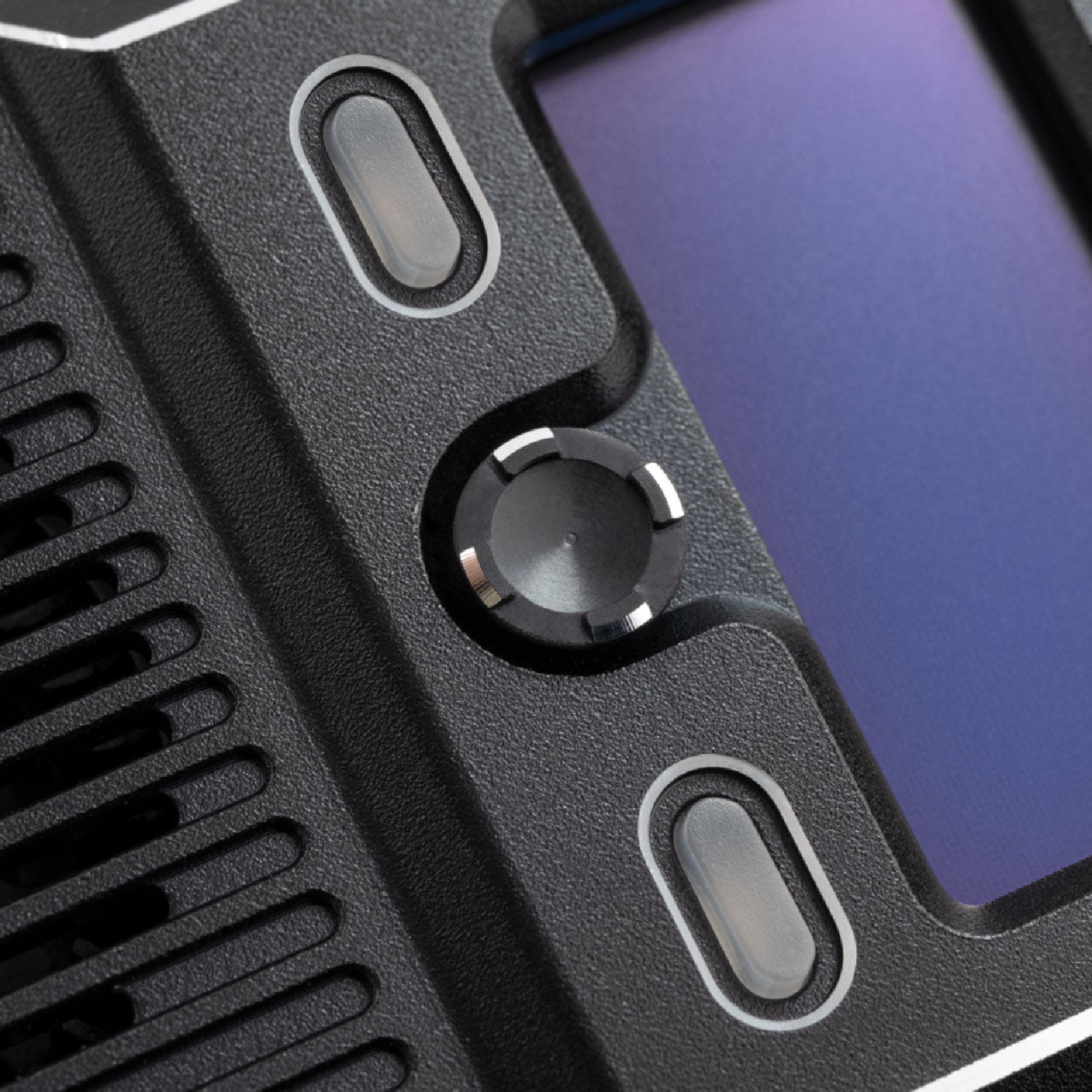

Featuring an OLED display, a directional menu key, and two assignable shortcut keys, the Ranger can be adjusted and personalized to your needs.

The Ranger includes an omnidirectional T-antenna for general use and a RadioMaster Moxon directional antenna for increased link quality and stability. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Except for the Ranger, we also provide the Ranger Micro ExpressLRS Module and the Ranger Nano ExpressLRS Module for your choice.

Specifications:

  • Item: Ranger 2.4GHz ELRS Module
  • MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Regulatory Domain: ISM2400
  • Frequency Range: 2400 MHz - 2480 MHz
  • Minimum receiver refresh rate: 25Hz
  • Module bay adapters: JR standard 5-pin socket & Nano standard 8-pin socket
  • OLED screen: 64x128 px
  • Bluetooth support: Yes
  • Built-in RGB light strip
  • Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
  • Module bay adapters: JR standard 5-pin socket & Nano standard 8-pin socket
  • Wi-Fi Support: Yes
  • 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)

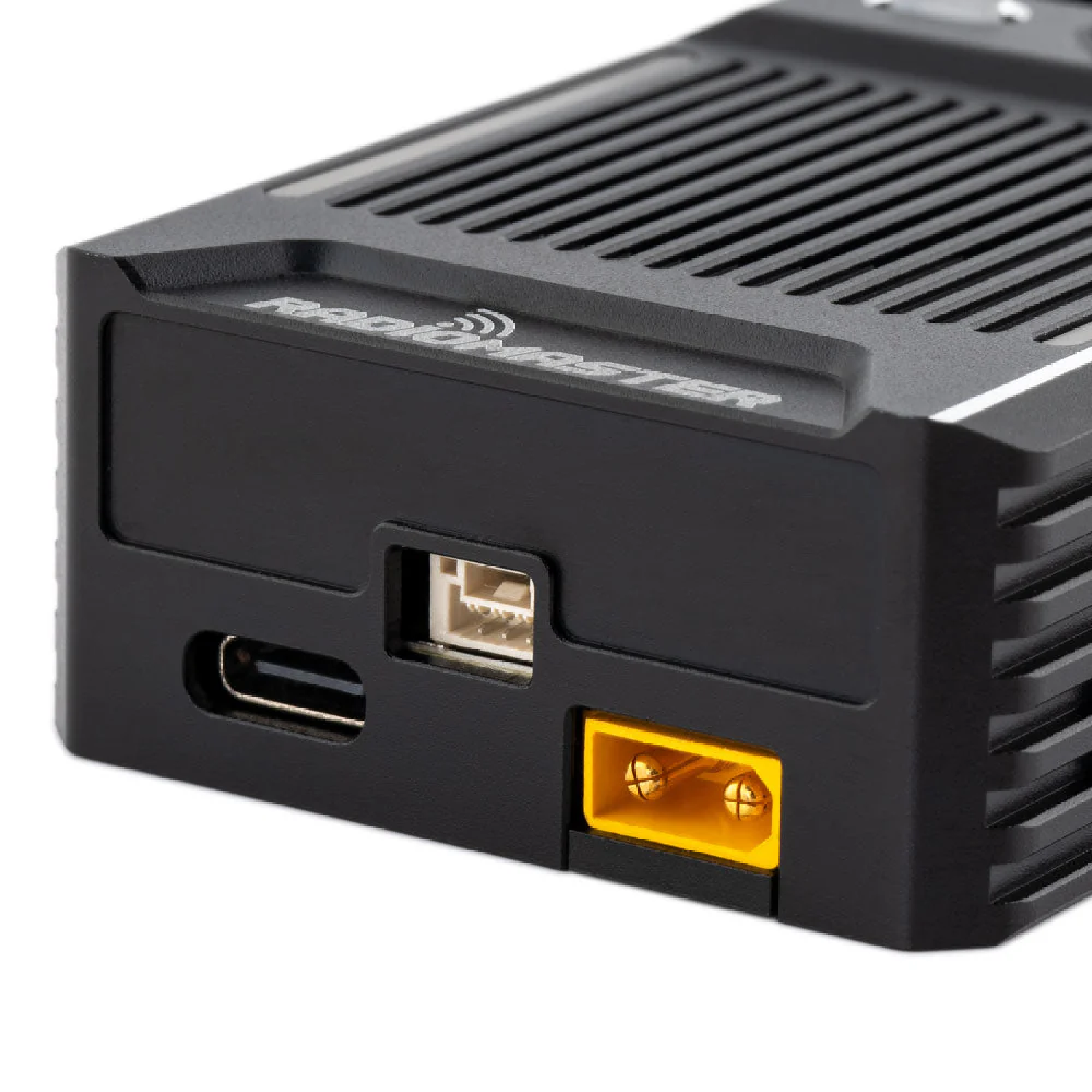

  • XT30 Power supply voltage: DC 6V - 16.8V

Features:

  • Built-in ExpressLRS Backpack
  • Rugged CNC Case
  • Packet rates up to F-1000Hz
  • High-efficiency cooling system
  • Micro- and nano-adapters are included
  • CRSF cable for compatible Futaba radios included
  • OLED Display
  • Built-in Accelerometer
  • Wi-Fi and Bluetooth support
  • 5 Direction Nav keys and customizable shortcut buttons

\

Ranger Series

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project, visit https://www.expresslrs.org/

Package Includes:

  • 1 x  RANGER Module
  • 1 x Futaba CRSF socket cable
  • 1 x JR Adapter
  • 1 x Nano Adapter
  • 1 x T Antenna
  • 1 x Moxon Antenna
  • 1 x Hexagon socket screwdriver
  • 3 x M2*5 Screws
  • 1 x Assembly Manual

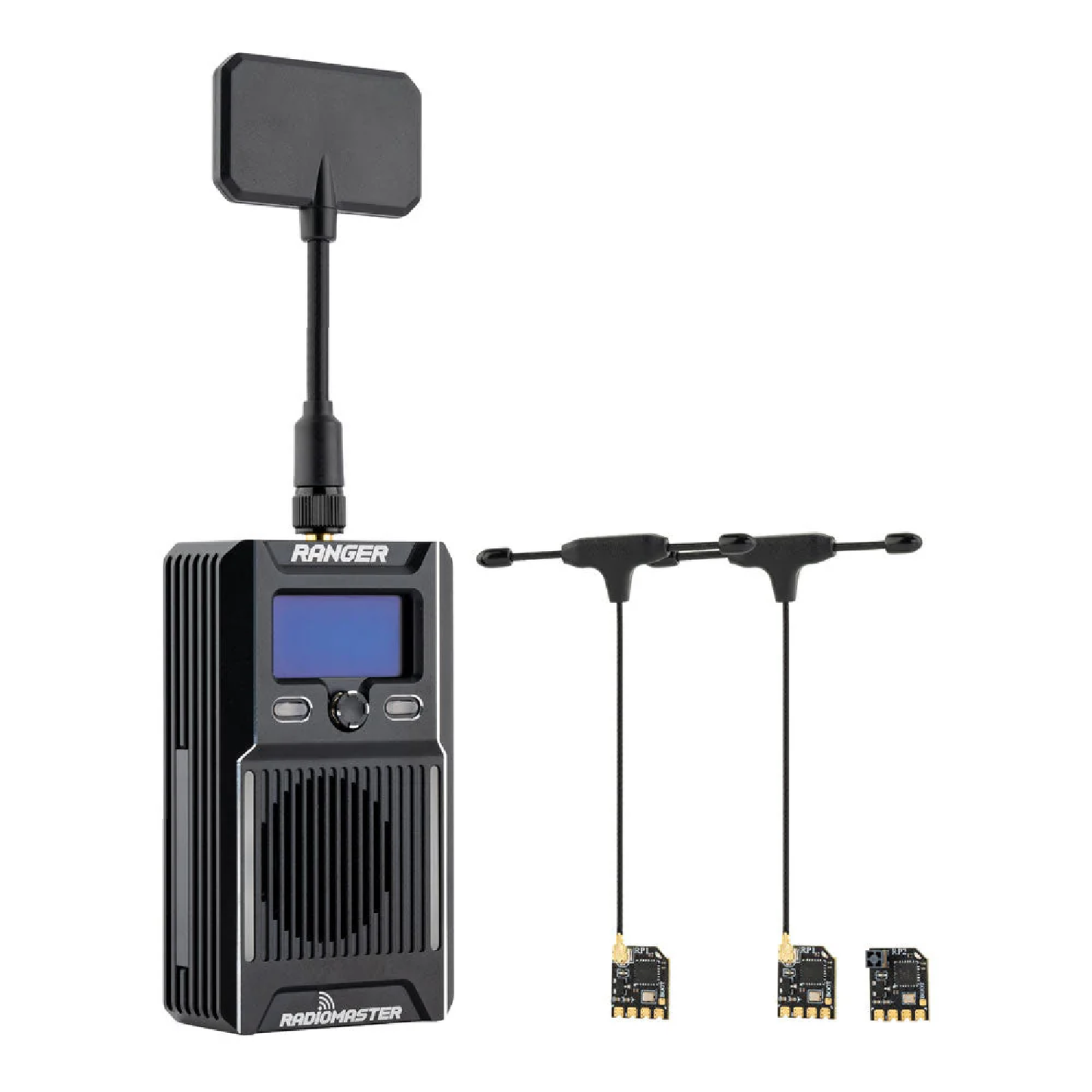

Ranger Combo:

  • 1 x  RANGER Module
  • 2 x RP1 ExpressLRS 2.4ghz Nano Receiver
  • 1 x RP2 ExpressLRS 2.4ghz Nano Receiver
  • 1 x Futaba CRSF socket cable
  • 1 x JR Adapter
  • 1 x Nano Adapter
  • 1 x T Antenna
  • 1 x Moxon Antenna
  • 1 x Hexagon socket screwdriver
  • 3 x M2*5 Screws
  • 1 x Assembly Manual
