Description:

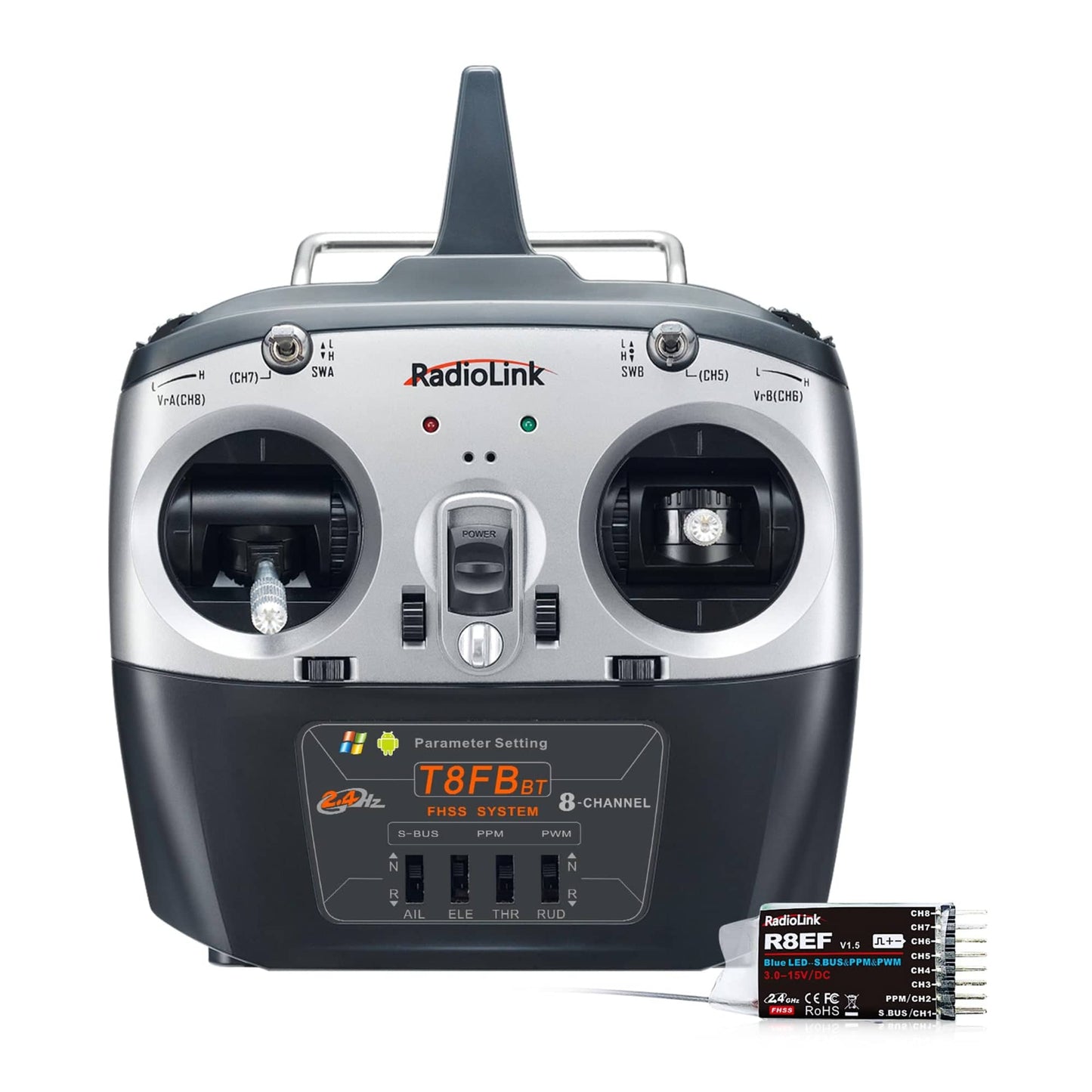

The T8FB BT Remote with R8EF 8-channel receiver is a high-performance and reliable radio control system designed for RC enthusiasts and professionals. This advanced transmitter and receiver combination offers exceptional features and functionality, making it an ideal choice for a wide range of RC applications.

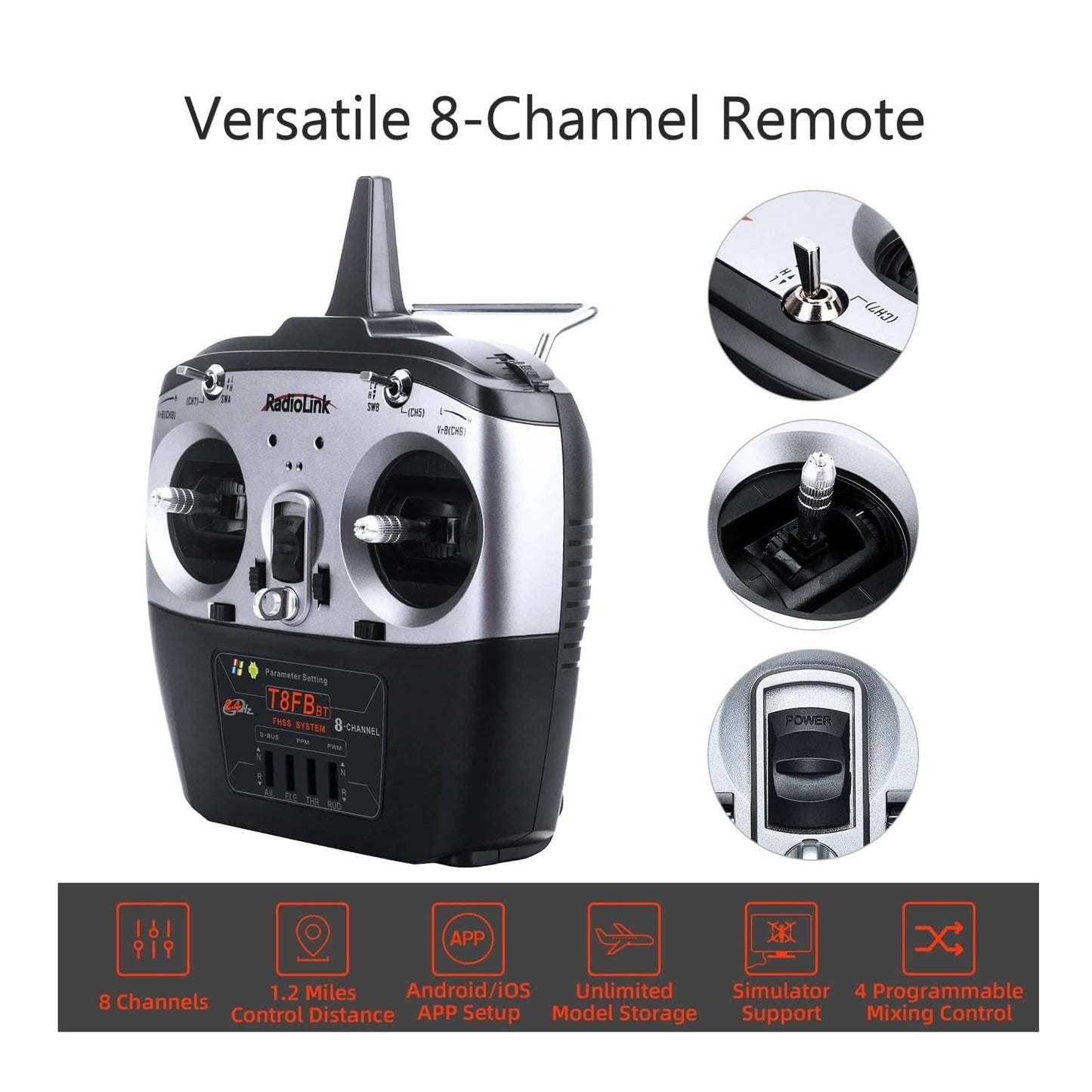

The T8FB BT Remote boasts a sleek and ergonomic design, providing a comfortable grip for long hours of operation. T8FB BT Remote features a 2.4GHz frequency band, ensuring a stable and interference-free connection between the transmitter and receiver. With its eight-channel capability, this T8FB BT Remote offers precise and responsive control over your RC vehicles or aircraft.
One notable feature of the T8FB BT Remote is its Bluetooth connectivity. With built-in Bluetooth technology, you can easily connect the transmitter to your smartphone or tablet, allowing for convenient configuration and firmware updates using the Radiolink app. T8FB BT Remote enables you to fine-tune your control settings and keep up with the latest advancements in the RC community.
The T8FB BT Remote with R8EF 8-channel receiver offers a range of up to 2000 Meters of Control Distance, ensuring a stable and long-distance control experience. T8FB BT Remote also features a failsafe function, which automatically returns the RC vehicle or aircraft to a predefined state in the event of a signal loss or interference, adding an extra layer of safety to your operations.
The T8FB BT Remote provide clear and comprehensive information, including real-time telemetry data such as signal strength, battery voltage, and more. T8FB BT Remote allows you to monitor the status of your RC device during operation, ensuring a safe and reliable flying or driving experience.
The R8EF 8-channel receiver included in this package is compact and lightweight, making it easy to install in your RC vehicle or aircraft. It utilizes advanced frequency hopping spread spectrum (FHSS) technology, which provides excellent anti-interference capability and reliable signal reception. The receiver supports PWM and S.Bus output, giving you flexibility in connecting it to different types of servos and devices.
Whether you're an experienced pilot or a hobbyist, the T8FB BT Remote with R8EF 8-channel receiver provides a powerful and reliable control solution for your RC vehicles and aircraft. With its advanced features, ergonomic design, and convenient Bluetooth connectivity, this T8FB BT Remote is an excellent choice for enhancing your RC experience.
Specifications:
T8FB BT version Transmitter:
- Channels: 8CH
- Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
- Channel Bands width: 1200KHz
- Spread Spectrum: FHSS
- Adjacent Channel Rejection: >38dbm
- Transmitter Power: <100mW (20dBM
- Operating Voltage: 4.8V~18V
- Sensitivity: -104dB
- Speed Rate: 38kbps
- PWM Output: 1.0ms~2.0m
R8EF Receiver:
- Signal output: S-BUS & PPM & PWM
- Channel: 8CH
- Control Distance: 2000m in air, actually control distance depends on the environment.
- Working Voltage: 3.0-12V
- Working Current: 30mA(input voltage 5V)
- Section precision: 4096
Features:
-
Up to 2000 Meters Control Distance:
- The T8FB BT Remote is equipped with the same FHSS algorithm found in the AT9S Pro and utilizes a 67-channel pseudo-random frequency sequence hopping feature. It incorporates the TI CC2500 chip, which is also used in the Open TX Frsky X9D, ensuring reliable and high-quality performance. The transmission rate of the T8FB BT Remote is three times faster than that of Open TX, resulting in improved responsiveness and smoother control.
- One of the standout features of the T8FB BT Remote is its exceptional anti-interference capability. It effectively mitigates interference from both devices operating on the same frequency band and those on different frequency bands. This ensures a stable and uninterrupted control experience, even in crowded RC environments.
- When it comes to control distance, the T8FB BT Remote offers an impressive range of 2000 meters (1.24 miles) in the air. This extended range allows you to maintain control and enjoy your RC activities from a considerable distance, providing flexibility and freedom during your flights or drives.
-
0.5us Gimbal Precision:
- The PCB layout of the T8FB BT Remote has been meticulously designed to achieve exceptional performance. It boasts an impressively low PWM jitter of just 1.84us, surpassing the industry standard of 0.5us by a remarkable margin. This jitter performance is 14 times better than what is typically found in mainstream 16-channel transmitters available in the market.
- To ensure a superior control experience, the T8FB BT Remote features high-quality joystick components identical to those used in the AT9S Pro. These joysticks are known for their precision and reliability, allowing for accurate and responsive control inputs. With these components, you can expect a smooth and enjoyable control experience, ensuring that your commands are accurately translated to your RC vehicle or aircraft.
-
Programmable Mix Control:
- The T8FB BT Remote offers flexible programming options for channels five through eight, allowing users to customize advanced settings according to their preferences. This feature provides greater control and versatility in configuring the transmitter to suit specific RC applications.
- In terms of flight modes, the default setup utilizes the two 3-way switches on the flight controller PIX. These switches are designed to seamlessly set and switch between different flight modes, providing convenience and ease of use for pilots.
- The T8FB BT Remote is designed with user-friendliness in mind, making it suitable for beginners as well. Its intuitive controls and straightforward operation ensure that even without referring to the manual, beginners can easily navigate and enjoy the functionalities of the T8FB. Whether you're new to RC or an experienced user, the T8FB offers a user-friendly experience for all levels of expertise.
-
Adapts to Multiple Models:
- The T8FB BT Remote is compatible with a wide range of models, including Fixed Wing aircraft, Gliders, Multicopters, Cars, Boats, and Robots. This versatility allows you to use the transmitter for various RC applications, providing flexibility and convenience.
- One of the notable features of the T8FB BT Remote is its automatic layout switching. Depending on the mode selected for your specific model, the transmitter will automatically adjust its layout to suit the requirements of that particular mode. This intelligent feature ensures that you have the appropriate controls and settings readily available, enhancing your overall control experience.
- The receiver included with the T8FB BT Remote features a 21cm (8.27") antenna. This antenna length is specifically designed to provide excellent reception and range, making it particularly suitable for RC boat control. With this receiver, you can enjoy seamless and reliable control over your RC boat, ensuring a smooth and enjoyable experience on the water.
-

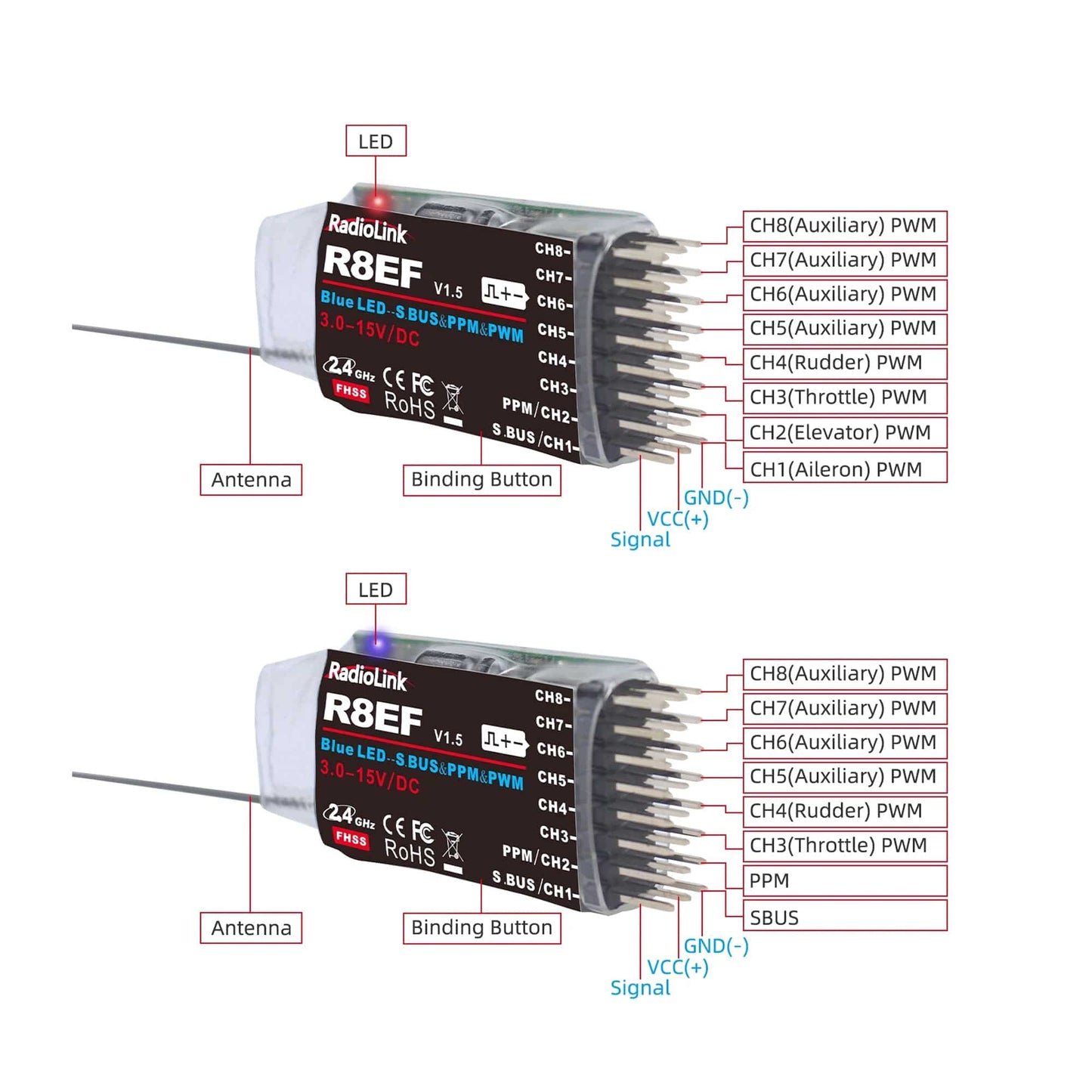

Compatible with Multiple Receivers SBUS/PPM/PWM Supported:
- The standard R8EF receiver offers versatile compatibility, supporting SBUS, PPM, and PWM signal outputs. This eliminates the need for additional cables or signal converters, effectively reducing the weight of your aircraft.
- When using SBUS or PPM signal outputs, channels 3 to 8 can simultaneously output corresponding PWM signals. This feature allows for seamless integration with the T8S turn switch, enabling control over PTZ (pan-tilt-zoom) and landing gear functionalities. With the T8S in hand, RC enthusiasts can fully explore and enjoy the multitude of functions available, enhancing their overall experience and maximizing the fun factor.
-

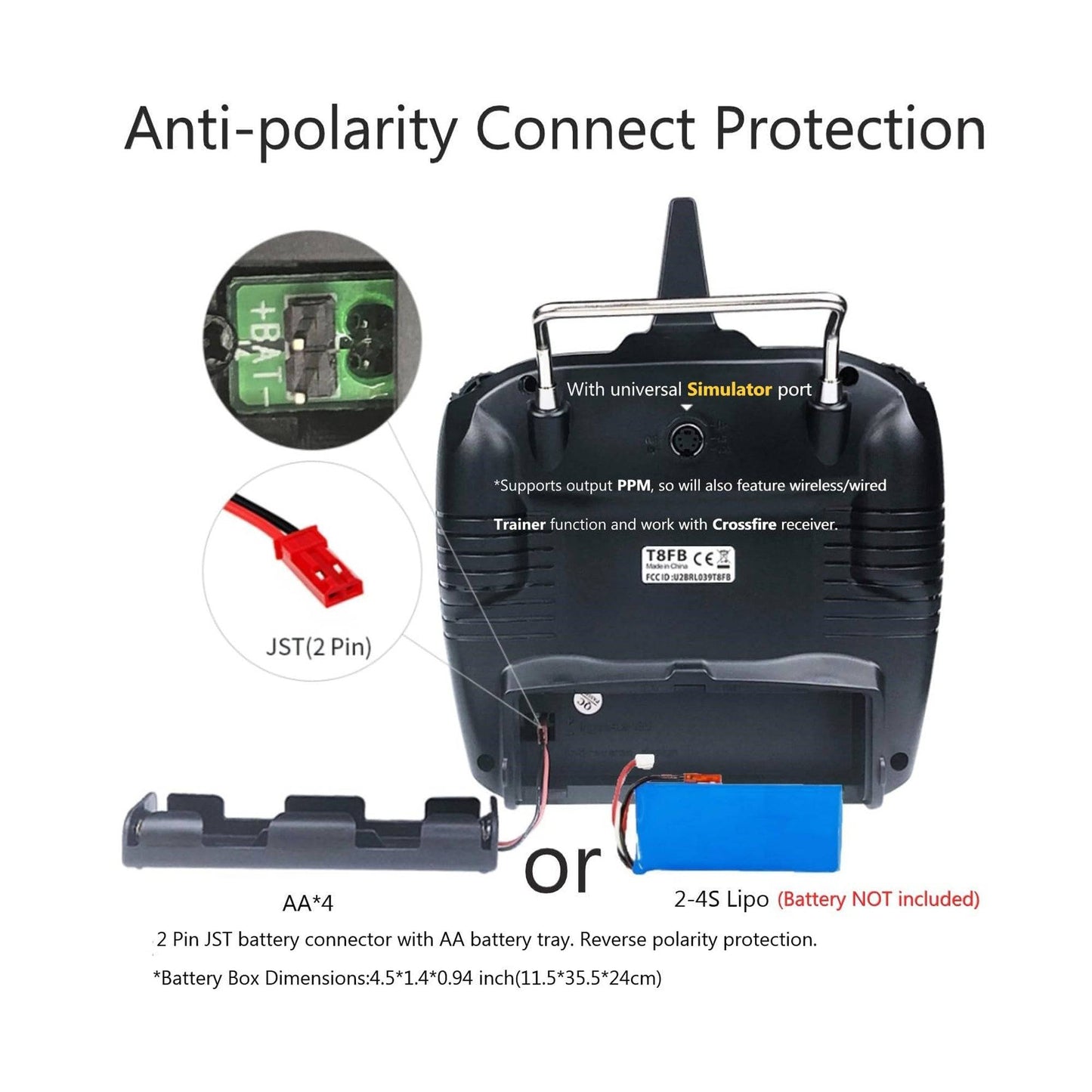

Anti-polarity Connect Protection:
- With RadioLink's voltage protection software technology, both the transmitter and receiver are safeguarded against potential damage caused by a reverse polarity connection. This innovative feature provides peace of mind, ensuring the longevity and reliability of your equipment even in the event of an accidental reverse polarity connection.

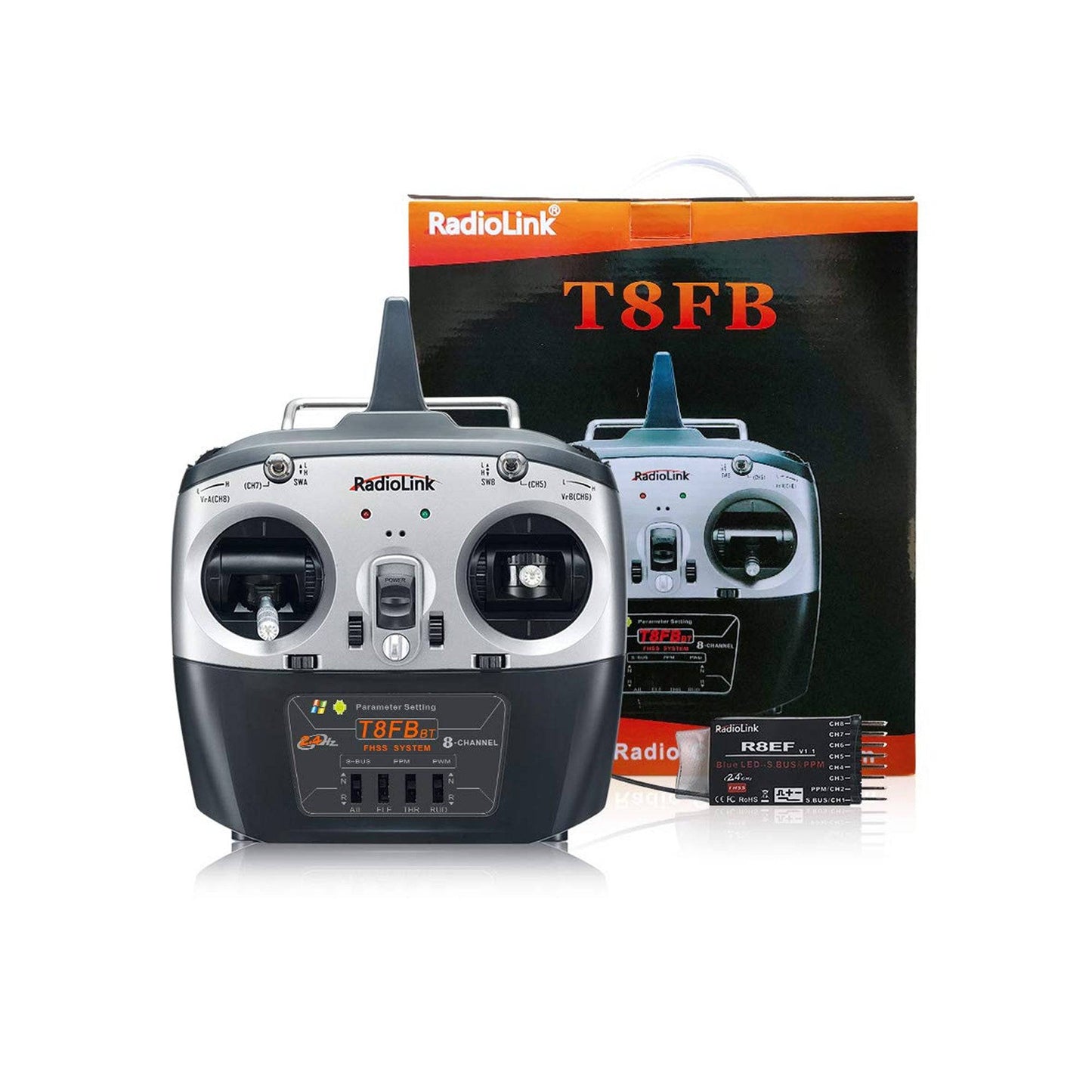

Package Included:
- 1 x Radiolink T8FB BT Remote
- 1 x Receiver R8EF Dual Stick Controller
- 1 x User Manual
- 1 x Hook and spring
