Description:

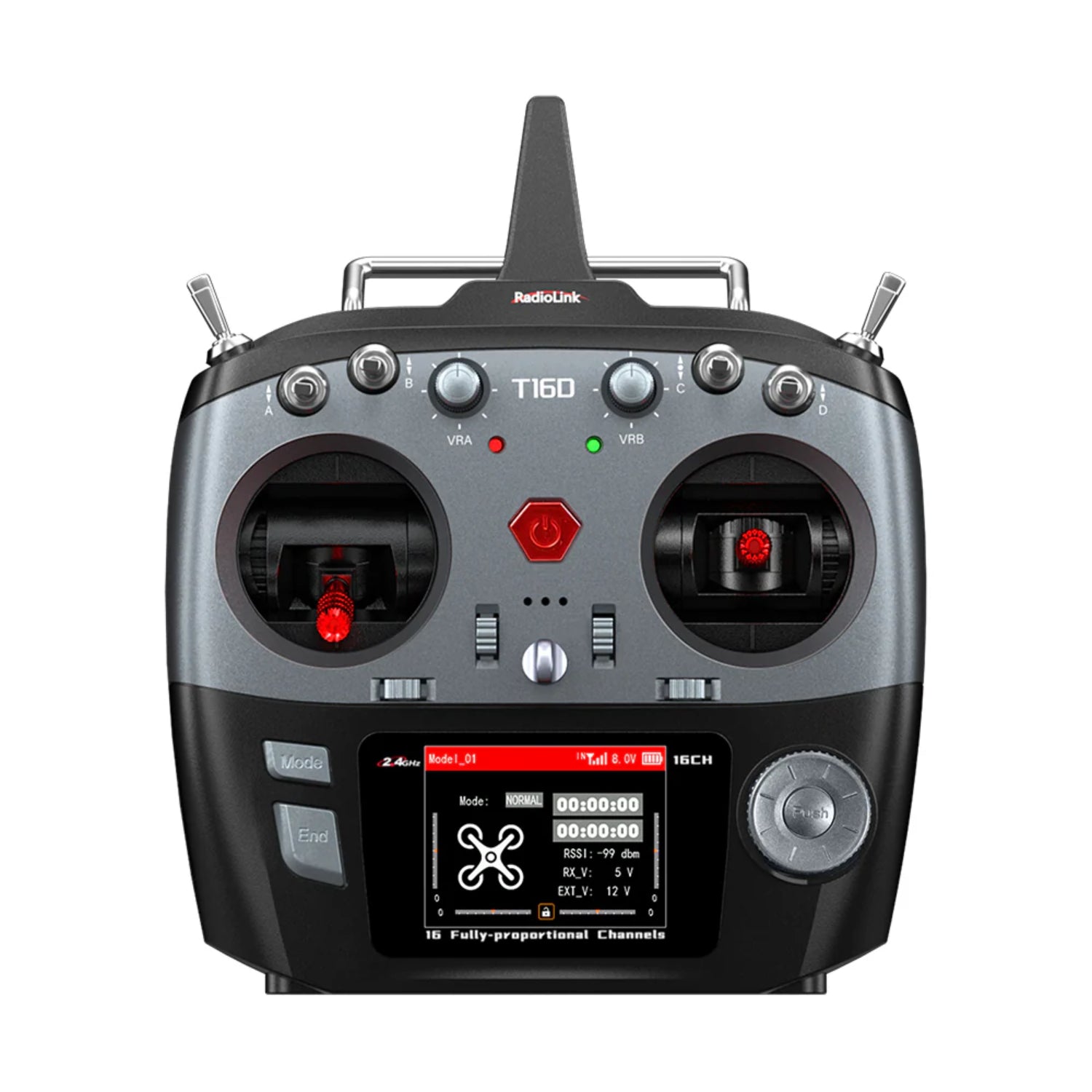

The Radiolink T16D 16-Channel RC Transmitter and R16F Telemetry Receiver. Designed for serious RC enthusiasts, this advanced radio system offers extensive 16-channel control for drones, airplanes, cars, and boats.
Experience seamless connectivity with multi-protocol support, ensuring compatibility with a wide range of receivers, while real-time voice broadcast keeps you informed of critical telemetry data. Engineered for precision and comfort, the T16D features a Mode 2 (left throttle) configuration for intuitive flight and driving. Elevate your RC experience with long-range reliability and cutting-edge features.
Specifications:
T16D 16 Transmitter
|
Battery Case Dimension |
114.4*35.4*32mm(4.5"*1.39"*1.26") |
|
Antenna Length |
90mm(3.54") |
|
Weight |
558g(19.68oz) |
|
Channels |
16 fully proportional channels, 5-16 channels can be programmed |
|
Output Frequency |
2.4GHz ISM band(2400MHz~2483.5MHz) |
|
Spread Spectrum |
FHSS 67 channels pseudo-random frequency hopping |
|
Signal Output |
PWM&SBUS&PPM&CRSF |
|
Operating Systems |
freeRTOS+LVGL GUI |
|
Long-range Module Script |
LUA script |
|

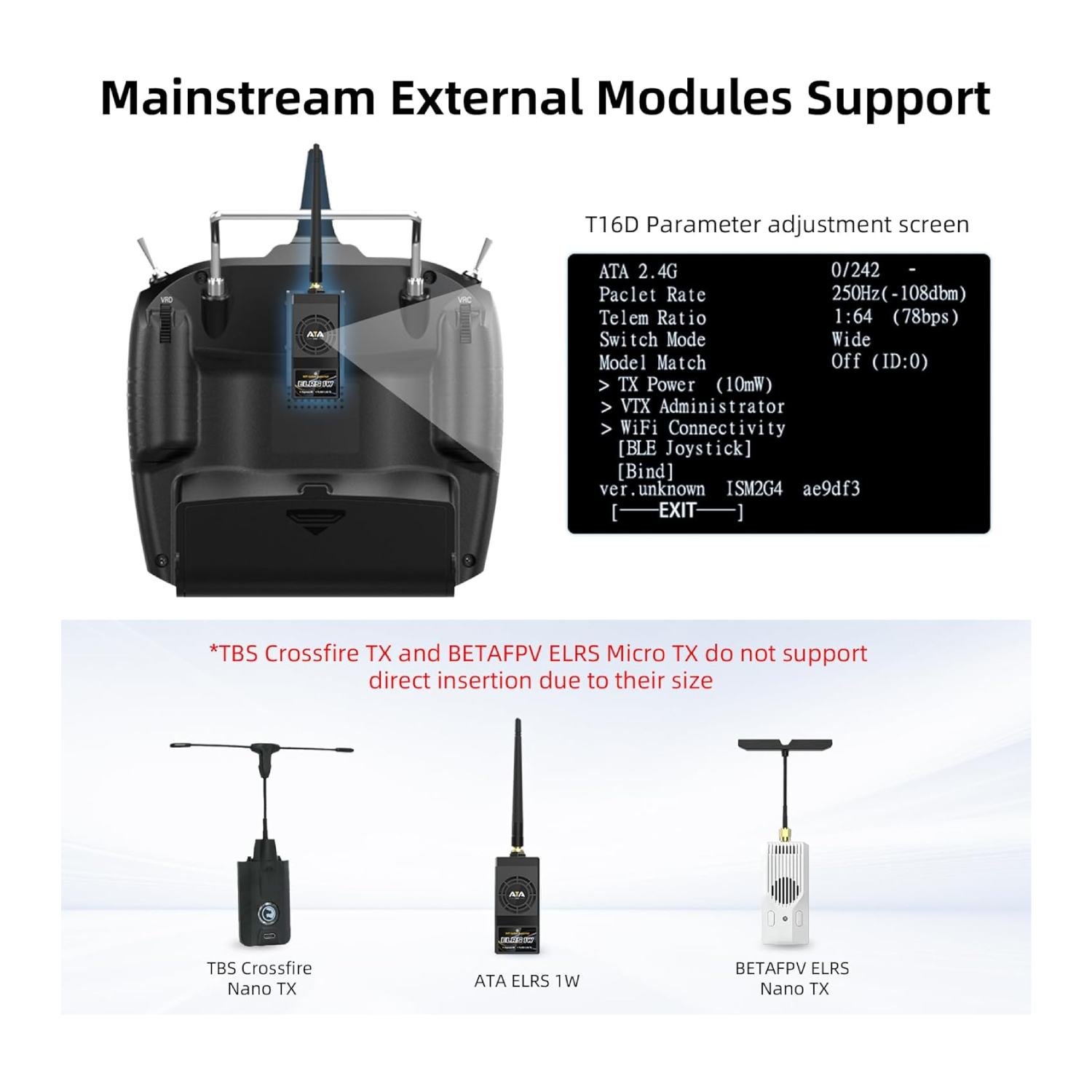

Long-range Module |
It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules |
|

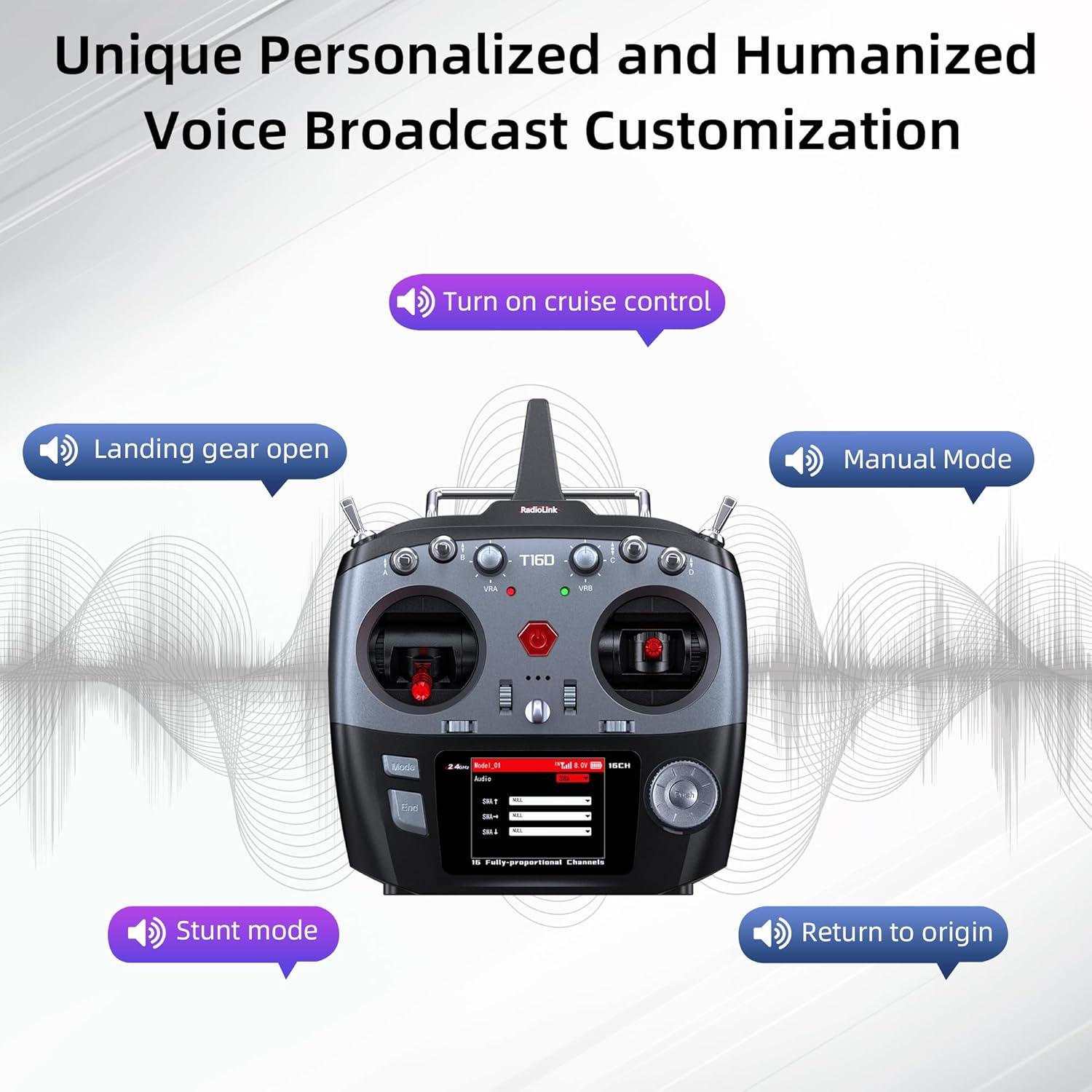

Voice Broadcast |
Unique personalized and humanized voice broadcast customization |
|
Response Latency |
3ms, 4ms, 14ms can be selected |
|
Channel Resolution |
4096 with regular jitter of 0.25us |
|
Modulation Mode |
GFSK |
|
Channel Band Width |
400KHz |
|
Channel Pacing |
1200KHz |
|
Transmitter Power |
<100mW(20dBM) |
|
Adjacent Channel Rejection |
>36dBM |
|
Transmission Rate |
38kbps |
|
Reception Sensitivity |
-104dBM |
|
PWM Output Range |
875-2125 |
|
Cycle |
15ms/per frame |
|
Operating Voltage |
exceed the working voltage of the module. |
|
Type-C Port Voltage and Current |
Output Current: Maximum 1A |
|
Operating Current |
100mA(±10mA)@8.4V DC |
|
Control Distance |
②External RF: Depends on the RX of the long-range module |
|
Adaptable Models |
Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot |
|
Low Voltage Alarm |
Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized |
|
Storage Model Quantity |
100 |
|
Subsidiary ID Quantity |
16 |
|
Simulator Mode |
Yes |
|
Trainer Function |
Support |
|
Screen |
2.8 inches 16 colorful screens, 320*240 pixels |
|
Compatible Receivers |
R16F(Std), R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F |
|
Operating Temperature |
-30° to 85° C |
|
Compatible Control Board Hardware Models |
Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal |
R16F Receiver
|
Channel |
16 channels |
|
Operating Voltage |
3~12V |
|
Operating Current |
50±10mA@5V |
|
Antenna Length |
205mm (8.07”) |
|
Signal Output |
SBUS+CRSF+PWM |
|
Output Frequency |
2.4GHz ISM band(2400MHz~2483.5MHz) |
|
Spread Spectrum |
FHSS 67 channels pseudo-random frequency hopping |
|
Adaptable Models |
Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot |
|
Control Distance |
4000 meters in the air(Maximum range is tested in an unobstructed area free of interference) |
|
Telemetry |
Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage. R16F has built-in data transmission functions. When connected to the flight controller, they can send back flight controller information such as latitude and longitude, distance, number of satellites, and other information in real-time. |
|
Upgrade Online |
With a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra device. |
|
EXT Battery Input |
1S-8S(3.0-33.6V) |
|
Response Latency |
3ms, 4ms, 14ms can be selected |
|
Water Splash Proof |
The waterproof grade is IPX4 |
|
Operating Temperature |
-30° to 85° C |
|
Compatible transmitter |
T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS |
Features:
- 16-Channel Control & Wide Compatibility: Supports a broad range of RC models, from aircraft to ground vehicles, with smooth and responsive handling.
- Ultra-Long Control Range: FHSS frequency-hopping technology provides a stable, interference-resistant signal with a range of up to 4000 meters.
- High-Resolution Input & Precision Response: 4096-level resolution with a minimal 0.25µs jitter ensures ultra-smooth, lag-free operation for high-precision control.
- Multi-Model Memory & Quick Switching: Store and switch between multiple models easily, reducing setup time and optimizing performance for different vehicles.
- Ergonomic and User-Friendly Design: Designed for extended use, the lightweight yet sturdy build ensures comfort, while an intuitive interface simplifies operation.
- Reliable Signal Transmission: Advanced 2.4GHz technology minimizes signal interference, ensuring stable connectivity for consistent performance in any environment.
Package Included:
1 x Radiolink T16D 16-Channel RC Transmitter
