Description:
Elevate your RC experience with the Radiolink T12D, a state-of-the-art 12-channel proportional RC transmitter paired with the reliable R12F receiver. Designed for hobbyists and professionals alike, this powerful 2.4GHz remote radio controller offers unparalleled precision, expanded control capabilities, and cutting-edge features for a diverse range of RC models, from high-performance airplanes and agile drones to responsive cars and stable boats.
Specifications:
T12D Transmitter:
- Channels: 12 fully proportional channels, 5-12 channels can be programmed
- Mode: Mode 1 or Mode 2
- Signal: PWM, SBUS and PPM
- Frequency: 2.4 GHz ISM bands (2400 MHz to 2483.5 MHz)
- Channel bandwidth: 400 KHz
- Spectrum: FHSS pseudo-astral frequency hopping 67 channels/CRSF
- Operating Systems: freeRTOS+LVGL GUI
- Modulation mode: GFSK
- Adjacent channel rejection: >36 dBBM
- Transmit power: <100mW (20dBBM)
- Operating current: DSSS and FHSS <90 mA at 12 V
- CRSF Depends on the transmission power selection
- Operating voltage: 7.4~18.0V (8 AA batteries, one 2S-4S LiPo battery or 18650 lithium battery)
- Operating current: 100 mA (± 10 mA) at 8.4 V DC
- Type-C port input voltage: 5V (T12D can also be powered by computer or mobile power bank via Type-C cable)
- Type-C port input current: 500mA
- Type-C port output voltage: 4.6V-5.0V
- Type-C port output current: maximum 1A
- Control distance:
- 1 FHSS: 4000 meters in air (maximum range is tested in an open and interference-free area)
- 2 CRSF: Depends on the RX and TX of the long-range module
- Screen: 2.8 inch 16-color screen, 320*240 pixels
- Adaptable models: rotary wing/fixed wing/author/multicopter/car/boat/robot
- Compatible Receivers: R16FG(Std), R8EF, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F
- Trainer function and simulator mode: support
R12F Receiver:
- Signal: SBUS+CRSF+PWM
- Channel: 12 channels
- Control distance: 4000 meters in the air (maximum range is tested in a clear and interference-free area)
- Operating voltage: 3-12V
- Operating current: 37±3 mA at 5 V
- Output frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Channel Resolution: 4096 with regular jitter of 0.25us
- Adaptable models: rotary wing/fixed wing/author/multicopter/car/boat/robot
- Control distance: 4000 meters in the air (maximum range is tested in a clear and interference-free area)
- Online Upgrade: With a Type-C cable (for data transmission) connecting the R12F to your computer, the latest cutting-edge functions can be easily added without any additional devices.
- Response Latency: When connected to RC8X/T16D/T12D, you can select 3ms, 4ms and 14ms. When bound to other transmitters, it defaults to 14ms.
- Spread spectrum: 67-channel FHSS pseudo-astral frequency hopping
Features:
- freeRTOS & LVGL GUI System
- Control Range Up to 2.5 miles
- External Module Support (ELRS/Crossfire/BETAFPV)
- 50 Groups of Models Storage
- 16 Groups of Models Sub-ID Storage
- 100 Fishing Spots Storage
- 32 Set of Programmable Mixes Control
- Wired/Wireless Training, RC Simulator Support
- RC Model Options( Quad, Airplane, Glider, Helicopter, Car, etc.)
- Theme Customization: It has a lot of colors options. You can customize an exclusive theme for your T12D radio.

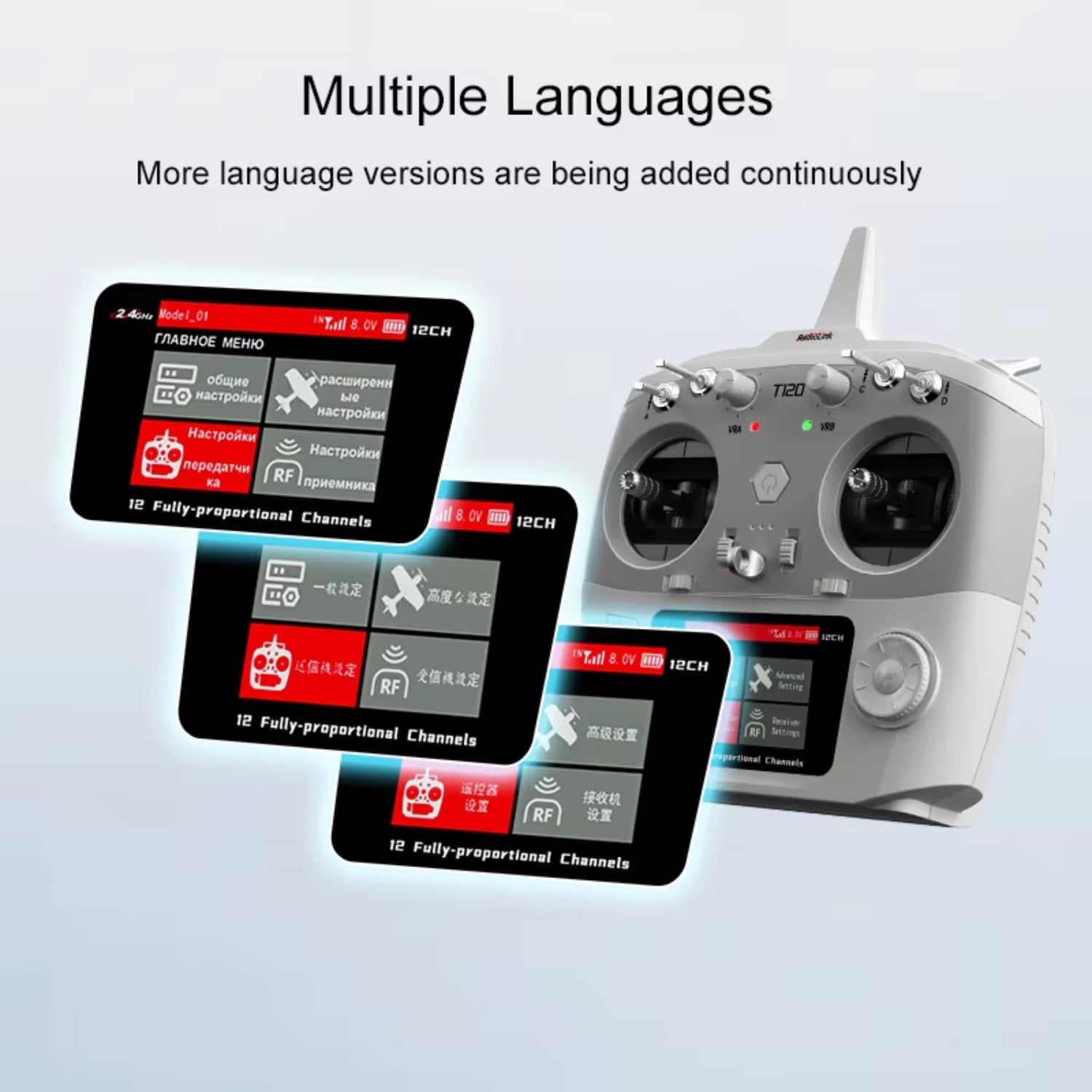

- Multiple Languages Select: The optional language menu includes Chinese, English, German, French, Russian, Japanese, Spanish, Korean, Thai, and Polish.
- RSSI & Voltage Telemetry: Telemetry RSSI, receiver, and model battery voltage when it works with R16F.
- Subsidiary ID: Use a toggle to switch 2 or more devices when the receivers are powered on.
Transmitter Interface:
Powered Battery Types Support:
- AA Battery: 8*AA batteries
- Lipo Battery: 2S-4S/18650 Lipo Battery
- Type-C Interface: Temporary Power Supply (5v)
- Battery Interface: 2 Pin JST Plug
- Battery Box Dimension: 114.4*35.4*32mm

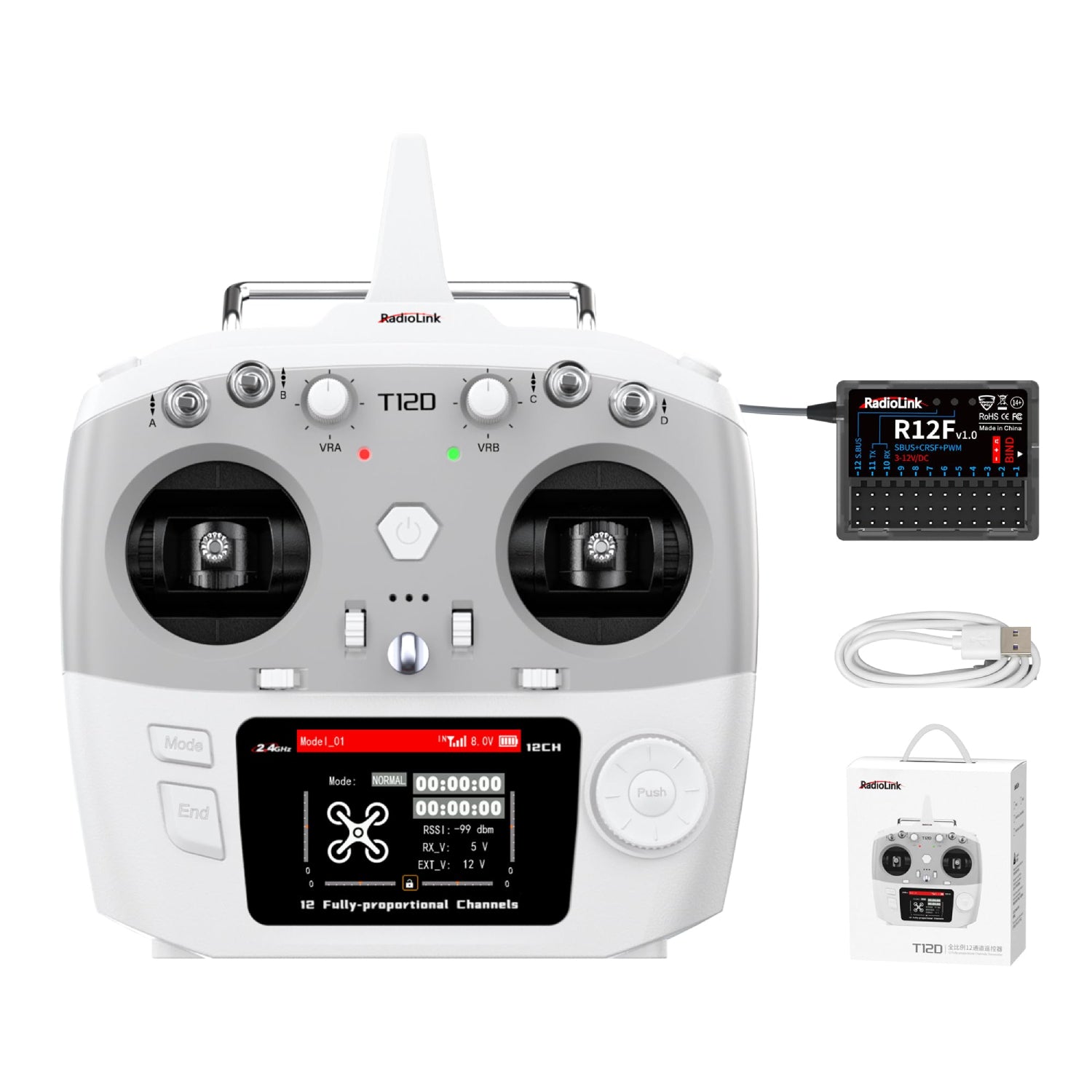

Package Included:
- 1 x T12D Transmitter
- 1 x R12F Receiver
- 1 x Type-C Cable( for Upgrade)
- 1 x Hook and Spring
- 1 x Instruction
