Description:

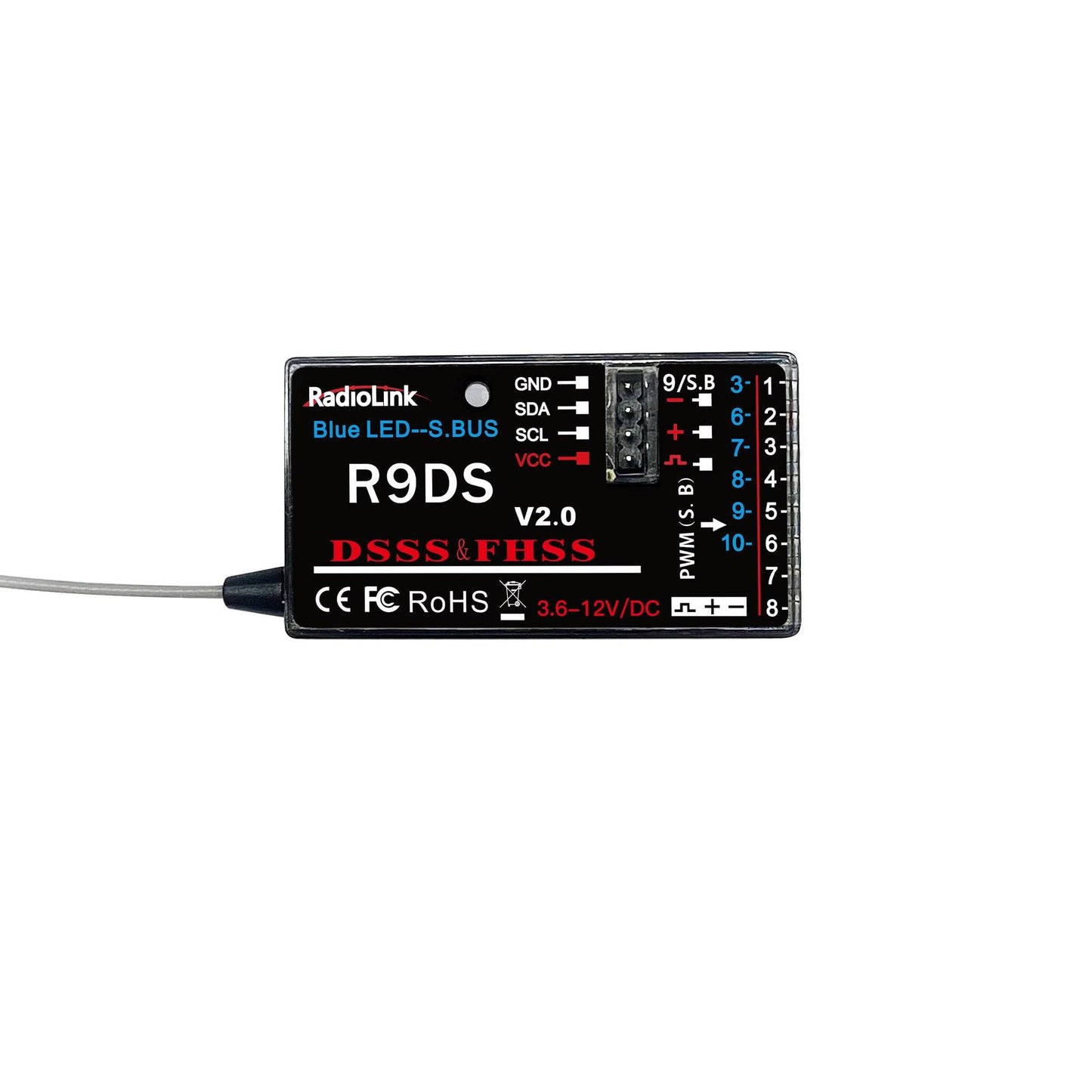

Radiolink R9DS RC Receiver with DSSS&FHSS protocol, which makes R9DS with excellent anti-interference ability, a control range of up to 2.1 miles(3.4km). Radiolink R9DS RC Receiver supports PWM/SBUS signal output and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.

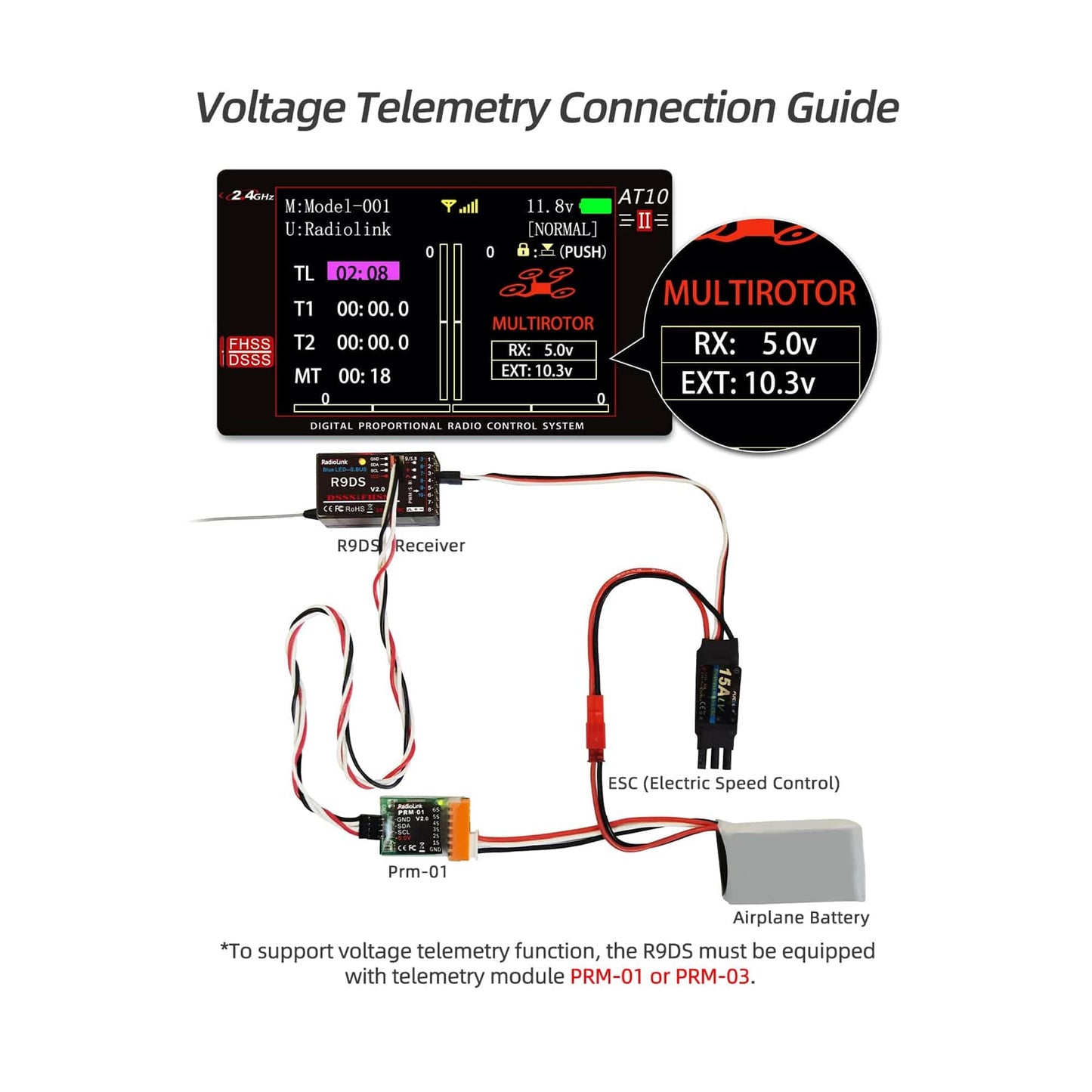

Note: To support voltage telemetry function, the R9DS must be equipped with telemetry module PRM-01 or PRM-03.
Specifications:

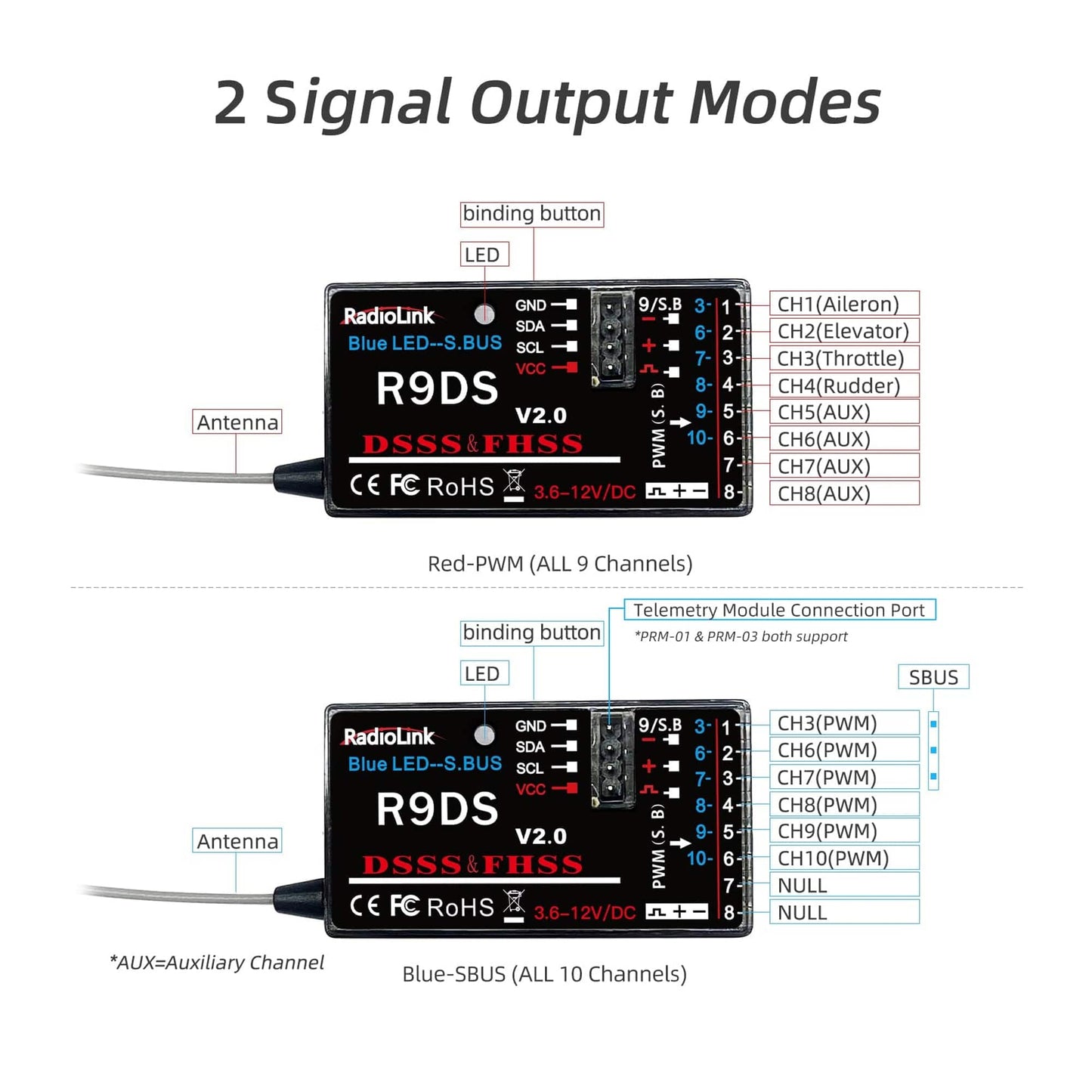

- Signal: SBUS, PWM
- Channel: PWM 9 Channels, SBUS 10 Channels
- Control Distance: 900 meters on the ground and 3400 meters in the air (2.11 miles) (maximum range may vary depending on local regulations as tested in an area free of obstructions and free of interference).
- Working Voltage: 3.6-12V (new test)
- Working Current: 38-45mA (Input Voltage: 5V)
- Size: 43*24*15mm
- Weight: 10g
Features:
- Excellent Anti-interference: Radiolink R9DS RC Receiver with DSSS&FHSS pseudo-random algorithm to give R9DS excellent anti-interference ability.

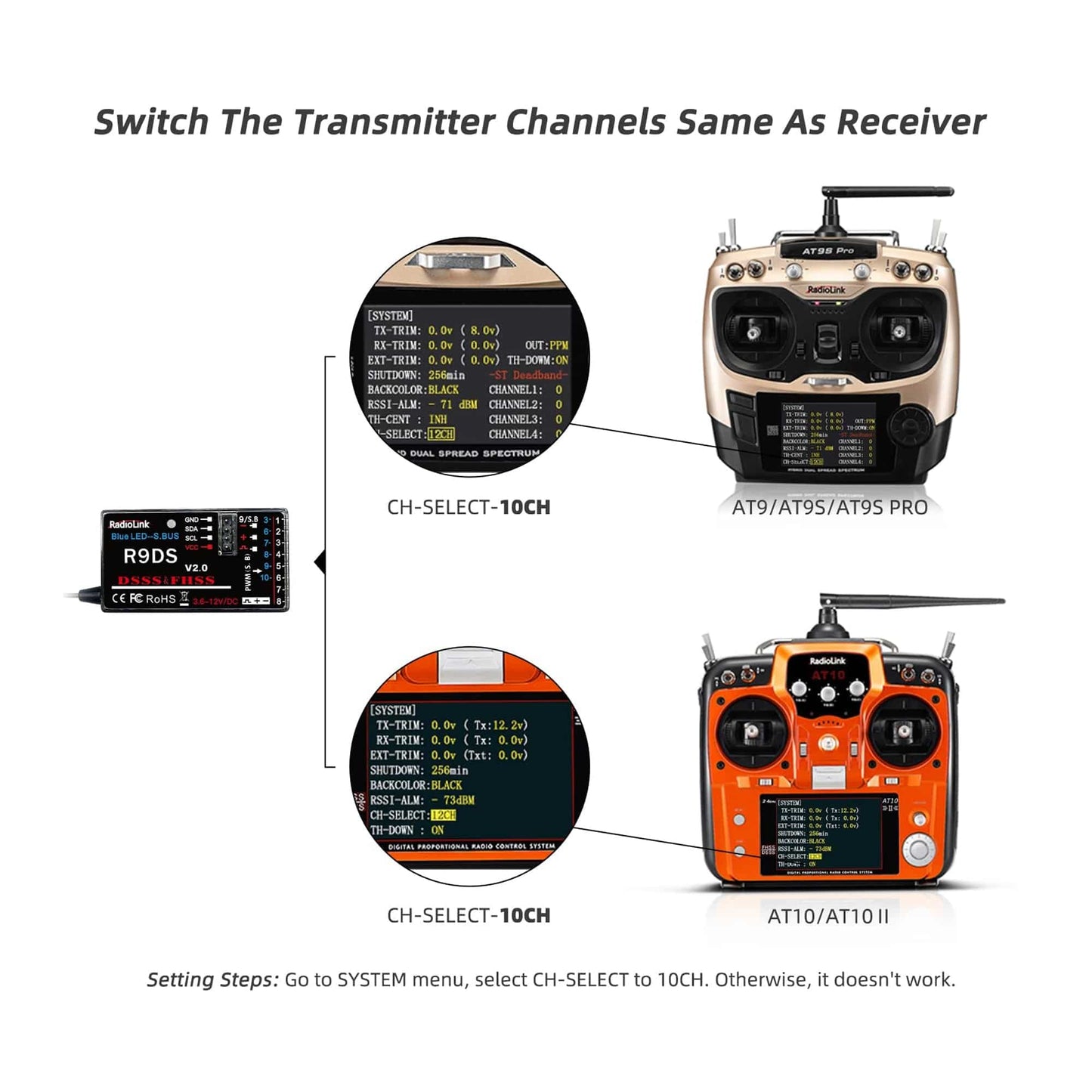

- 9/10 Channels: Radiolink R9DS RC Receiver supports PWM/SBUS signal output, and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure the SYSTEM channel selection is 10ch mode when it works with AT10II 12 channels transmitter, or it won't work well.
- Fast Response: High-resolution ratio of 4096, stability of 0.5us, to provide a quicker, low-latency connection for the driver.
- Long Range Control: Radiolink R9DS RC Receiver has an outstanding control range of up to 2.1 miles on air. (Depends on the actual using environment)
- Quick to Bind and Anti-polarity Protection: no need for any setting on the transmitter when R9DS bind with radio. With a reverse polarity protection circuit, do not damage the receiver even if you plug the wrong polarity.
Package Included:
1 x Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver SBUS/PWM Long Range Control for Airplane/Car/Multirotors, Compatible with Transmitter AT9/AT9S/AT9S Pro AT10II/AT10
