Description:

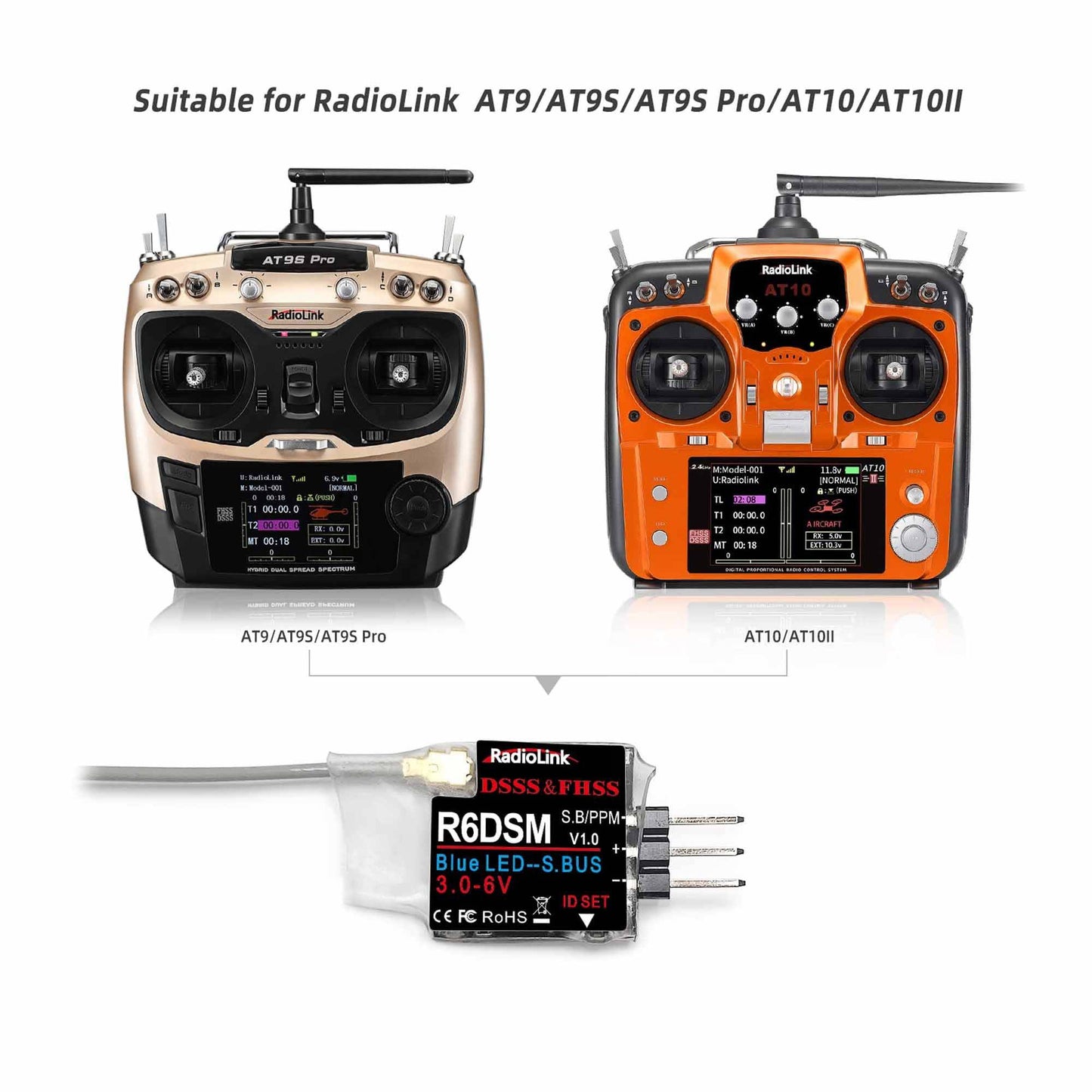

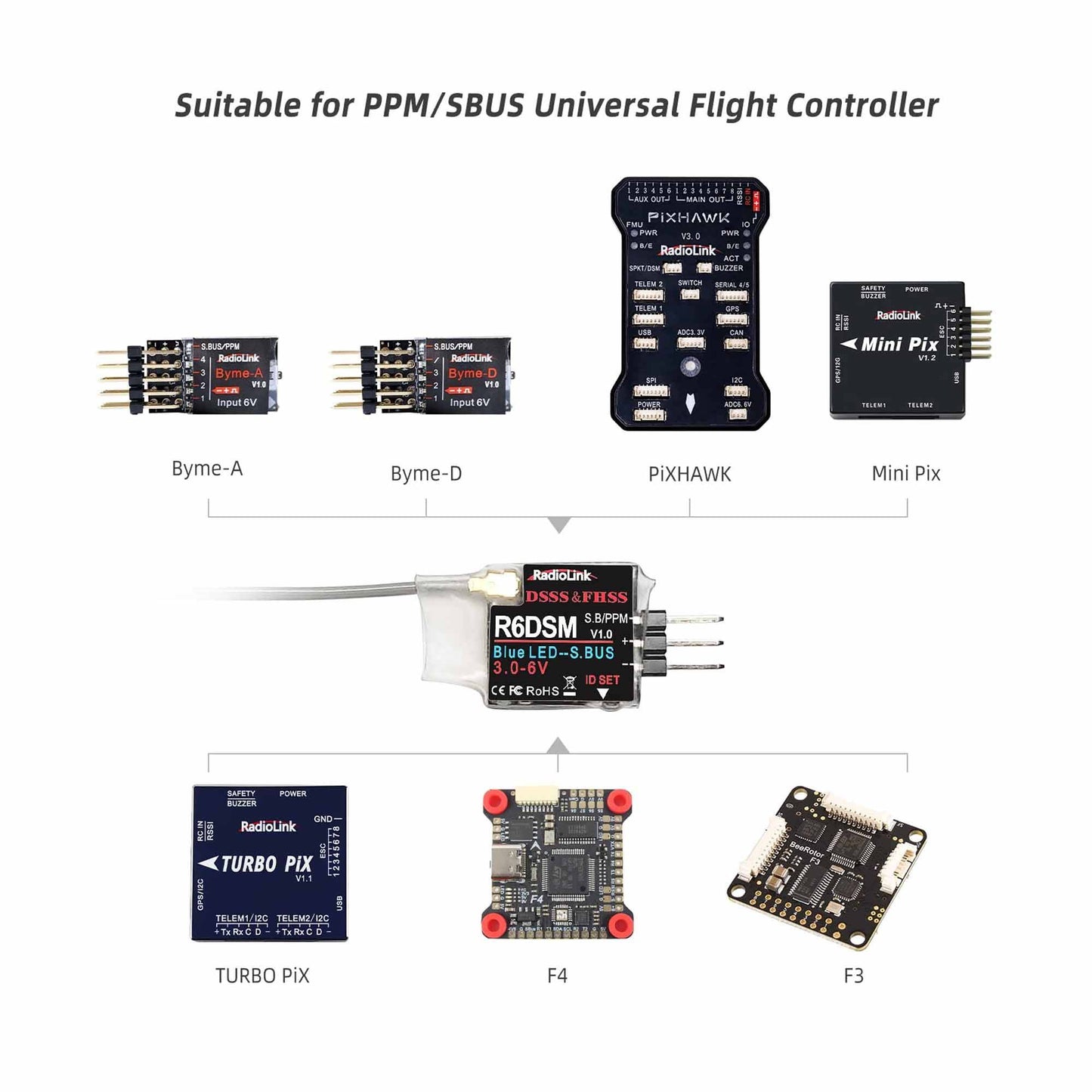

Radiolink R6DSM RC Receiver with DSSS&FHSS protocol, which makes R6DSM with excellent anti-interference ability. Radiolink R6DSM RC Receiver supports PPM/SBUS signal output and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.
Specifications:
- Channel: 10 Channels
- Working Voltage: 3-6V
- Working Current: 38-45mA (input voltage: 5V)
- Size: 15*13mm
- Weight: 1g

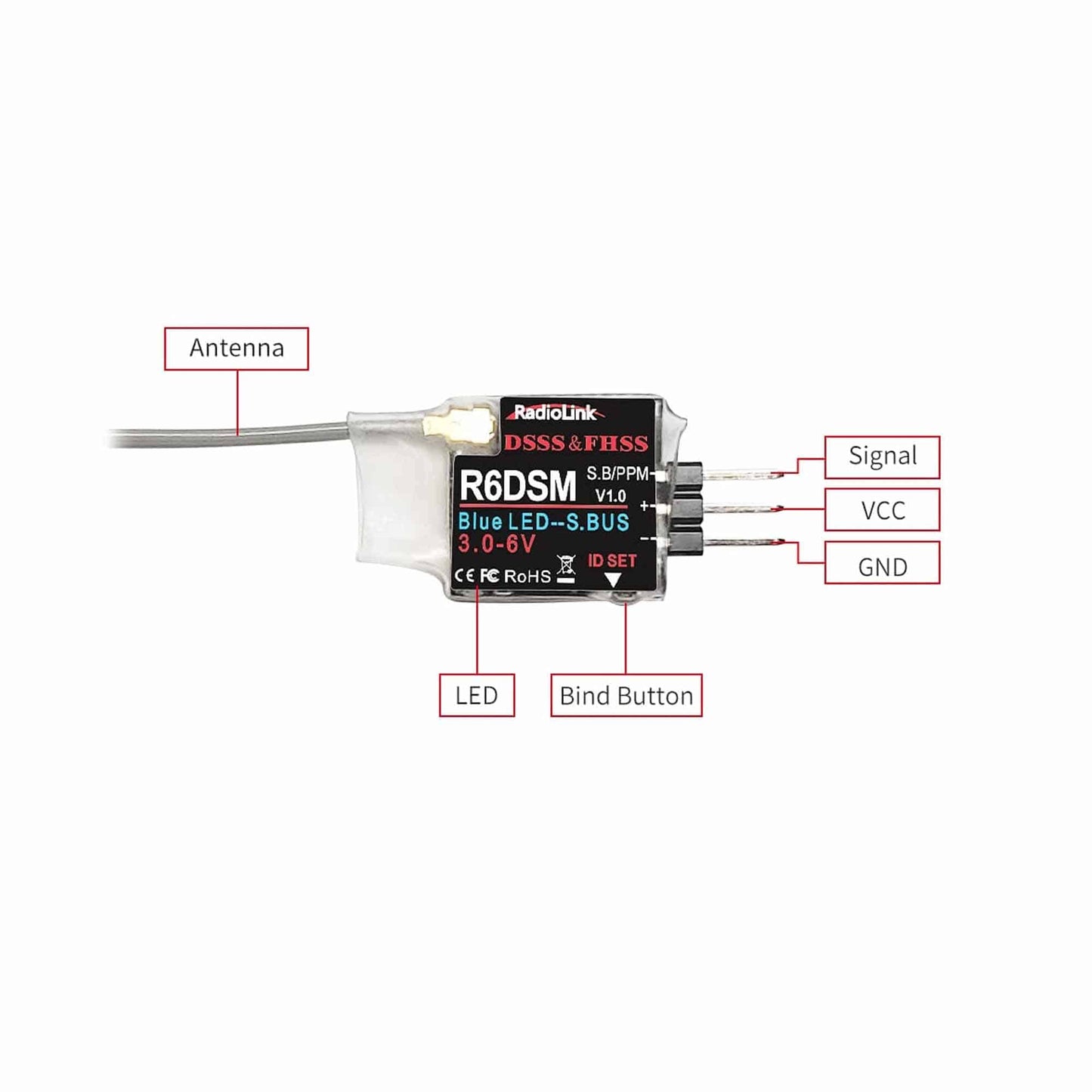

- Detachable Antenna
- 4096 section accuracy, 0.25us per section, servo anti-vibration ladder.
- Control Distance: About 600 meters, the actual control distance depends on the environment.
Features:

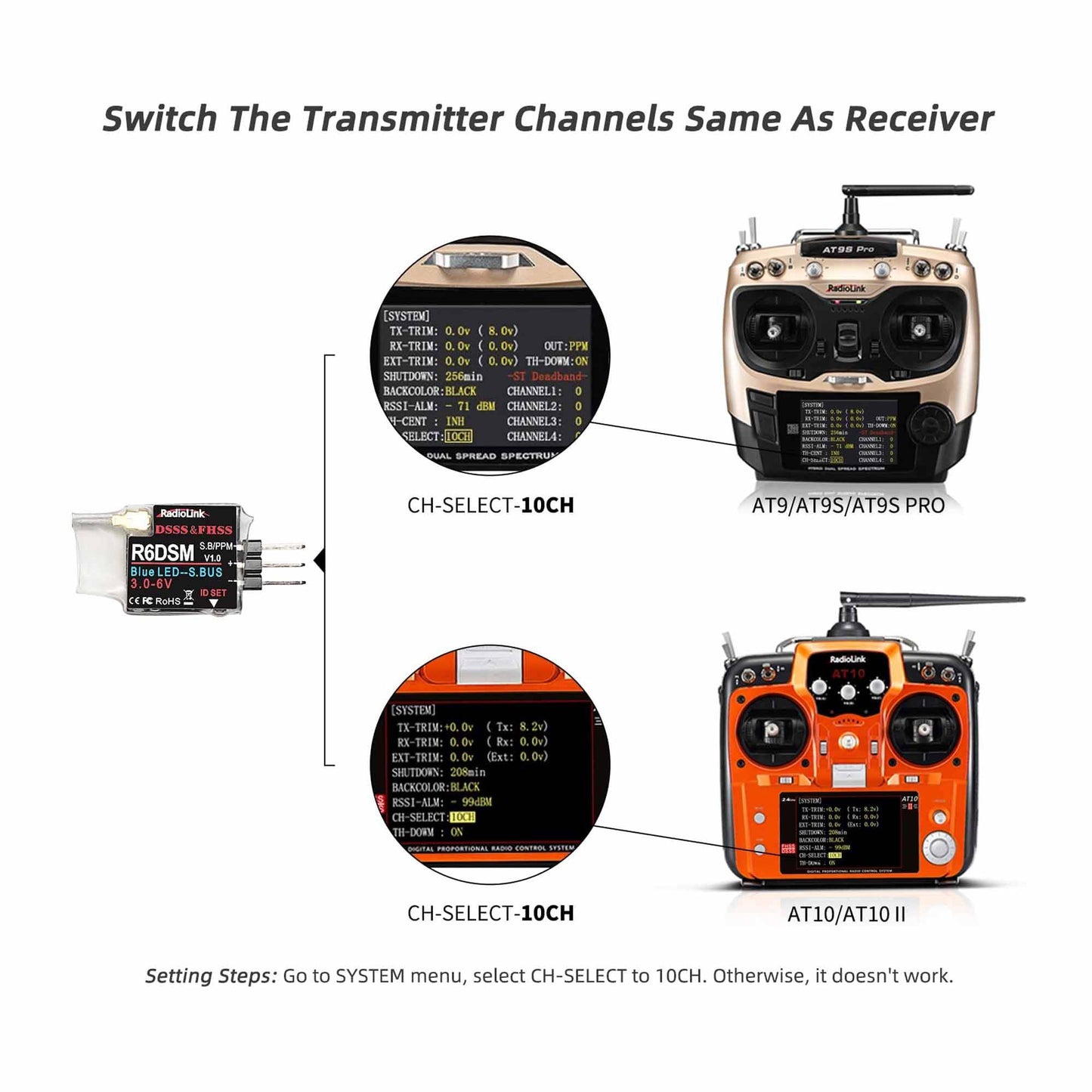

- 10 Channels: Radiolink R6DSM RC Receiver supports PPM/SBUS signal output, ideal for most aircraft. Make sure the menu SYSTEM CH selection is 10CH when it works with the AT9S/AT9S Pro/AT10/AT10II transmitter, or it won't work well.
- Fast Response: High-resolution ratio of 4096, stability of 0.5us, to provide a quicker, low-latency connection for the transmitter.
- Mini Size: Only 0.59*0.51 inch and 0.035oz, fit a wide range of RC aircraft models, like mini racing drones, such as 130mm, and 80mm quadcopters in the market.
- Quick Bind and Anti-polarity Protection: No need to bind the plug, just press the bind button for 1 second to bind. With a reverse polarity protection circuit, do not damage the Radiolink R6DSM RC Receiver even if you insert the wrong polarity.
Package Included:
1 x Radiolink R6DSM RC Receiver R6DSM 2.4Ghz 10 Channels Micro RC Receiver SBUS/PPM for Mini FPV Racing Drone, Quadcopters Aircraft, AT9S AT9S Pro/AT10/AT10II Transmitter
