Description:

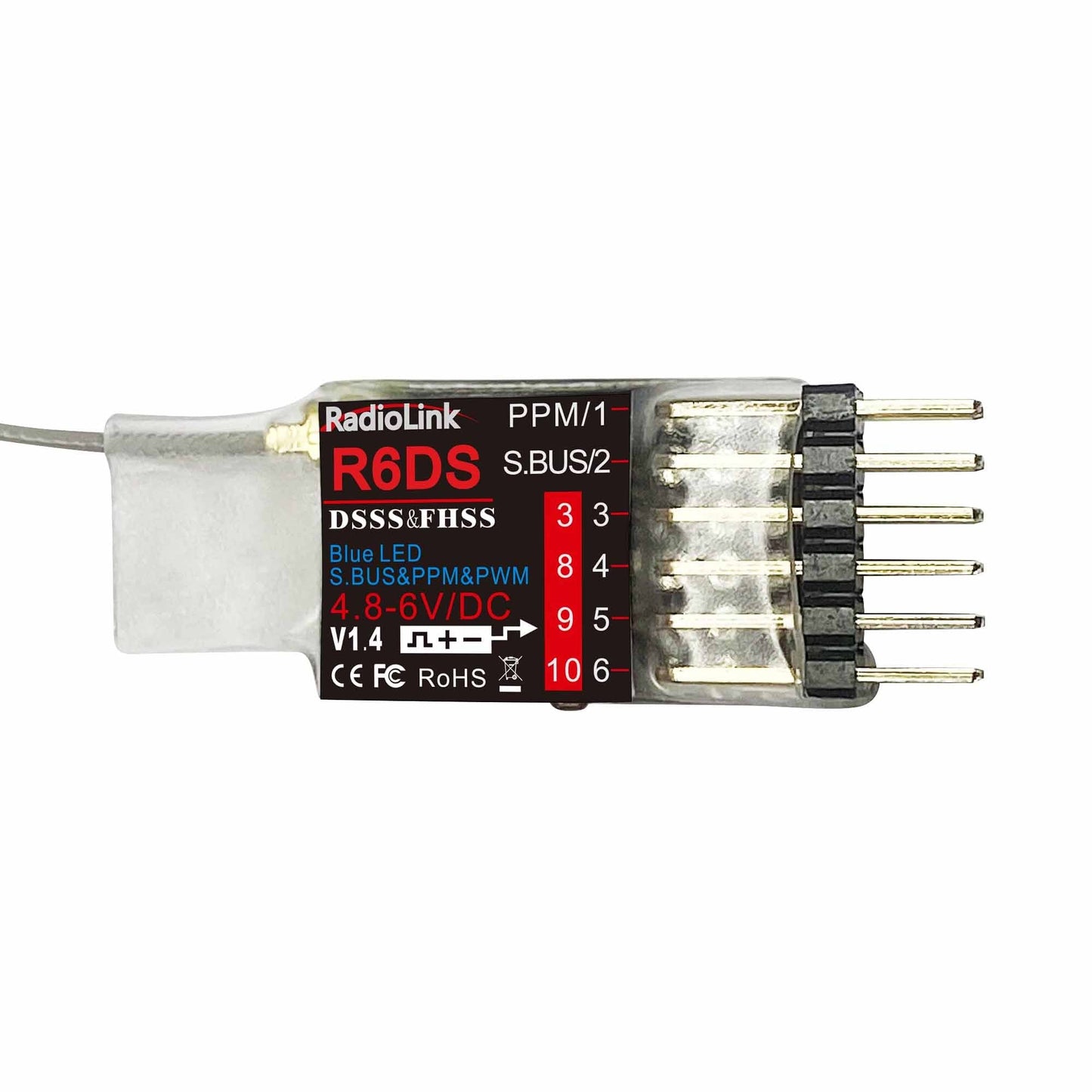

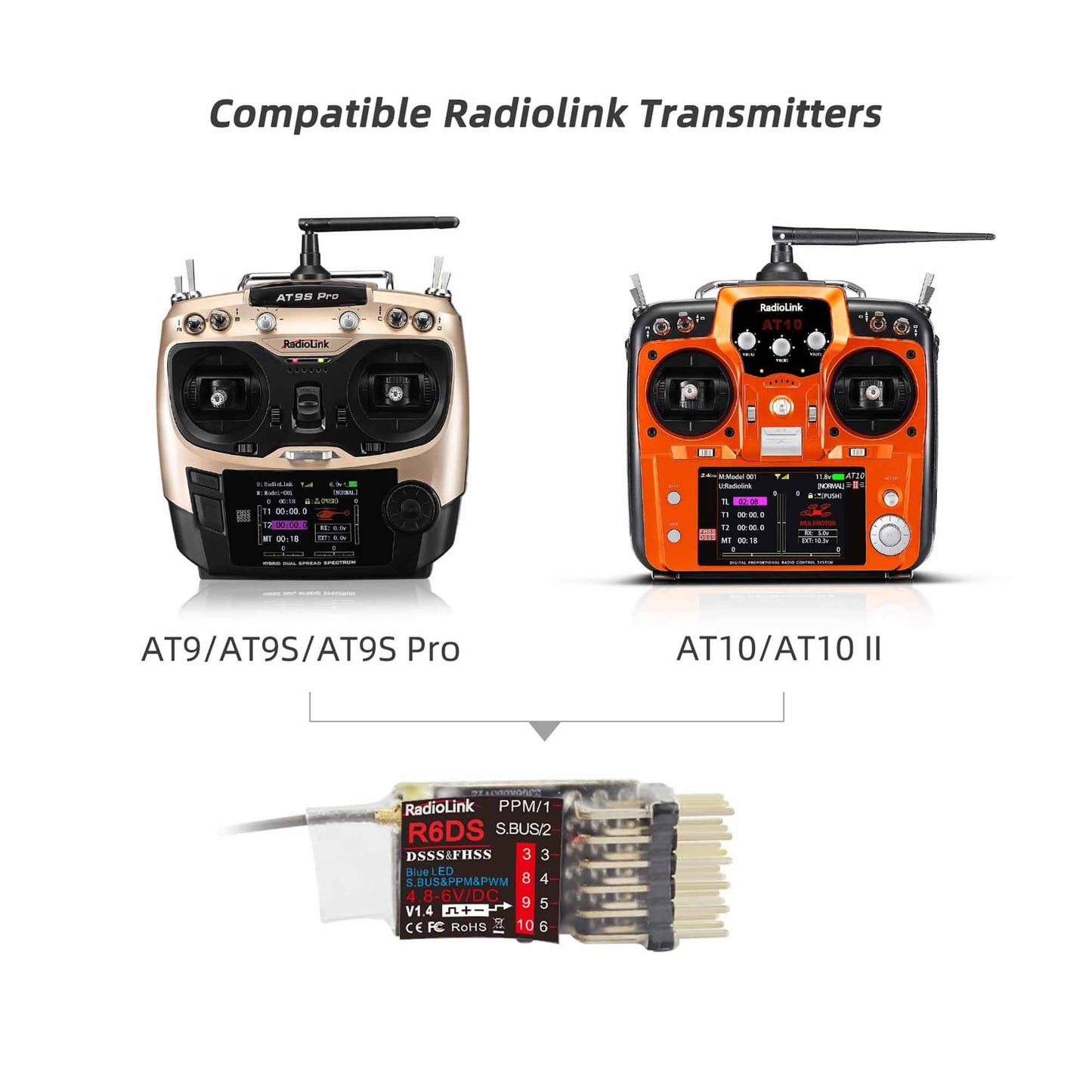

Radiolink R6DS RC Receiver with DSSS&FHSS protocol, which makes R6DS with excellent anti-interference ability. Radiolink R6DS RC Receiver support PPM/SBUS/PWM signal output works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. R6DS with a reverse polarity protection circuit, does not damage the receiver even if you insert the wrong polarity.
Specifications:
- Channel: PWM: 6CH, SBUS & PPM: 10HC
- Signal Output: SBUS/PPM/PWM
- Model: Racing Drone / Quadcopter
- Control Distance: More than 600m Air Spread
- Spectrum: FHSS
- Working Current: 38-45MA (5V)
- Power: 3~6V
- RF Power: <10dbm
- Accuracy: 4096
- Size: 0.98*0.59*0.4in
- Weight: 3.5g
Features:
- Excellent Anti-interference: Radiolink R6DS RC Receiver with DSSS&FHSS pseudo-random algorithm to give R6DS excellent anti-interference ability.

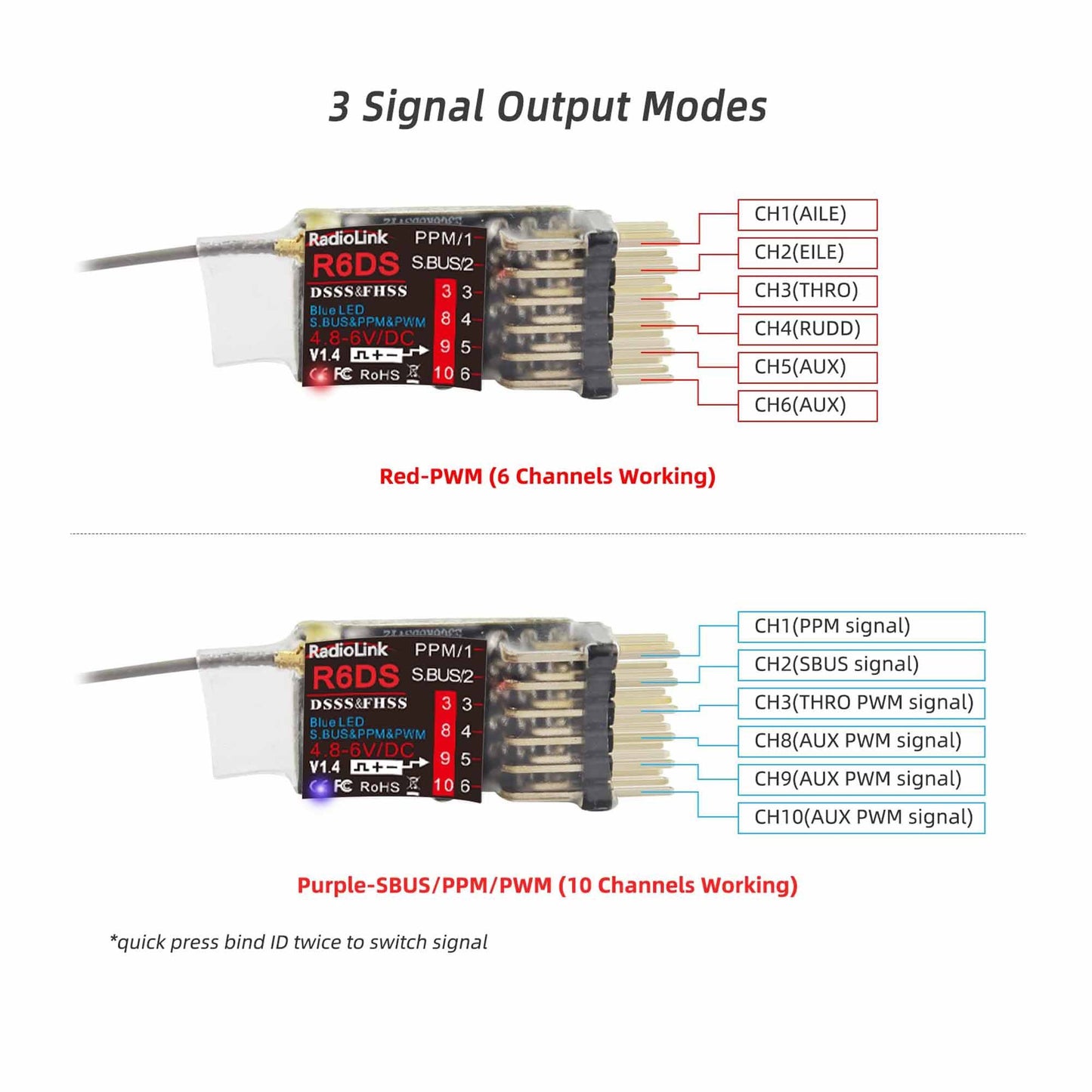

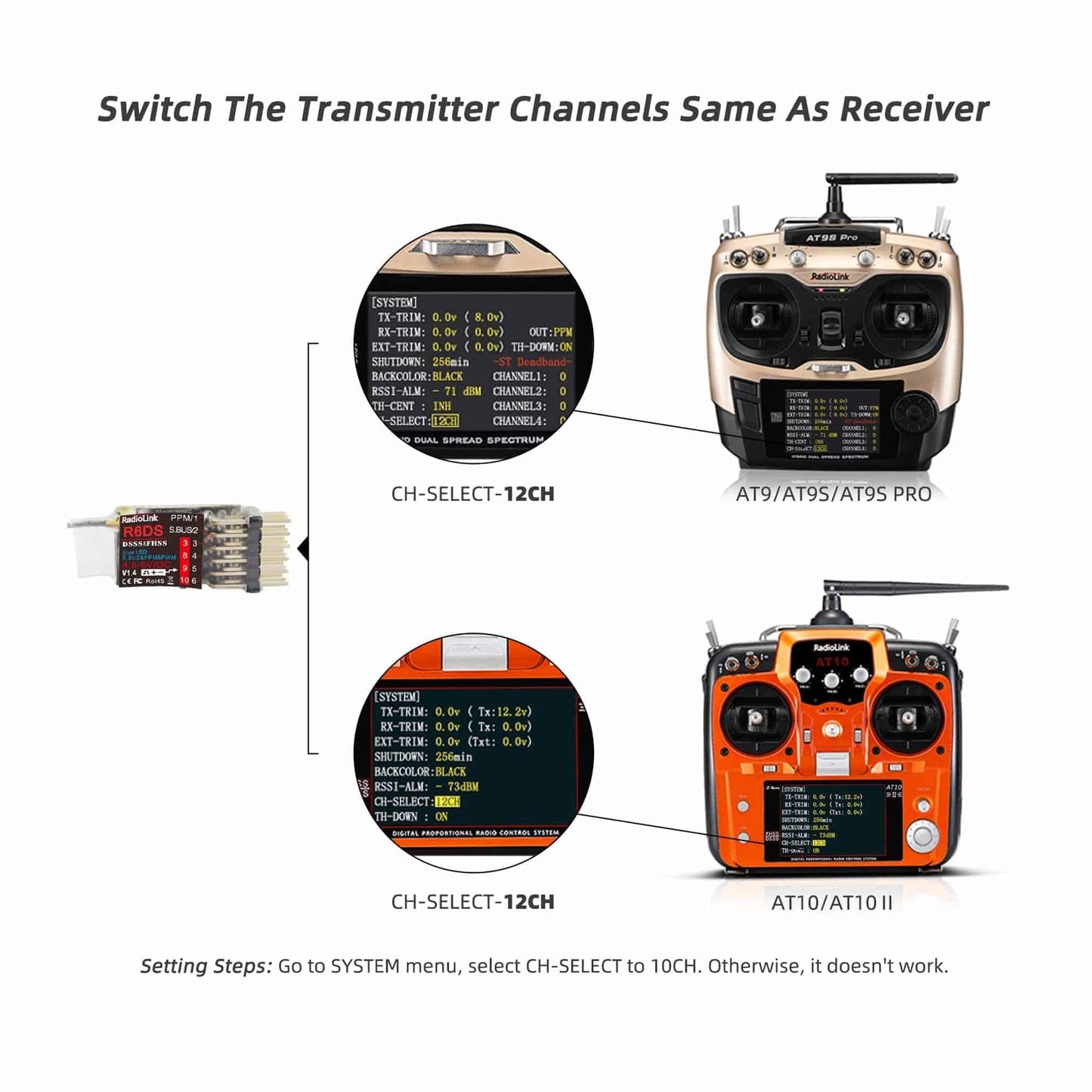

- 6/10 Channels: Support PWM/PPM/SBUS signal output, ideal for most aircraft. Make sure the menu SYSTEM CH selection is 10CH when the Radiolink R6DS RC Receiver works with the AT10/AT10II transmitter, or it won't work well.
- Fast Response: High-resolution ratio of 4096, stability of 0.5us, to provide a quicker, low-latency connection for the driver.
- Press to Bind: No need old bind plug and any radio setting, only press the bind button for 1 second after powering up the radio and receiver. The high-resolution ratio of 4096, stable signal and fast response.
- Anti-polarity Protection: Radiolink R6DS RC Receiver with reverse polarity protection, does not damage the receiver even if you insert the wrong polarity.
Package Included:
1 x Radiolink R6DS RC Receiver R6DS 2.4GHz RC Receiver 6/10 Channels SBUS/PWM/PPM for Drone Airplane Fixed Wing AT9S/AT9S Pro/AT10/AT10II Transmitter RX
