Description:

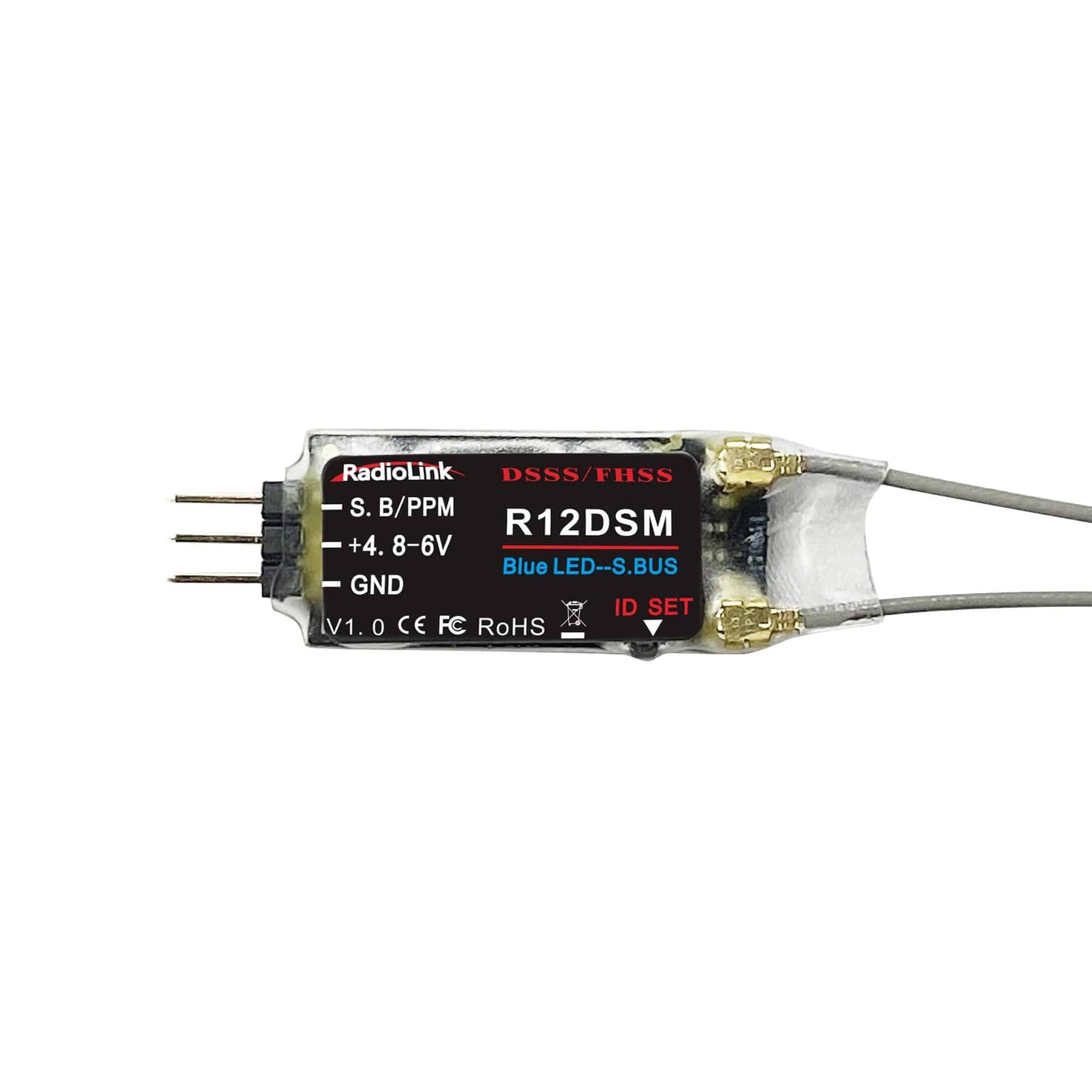

Radiolink R12DSM RC Receiver with DSSS&FHSS protocol, which makes R12DSM with excellent anti-interference ability, a control range of up to 2.4 miles(4km). Radiolink R12DSM RC Receiver supports PPM/SBUS signal output and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.
Specifications:
- Channel: 12CH

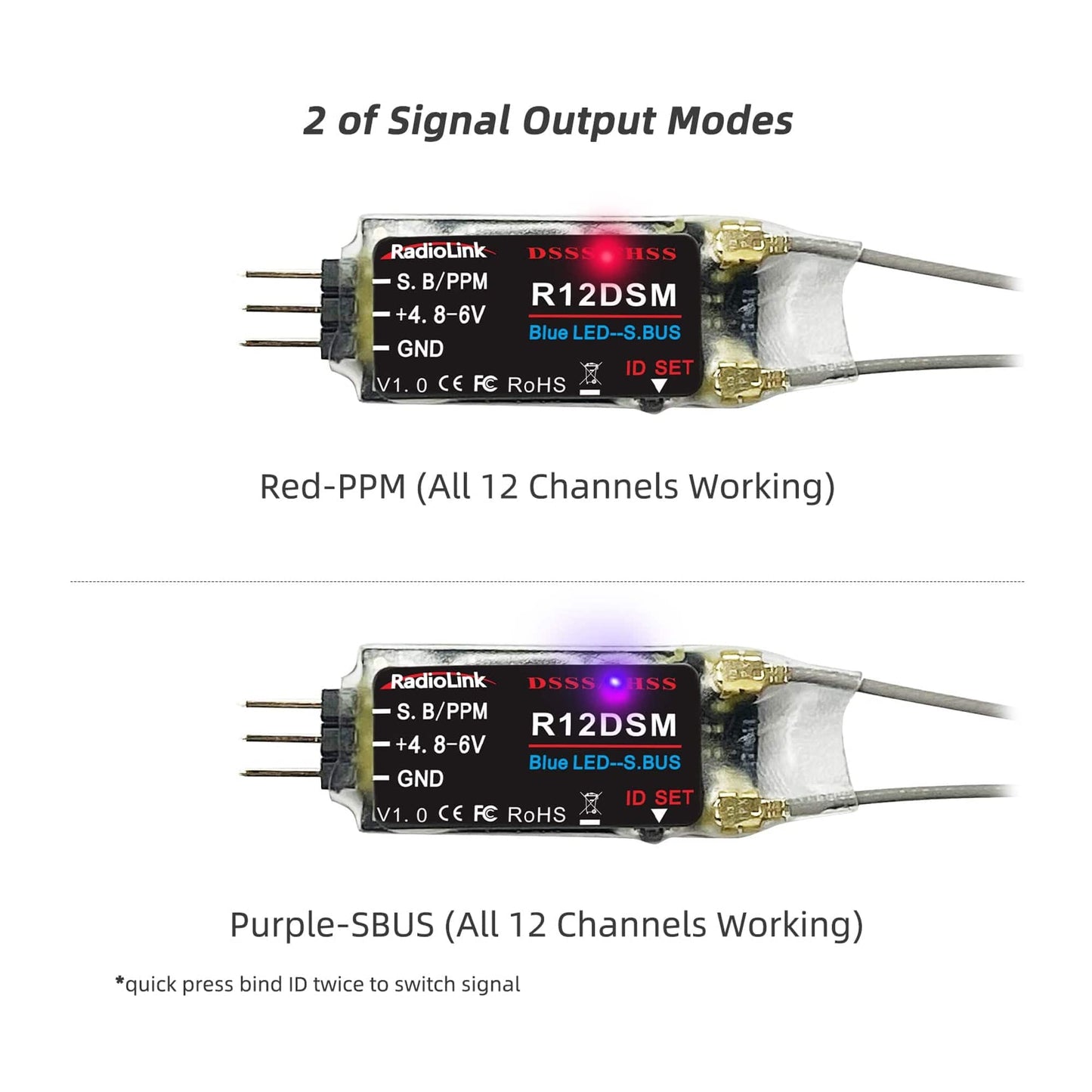

- Signal output: SBUS/PPM
- Working Current: 40-180mA (5V)
- Power Supply: 4.8〜6V
- RF Power: <10dbm
- Accuracy: 4096
- Size: 1.18*0.59*0.04in
- Weight: 2g
Features:
- Strong Anti-interference: Dual antenna and DSSS&FHSS pseudo-random algorithm to give R12DSM RC Receiver with excellent anti-interference ability.

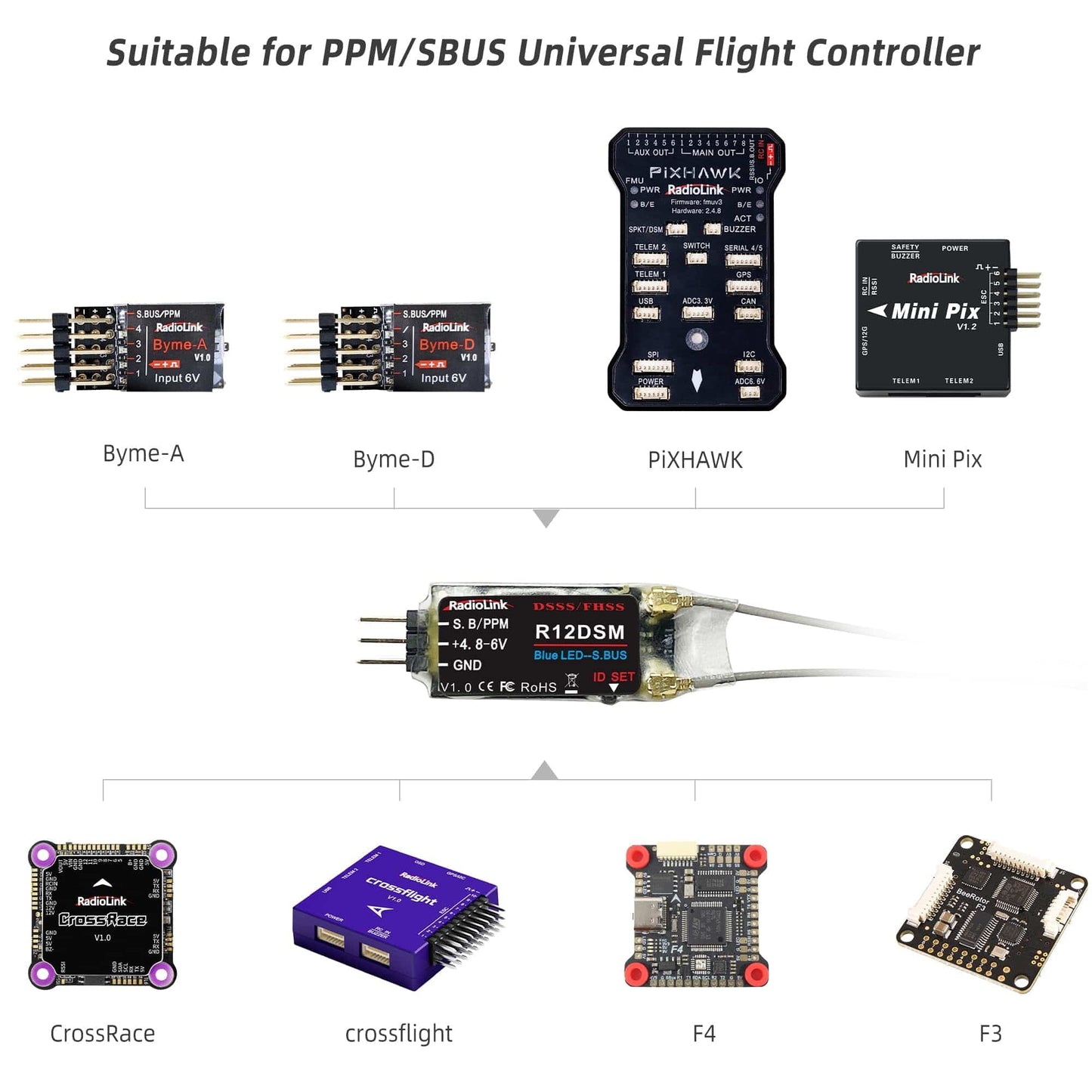

- 12 Channels: Radiolink R12DSM RC Receiver supports universal SBUS/PPM standard signal for FPV racing drones. Make sure the SYSTEM CH selection is in 12CH mode when it works with the AT9S/AT9S Pro transmitter, otherwise that will not work.
- Long Range Control: The Radiolink R12DSM RC Receiver has a stable remote control range of up to 2.4 miles in the air with an AT10II transmitter.

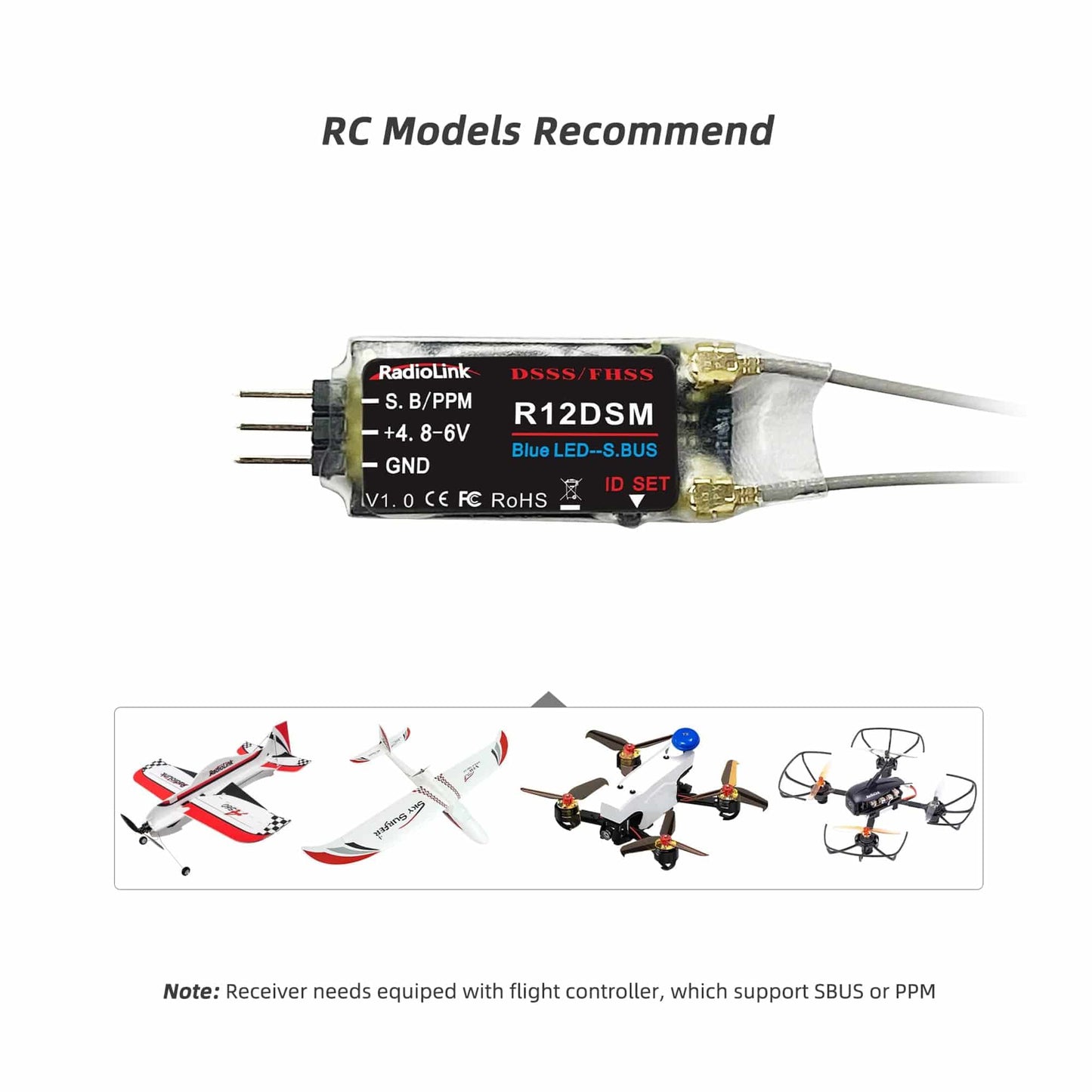

- Super Mini Size: Lightweight and tiny size for FPV mini drones, such as 130mm, or 120mm.
- Quick to Bind and Anti-polarity Protection: Radiolink R12DSM RC Receiver only takes 1 second to bind with rc transmitter and no need for any setting. With a reverse polarity protection circuit, do not damage the receiver even if you insert the wrong polarity.
Package Included:
1 x Radiolink R12DSM RC Receiver R12DSM 2.4Ghz 12 Channels Micro RC Receiver SBUS/PPM Long Range Control for FPV Racing Drone, Quadcopter, Helicopter
