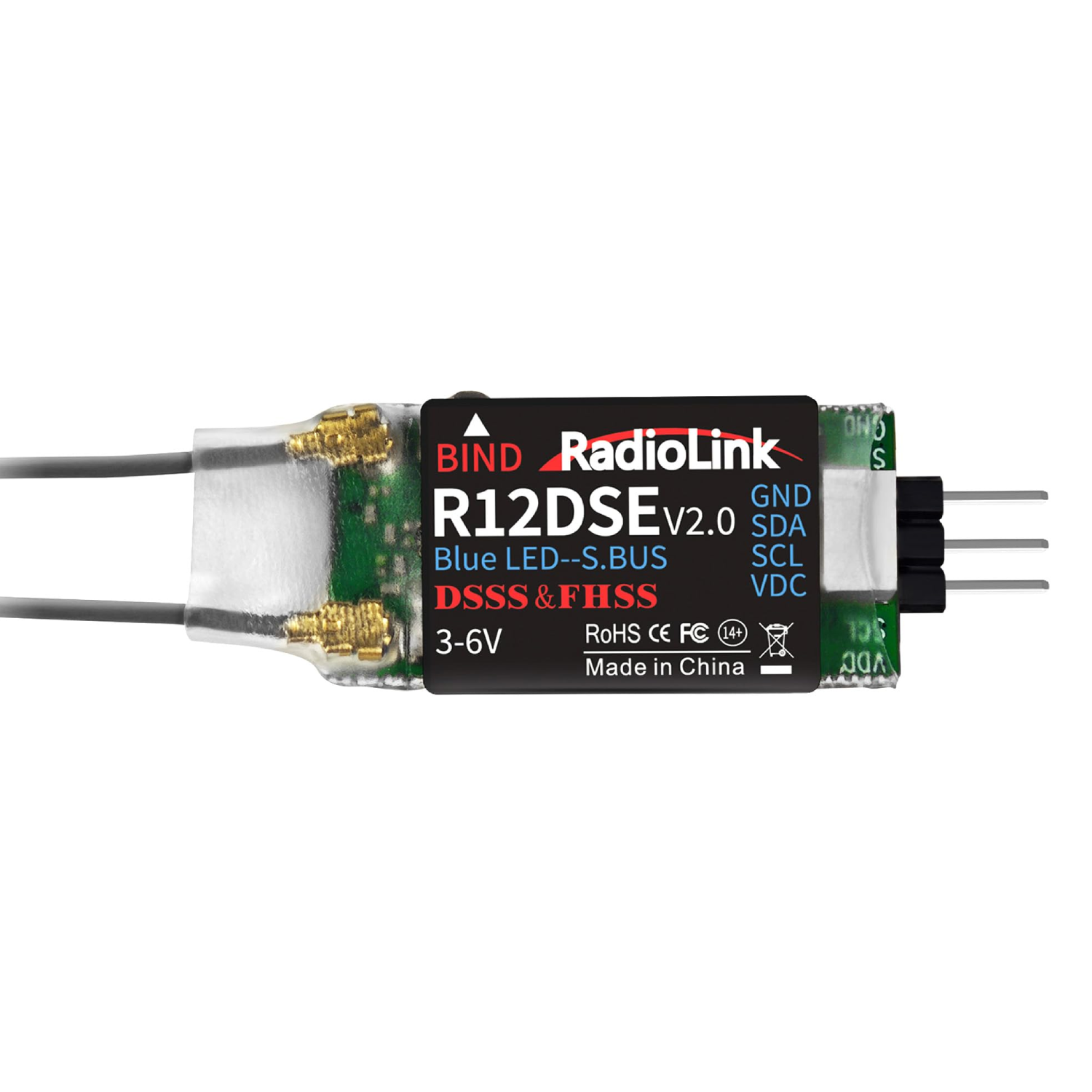

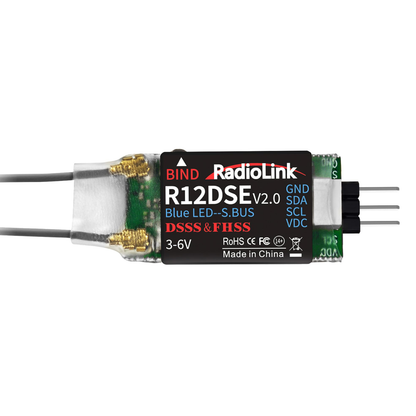

• Radiolink R12DSE 12-Channel Receiver with Dual Antennas
1 3

Radiolink

Radiolink R12DSE 12-Channel Receiver With Dual Antennas High-Sensitivity 4000m Range SBUS/PPM Dual Antenna Receiver For Enhanced Signal Stability - RS8480

Radiolink R12DSE 12-Channel Receiver With Dual Antennas High-Sensitivity 4000m Range SBUS/PPM Dual Antenna Receiver For Enhanced Signal Stability - RS8480

RS8480

In stock

Rs. 1,899.00
Rs. 1,899.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Radiolink R12DSE receiver delivers robust, interference-free control up to 4000 meters with its DSSS/FHSS hybrid spread spectrum and 12-channel frequency hopping. Outputting 12 simultaneous SBUS/PPM channels with a 3ms response time, it's ideal for racing drones and compatible with most flight controllers.

Enjoy real-time telemetry on Radiolink transmitters (AT series) and optional extended telemetry with the PRM-03 module. Its ultra-mini size (2.5g, 1.2*0.47in) and anti-polarity protection ensure easy integration and reliability.

Specifications:

  • Channels: 12 channels.
  • Protocol: DSSS and FHSS for strong anti-interference.
  • Range: Up to 4000 meters in the air.
  • Output: Supports both PWM and SBUS signals.
  • Voltage: Operates on 3-6V.
  • Compatibility: Works with various RC models, including airplanes, drones, and helicopters.
  • Connectivity: Includes GND, SDA, SCL, and VDC ports.

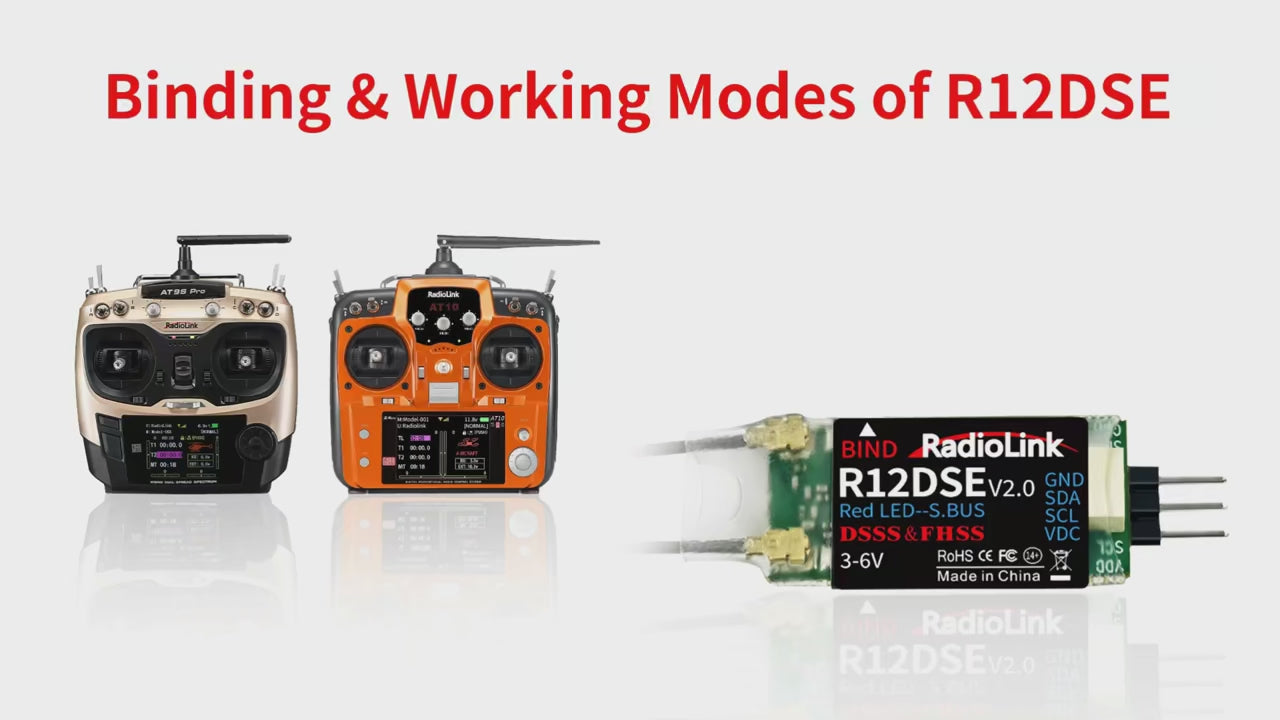

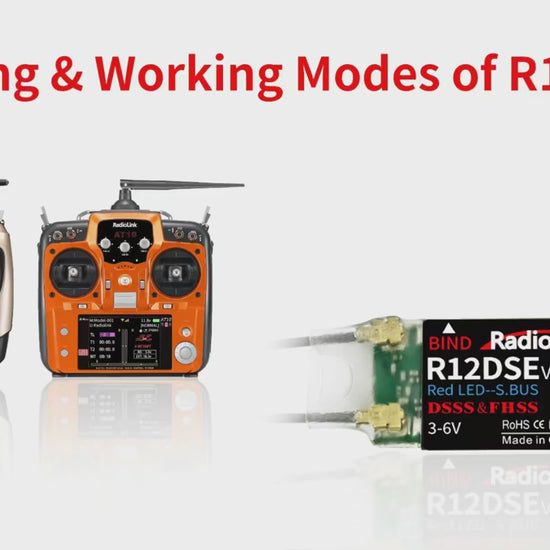

  • Binding: Features a bind button for pairing with the transmitter.
  • Certifications: RoHS, CE, and FCC certified.

Features:

  • Up to 4000m air distance with DSSS & FHSS anti-interference.
  • Supports 12 channels of simultaneous SBUS & PPM (3ms latency).

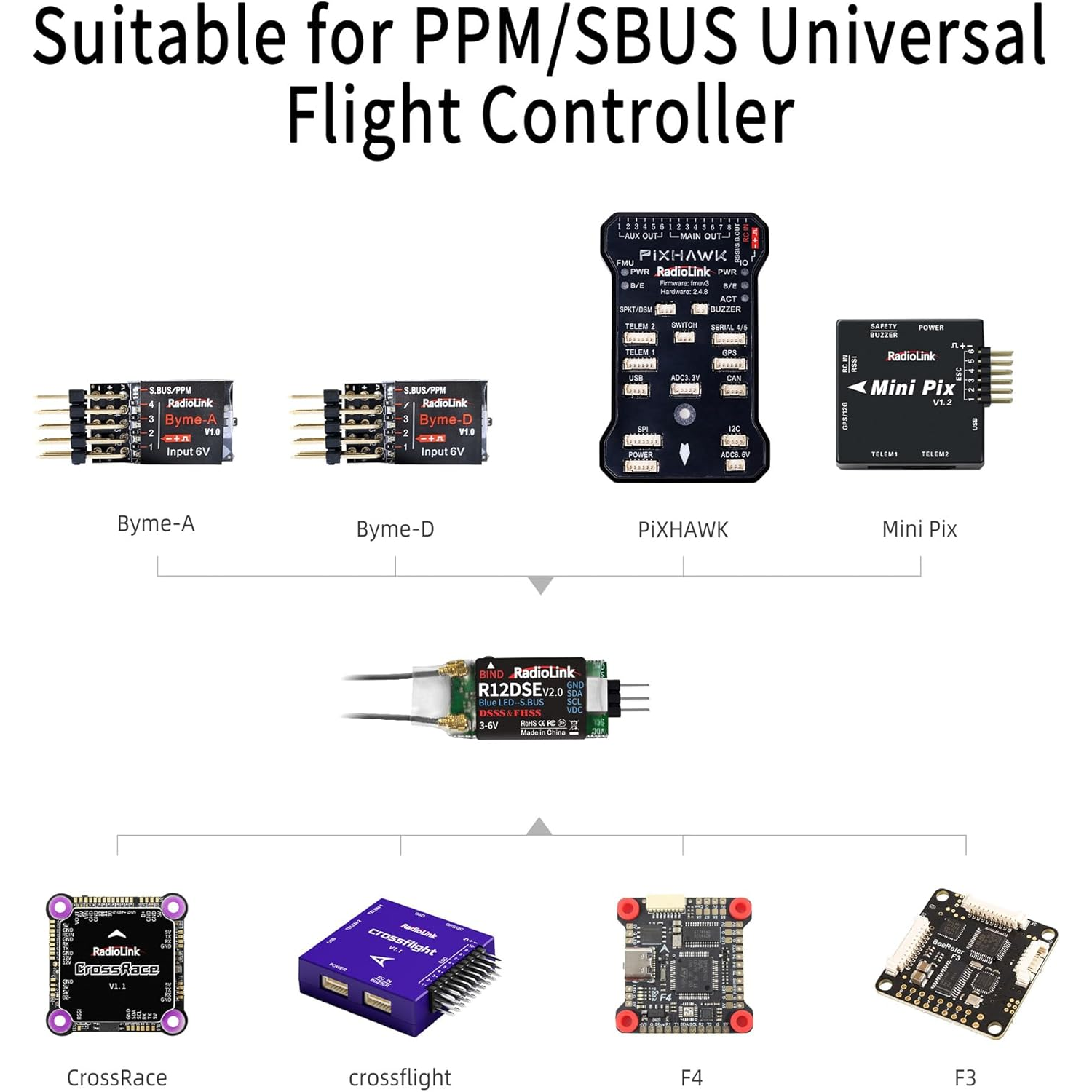

  • Works with most flight controllers, ideal for racing drones.
  • 4096 resolution, 0.25us servo output for various models
  • Displays extensive data with the PRM-03 module and compatible flight controllers.
  • Built-in voltage signal strength display on compatible RadioLink radios.
  • Only 2.5g and 1.2*0.47in, perfect for small drones.
  • Supports 3 - 6V DC with reverse polarity protection.

Product Interface:

Package Included:

1 x Radiolink R12DSE 12-Channel Receiver with Dual Antennas
