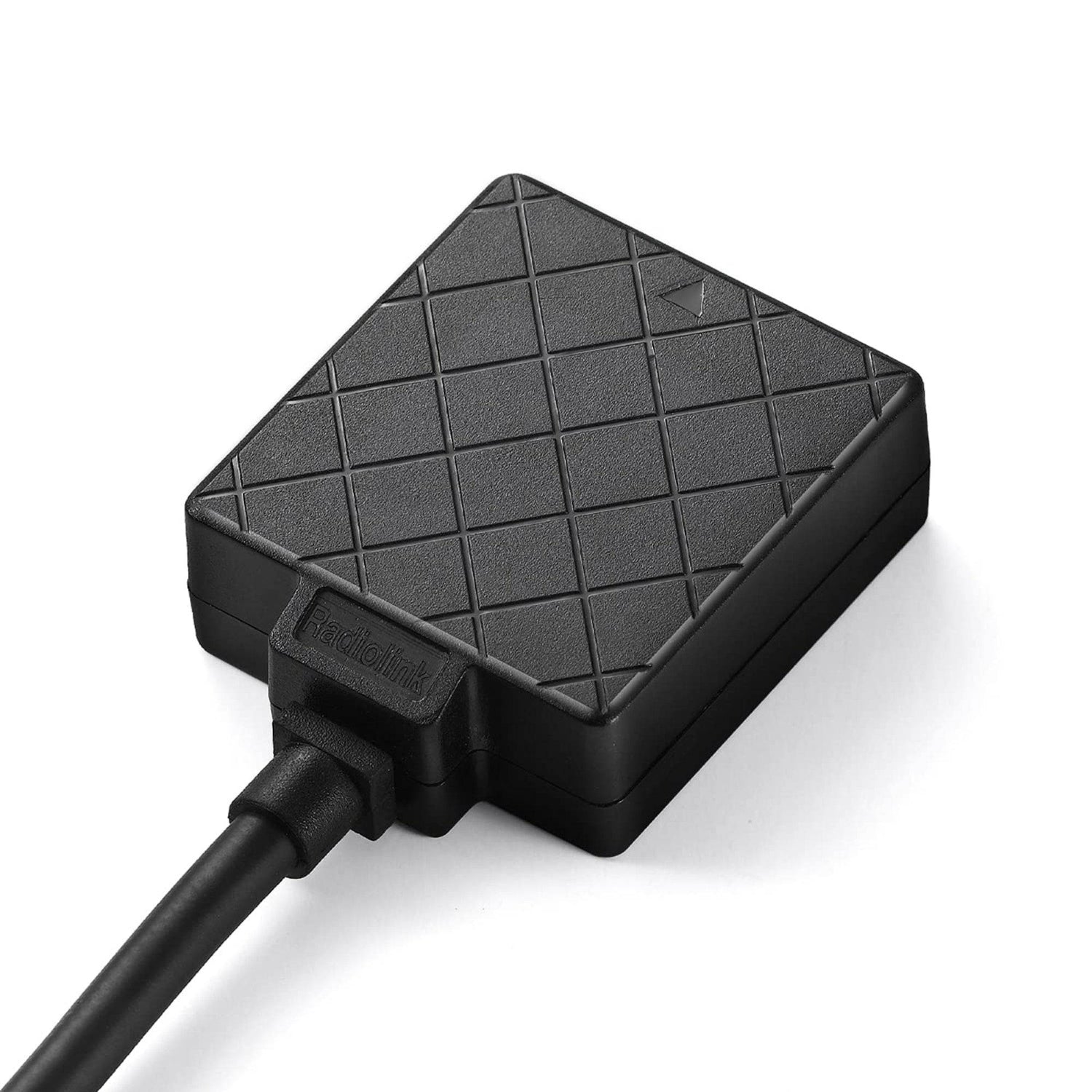

Description:
The Radiolink TS100 Mini GPS Module delivers exceptional positioning thanks to its Ublox M10050 decoder chip, outperforming single GNSS 7N modules. It integrates a high-precision IST8310 electronic compass (I2C) and features a 2.5dBi high-gain ceramic antenna. Signal clarity is further enhanced by a dual SAWF from Murata.
Specifications:
Positional Accuracy: | Up to 50 centimeters with quad-mode/250 centimeters with Single-Mode |
Protocol:
|
Default NMEA. But, when connecting the TS100 v2.0 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the TS100 v2.0 to the flight controller, when the TS100 v2.0 disconnects with the flight controller, the protocol will turn back to the default NMEA.
|
Velocity Precision:
|
0.1m/s
|
Max Height:
|
50000m
|
Max Speed:
|
515m/s
|
Max Acceleration:
|
4G
|
Max Update Rate:
|
20Hz
|
Sensitivity:
|
Tracking & Nav.:-167dBmAcquisition:-163dBmCold start:-151dBmHot start:-159dBm
|
Activation Period:
|
Cold start: 26sHot start: 1s
|
Power Supply:
|
Voltage: 5±5%VDCCurrent: 50-100mA
|
Ports:
|
GPS: UART port with baud rate 38.4 KGeomagnetic: I2C port
|
Features:
- High Positioning Accuracy: about of 50 centimeters positioning, it can be search 20 satellites within few seconds at open ground.
- Top Configuration: with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, that's better than single GNSS 7N.
- Excellent Stable: 2.5dbl ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.

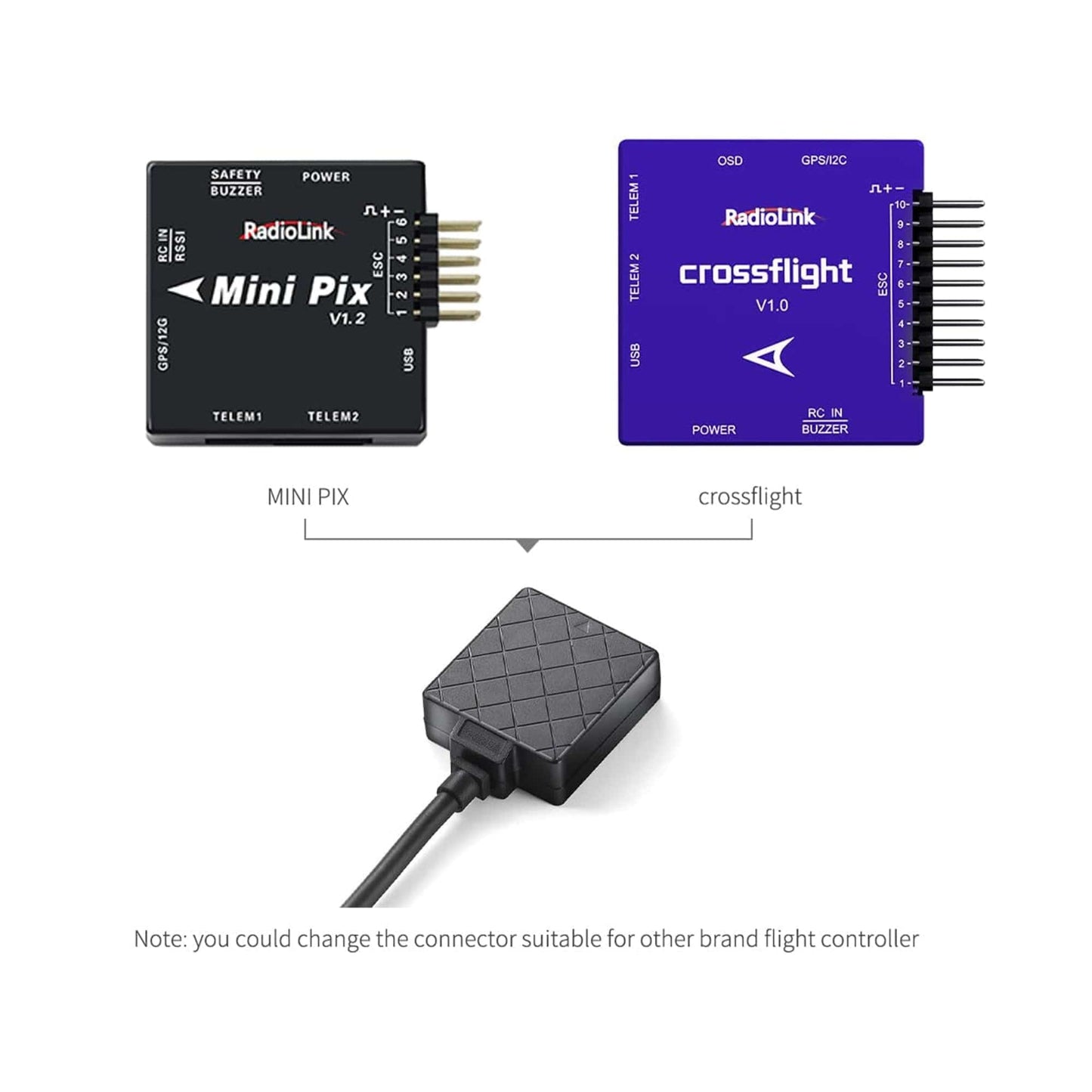

- Super Mini Size: only 1.26*1.18*0.47", 20g, 6pin connector compatible with Radiolink mini pix, turbo pix flight controller, the connector can be changed for other brand flight controller.
Radiolink MINI M10N GPS TS100 Configuration:
- GPS decoder chip: Radiolink TS100, with Ublox M10050, is much better than a single GNSS 7N.
- Built-in high-precision electronic compass IST8310 (I2C port).
- Antenna: 2.5dbI high gain and selectivity ceramic chip antennas.
- Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.

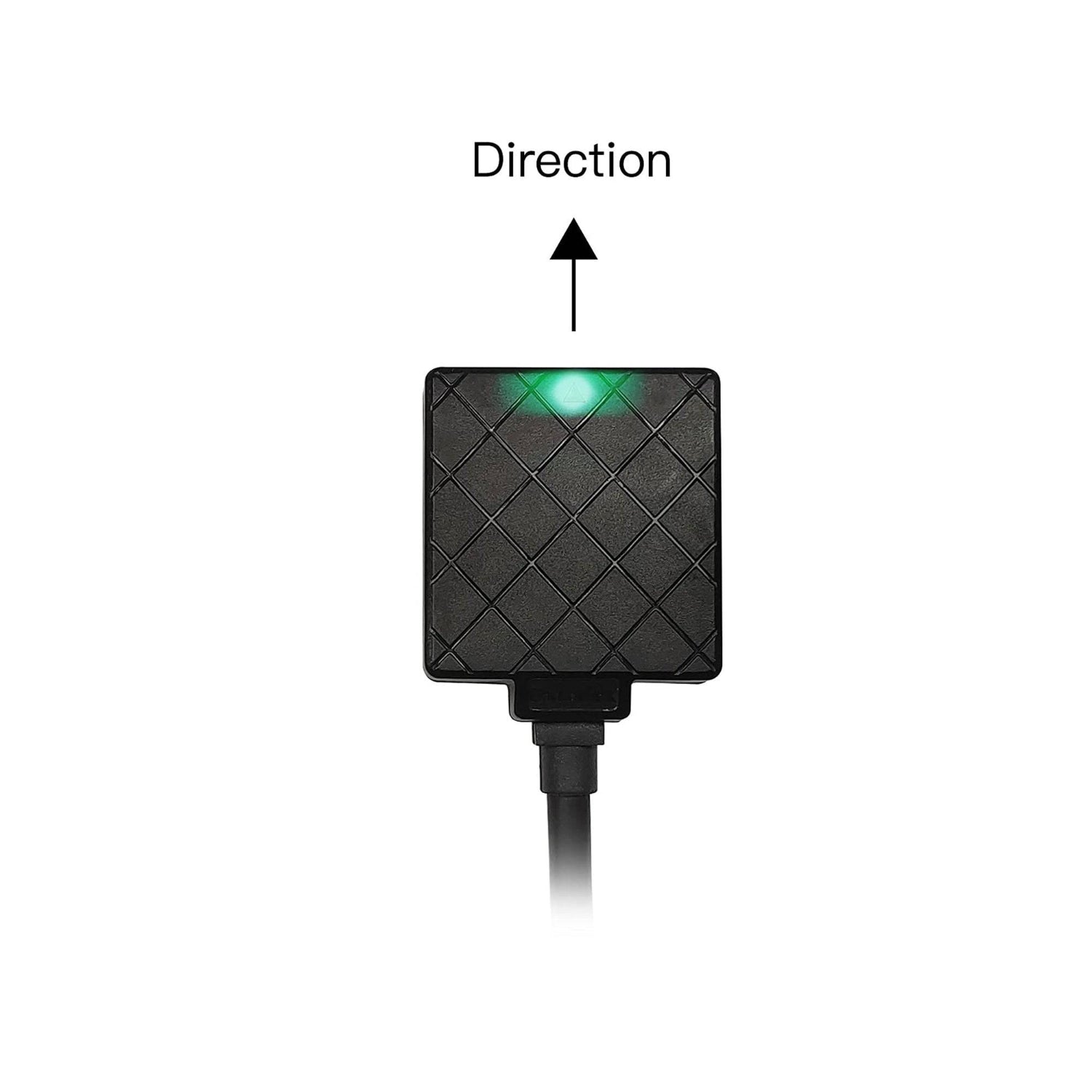

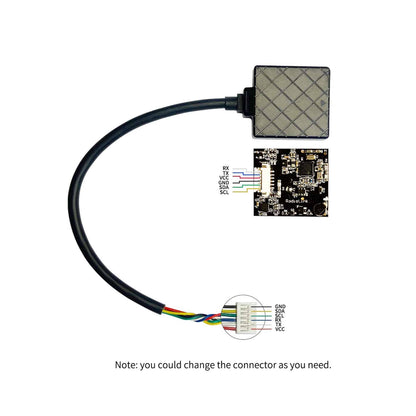

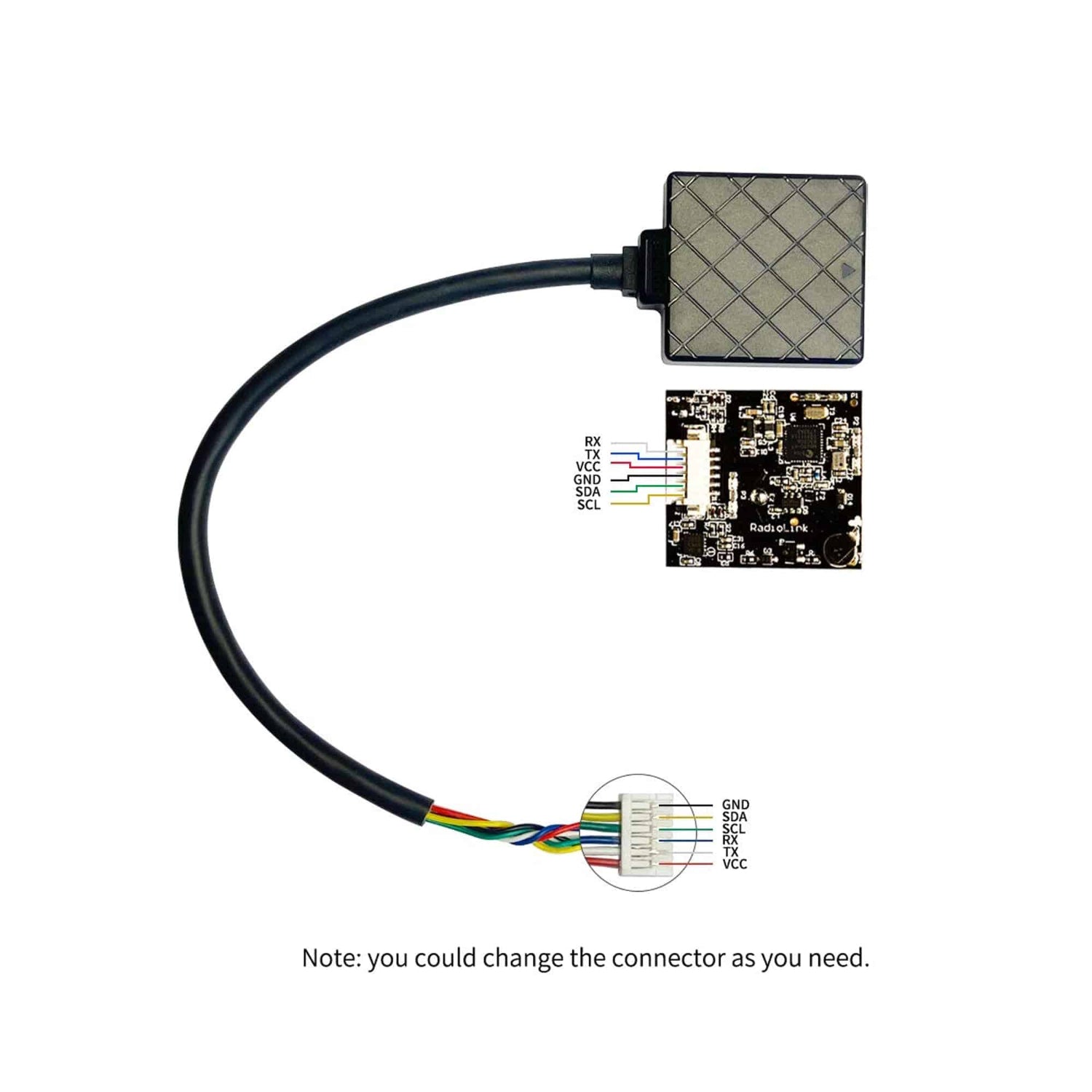

Pin Description:
Package Included:
1 x Radiolink M10N TS100 GPS Module/Compass Module
