Description:

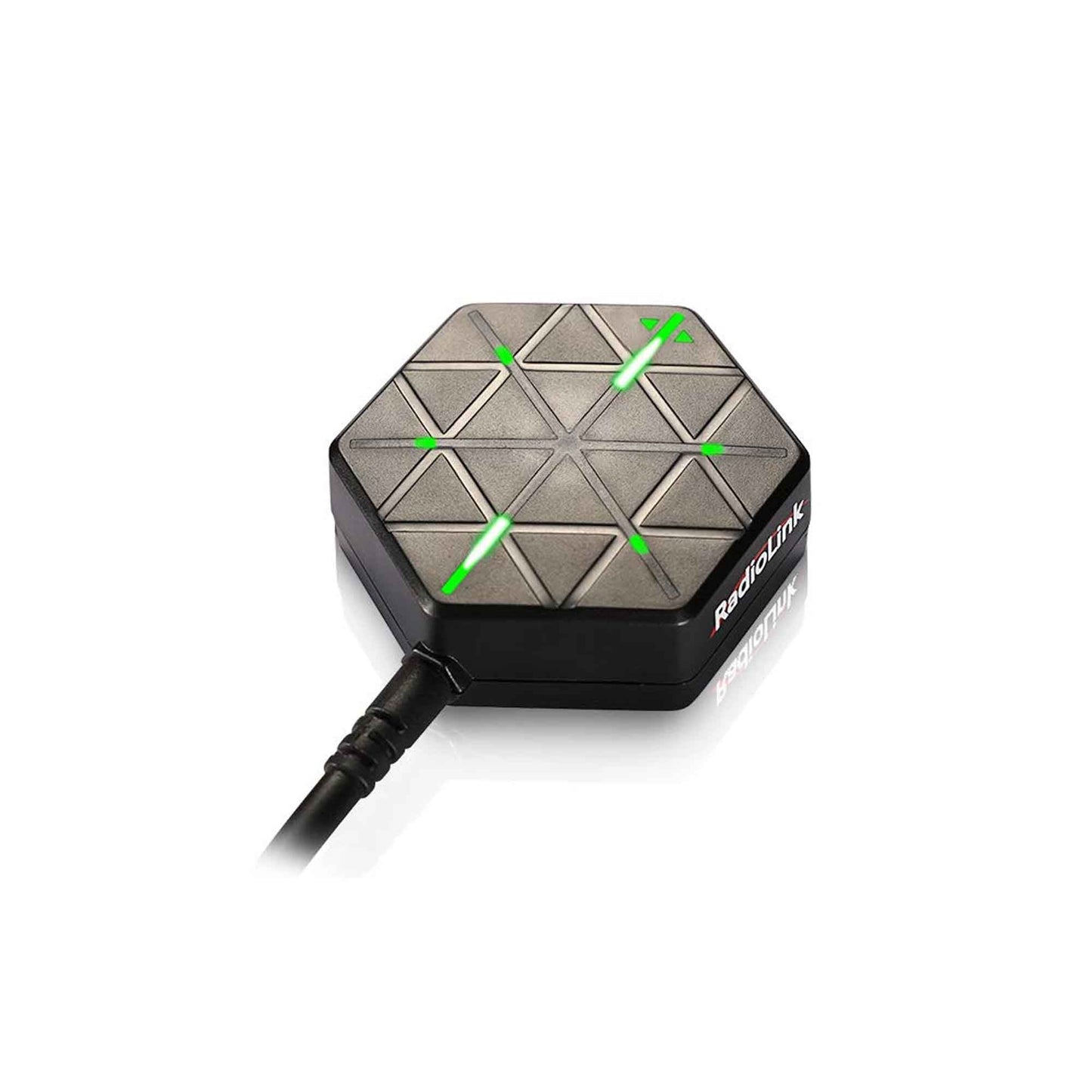

The Radiolink M10N GPS SE100 Module is a popular GPS module made by RadioLink. The module comes plug-and-play with a cable to connect with the Pixhawk & APM flight controllers. It can also be used with most open-source flight controllers, such as the PX4 and iNav FCs.
Unlike some of the cheaper GPS modules on the market, this Radiolink M10N GPS SE100 Module uses genuine components. It utilizes a U-Blox M8N GPS receiver and QMC5883L digital compass, so you can be assured of reliable performance.
Specifications:
- Operating Voltage: 5VDC±5%
- Operating Current: 50~55mA
- Navigation Update Rate: 10Hz
- Maximum Speed: 515m/s
- Acceleration: <4g
- Tracking Sensitivity: -167 dBm
- Activation Period: Cold start: 26s/Hot start: 1s
Features:
- High Positioning Accuracy: Up to 50 centimetres with quad-mode/250 centimetres with Single Mode.
- De-interference and Anti-interference: M10N GPS SE100 Module has two-stage filtering with 78db attenuation effectively filters out-of-band interference. In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter. Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.
- Excellent Performance: M10N GPS SE100 Module has 50 centimetres positioning accuracy. Positioning 20 satellites in 6 seconds at open ground. Super positioning capability even at the valley bottom. Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz. BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
- Top Configuration: GPS decoder chip: Radiolink M10N GPS SE100 Module, with Ublox M10050, is much better than a single GNSS 7N. Built-in high-precision electronic compass IST8310(I2C port). Antenna: 2.5dbI high gain and selectivity ceramic chip antennas. Power amplify IC: High-gain MMIC chip. Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.
- Radiolink M10N GPS SE100 Module is compatible with Pixhawk Flight Controller, 1.89*1.6*0.59in, suitable for DIY drones, quadcopters, multi-copters, RC vehicles, etc.

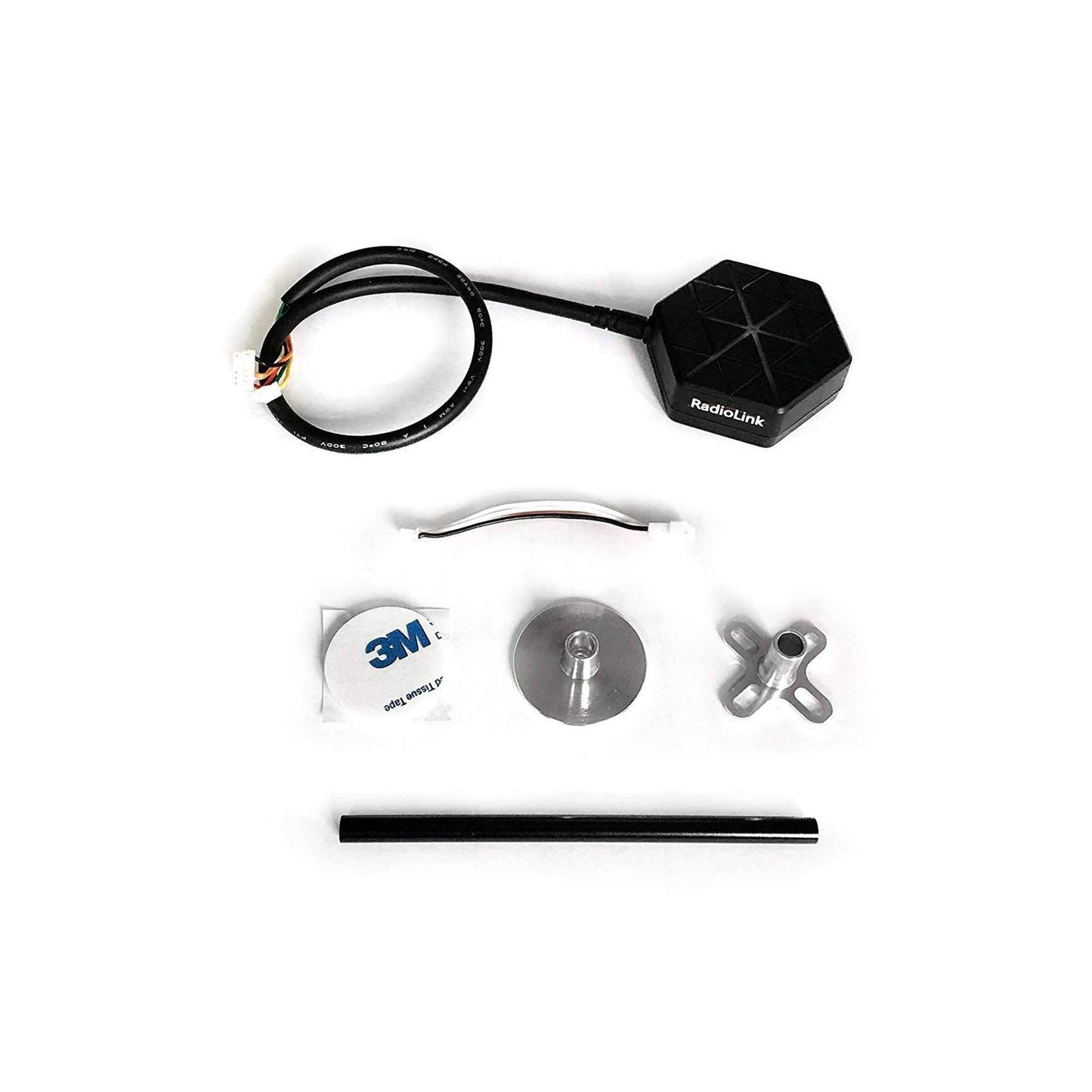

Package Included:
1 x Radiolink M10N GPS SE100 Module High Positional Accuracy Works with GLONASS/BeiDou for APM Pixhawk Flight Controller DIY FPV Drone, Quad and More
