Description:
The Radiolink F405 flight controller boasts multiple firmware support, including popular options like ArduPilot, Betaflight, and INAV. This versatility allows you to fine-tune responsiveness and stability to your exact preferences, ensuring optimal performance in any scenario.
Every flight detail is meticulously recorded thanks to the generous 128MB of onboard flight log memory. This critical feature allows you to save extensive flight data for in-depth analysis and continuous improvement. Understand your flights better, identify areas for refinement, and consistently enhance your performance.
Specifications:

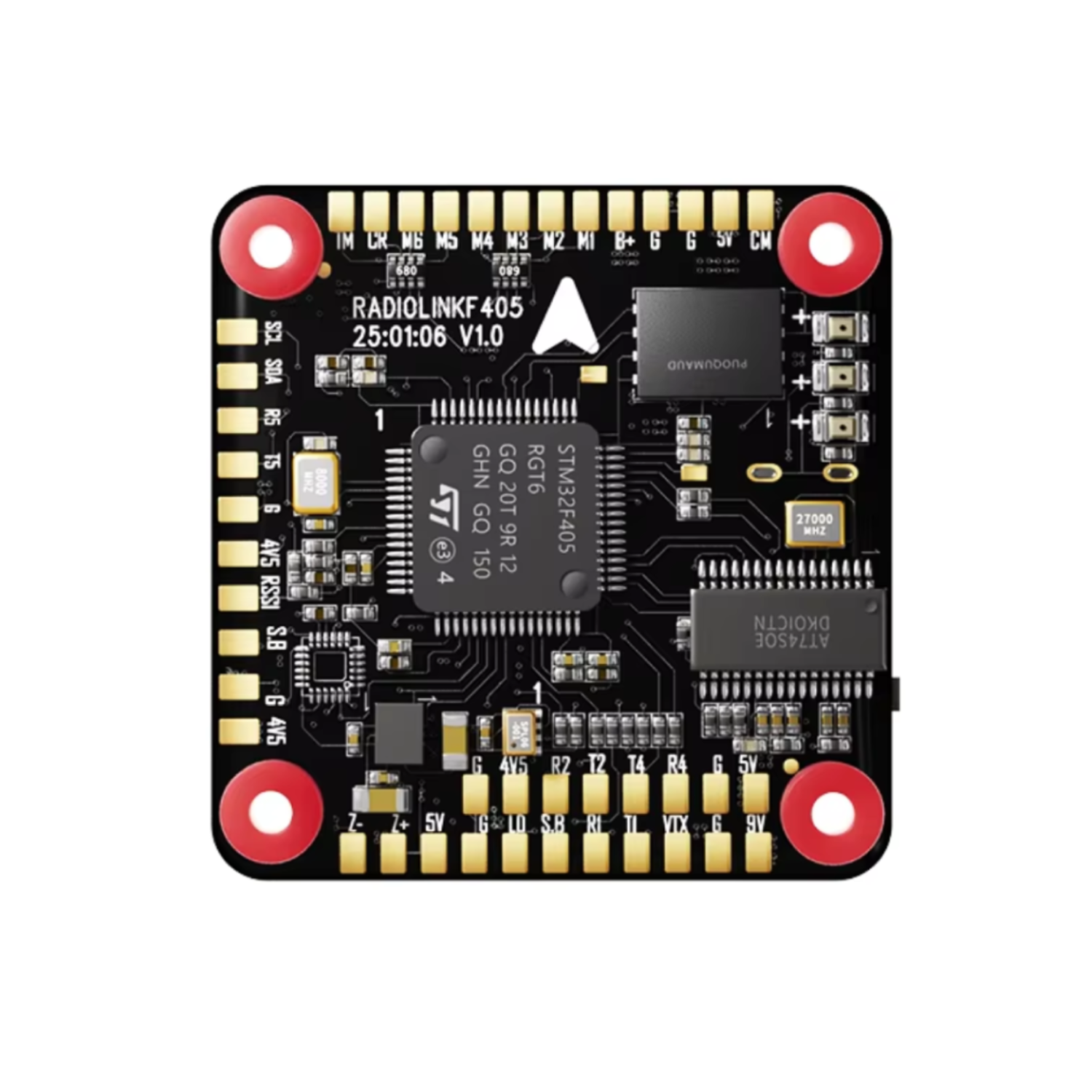

- Hardware: STM32F405RGT6
- Gyroscope: BMI270
- Barometer: SPL06
- Black Box Storage: 128MB, can store flight log information
- OSD chip: AT7456E
- Motor Channel: M1 - M6
- DJI Air Unit Direct Plug: support
- Analog video transmission: support
- plug-in: 110
- Voltage measurement scaling: 5 serial ports
- Number of serial ports: Yes (UART3 RX)
- ESC telemetry input: support
- I2C: support
- LED soldering pad: support
- Buzzer soldering pad: support
- RSSI signal output: Ardupilot, Betaflight, INAV firmware
- Firmware Type: RADIOLINKF405
- Firmware Name: 1 (Type-C)
- USB interface: SBUS/CRSF
- Remote control signal (RC In port): Support, built-in image transmission OSD module
- Image transmission OSD: 2S-6S
- Supported ESC protocols: 3.3V/300mA; 5V/3A; 9V/3A
- Power Input: Support (USER1 setting)
- BEC: 2-6 axis multi-rotor, fixed wing, helicopter, flying wing, car, boat, robot, lawn mower, nesting boat, and various user
- 12V BEC switch: Made for multi-rotor models
Features:
- 128MB large-capacity black box fully records flight data and supports long-term fault tracing.
- 4.5V and 5V circuit separation design* avoids current overload and damage to the device when adjusting parameters
- 9V BEC programmable switch
- Flexible control of image transmission power supply

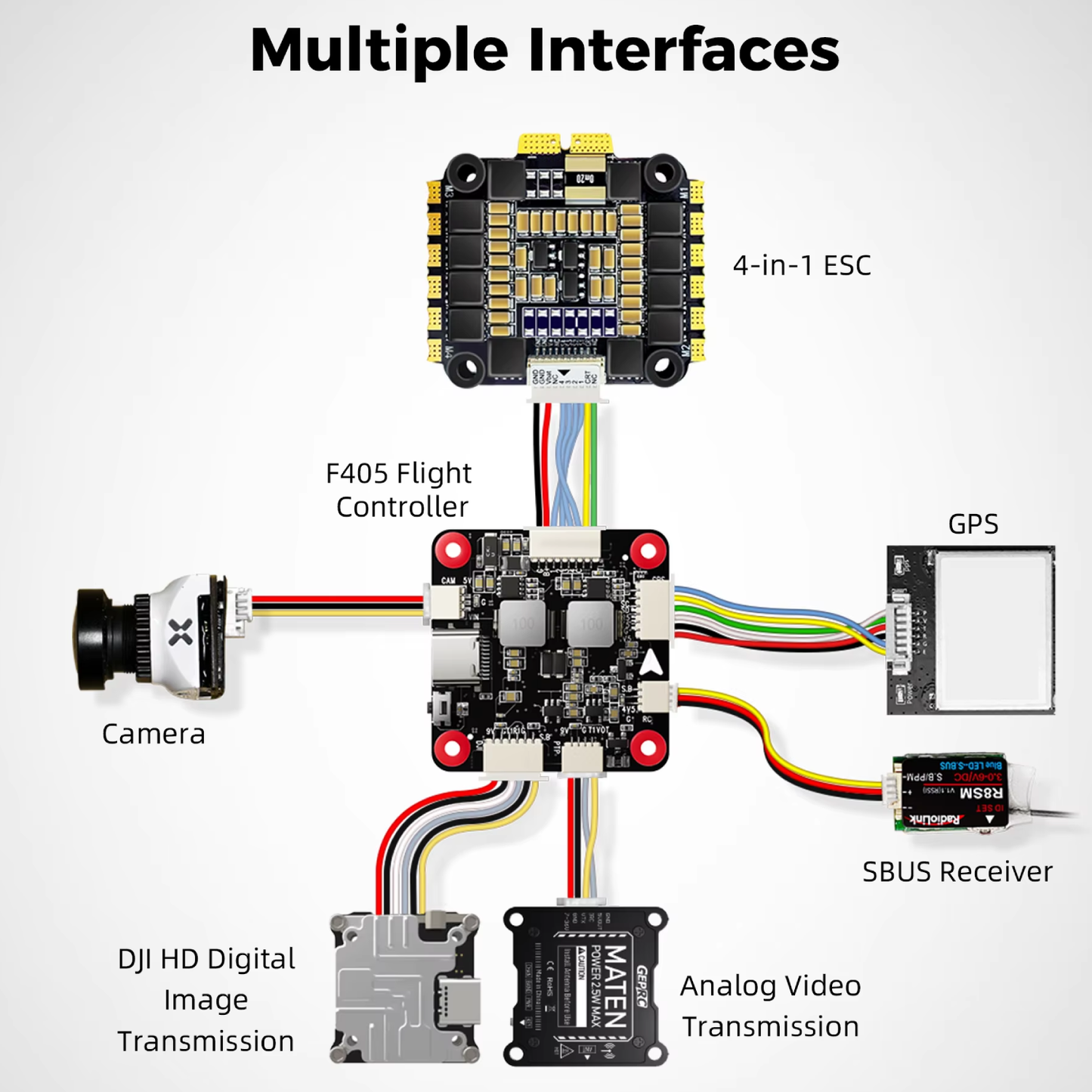

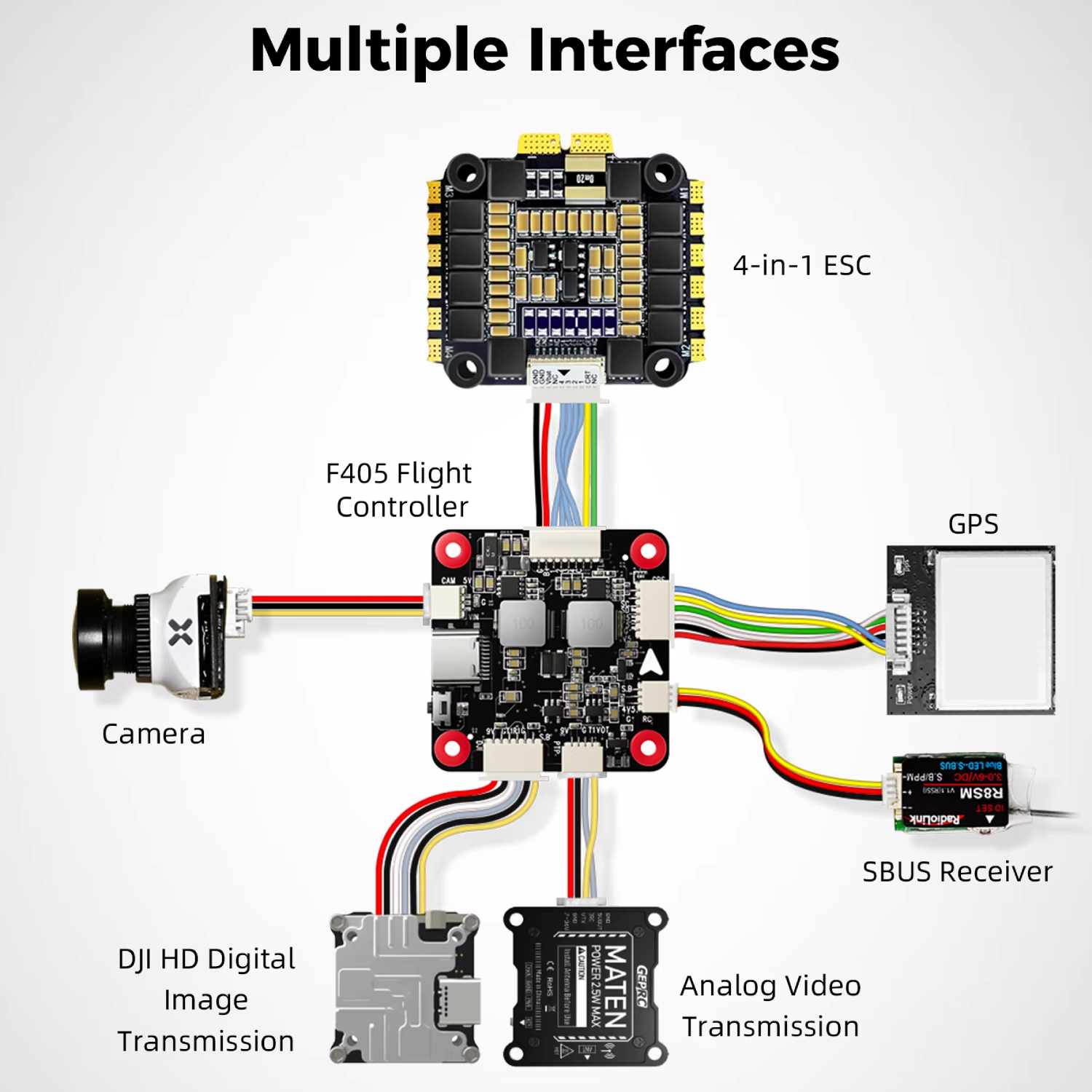

Product Interface:
Package Included:
- 1 x F405 Flight Controller
- 1 x ESC Connect Cable
- 1 x Camera Connect Cable
- 1 x Analog Video Transmission Connect Cable
- 1 x GPS Connect Cable
- 1 x R8SM Receiver Connect Cable
