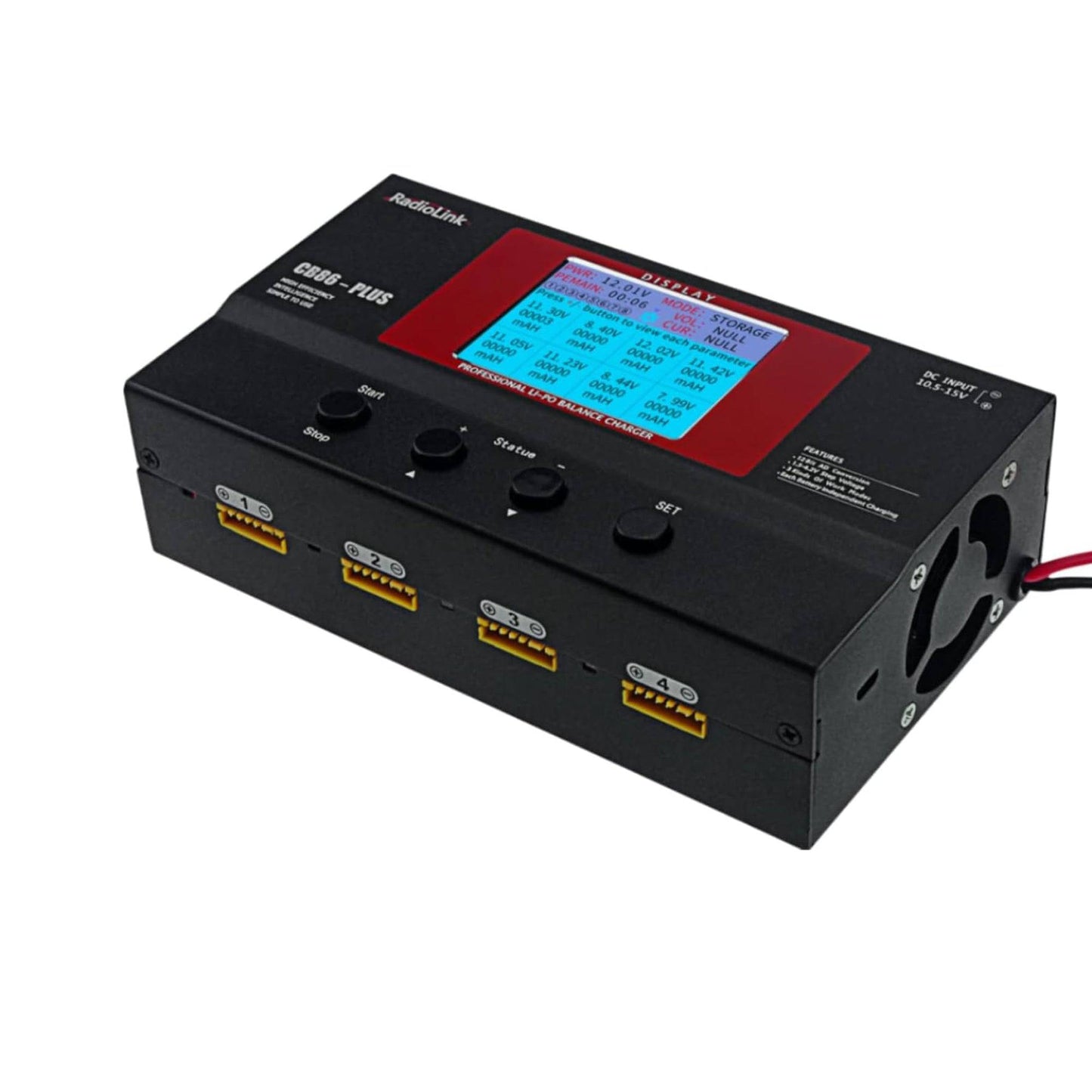

Description:
Radiolink CB86-PLUS Balance Charger automatically detects the battery cell and automatically triggers the repair mode for trickle charging when the voltage of any piece of the battery cell is lower than 3.0V.
Radiolink CB86-PLUS Balance Charger comes with the patented port (No. 201320212324), CB86-PLUS is compatible with the battery of 1S~6S. Radiolink CB86-PLUS Balance Charger can identify all charging ports by setting only one time to automatically charge the battery that is not yet fully charged and avoid the low efficiency and the damage risk because of the possible various resistances of each cell.
Specifications:
- Model: CB86-Plus
- Input Voltage: DC10.5-15V
- Max. Output Power: 162W
- Supporting Battery: 1S~6S LiPo battery (4.2V), 1S~6S Li-ion battery (8 ports available), or 1S~6S High voltage lithium battery (4.35V)
- Working Modes: Charge/Discharge/Storage/Repair charge
- Charging Voltage: 3.5~4.35V can be selected
- Charging Current: 0.3~6.0A can be selected
- Balance Current: 0.3~6.0A (same as charging current)
- Discharging Current: 1.2A(fixed)
- Screen: 2.8’’ TFT screen
- Sound Notification: Buzzer, ON/OFF customizable
- Size: 188*104*57mm (7.4”* 4.09”* 2.24”)
- Weight: 0.89kg
Features:

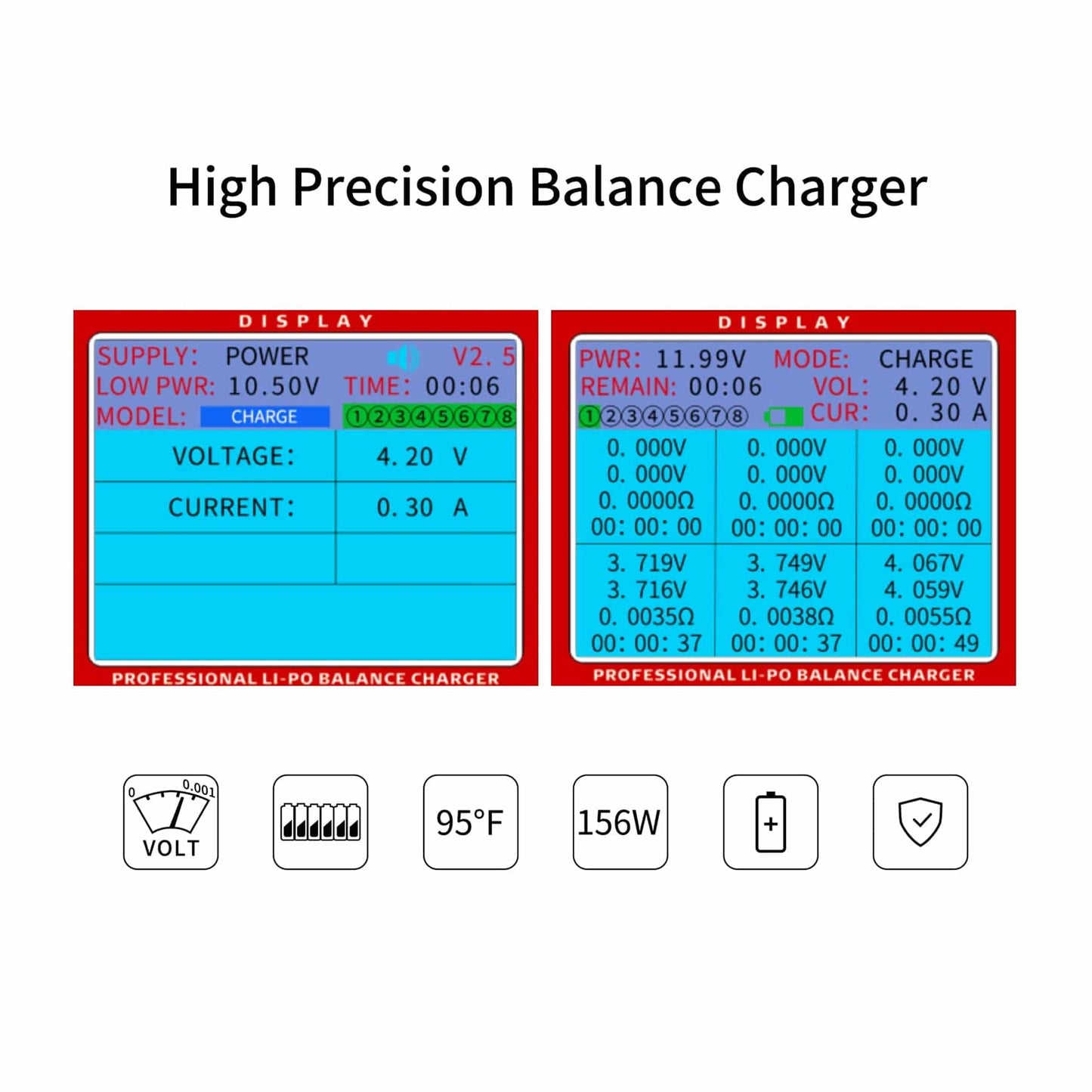

High Precision Balance Charger:
- The precision of 0.001V is 10 times more precise than the common charger of 0.01V. Higher voltage precision can make sure won't over-(dis)charge. Real balance 6A charging in each port(Balance Port). Max Output Power up to 162W.
Security Protection:
- Hardware Failure Analysis Algorithm: The Algorithm will detect the hardware failure timely and stop charging immediately.
- Unique Pulse Current Charge Mode: Software and circuit design optimization reduced the overwork of electron devices, and achieved better battery protection.

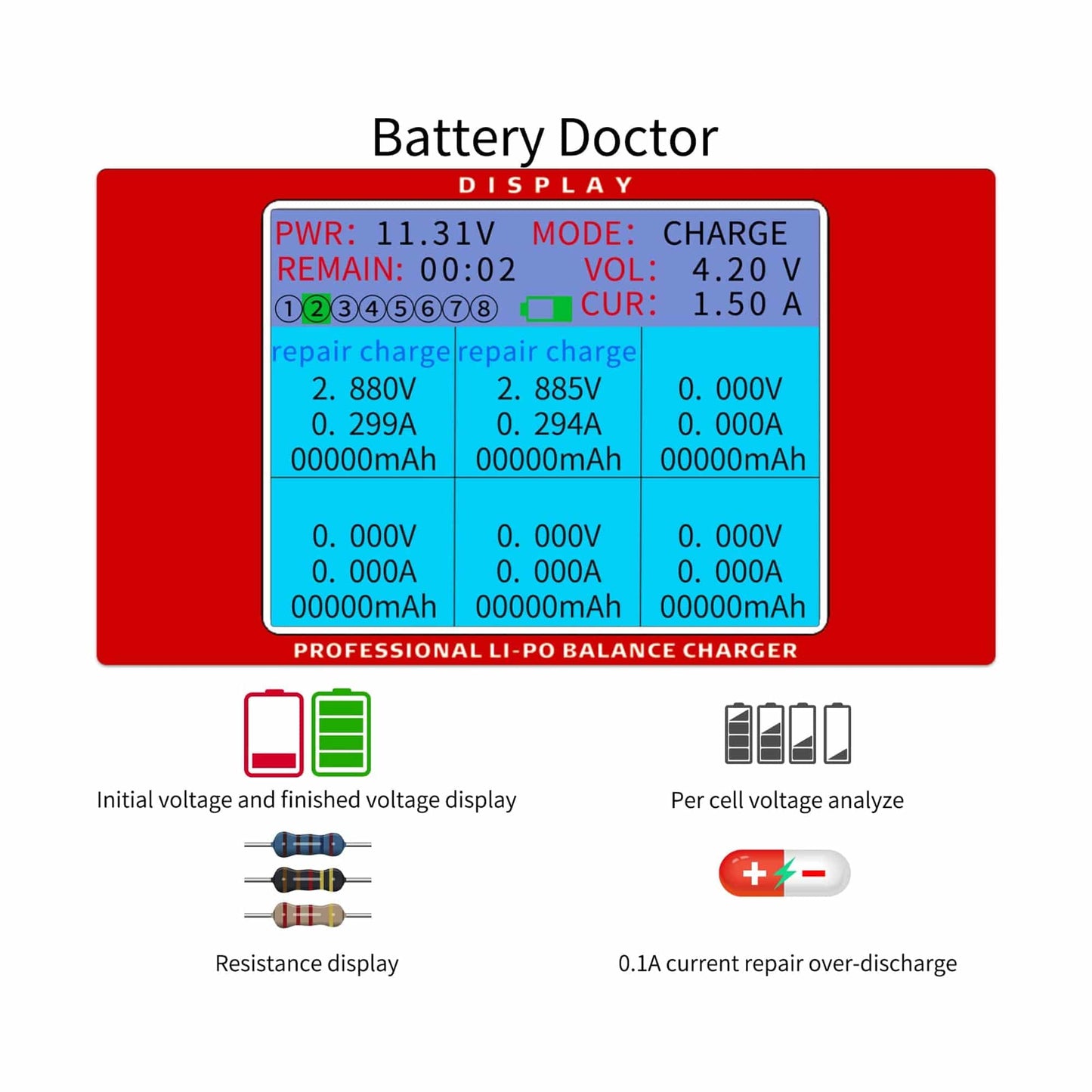

Battery Doctor:
- Battery Internal Resistance Fast Display: The basic internal resistance is displayed within ten seconds of charging, which can quickly determine the balance and discharge performance of the battery cell.
- Charge Log: Capable of recording battery performance such as initial voltage, finished voltage, and (dis)charged voltage.
- Battery Capacity Recovery: Repairing over-discharged battery(<3.0V) with a trickle current, extending its lifespan.

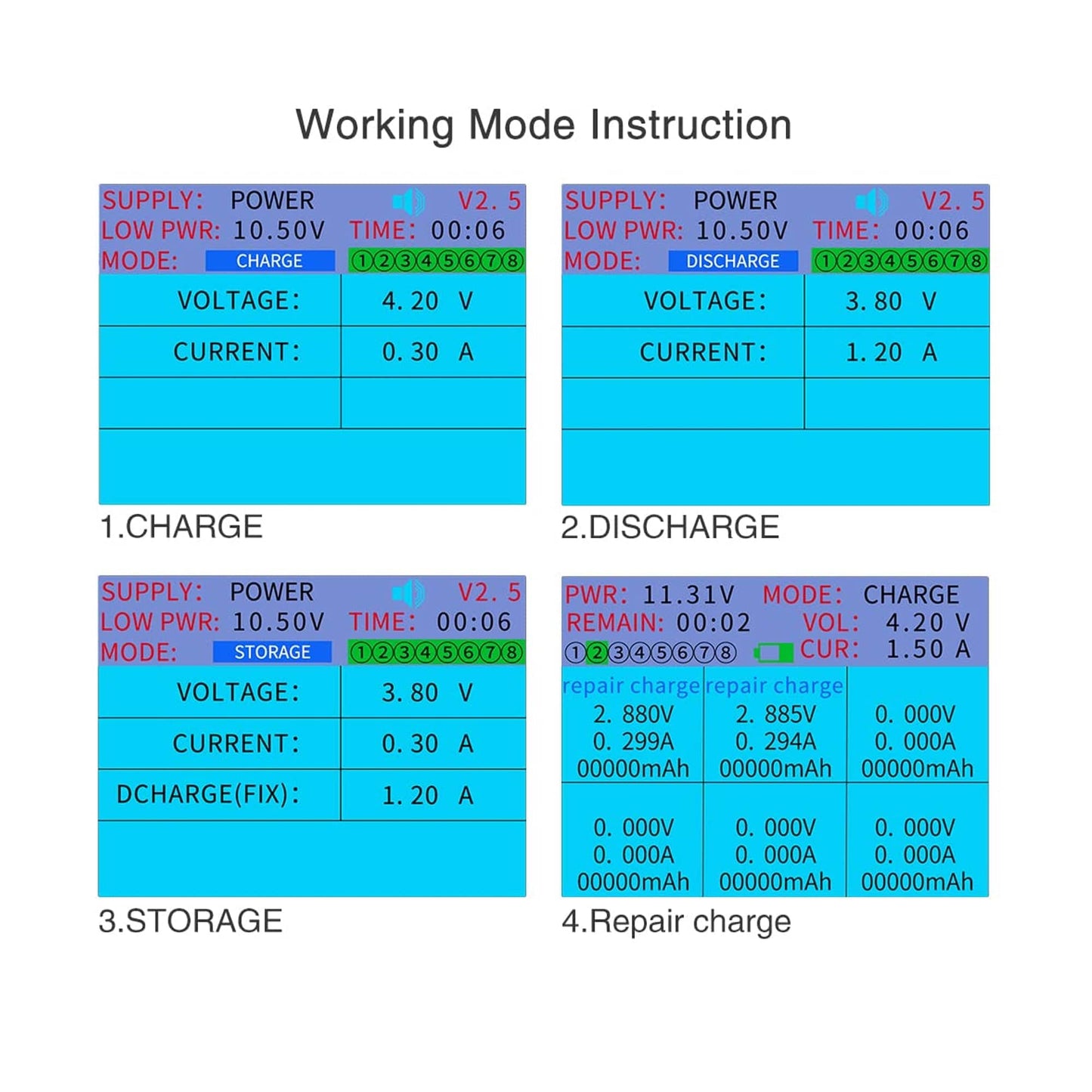

Versatile Charger:
Charge, Discharge, and Storage.
- Charge: 8 pcs of 6S Batteries Cycle Charge Automatically- The charger will charge all inserted batteries in turn, no need to insert them again.
- Discharge: The charger will discharge to the set voltage.
- Storage: CB86-PLUS will charge or discharge automatically all inserted batteries until all batteries reach the set voltage(3.85V is the battery's best storage voltage).

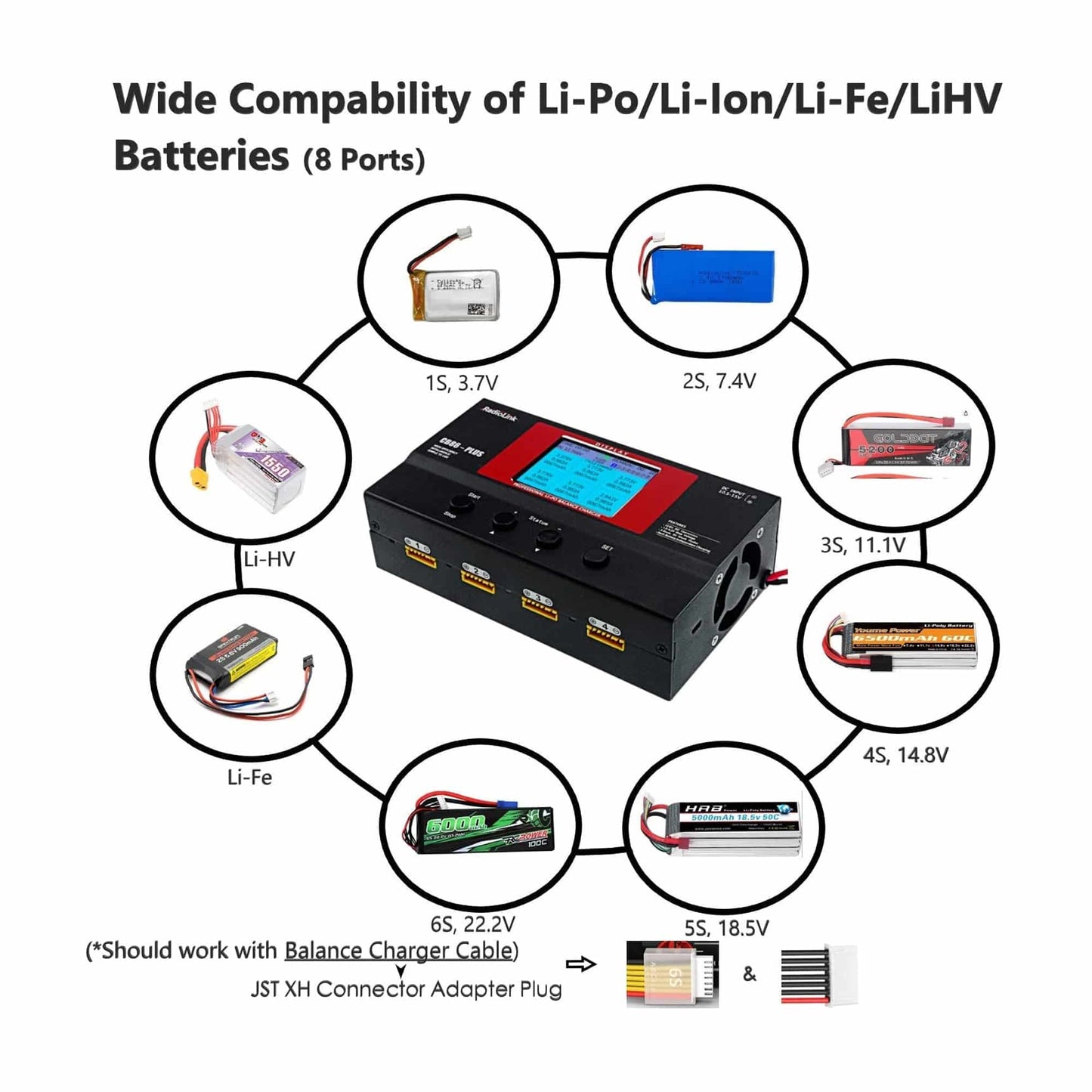

Compatible With:
- Lithium-ion &Lithium Polymer Battery(1s-6s) with Balance Port, compatible with Iron Li-ion Battery and 4.35V High Voltage Lipo Battery. Need to work with power supply DC10.5-15V(Package not included). Supports Charging Voltage and Current Set Individually for each port.
Caution:
Can not use Radiolink CB86-PLUS Balance Charger with the Parallel Balanced Charging Plate, otherwise, there is a high risk of burning out the battery and charger.
Package Included:
1 x Radiolink CB86-PLUS Balance Charger Discharger (Without Power Supply)
