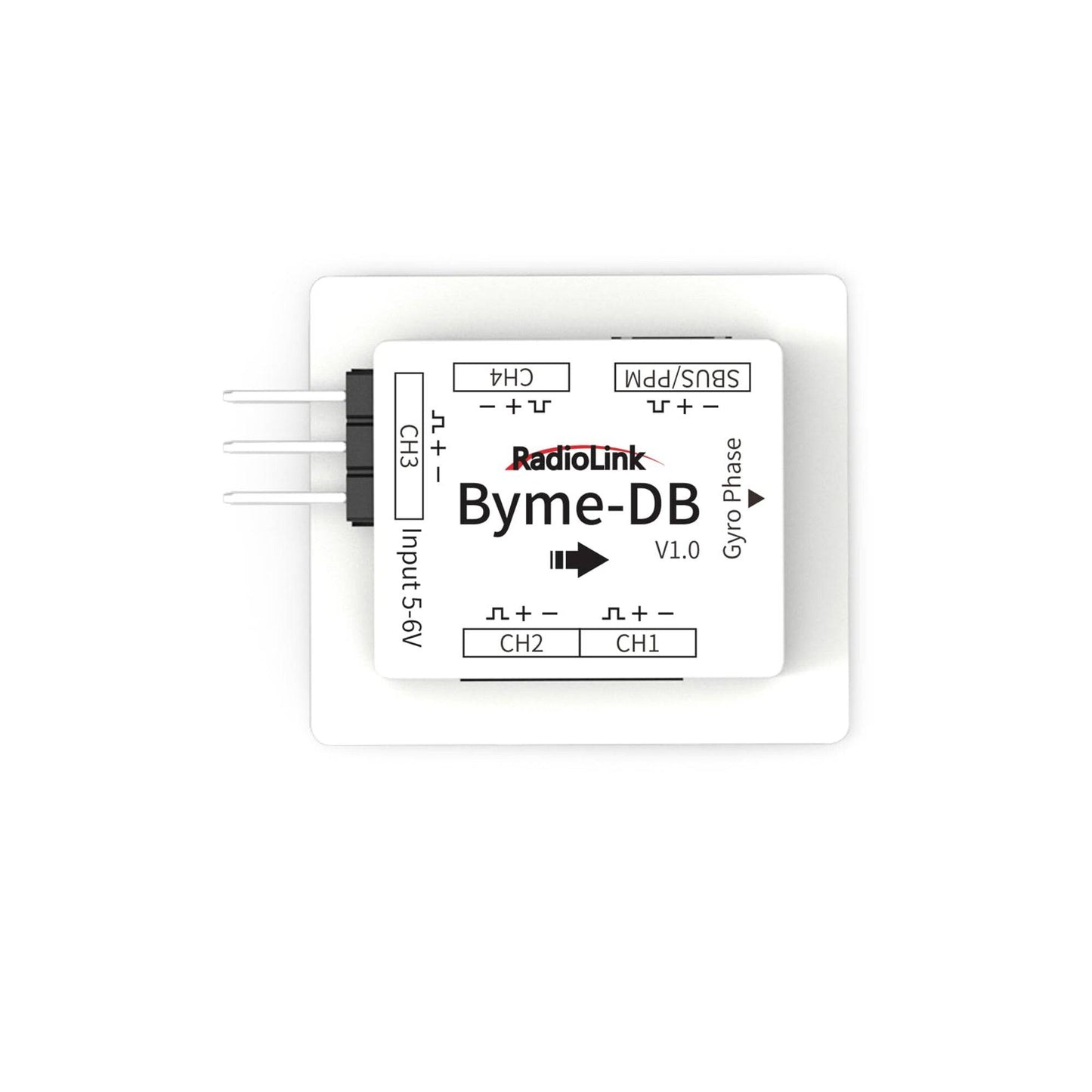

Description:
Radiolink Byme-DB Flight Controller is applicable to all model airplanes with mixed elevator and aileron controls including delta wing, paper plane, J10, traditional SU27, and the SU27 with rudder servo, F22, etc.
Radiolink Byme-DB Flight Controller is compatible with all transmitters and receivers (Required channels' quantity at least 7) which can output PPM or SBUS signal. Including but not limited to: Radiolink, Flysky, FrSky, RadioMaster, Jumper, Crossfire.
Specifications:
- Mode: BYME-DB
- Number of Channels: 4 channels
- Supported Signals: sbus/ppm
- Input Voltage: 5-6V
- Working Current: 25 ± 2mA
- Integrated Sensors: 3-axis gyroscope and 3-axis acceleration sensor
- Flight Mode: Stabilization Mode, Gyro Mode, Manual Mode
- Flight mode switching channel: Channel 5
- Throttle Cut Channel: Channel 7 (requires at least 7 channel transmitter)
- Compatible Transmitters: all transmitters with sbus/ppm signal output

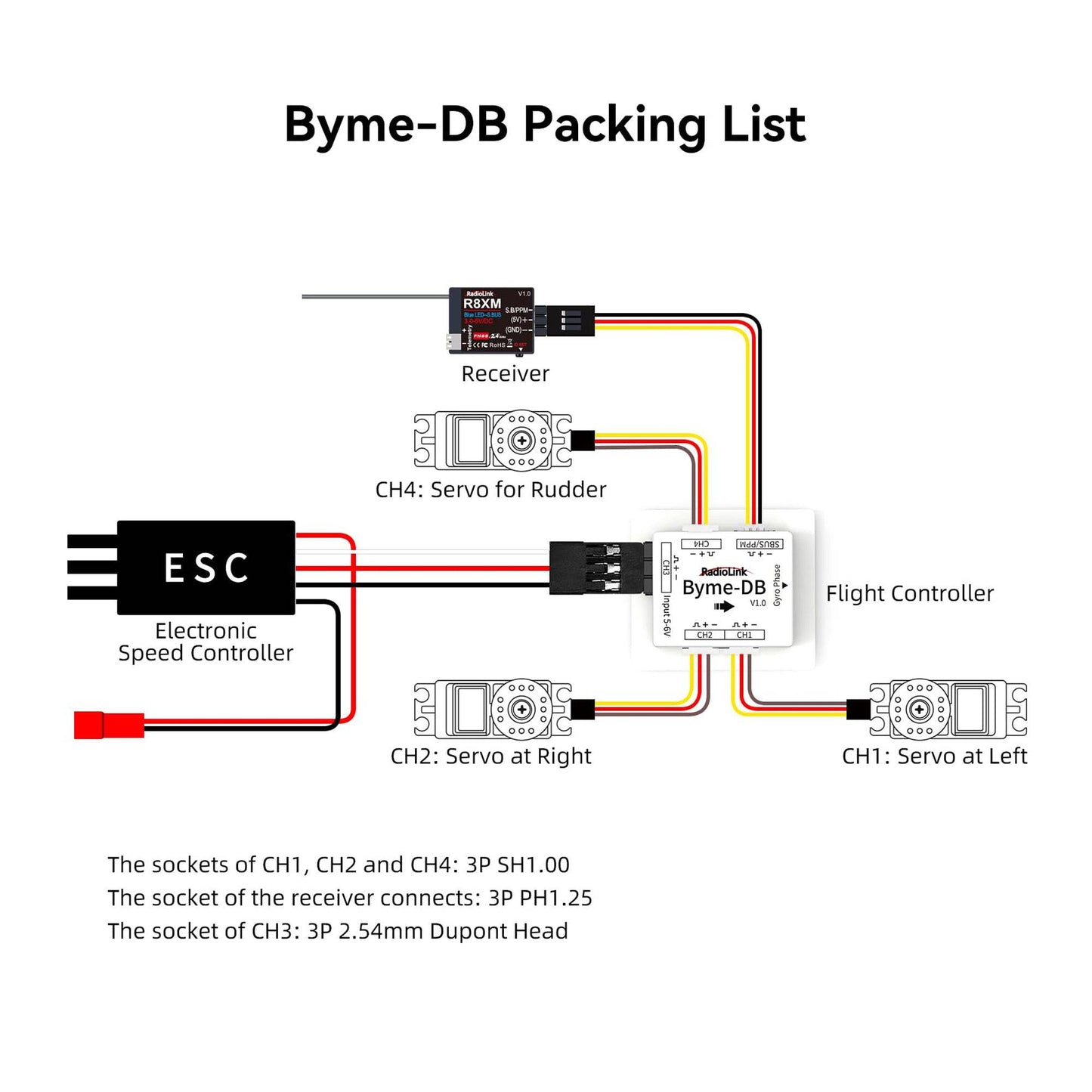

- Socket Specifications: CH1, CH2, CH4 are 3P SH1.00 sockets, receiver connection socket is 3P PH1.25 socket, CH3 is 3P 2.54mm Dupont head
- Dimensions: 29*25.1*9.1mm (1.14"*0.99"*0.36")
- Weight (with wire): 4.5g(0.16oz)
Features:
- Three Flight Modes: Stabilize Mode, Gyro Mode, Manual Mode. Flight modes can be switched easily by channel 5. Channel 7 is used to unlock the motor, for safety and for protecting aircraft from incidental damage reason.
- Compatible Models: Radiolink Byme-DB Flight Controller is applicable to all model airplanes with mixed elevator/aileron controls including delta wing, paper plane, J10, traditional SU27 and the SU27 with rudder servo, F22, etc.
- Plug & Play: Radiolink Byme-DB Flight Controller is integrated with strict-tested PID parameters. Pilots only need to pull both joysticks to outside corners to calibrate without especially setting parameters.
- Gyroscope & Sensor: Radiolink Byme-DB Flight Controller have three-axis gyroscope and three-axis acceleration sensor combined with the full attitude algorithm, control algorithm, and digital filter make the airplane with the Radiolink Byme-DB Flight Controller easy to change from Modes of Stabilize Mode/Gyro Mode/Manual Mode. Beginners can start with the Stabilize Mode and quickly master it even on the first flight.
Package Included:
- 1 x Radiolink Byme-DB Flight Controller
- 1 x Byme-DB Connect to Receiver
- 1 x Double-sided Adhesive Tape
- 3 x Servo Connect Cable
