Description:

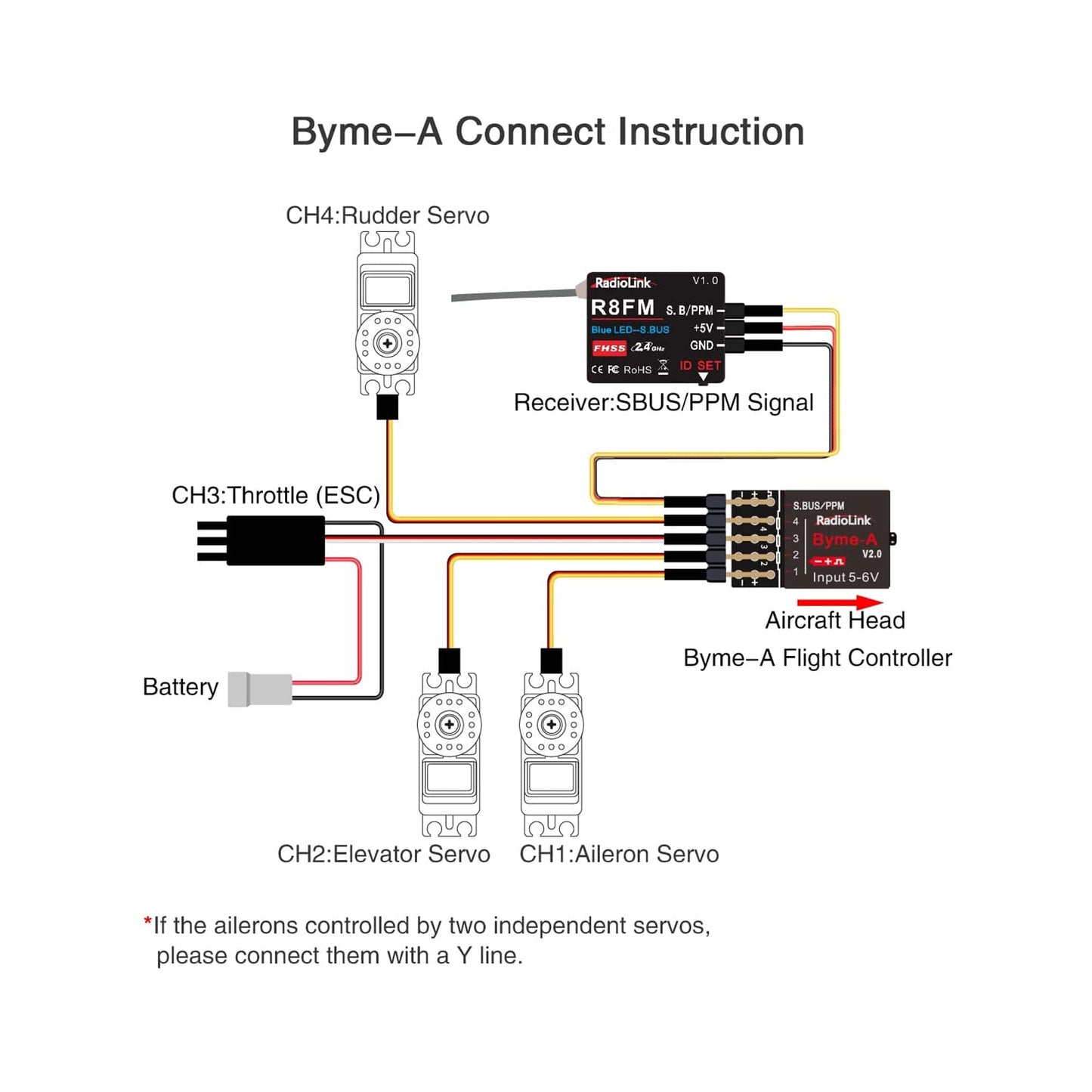

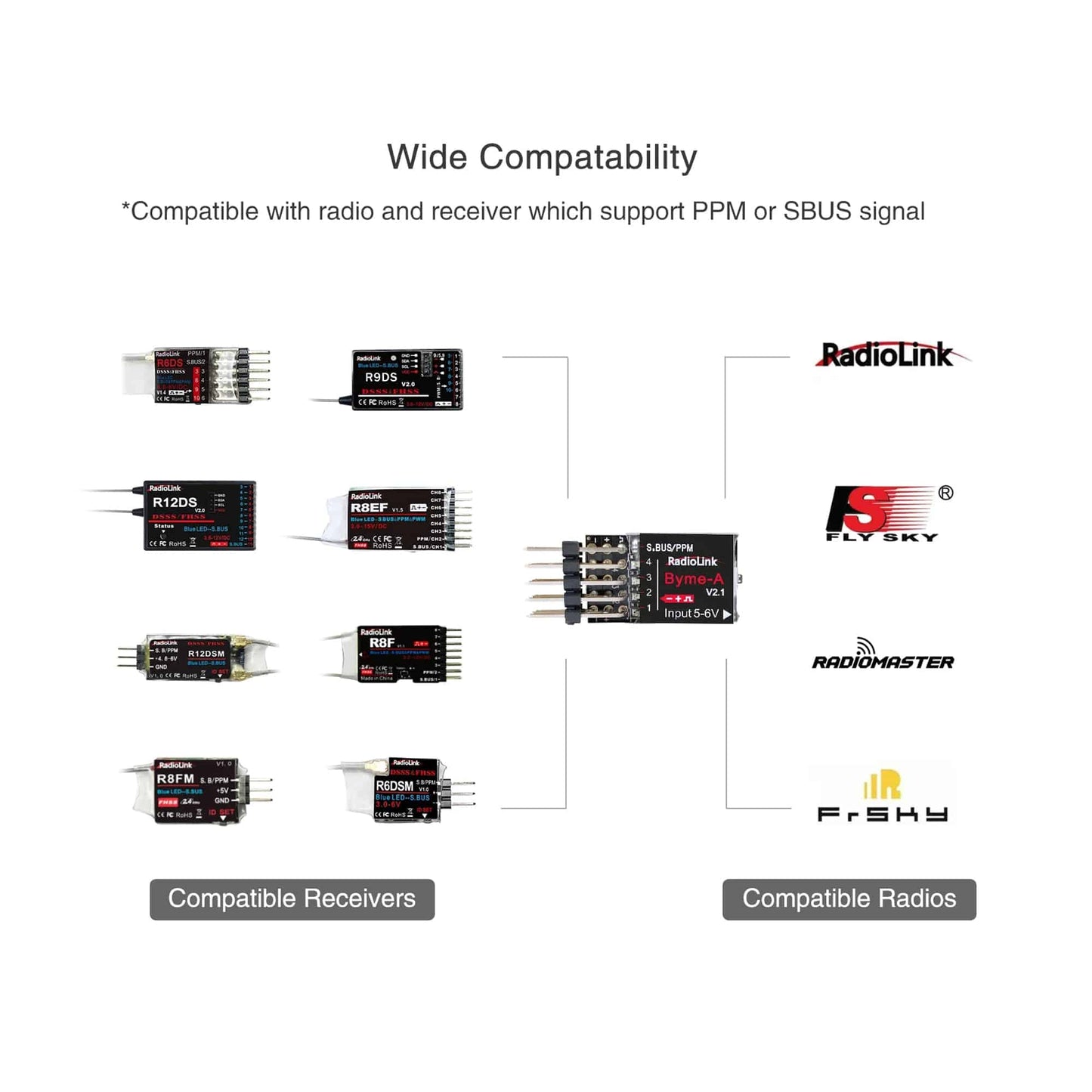

Radiolink Byme-A Flight Controller supports all SBUS/PPM signal output receivers, connects directly and has no need to solder. Radiolink Byme-A Flight Controller supports vertical mode (fixed wing and multicopter), stabilization mode, acro mode, gyro mode, and manual mode. With the CH5 (3-way switch) and CH7 (2-way switch) position switch switches mode.
Specifications:
- Model: Byme-A
- Channel Quantity: 4 Channels
- Integrated Sensors: 3-axis gyroscope and 3-axis acceleration sensor
- Supported Signals: sbus/ppm
- Input Voltage: 5-6V
- Operating Current: 25 +-2mA
- Model Support: 3D fixed wing (F3P), 4 channel trainer and scale model aircraft
- Dimension: 35.5*15.5*10.5mm
- Weight: 4.5g (with wire)
Features:
- Plug & Play:Control the algorithm and digital filter combined, with a three-axis gyro and three-axis accelerometer, it makes beginners easy to fly. No complicated adjustment parameters are required.
- Compact and Portable: Lightweight only 4.5g, can be used on small aircraft models indoors, and it supports 5-6V voltage LiPo input.

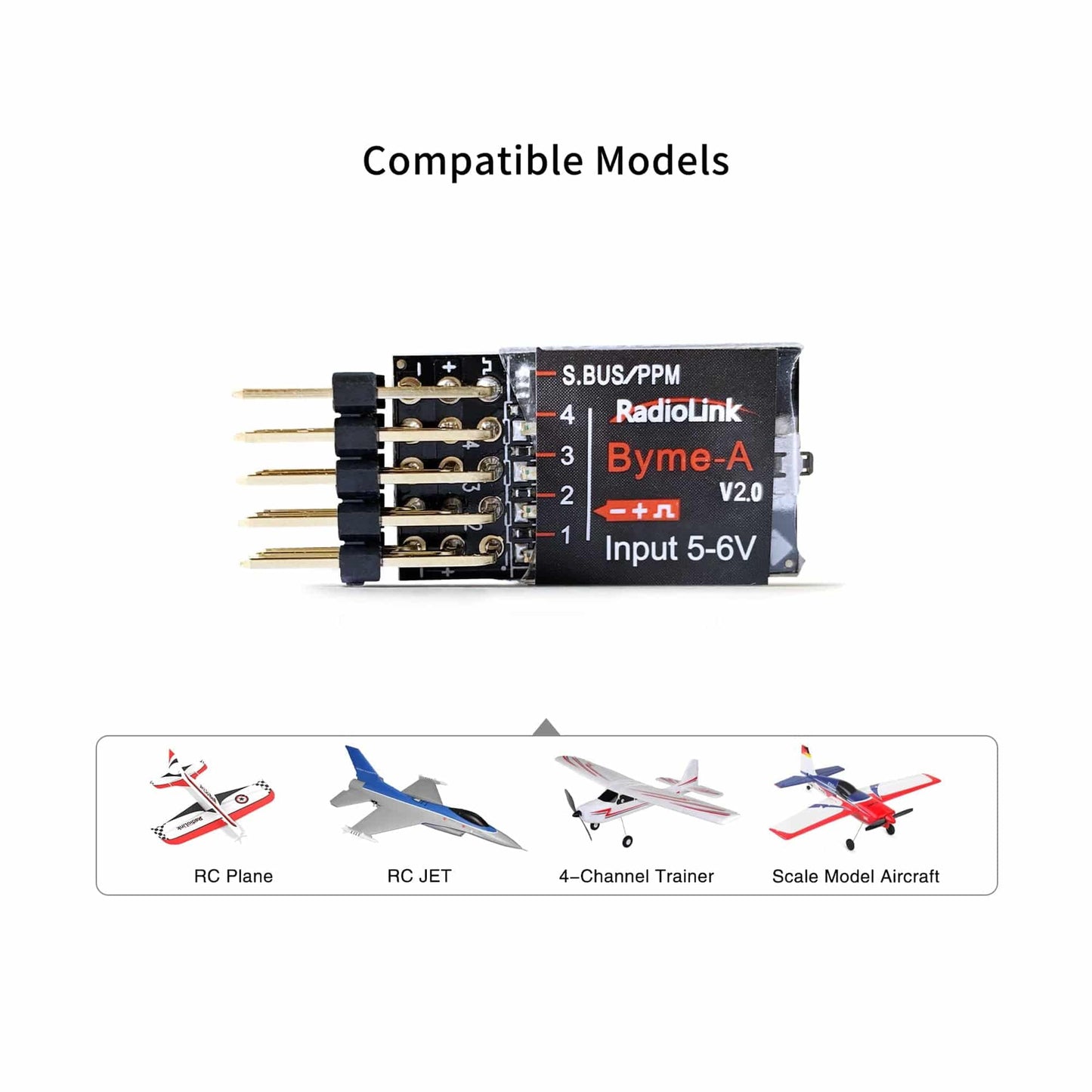

- Radiolink Byme-A Flight Controller have multi modes applicable to various models, such as straight-wing aircraft, 3D fixed wing (F3P), RC planes, RC jets, trainers and scale model aircraft.
Package Included:
- 1 x Radiolink Byme-A Flight Controller
- 1 x Receiver Connection Cable
