Description:
If you need to use multiple sui04 ultrasound devices, you can use this Radiolink 7P I2C Expansion Board to expand the interface. With maximum 6 ultrasonic sensors SUI04 connected to Radiolink 7P I2C Expansion Board, aircraft can avoid obstacles from 5 directions (forward/backward/left/right/upward) and altitude hold downward.
If connect the Radiolink 7P I2C Expansion Board directly to the I2C/GPS port of Flight Controller, only ultrasonic sensors SUI04 can be affixed as the GPS port is occupied. If GPS and ultrasonic sensors need to be connected as the same time, a transfer board is essential to connect with the GPS/I2C port of flight controller first, then connect expansion board to the transfer board.
Specifications:
- Port Quantity: 7
- Port: 1 Input Port and 6 I2C Ports

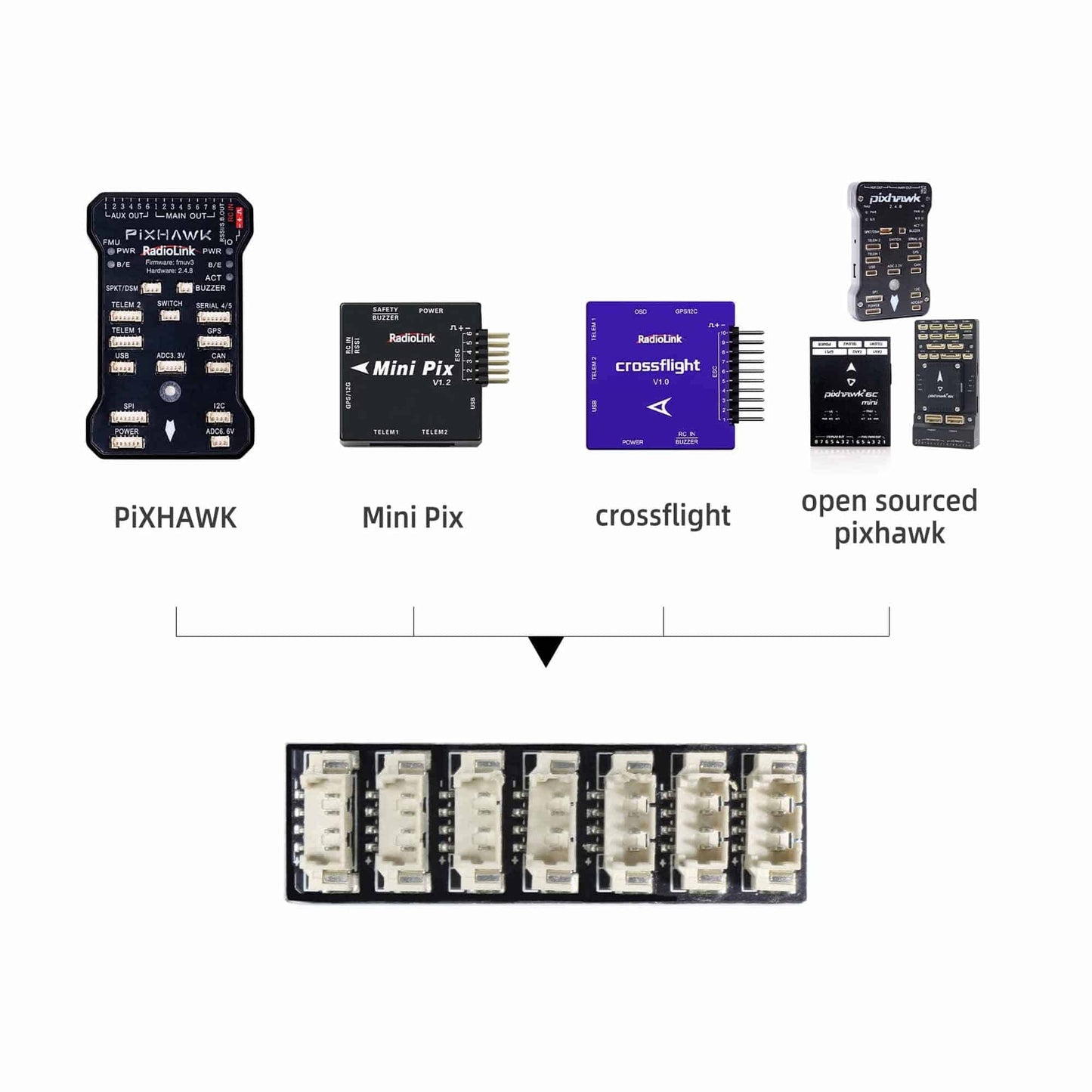

- Compatible Flight Controller: Compatible with RadioLink CrossFlight/Mini Pix/TURBO PiX/PIXHAWK and Open-Sourced PIXHAWK
- Compatible Module: Compatible with RadioLink Ultrasonic Sensor of Obstacle Avoidance SU04/SUI04
Package Included:
- 1 x Radiolink 7P I2C Expansion Board
- 1 x Mini PIX Cable
- 1 x PIXHAWK Cable
