Description:

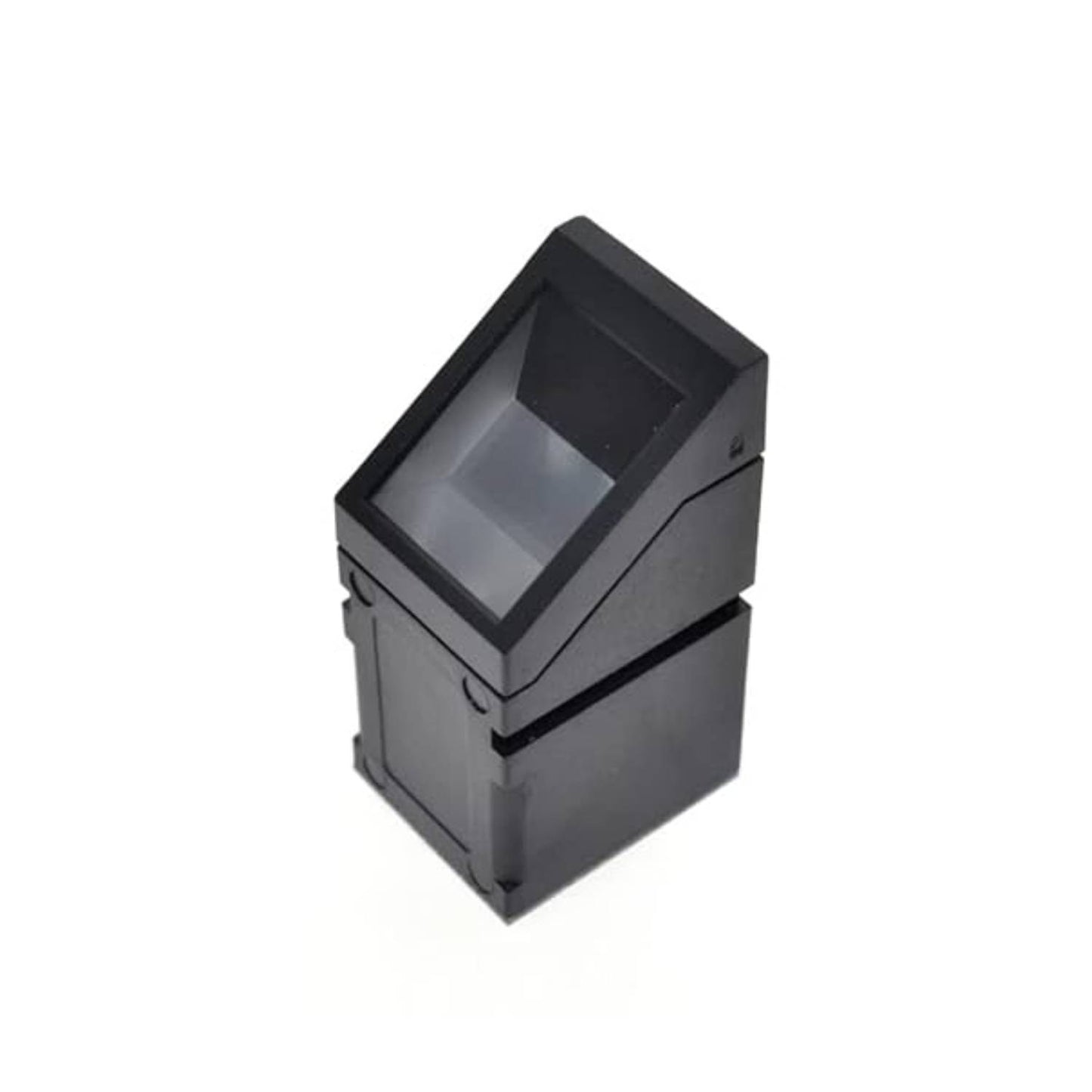

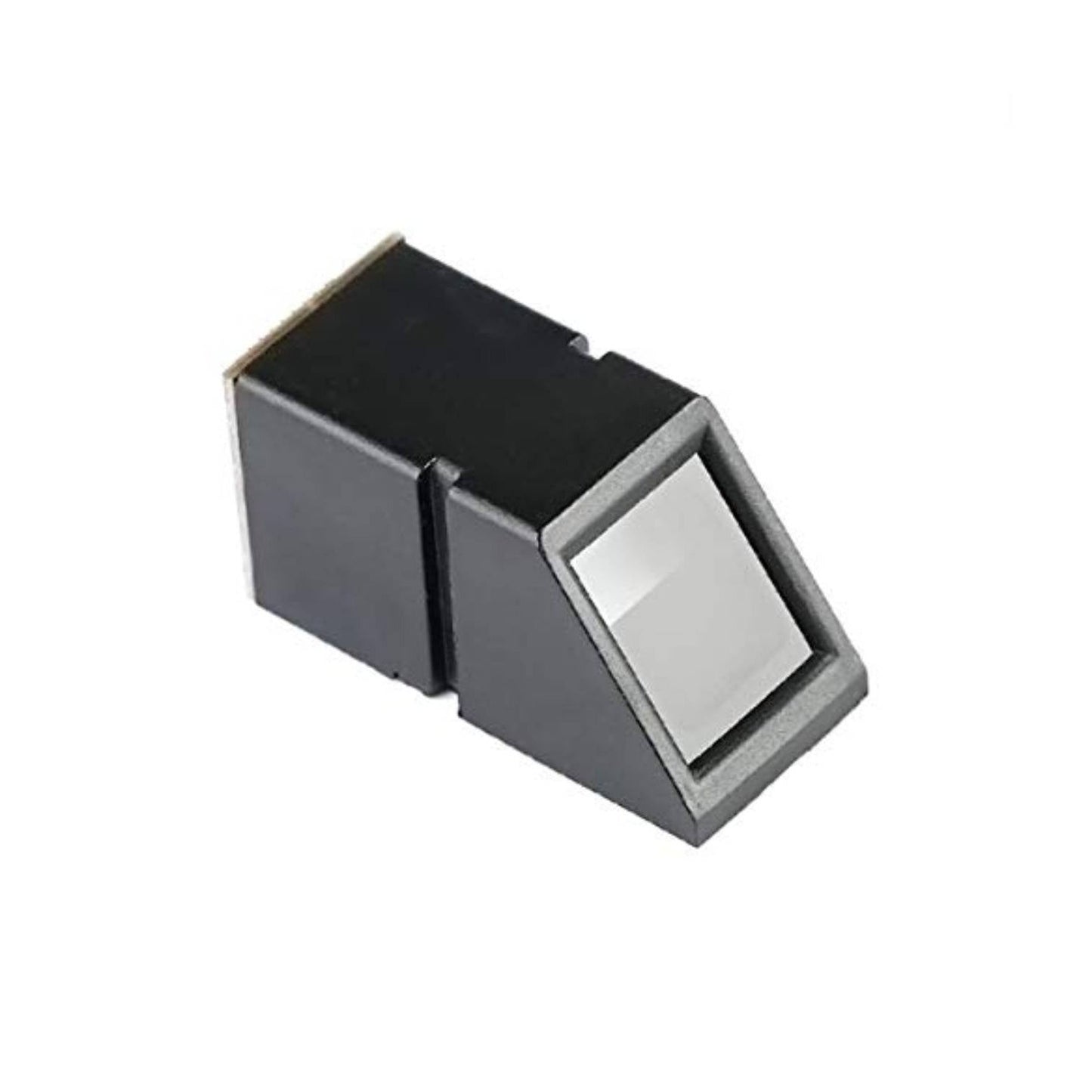

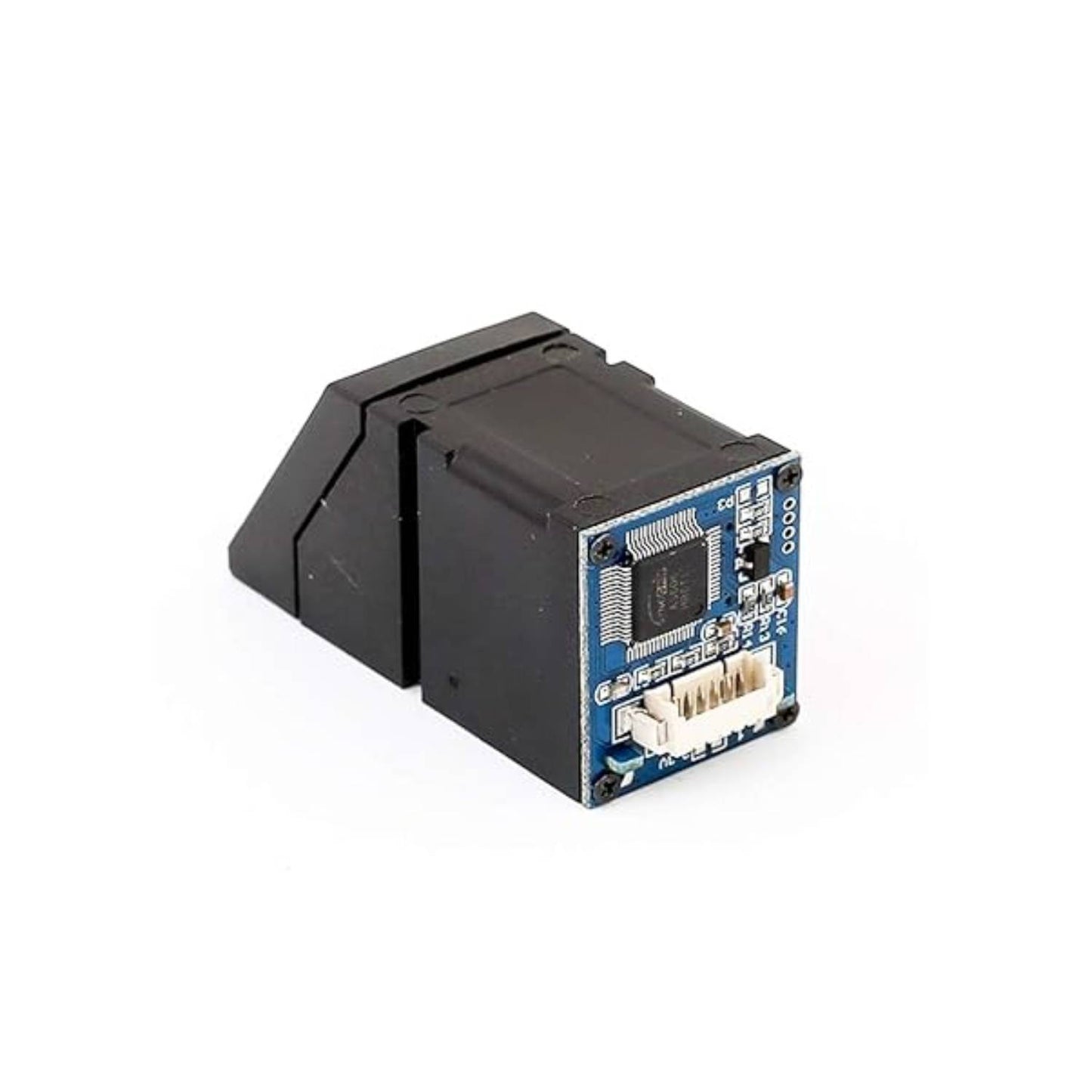

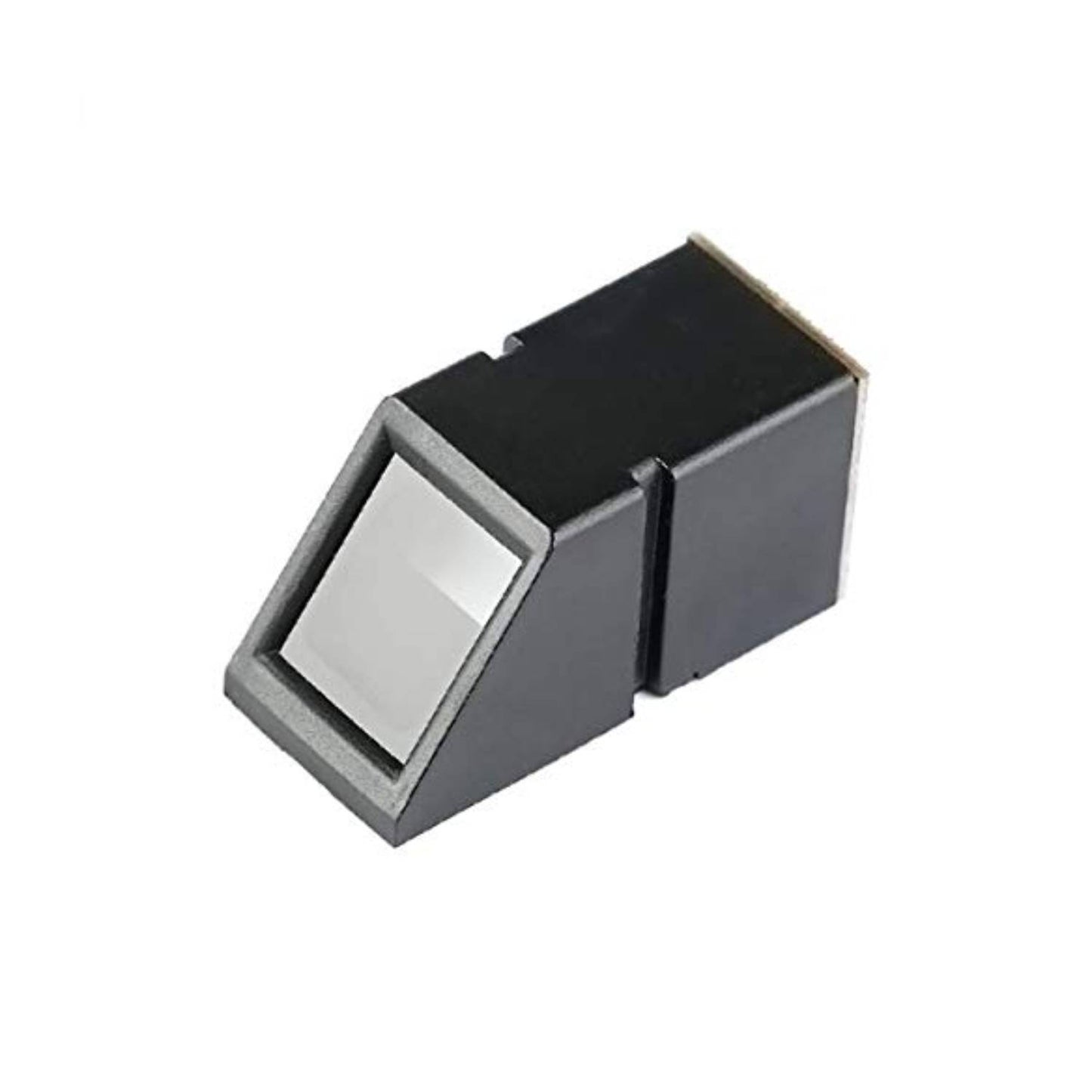

The R307 optical fingerprint module integrates fingerprint algorithm chips with functions such as fingerprint input, image processing, feature extraction, template generation, template storage, fingerprint comparison (1:1), and fingerprint search (1:N).
The fingerprint reader can do secondary development and can be embedded in various end products such as access control, attendance, safe boxes, and car door locks.
This product uses professional optical technology and module manufacturing process to make the product have low power consumption, low cost, small size, and excellent performance.
Specifications:
- Model: R307 Fingerprint Sensor Module
- Supply Voltage: DC 4.2 ~ 6.0V
- Working Current: 50mA (typical)
- Peak Current: 80mA
- Fingerprint Image Input Time: <0.3 seconds
- Window Area: 14x18 mm
- Matching Mode:1: 1 and 1:N
- Characteristic File Size: 256 bytes
- Template Size: 512 bytes
- Storage Capacity: 1000 pieces
- Security Level: 5 (from low to high: 1,2,3,4,5)
- Fake Rate (FAR): <0.001%
- Refusal Rate (FRR): <1.0%
- Search Time: <1.0 seconds (1: 1000 hours, mean value)
- Host Interface: UART USB1.1
- Baud Rate (UART): (9600xN) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
Features:
- Integrated image collecting and algorithm chip together, All in one.
- The fingerprint reader can conduct secondary development and can be embedded into a variety of end products.
- Low power consumption, low cost, small size, excellent performance.
- Professional optical technology, and precise module manufacturing techniques.
- Good image processing capabilities can successfully capture an image up to a resolution of 500 dpi.
Package Included:

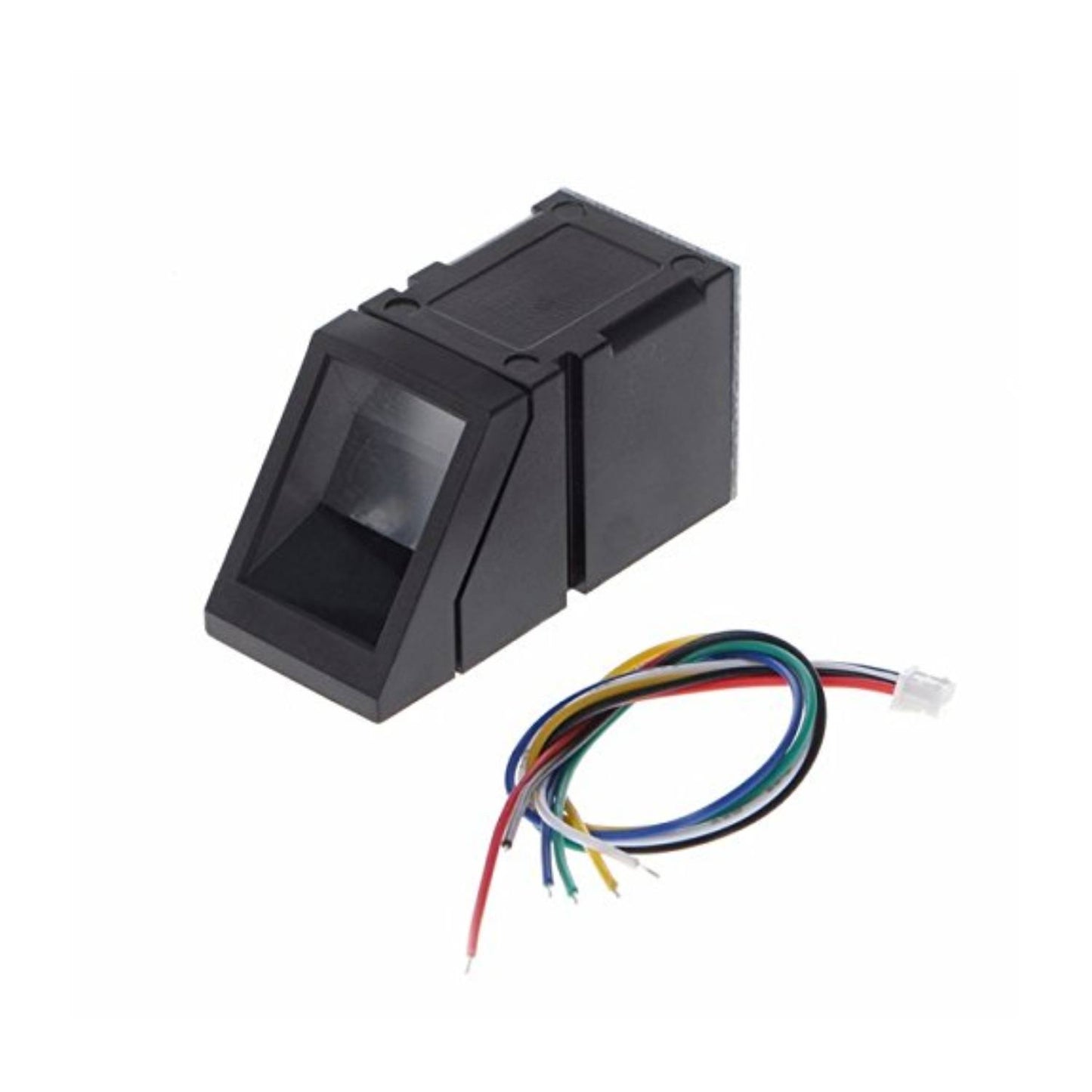

- 1 x R307 Optical Fingerprint Sensor Module
- 1 x Connecting Cable(6-pin)
