Description:

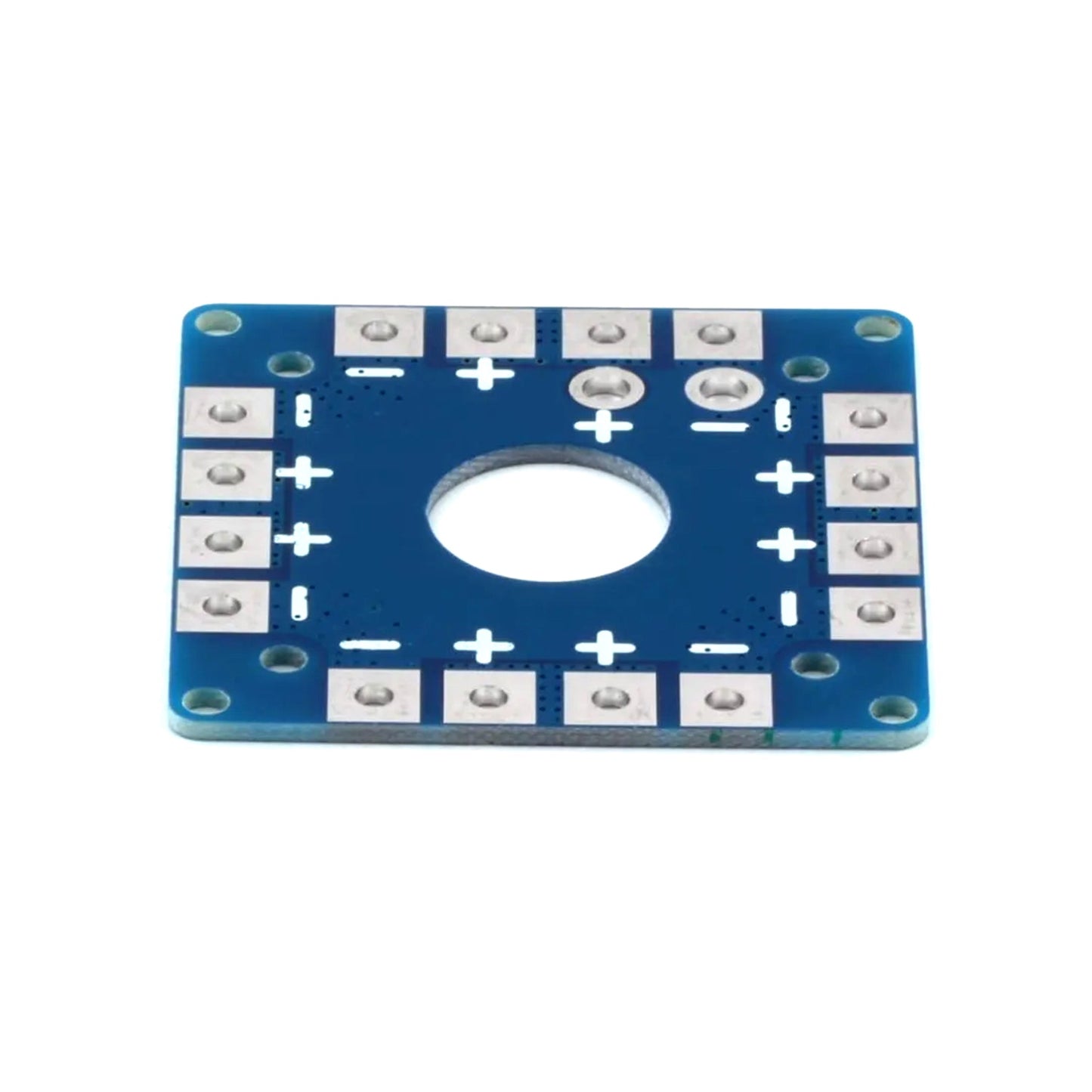

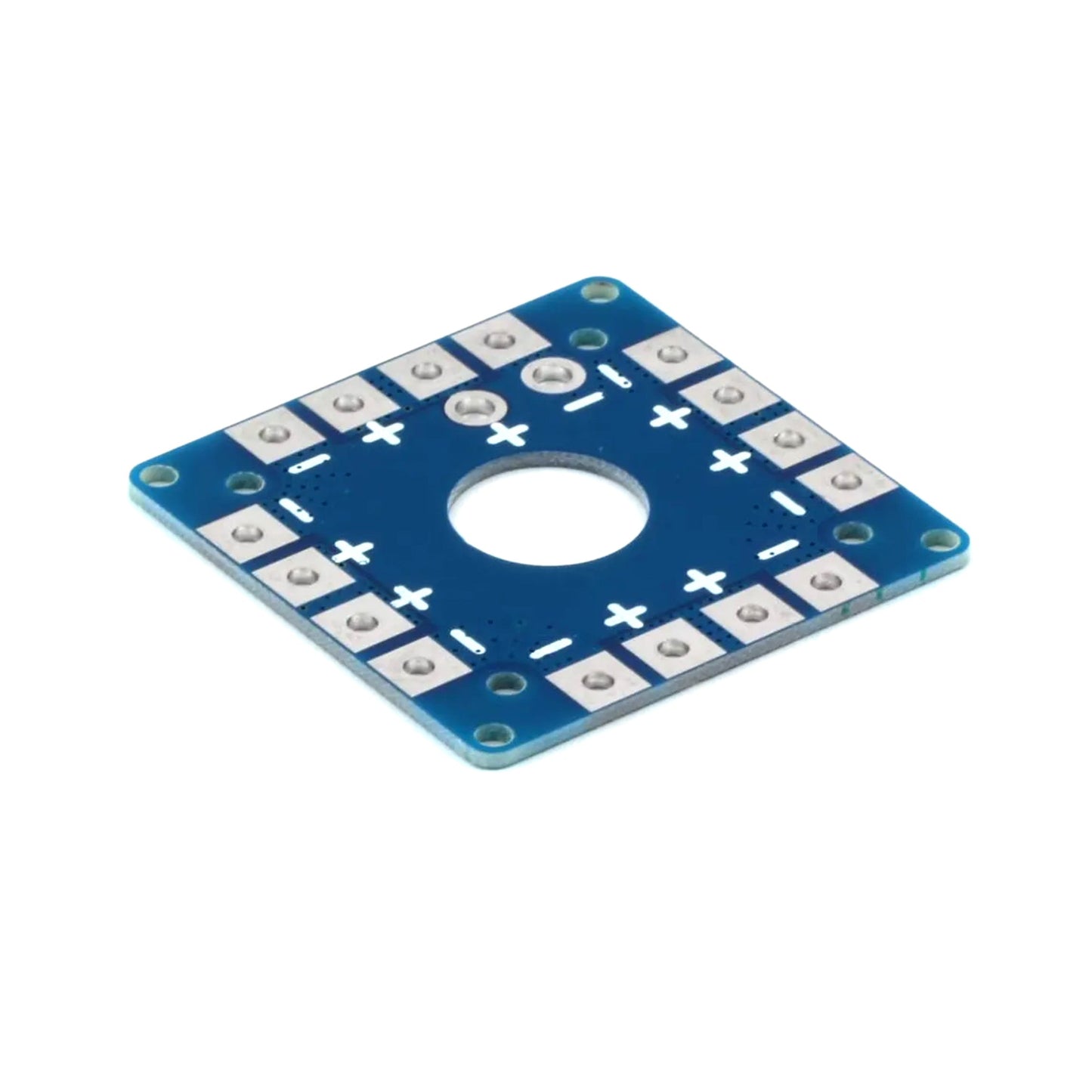

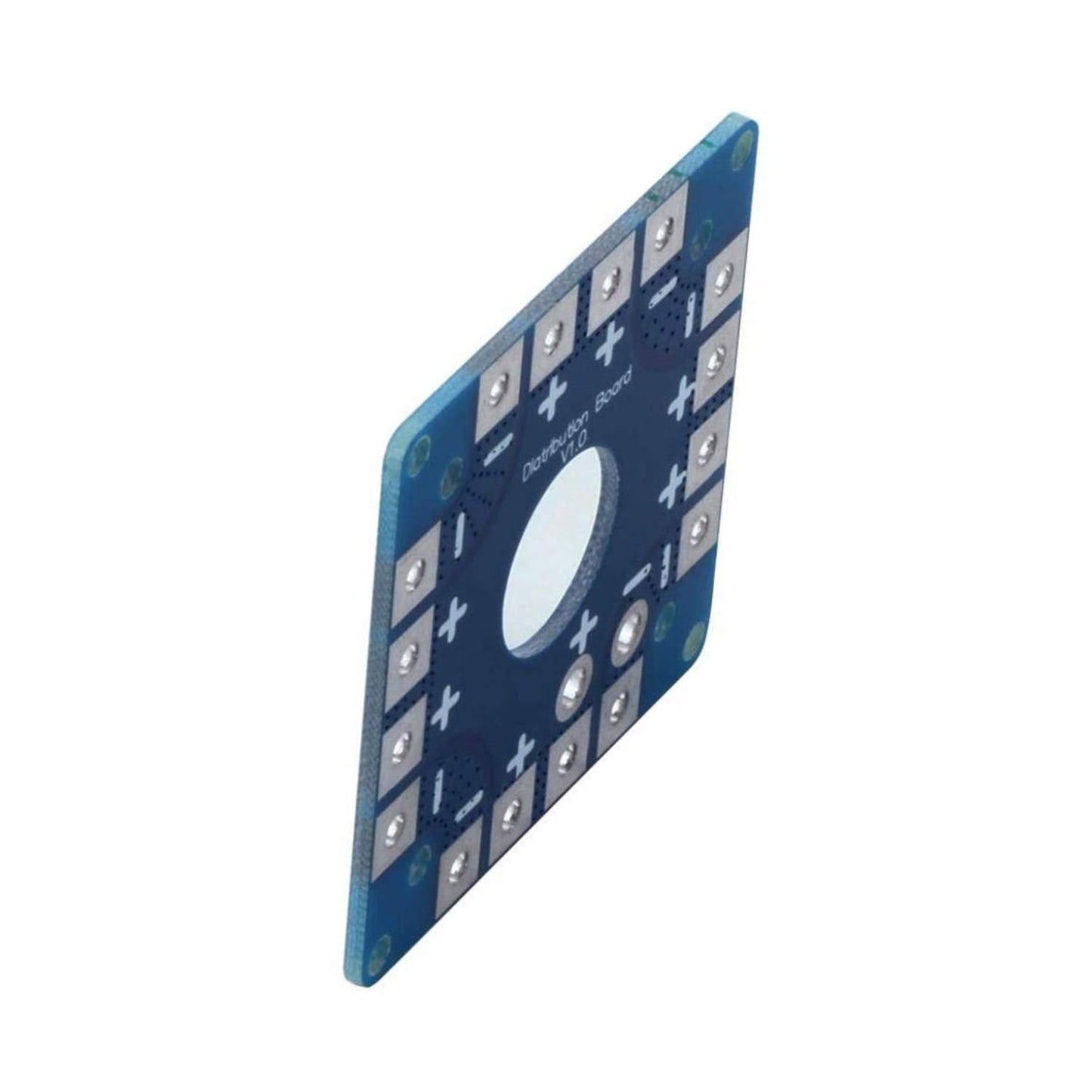

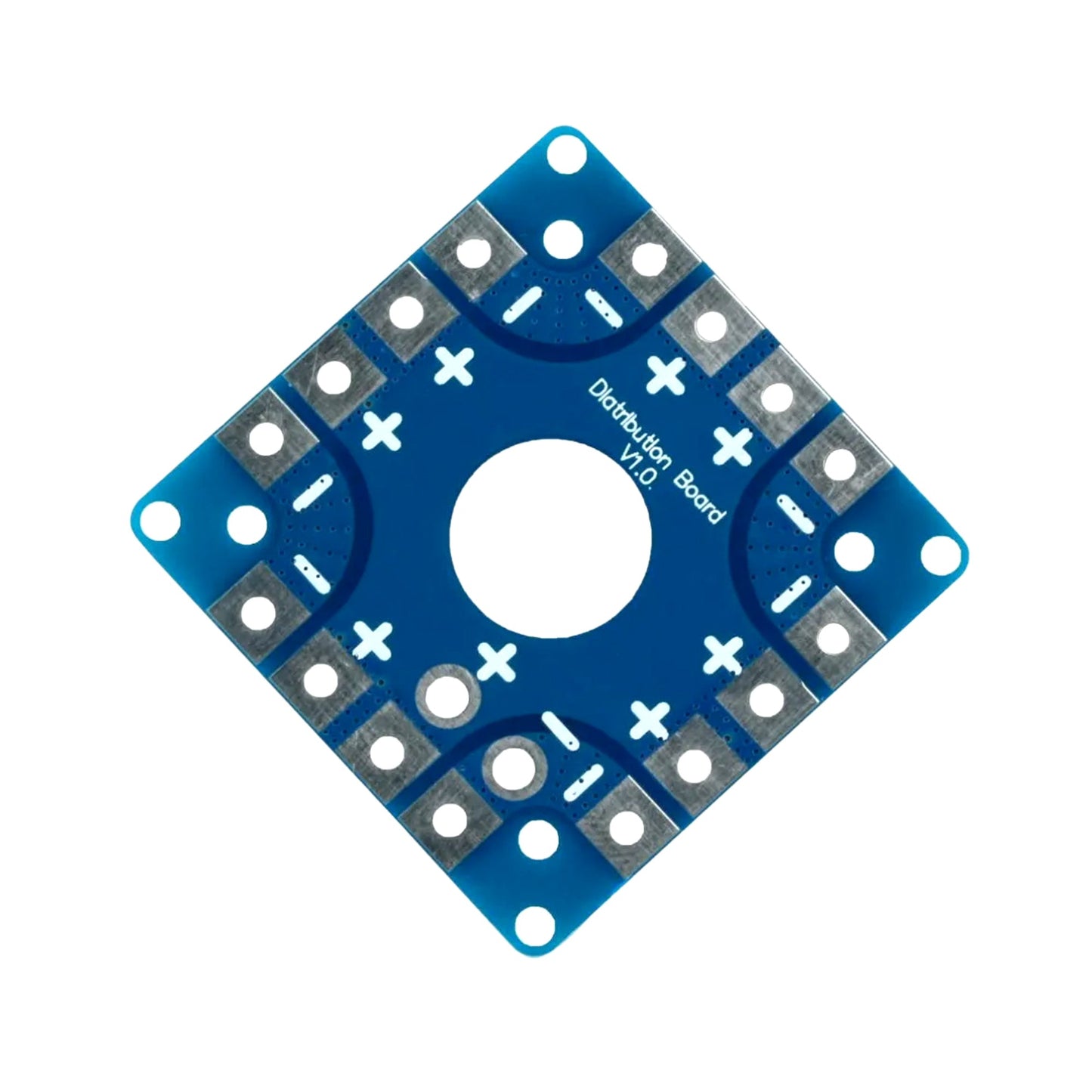

Power Distribution Boards are often an overlooked area of multirotor drone building, mainly because they are fairly simple but despite this, they are a crucial part of your drone and if you don’t choose the right one you could end up losing your drone. As the name suggests, a PDB distributes the power on your drone and provides a neat way of connecting your battery to all of your ESCs on your aircraft. A PDB has positive pads/terminals which are all connected and negative terminals/pads which are all connected. This way when you solder all of the red wires from your ESCs and battery to the positive pads on the PDB, and the black wires to all the negative pads, they will all become connected to your battery and can provide power to all of your ESC and’s as shown in the image below.
Specifications:
- Material: glass fiber
- Compatible with MK KK flight control instalment pitch of holes
- Compatible with MK KK flight control system
- Can connect 1-8 ESC
- Board Dimensions : 50 x 50 x 2 mm
- Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
Package Included:
1 x Quadcopter ESC Power Distribution Board 100A Multirotor ESC Power Distribution Battery Board For Quadcopter Multi-Axis Model
