QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter - RS3584

QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter - RS3584

SKU:RS3584

Regular price Rs. 179.00
Regular price Sale price Rs. 179.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Dimensions: 36 x 36 mm
  • Pitch Patch: 0.4 mm
  • Pin Header: 2.54 mm
  • PCB Color: Blue

Description :

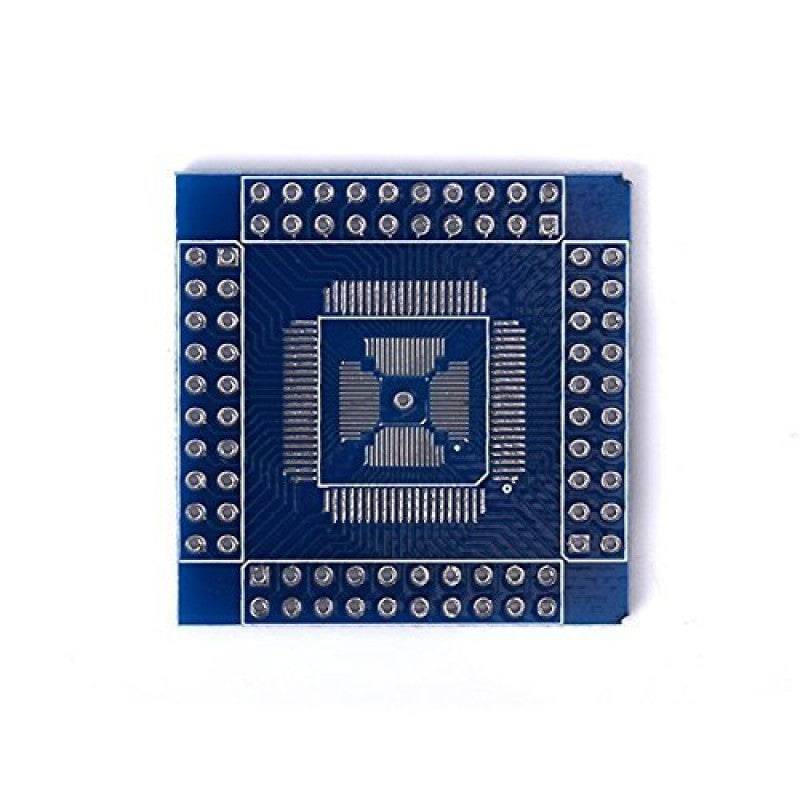

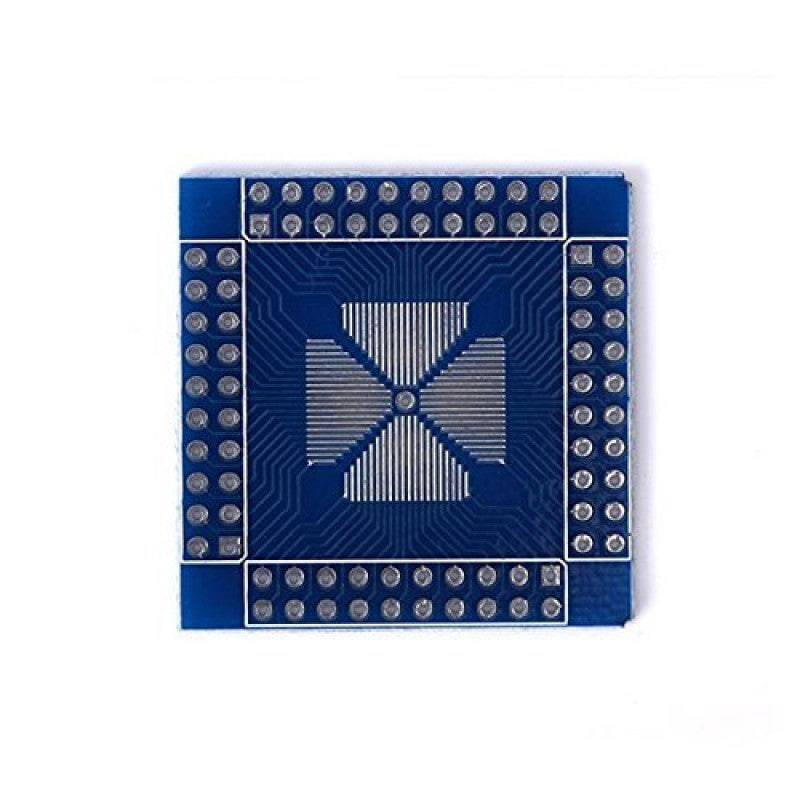

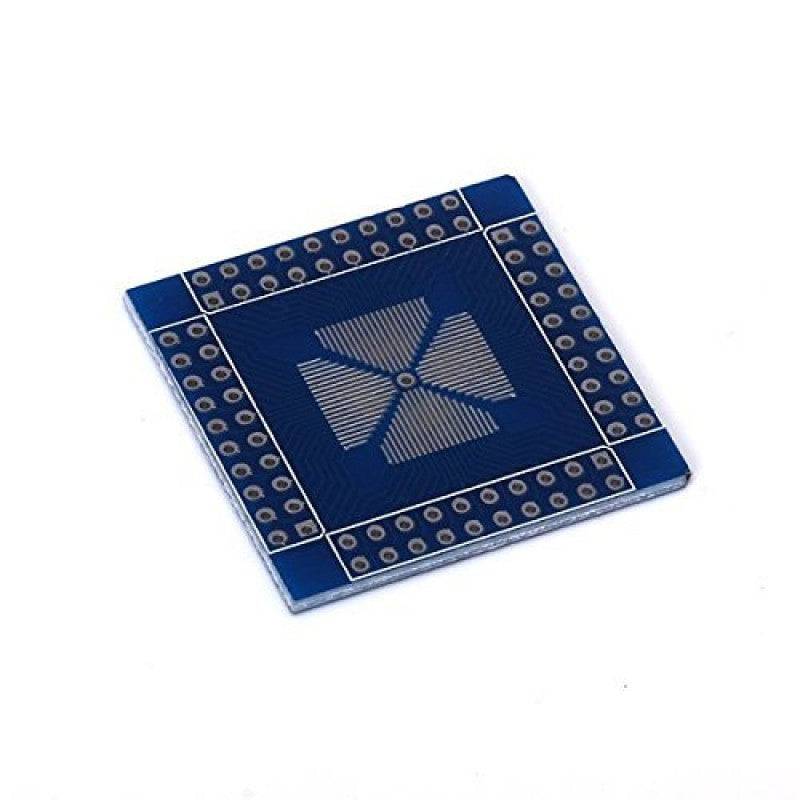

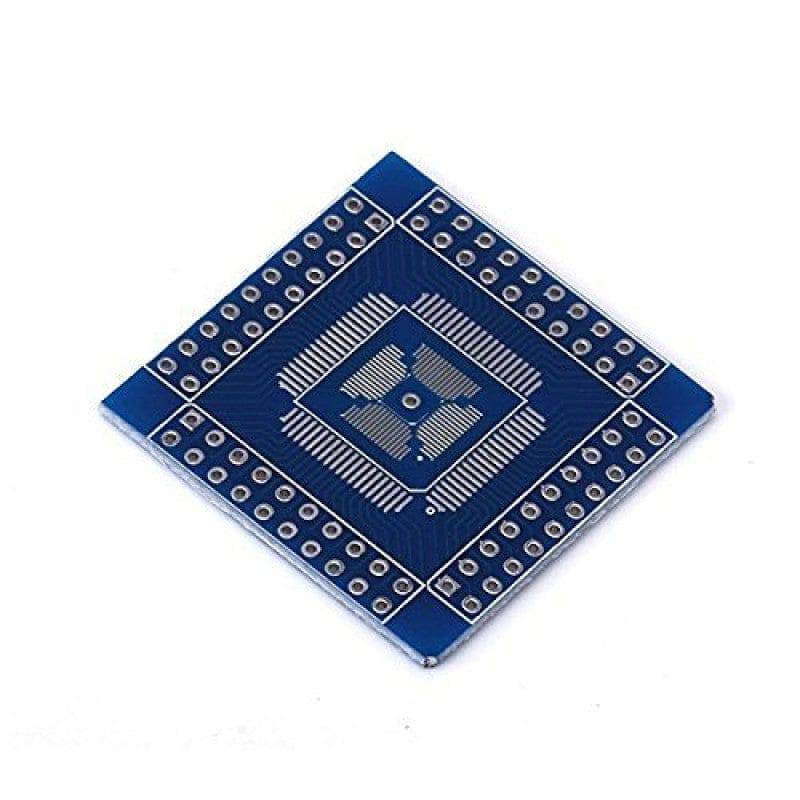

This double-sided pin board features one side of the patch is 16 pin -80pin turn DIP, 0.5mmspacing and the other side is 40pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing. QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter has unique design makes the board compatible with more models of IC packages QFP Side of the patch 16 pin -80pin turn DIP, 0.5mmspacing. The other side is 40pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing.

Note: The actual subject-specific parameters shall prevail. We can not guarantee that your chip can fit with the item perfect.

Specification:

  • Dimensions: 36 x 36 mm
  • Pitch Patch: 0.4 mm
  • Pin Header: 2.54 mm
  • PCB Color: Blue
  • Pitch Patch (mm) : 0.4
  • Pin Header (mm) : 2.54

Package Included:

1 x QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter.
