- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Red Metal 8/8
- Size: 220mm Diagonally, 175mm Wide, 130mm Long
Description:

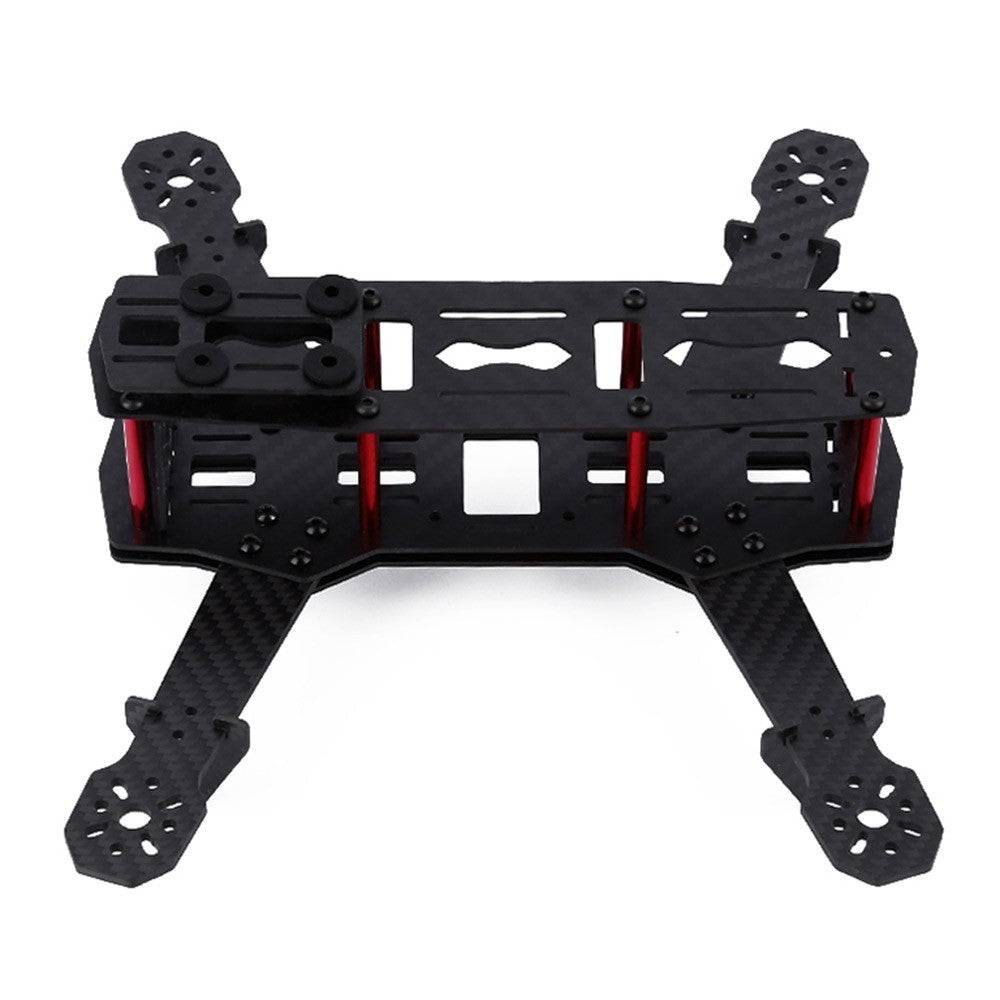

The Mini Quad is A Low Weight Mini Sport FPV Quadcopter Frame. It Was Designed to Make Use of Standard Sized Electronic Equipment Commonly Used in RC. This Allows The Quadcopter to Compete with Larger Quadcopters, While Being Smaller and Agile! Working on Mini Quadcopters Requires A Lot of Soldering, Wire Shortening and Creation of Power Distribution System. This Product Requires A Good Knowledge of RC Systems and is Not Recommended for Beginners.
Specification:
- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Red Metal 8/8
- Size: 220mm Diagonally, 175mm Wide, 130mm Long
- Motor-to-Motor; About 1/2 the Size of A Regular Quadcopter Maximum
- Propeller: 5"
- Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
- Flight Controller Mount: 30.5mm X 30.5mm Board
- Camera Mount: 32mm X 32mm Suggested Components (No included, Please Ready Separately): Motors: 1806 "Blackout 3S" 2300kv
- Motor Propeller: 5x3
- ESC: 12amp
- ESC Battery: 3S 1300mah
- Flight Controller: MW, KK, Naze32, Flip Pro
- Package: 100% Brand NEW 1set * QAV250 Carbon Fiber Mini FPV Quadcopter Frame
Features:
- Lightweight and Durable.
- Made by super strong and advanced engineering material.
- The frame has excellent strength.
- The arm equips dampers for the safe landing.
- The arm has multiple motor mounting holes.
- Equips vibration-free mounting bracket for FPV camera.

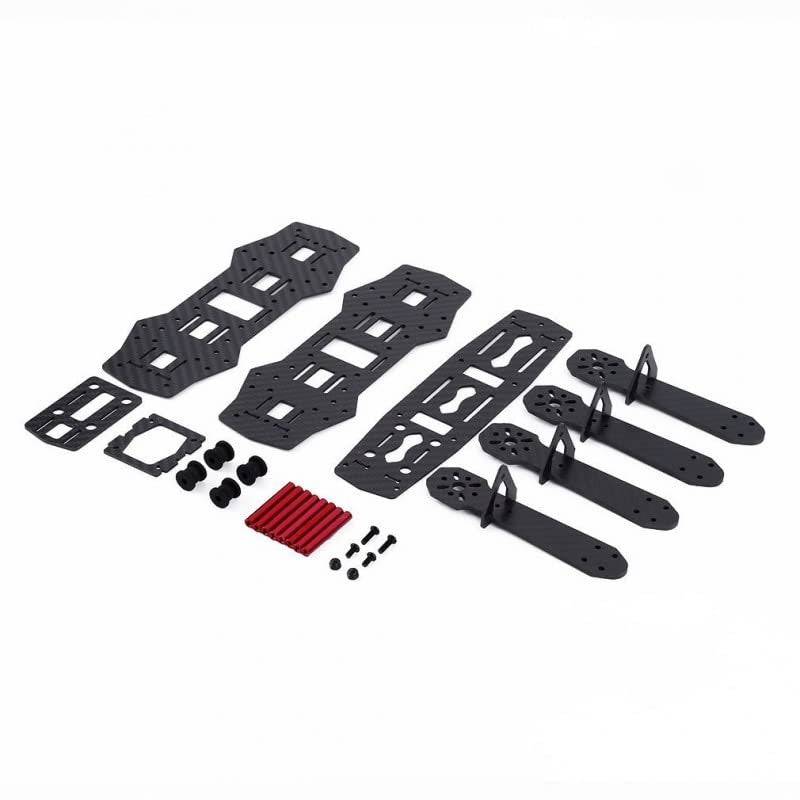

Package Included:
- 3 x Quadcopter Frame Plates(top, bottom, and center )
- 4 x Strong carbon fiber arm
- 8 x Aluminum column
- 4 x Landing gear mounting
- 4 x Rubber Shock absorbing Ring
- 1 x Camera lens holder
- 1 x Carbon fiber spacer mountings
- Set of Screws and Nuts
