Description:
Experience intelligent solar power management with this versatile charge and discharge controller. Its intuitive, backlit LCD boasts a user-friendly interface, allowing for effortless navigation and flexible parameter adjustments to perfectly suit your specific needs.
Customize your system with adjustable charge and discharge parameters, and choose from various load operating modes to match your power consumption patterns.PWM Technology Uses Pulse Width Modulation to regulate charging, preventing overcharging and extending battery life.
Effortlessly switch between 12V and 24V systems with automatic voltage grade selection. Handles up to 30 amps, suitable for powering a range of loads. The intelligent PWM charging mode ensures optimal battery life by preventing overcharging while automatic temperature compensation adapts to changing environmental conditions.
This Maximizes Battery Life by preventing overcharging the controller and helps to maintain optimal battery health and performance. Displays real-time charging and discharging current, allowing for easy system monitoring and energy management.
Safety and Protection that Overload and Short Circuit Protection protect the system from potential damage. Battery Protection: Includes features like low voltage disconnection (LVD) and reverse connection protection to safeguard your batteries.
Specifications:

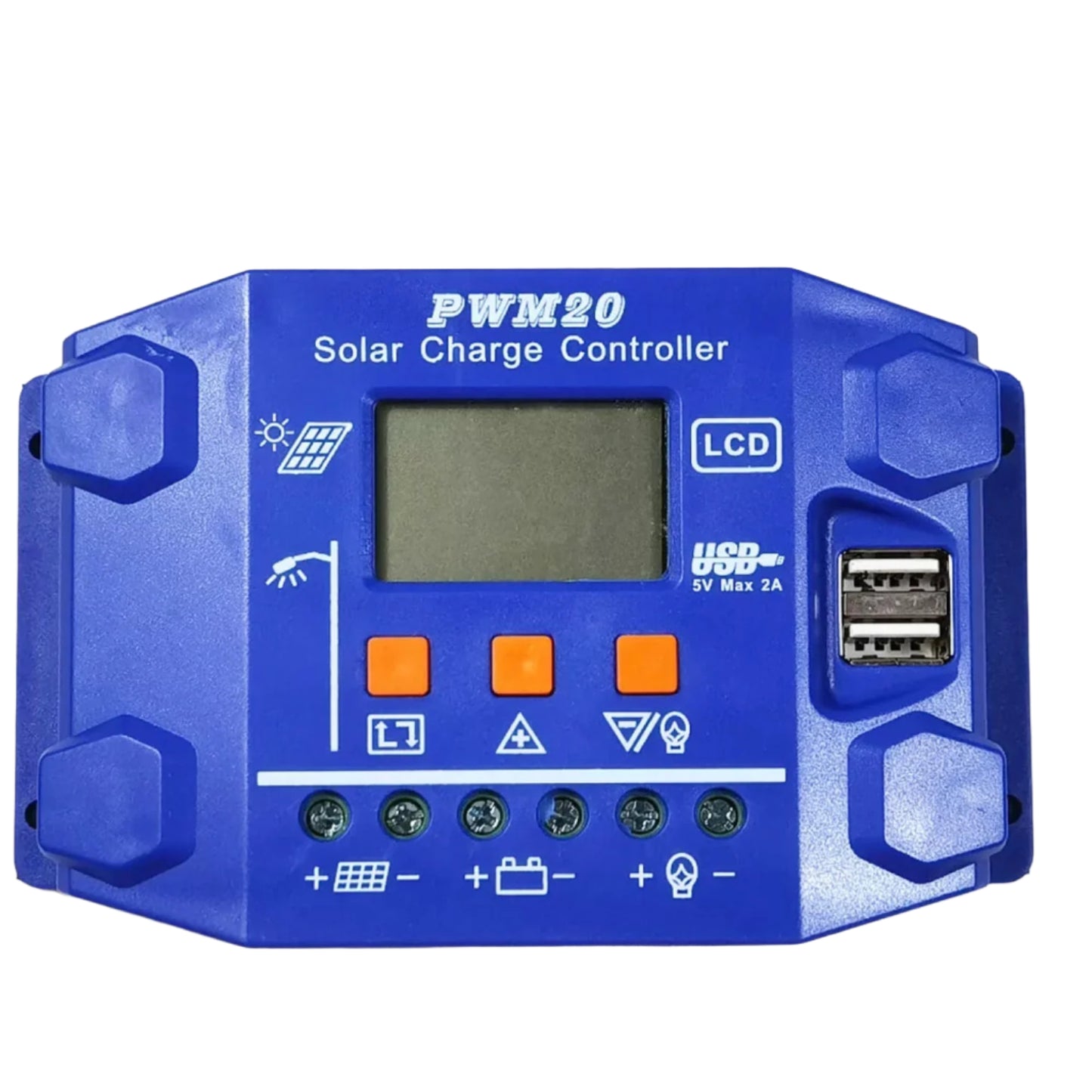

- Model No.: PWM20
- Voltage: 12/24V
- Current Output: 30A
- Float Voltage: 13.7V/27.4V
- Charging Mode: PWM mode
- Max Input Solar Panel Power: 720W, Connect 12V or 24V Battery
- Open Voltage of Solar Panel: ≤ 50V
Features:
- The PWM20 solar charge controller is designed for both 12V and 24V battery systems, handling up to 30 amps of current.
- This allows you to power a wide range of appliances and devices.
- It utilizes efficient PWM charging to maximize battery life and prevent overcharging.
- The controller can handle solar panels with an open voltage of up to 50V, providing ample power for your system.
- PWM20 features a clear backlight display that shows real-time charging and discharging current.
Package Included:
1 x PWM20 30Amp 12V/24V Charge/Discharge Controller
