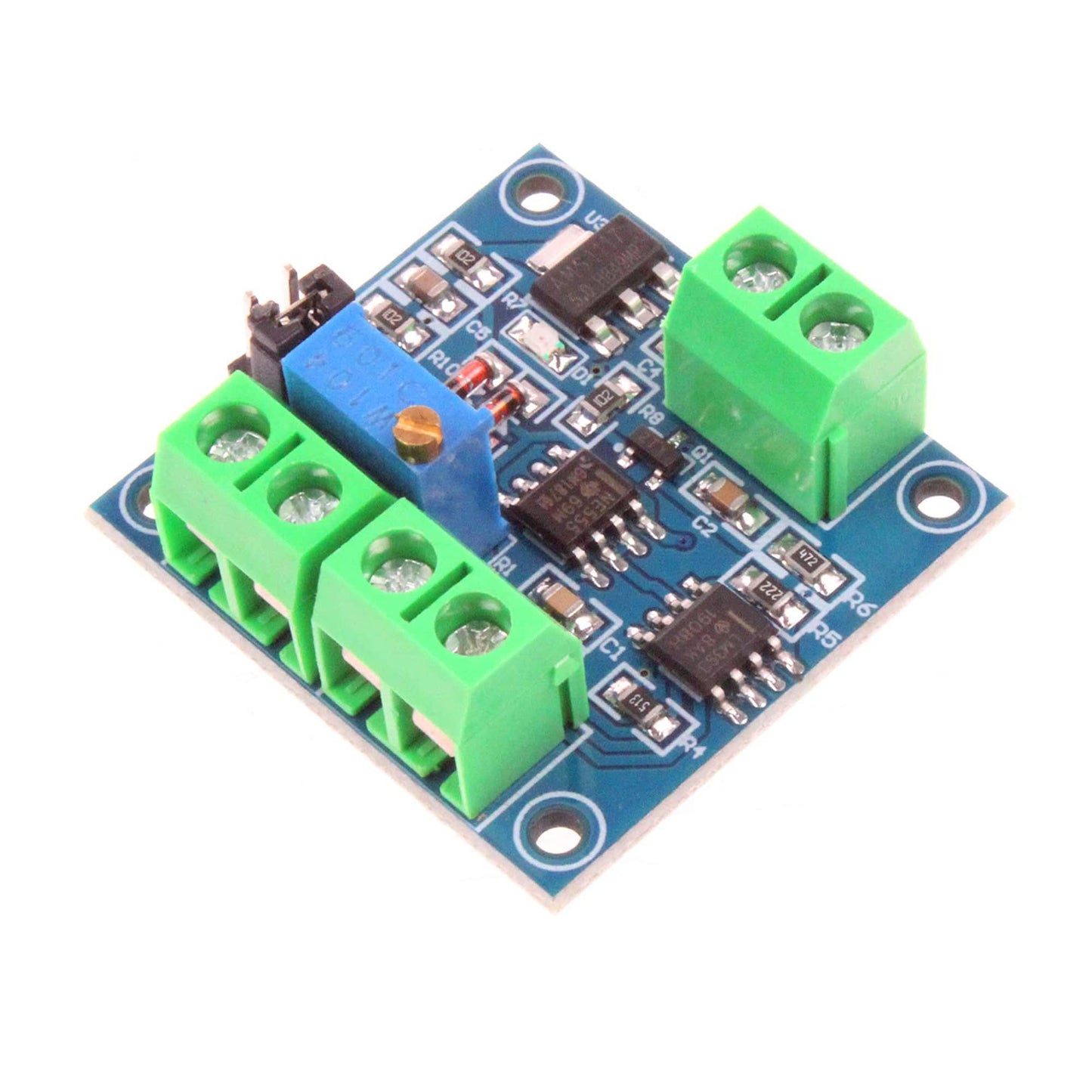

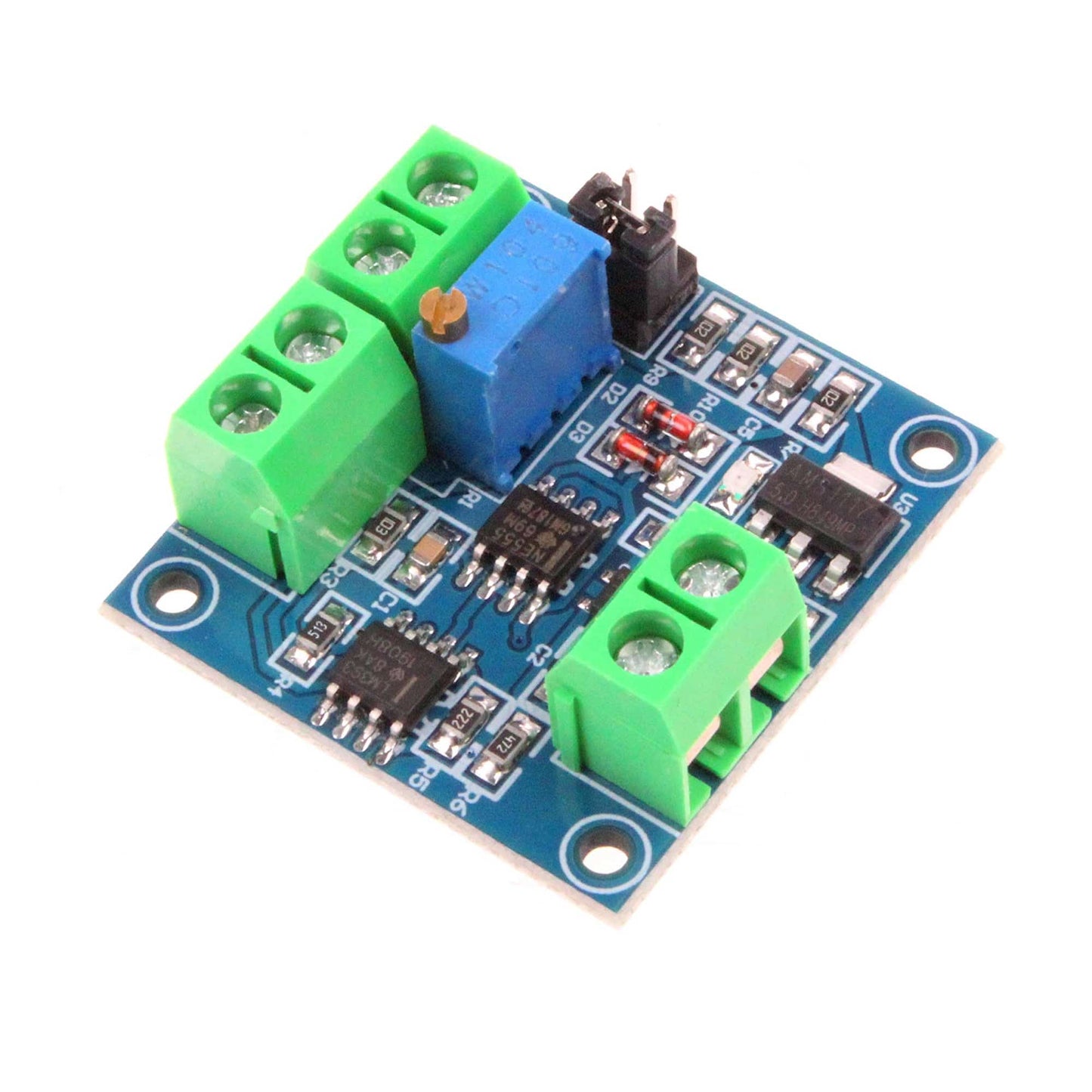

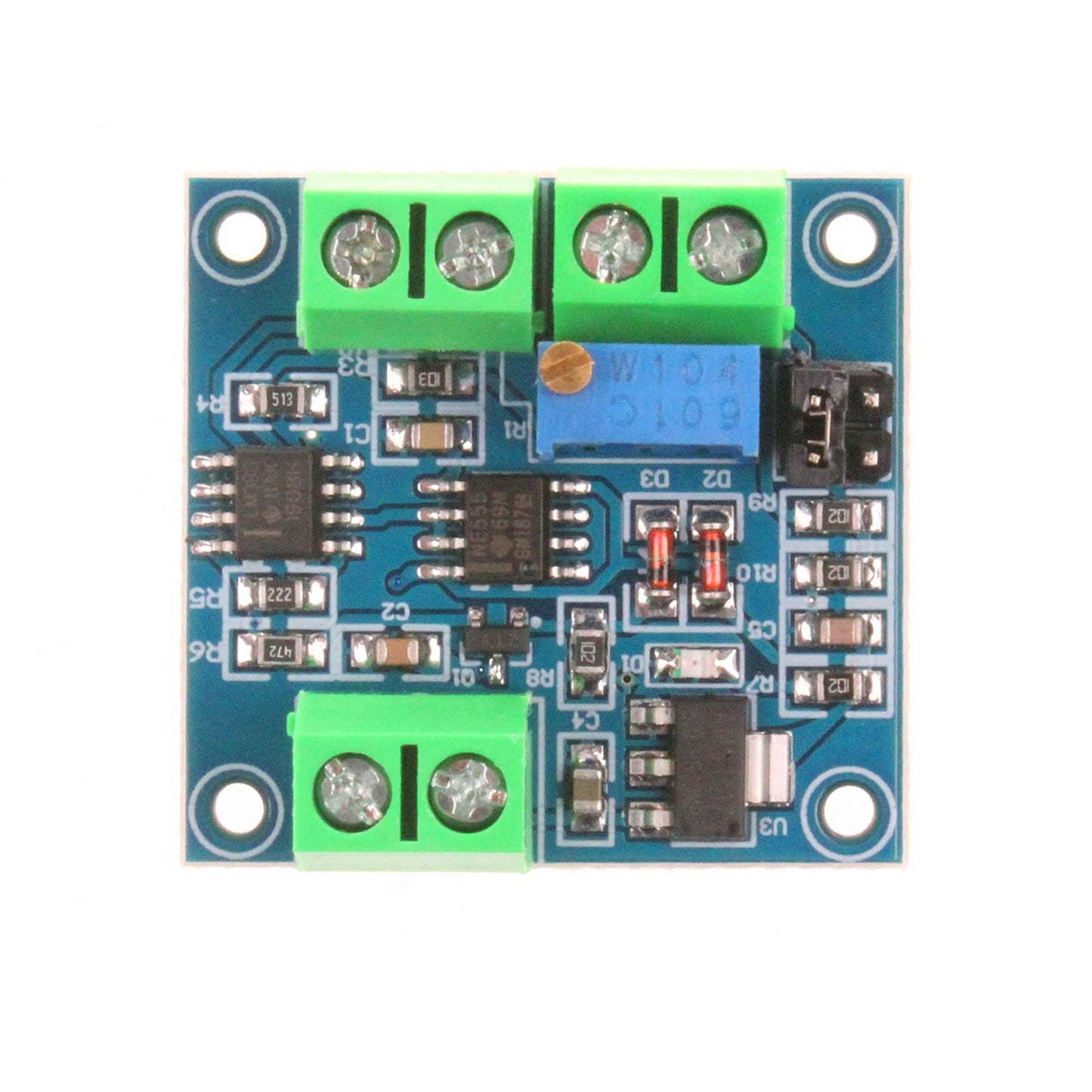

PWM to Voltage Converter Module PWM to Voltage 0-100% to-10V Converter Module - RS3141

PWM to Voltage Converter Module PWM to Voltage 0-100% to-10V Converter Module - RS3141

SKU:RS3141

71 in stock

Regular price Rs. 139.00
Regular price Sale price Rs. 139.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

PWM to Voltage Converter Module can convert PWM digital signals into 0 to 10V analogue signals. This PWM to Voltage Converter Module can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small and easy to apply in different places.

Specifications:

  • Operating Voltage: 12V ~ 30V DC
  • Conversion Range: 0% -100% PWM to 0-10v voltage
  • PWM signal reception frequency range: 1KHz – 3KHz
  • Allowable Error: 5%

Features:

  • PWM to Voltage Converter Module uses single-chip embedded technology
  • Easy to operate, can be fine-tuned by potentiometer
  • Select the PWM signal input level range through the short-cap
  • The PWM to Voltage Converter Module is small, easy to carry and use
  • PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
  • PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.

Pin Description:

  • VCC: Working power 12-30V
  • GND: Ground
  • PWM: Input PWM signal positive
  • GND: Input voltage ground
  • VOUT: Output voltage: 0-10V
  • GND: Output ground

Package Included:

1 x PWM to Voltage Converter Module PWM to Voltage 0-100% to-10V Converter Module
