- Input Voltage: DC9-55V
- Output Voltage: Load Linear
- Output Current: Max 40A
- Quiescent Current: 0.01A
- Maximum Power: 2000W
Description:

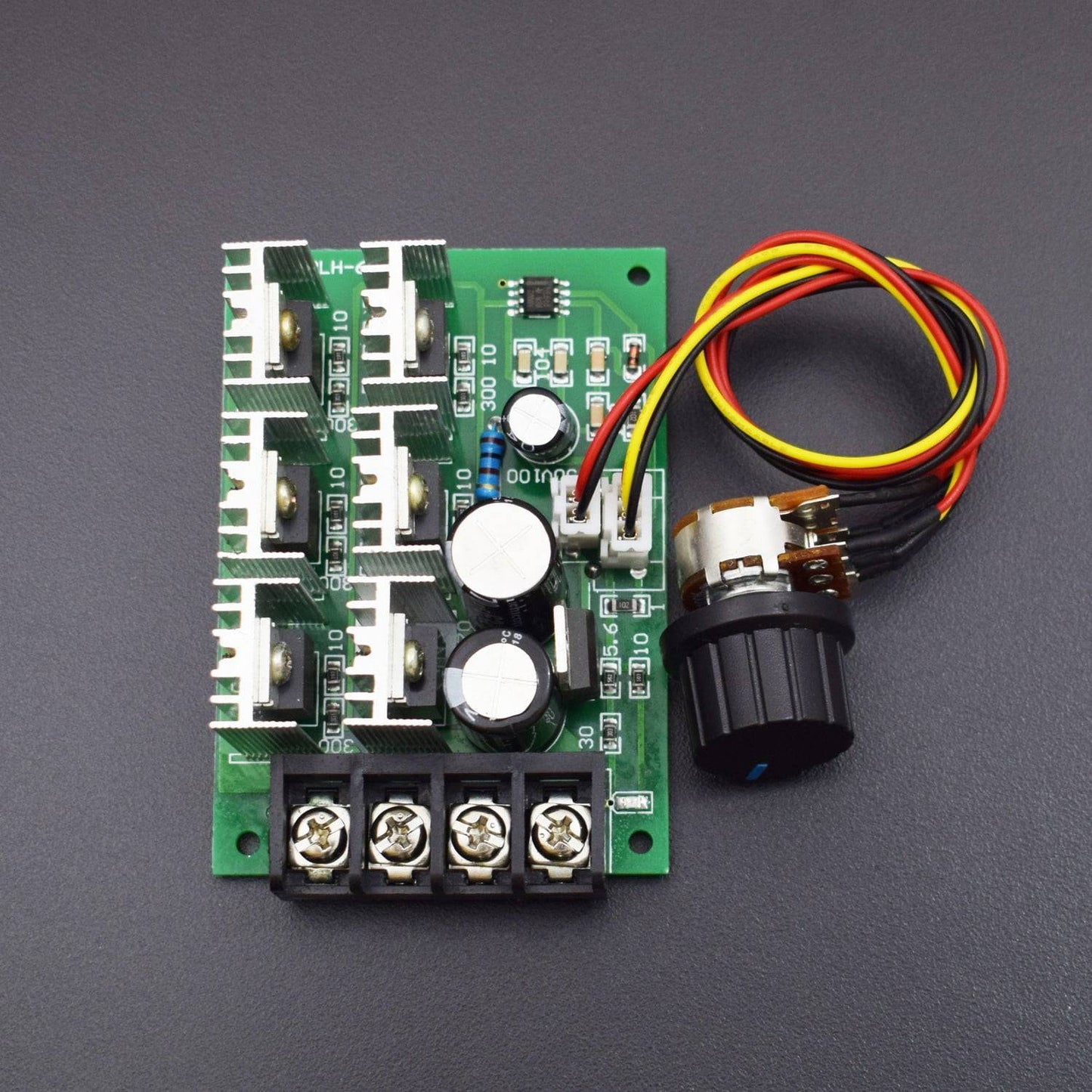

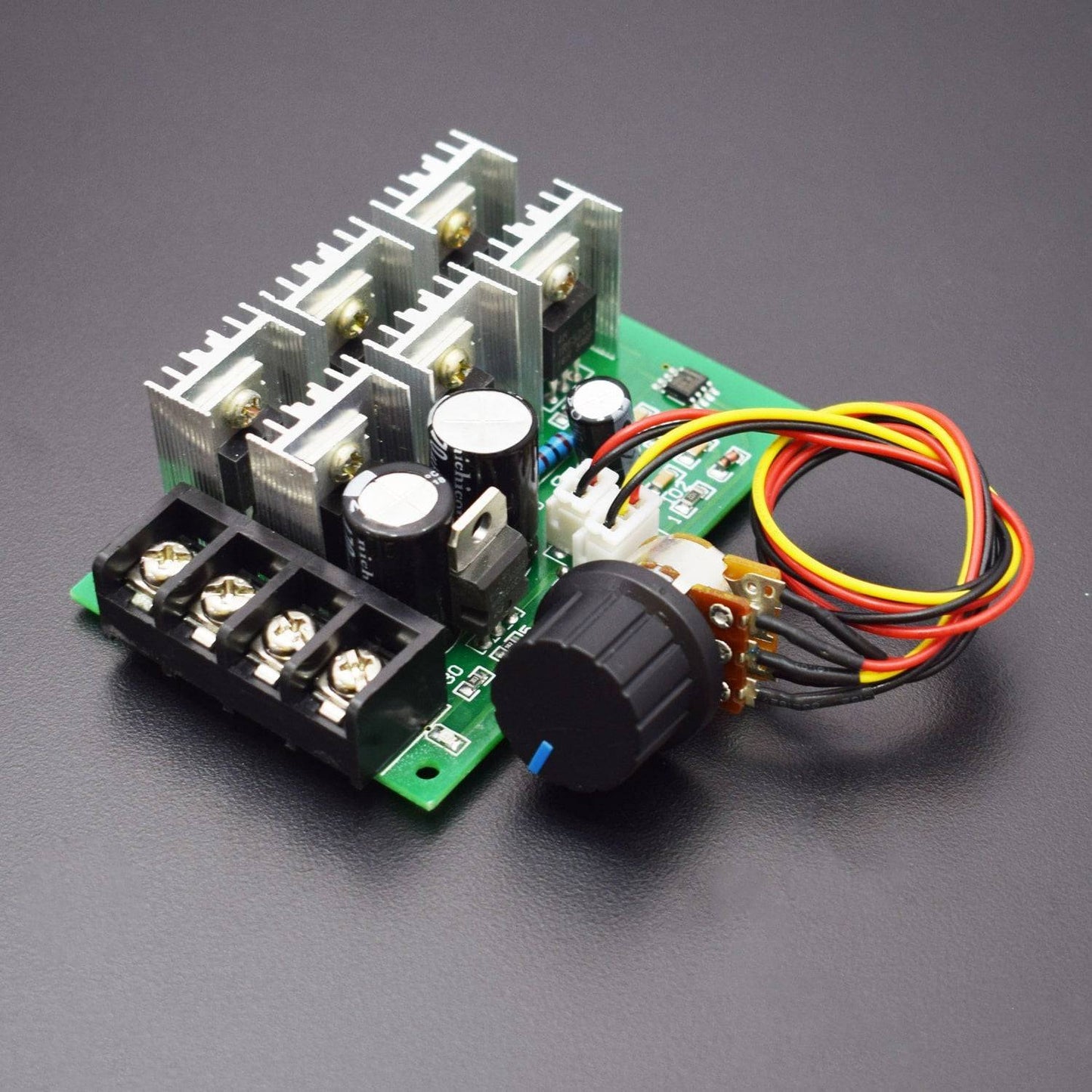

This is a PWM DC 40A 12V / 24V / 36V / 48V Maximum Power 2000W Motor Speed Controller Adjustable Variable Speed Switch. This DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%.
Specification:
- Input Voltage: DC9-55V
- Output Voltage: Load Linear
- Output Current: Max 40A
- Quiescent Current: 0.01A
- Maximum Power: 2000W
- Speed Type: Modulated current
- Speed Mode: ON/OFF linear potentiometer
- Speed Range: 0-100%
- Operating Frequency: 15KHZ
- Connection Type: Barrier Terminal Blocks
Operating Instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
- Connect wires. (It is recommended to add an appropriately rated fuse inline with the positive supply.)
- Select the appropriate frequency you need.
- Turn on the power. The LED lights, the power is OK.
- Adjust the potentiometer.
Package Included:
1 x PWM DC 40A 12V / 24V / 36V / 48V Maximum Power 2000W Motor Speed Controller Adjustable Variable Speed Switch
