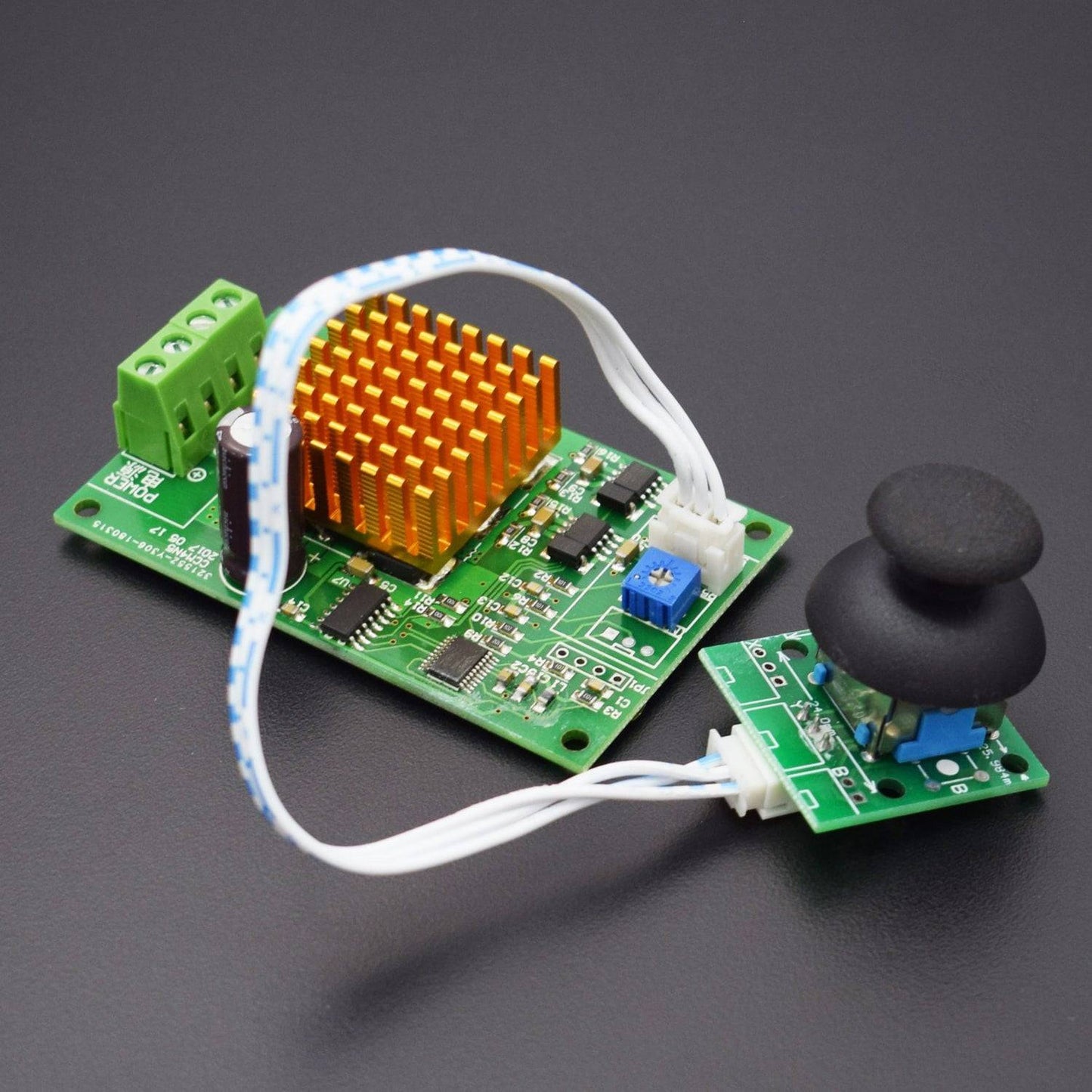

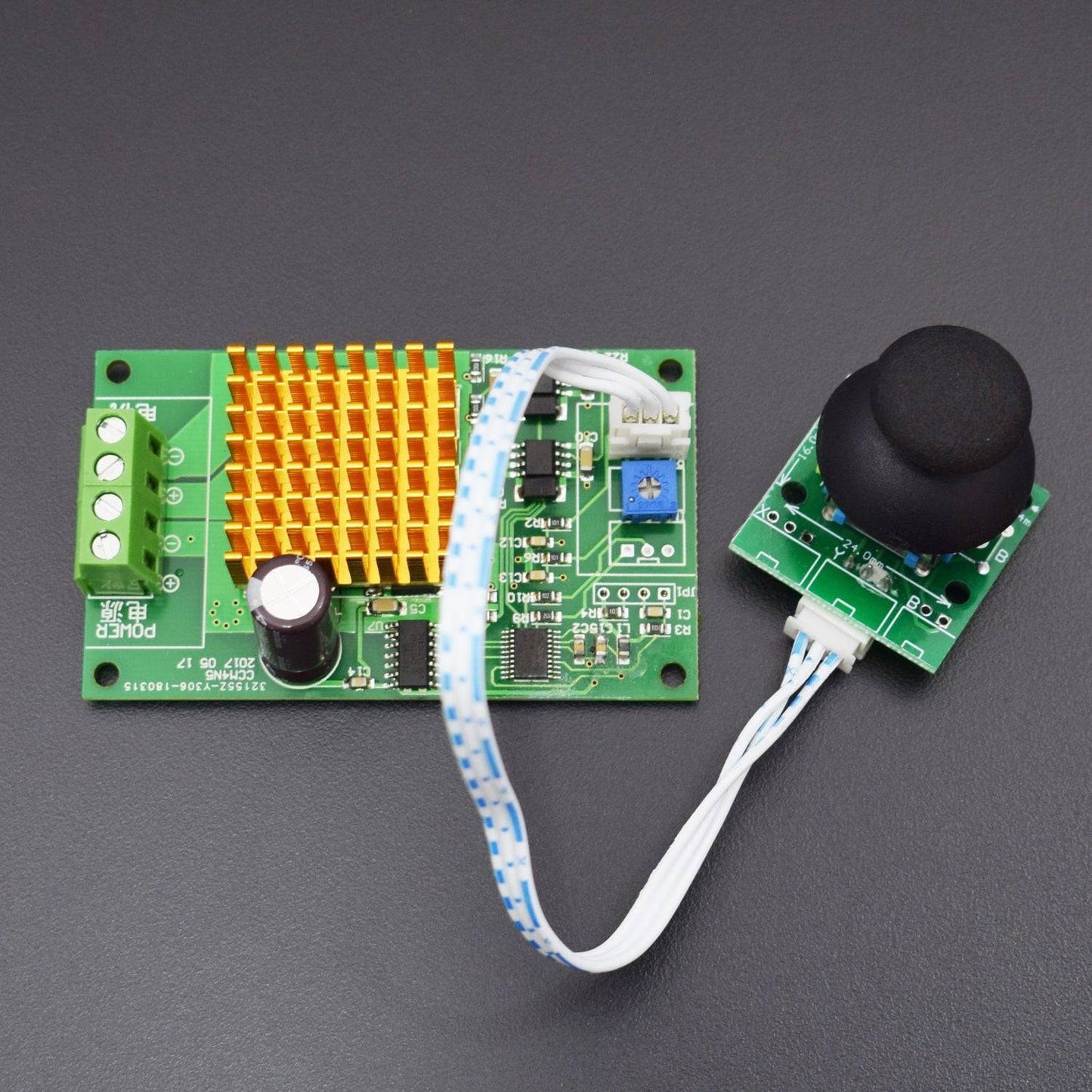

PWM DC 12V 24V 30V 4A Motor Speed Controller Positive-Stop-Reverse Switch CCM4N - RS1080

PWM DC 12V 24V 30V 4A Motor Speed Controller Positive-Stop-Reverse Switch CCM4N - RS1080

SKU:RS1080

In stock

Regular price Rs. 1,000.00
Regular price Sale price Rs. 1,000.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • The input voltage is DC 12V-30V.
  • Output power: 12V50W(max); 24V100W(max)
  • Equipped with IC which can check the Hall-effect current.
  • And it will stop working when the instantaneous peak current is up to 6.4A

Description:

DC Motor Speed Regulator provides variable speed capability for DC motor. Equipped with IC which can check the Hall-effect current. Equipped with a special potentiometer that can control the positive-stop-reverse rotation and speed of DC motor (It can be replaced by a rocker potentiometer.)

Features:

  • The input voltage is DC 12V-30V.
  • Output power: 12V50W(max); 24V100W(max)
  • Equipped with IC which can check the Hall-effect current.
  • And it will stop working when the instantaneous peak current is up to 6.4A
  • Suitable for the DC motor (or DC load) within 4A; Duty Cycle adjustable: 0%-100%
  • Turn on the power.
  • Push the rocker potentiometer. (it can control the positive-stop-reverse rotation and speed of the DC brush motor.) .
  • Release the rocker potentiometer, the rocker potentiometer recovers to the stop position.

WARNING:

DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER.

  • Connect wires refer to the "wiring diagram"
  • Turn on the power.
  • Adjust the potentiometer.
  • The stop pot is located in the middle of the potentiometer. If you want to change the stop pot, adjust the compensate potentiometer. And adjusting the potentiometer, the speed and turn of DC motor change as the "wiring diagram

Package Included:

1 x PWM DC 12V 24V 30V 4A Motor Speed Controller Positive-Stop-Reverse Switch CCM4N
