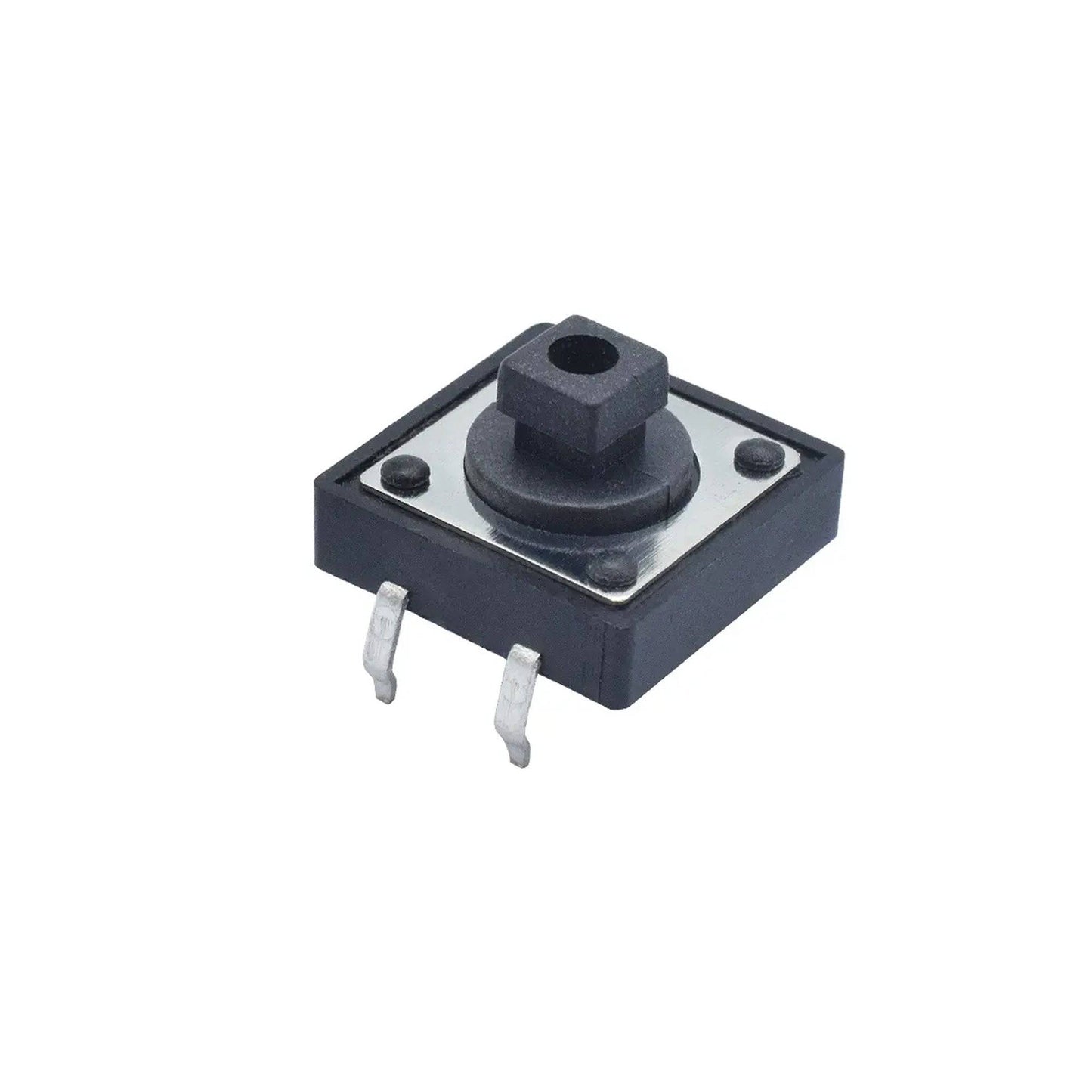

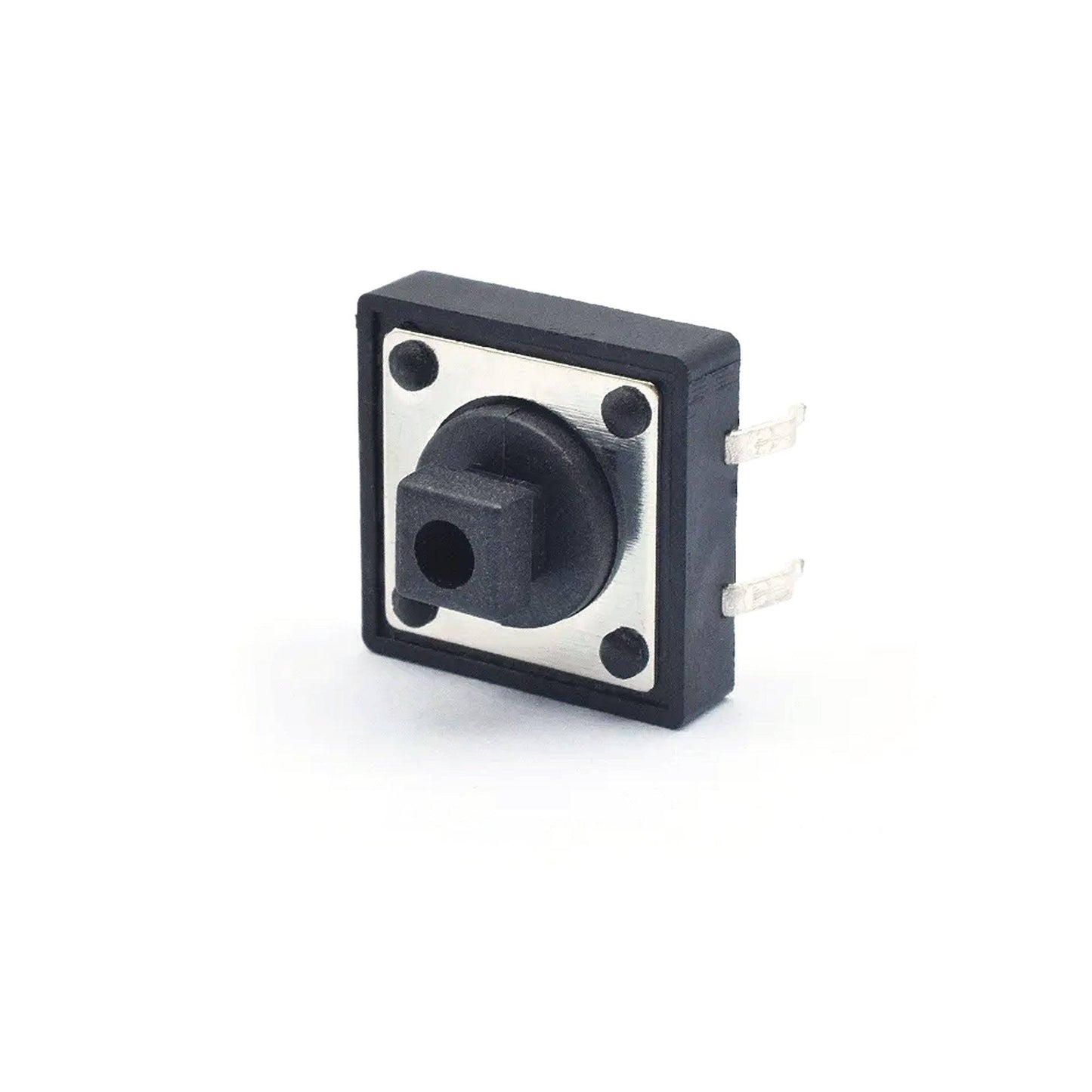

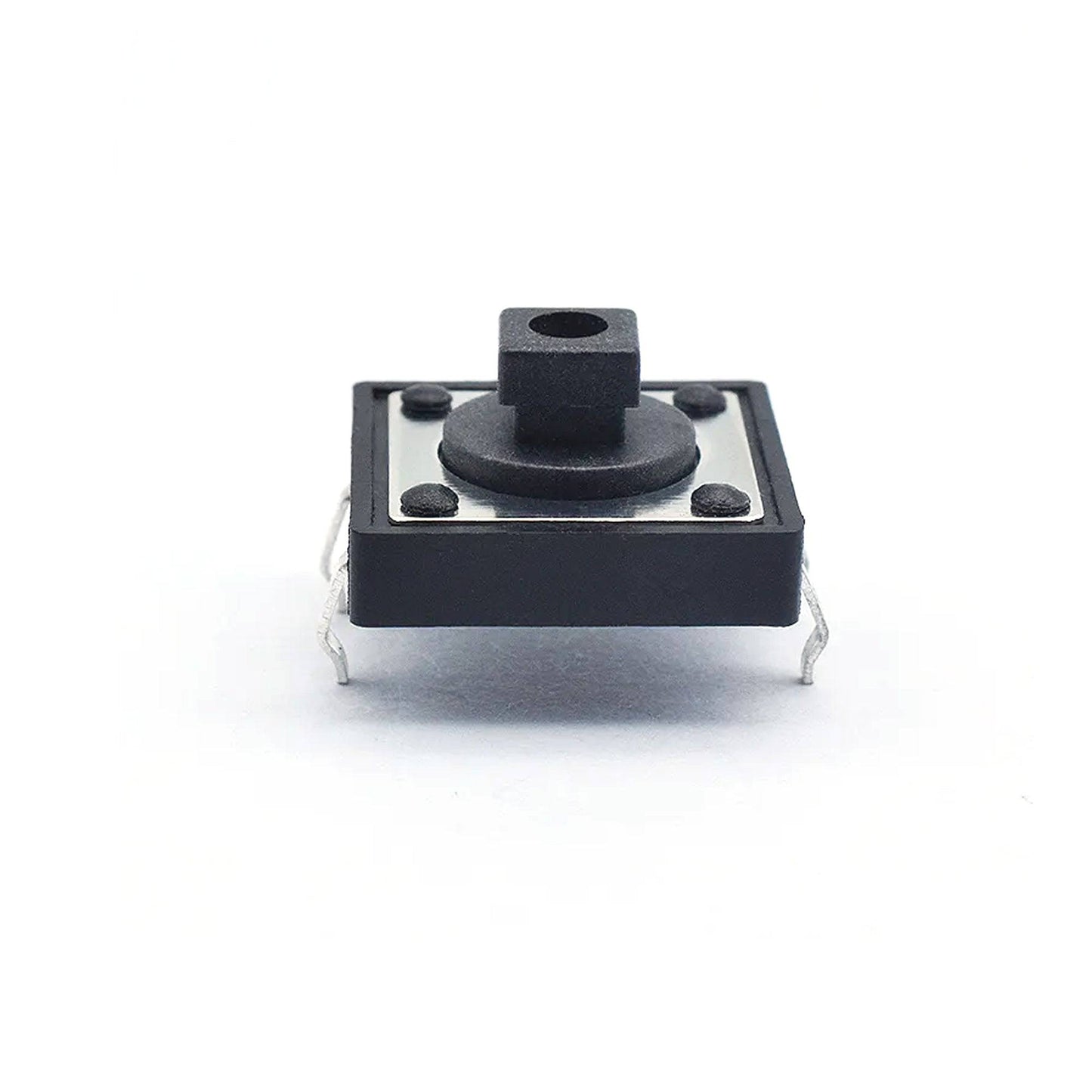

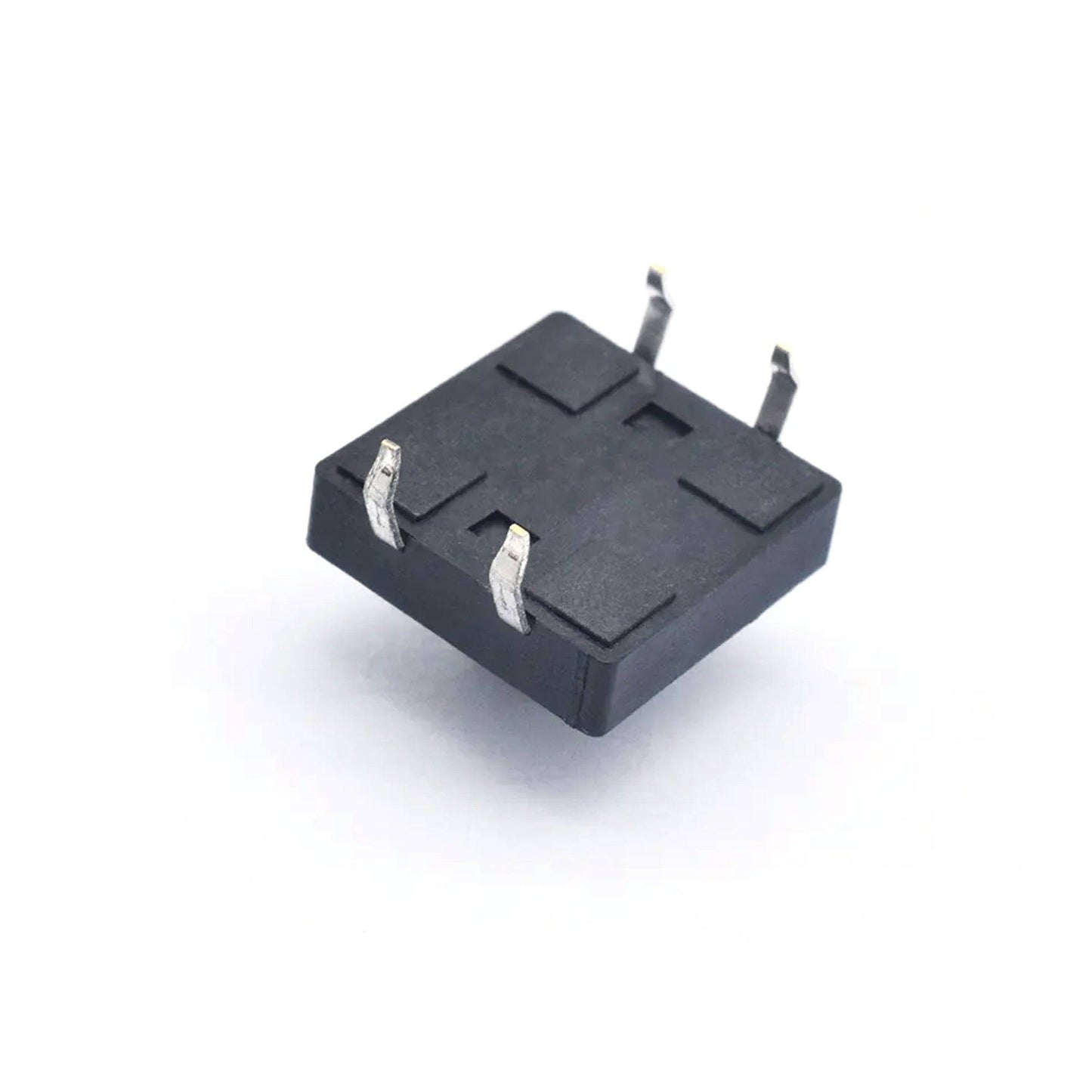

Push Button 12x12x7.3mm Tactile 4 Pin Push Button Switch - NA135

Push Button 12x12x7.3mm Tactile 4 Pin Push Button Switch - NA135

SKU:NA135

573 in stock

Regular price Rs. 5.00
Regular price Sale price Rs. 5.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

12x12x7.3mm Tactile 4 Pin Push Button Switch is fully compatible with the B3F-4055 Switch. It has 4 pins, 2 pins on each side are connected. So, pressing the switch connects all 4 pins. It has a current capacity of 100 mA. The top of the switch is such that, the cap can be easily fitted onto it. Also, the cap has a locking mechanism on top of the switch, so, it will not get removed easily.

12x12x7.3mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount them on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This Push Button also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, button testing/instrumentation, and computer/peripherals.

Specifications:

  • Operating Current: 50mA
  • On/Off Function: Push to ON
  • Switch Type: Momentary
  • Mounting Type: Through-hole
  • Contact Material: Aluminium alloy
  • Contact Resistance: 50mΩ
  • Insulation Resistance: 100MΩ
  • Operating Temperature Range: -20°C to +70°C
  • Operation Force: 2.55N
  • Operation Stroke: 1.05mm
  • Body Material: Plastic
  • Mech. & Electrical Life: 300,000 Cycles
  • Protection Grade: IP65

Features:

  • Push Button has through-hole design.
  • Shaft Shape: Square
  • High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  • The long life of 300,000 cycles was realized despite the high operating force
  • Middle stroke (1.05mm)
  • Used in the fields of electronic products, household appliances and more.
  • High-precision mechanism design offers acute operation and long service life.
  • Compact and lightweight, easy to carry and dismantle.
  • Push Button has good electrical conductivity.

Package Included:

1 x Push Button 12x12x7.3mm Tactile 4 Pin Push Button Switch
