- Made of Carbon Fiber material
- Very Strong and Light
- high strength and stiffness
- Very high Rigidity
- very low coefficient of expansion
Description :

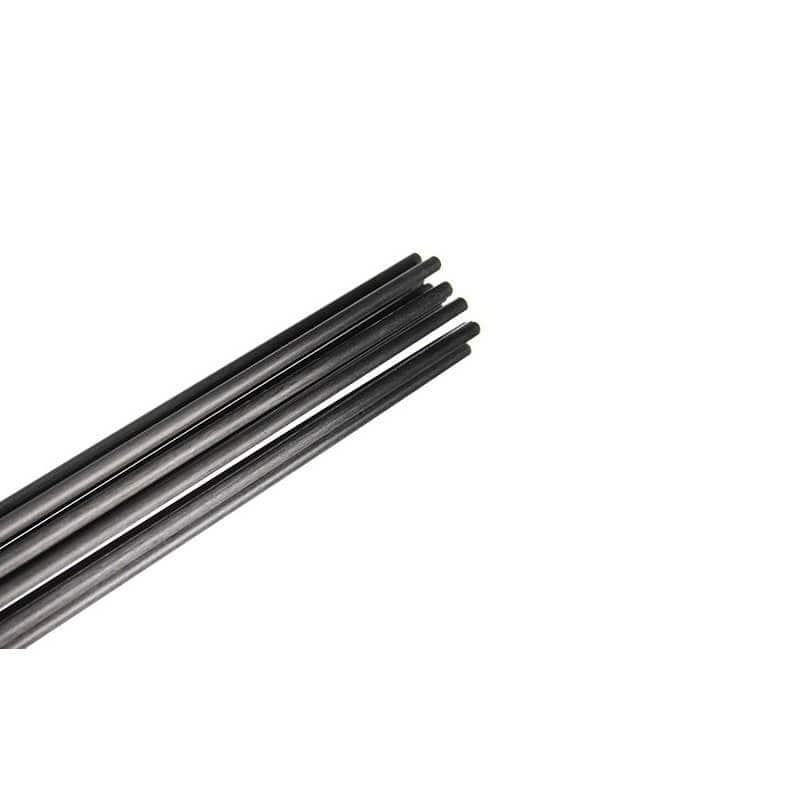

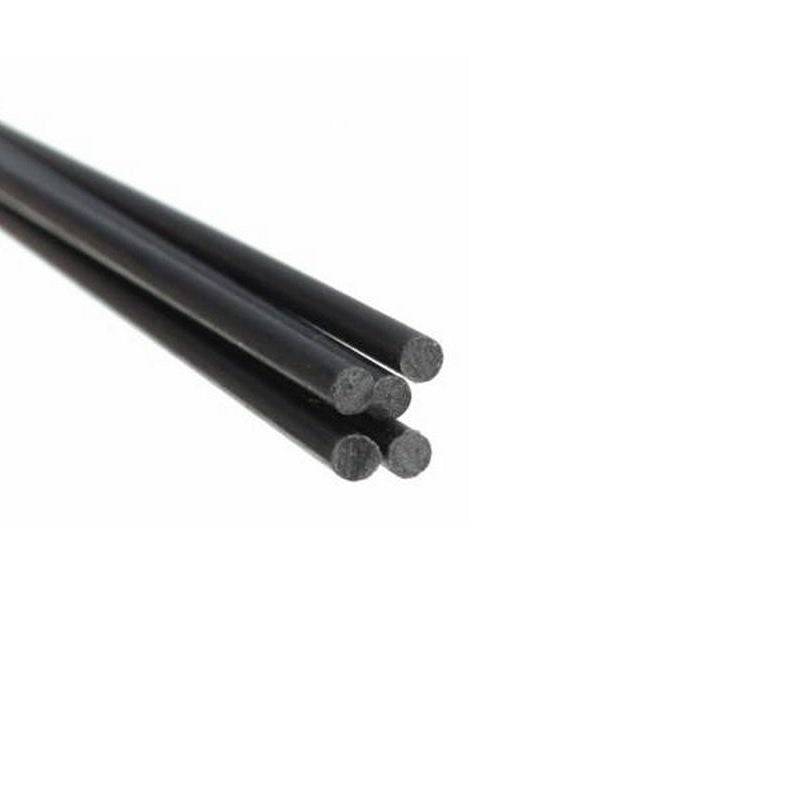

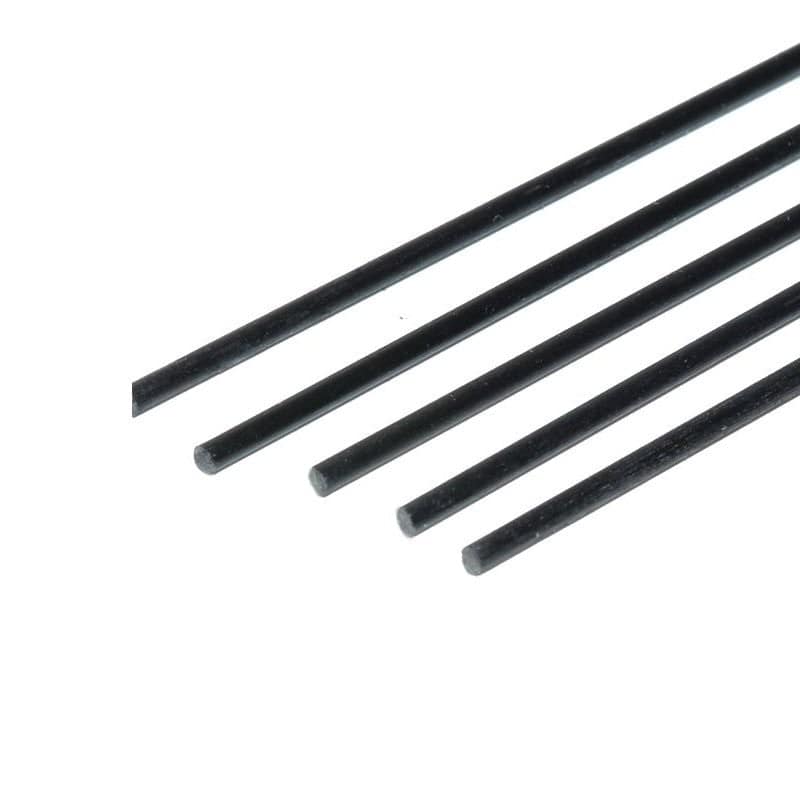

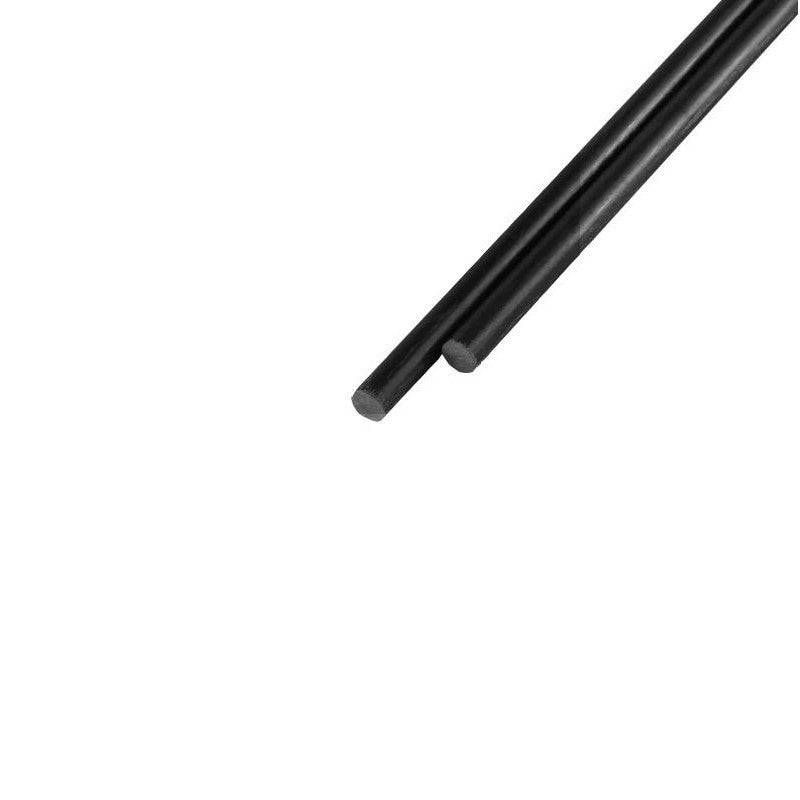

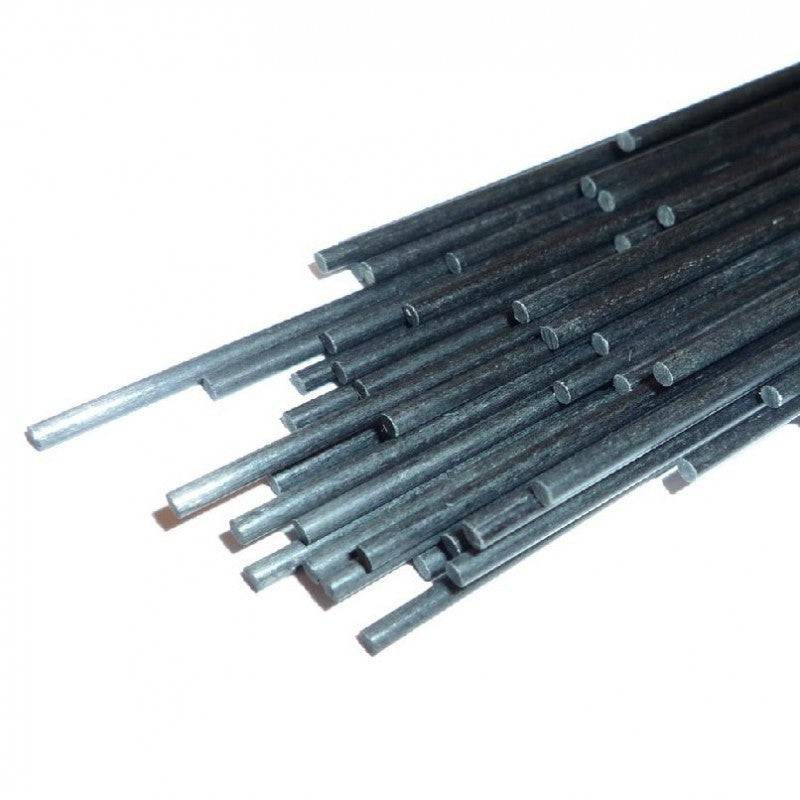

Pultruded carbon fiber rod (Solid) 4mm * 1000mm offer extremely high strength and stiffness because they contain 95% unidirectional carbon fiber running longitudinally. Carbon Fiber Solid Rods are made from continuous carbon fibres in a resin matrix of either vinyl-ester or epoxy.
Carbon fiber rod is used in a wide range of applications including aerospace and motor racing but perhaps its most common use in recreational sports equipment like kites and radio-controlled models.
Pultrusion :
Pultrusion is a method of manufacturing continuous lengths of a fibre-reinforced section by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.
Features:
- Made of Carbon Fiber material
- Very Strong and Light
- high strength and stiffness
- Very high Rigidity
- very low coefficient of expansion
Specifications :
- Fiber Volume : Approx. 65%
- Fibre density : 1.4 – 1.8 g/cm3
- Production Glass Transition Temperature : 150°C~190°C
- Thermal Expansion Coefficient : small
- Weight (gm) : 17
- Resin glass transition (Tg) : 170º C
- Youngs Modulus : 230 GPA
- Outer Diameter (OD)(mm) : 4
- Length (mm) : 1000
Package Included:
1 x Pultruded Carbon Fiber Rod (Solid) 4mm * 1000mm (Pack of 2)
