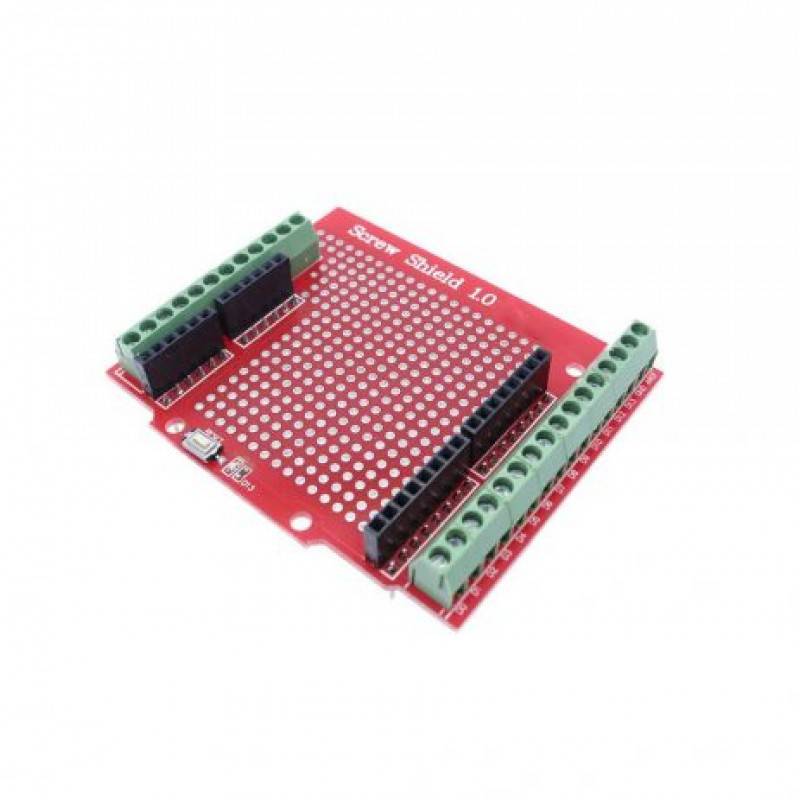

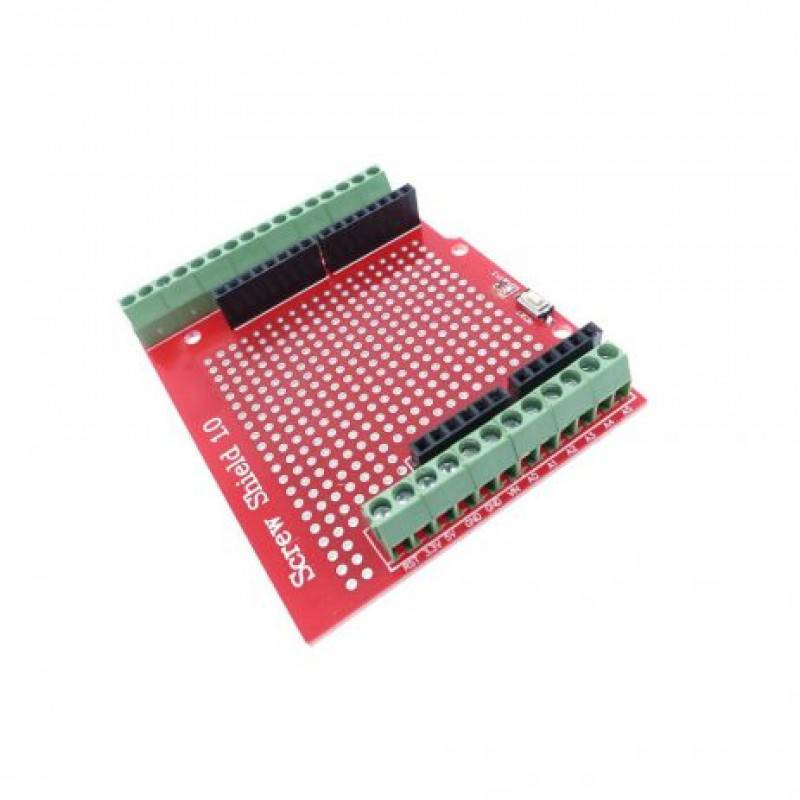

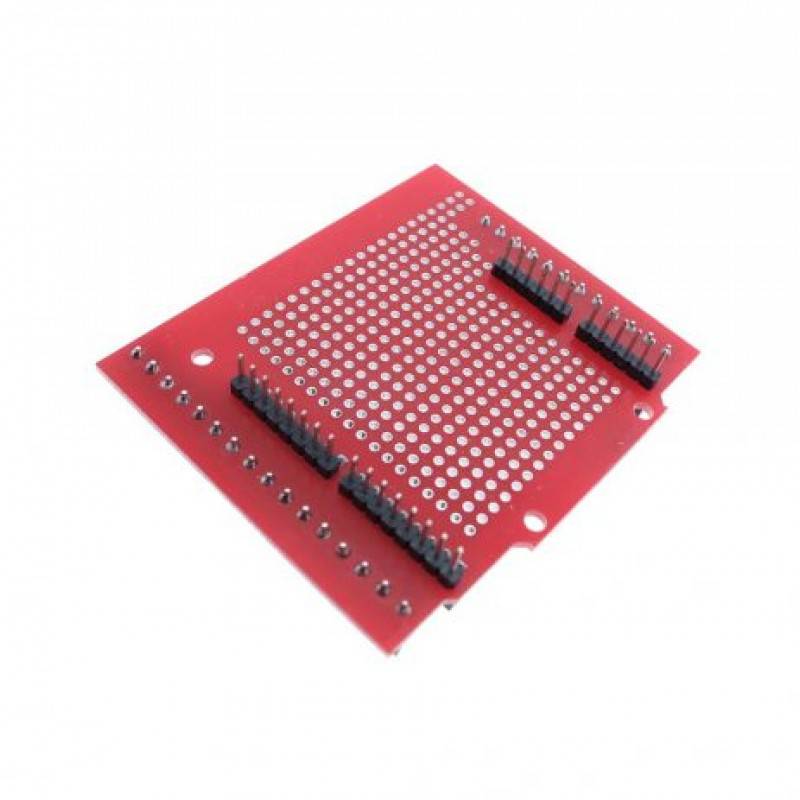

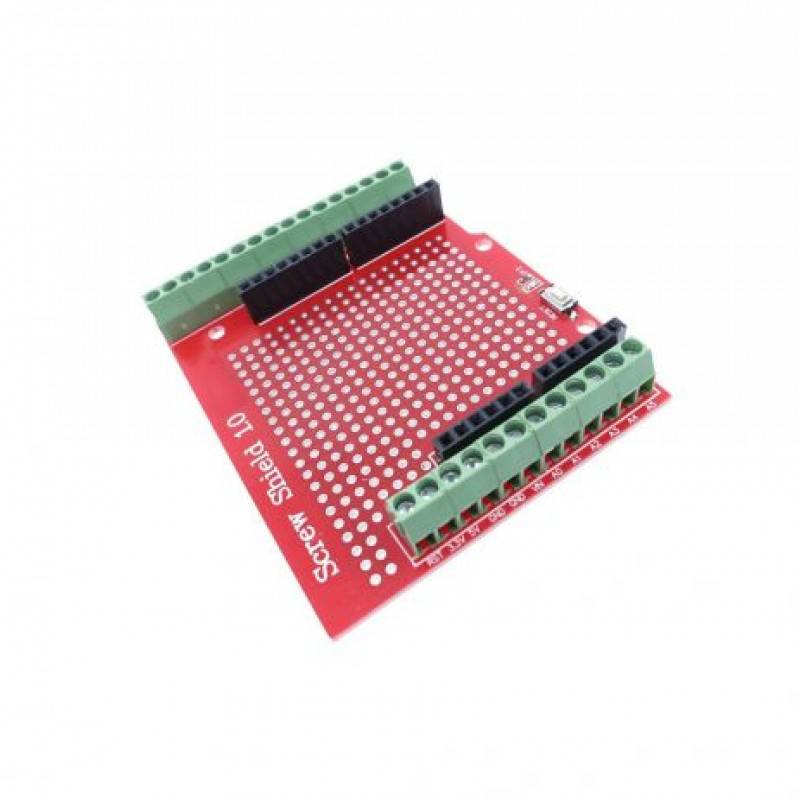

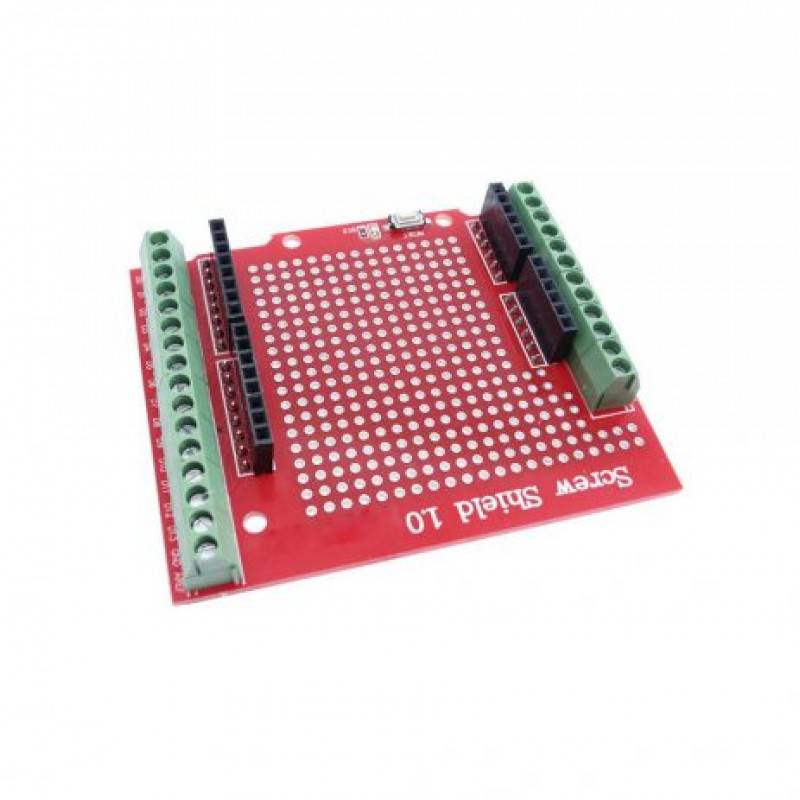

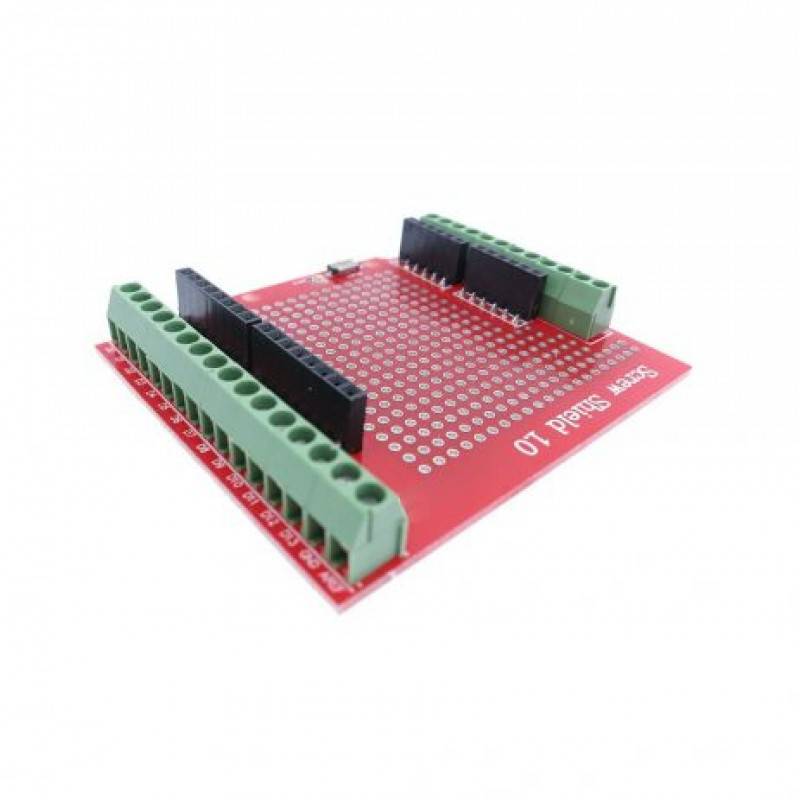

Proto Screw Shield Assembled Terminal Prototype Expansion Board for ARDUIN0 - NA223 ( RS3604 )

Proto Screw Shield Assembled Terminal Prototype Expansion Board for ARDUIN0 - NA223 ( RS3604 )

SKU:NA223 ( RS3604 )

Low stock: 5 left

Regular price Rs. 290.00
Regular price Sale price Rs. 290.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Use For : For ARDUIN0
  • Module Function : Board
  • Color: red
  • ARDUIN0 terminal to provide the IO, port connection.
  • 3.81 posts quality, reliable, convenient, durable.
  • Combined with the Proto Shield, the middle can be used as a prototype expansion board.

Description:

The Proto Screw Shield is the ultimate breakout board for an ARDUIN0 . It combines a prototyping shield with a full set of 3.5 mm screw terminal blocks. The proto shield part lets you build custom circuitry and then you can easily & securely connect wires and sensors to the terminal blocks. Great for panel mounts, buttons, sensors, enclosures etc. Proto Screw Shield is Pre-Assembled so that it can be directly screwed onto the thread posts. It is reliable and convenient. The ARDUIN0 Proto Screw Shield extends all pins of the ARDUIN0 out to 3.5mm pitch screw terminals. It also has a lot of the utility provided by ARDUIN0 Protoshield, including a large prototyping space of both connected and unconnected 0.1″ spaced through-holes, a reset button, LED for D13 pin indicating.

Specification:

  • Use For : For ARDUIN0
  • Module Function : Board
  • Color: red

Features:

  • ARDUIN0 terminal to provide the IO, port connection.
  • 3.81 posts quality, reliable, convenient, durable.
  • Combined with the Proto Shield, the middle can be used as a prototype expansion board.
  • Double-sided PCB Prototyping extended area vias connecting the front sides can be welded components.
  • The middle section can be placed small bread plate, convenient test extend
  • Prototype extending double-sided PCB via links, positive sides can be welded components
  • IO have SMT solder on the back, easy to fly line connection
  • Can be placed in the middle of the small bread plate, convenient experimental extension

Package Included:

1 x Proto Screw Shield Assembled Terminal Prototype Expansion Board for ARDUIN0
