- Input voltage: DC10-30V
- Display Accuracy: 0.1V
- Control accuracy: 0.1V
- Output Type: Direct Output;Range:12-24v all kinds of batteries
Description:

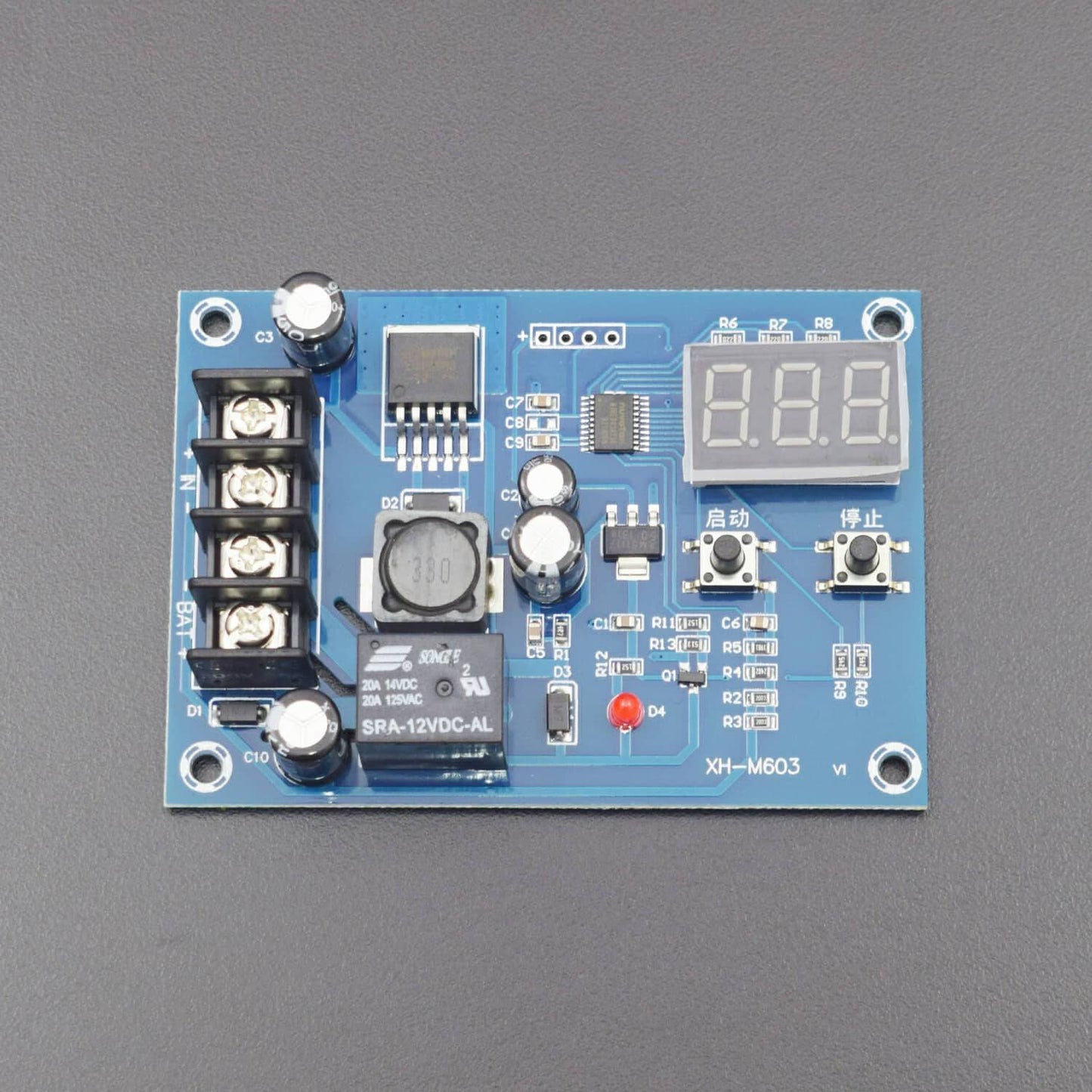

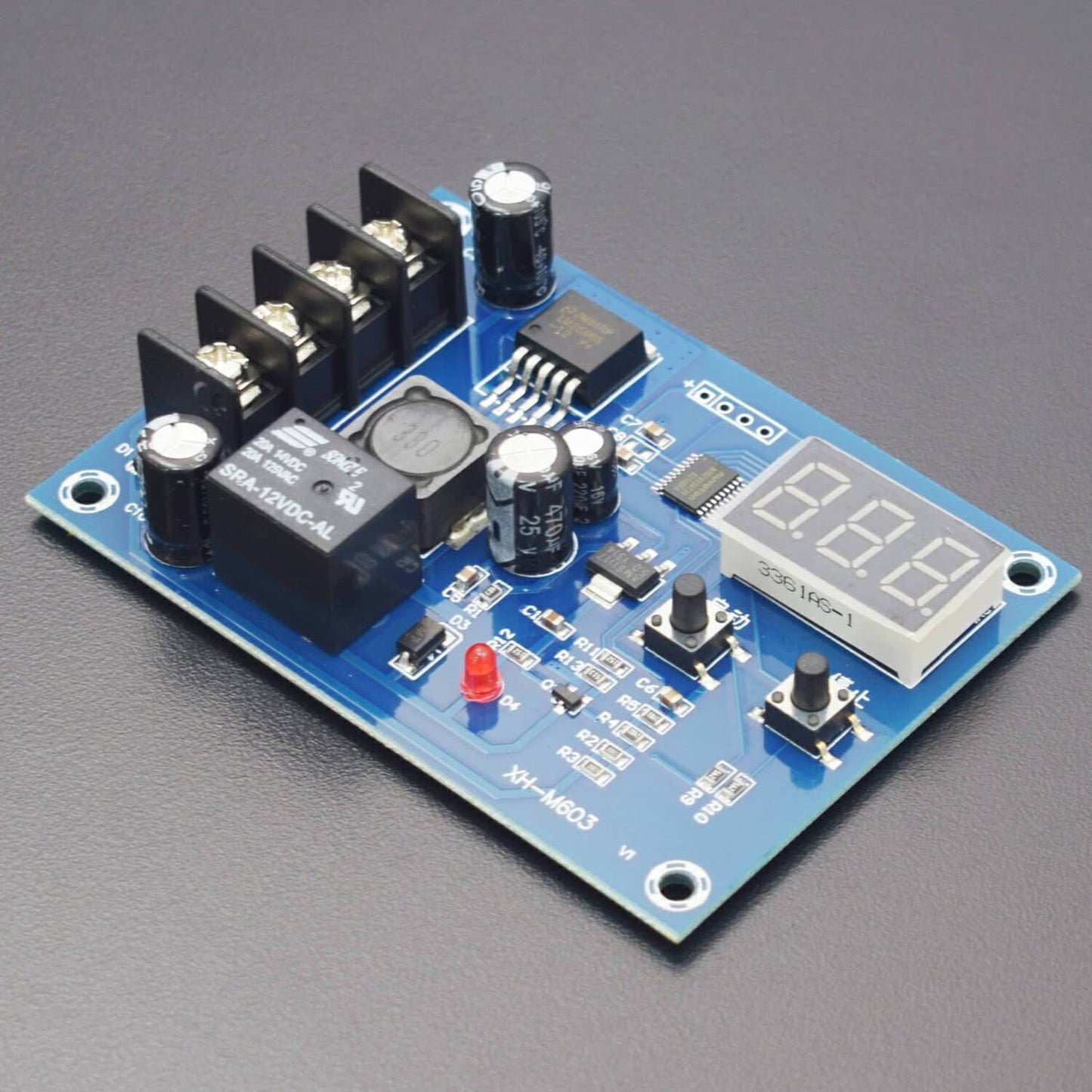

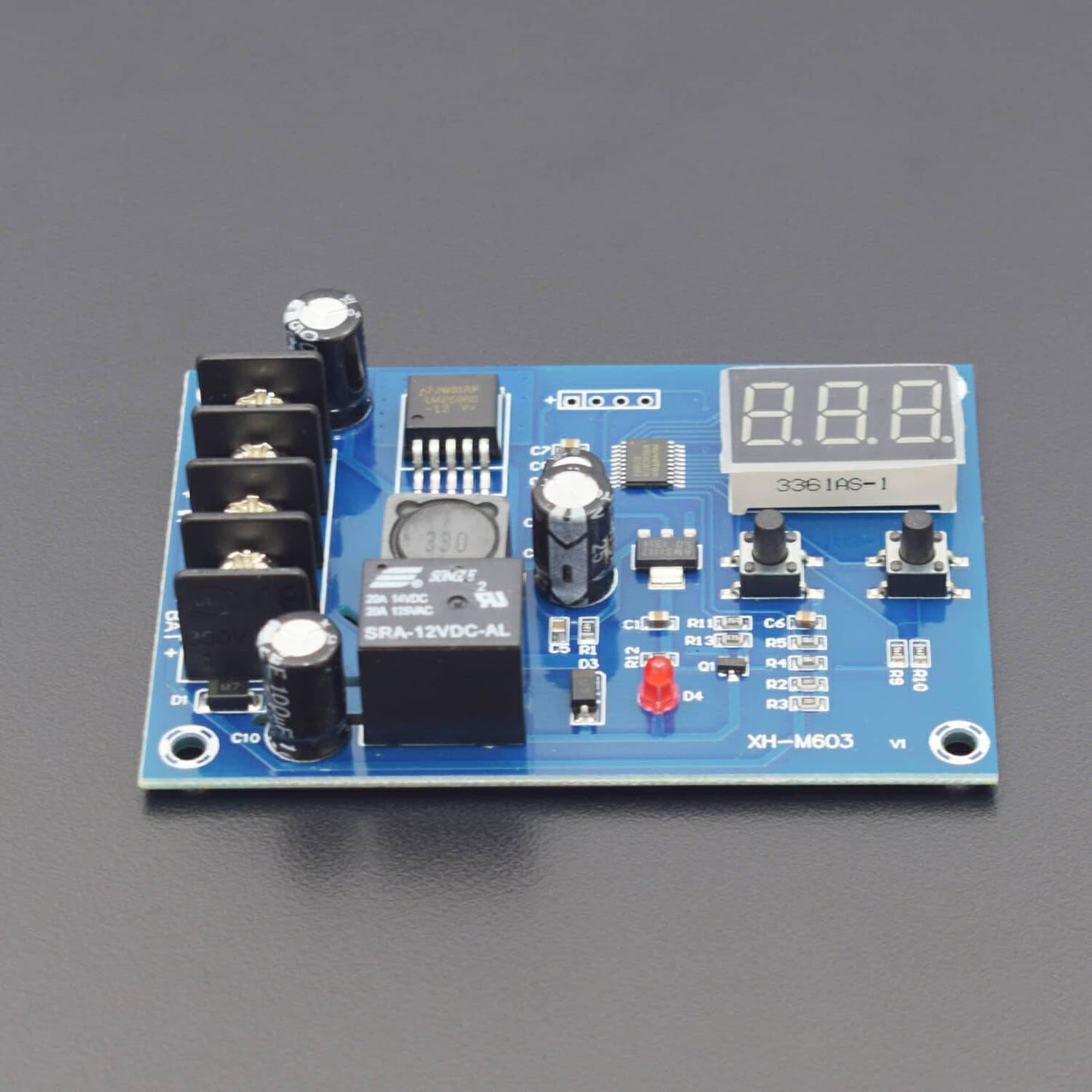

This digital battery charging protection switch is specially designed for the DC12-24V battery. On-board momentary push button to set the charging initiation voltage and charging stop voltage, when the battery voltage reach the setting values, the module will disconnect the charging circuit automatically to avoid the battery from over charging to prolong the battery lifetime.
Specifications:
- Input Voltage :DC 10-30V
- Display Precision :0.1V
- Control Precision :0.1V
- Output Type :direct output
- Voltage Tolerance :+/-0.1V
- Application Fields :12-24V storage battery
- Size : 82x58x18mm
Using Method:
- Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage, long press for 3s the digital tube will flash, you can start or stop button to set starting up charge voltage value.
- Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage, long press the button for 3s the digital tube will flash, you can start or stop button to set stopping charge voltage value.
- Factory Reset: in power on state press the start/stop button at the same time, digital tube will display 888, that represents factory reset settings
Package Included:
1 x Programmable Lead Acid Lipo Battery Charge Controller Switch DC 10V-30V
