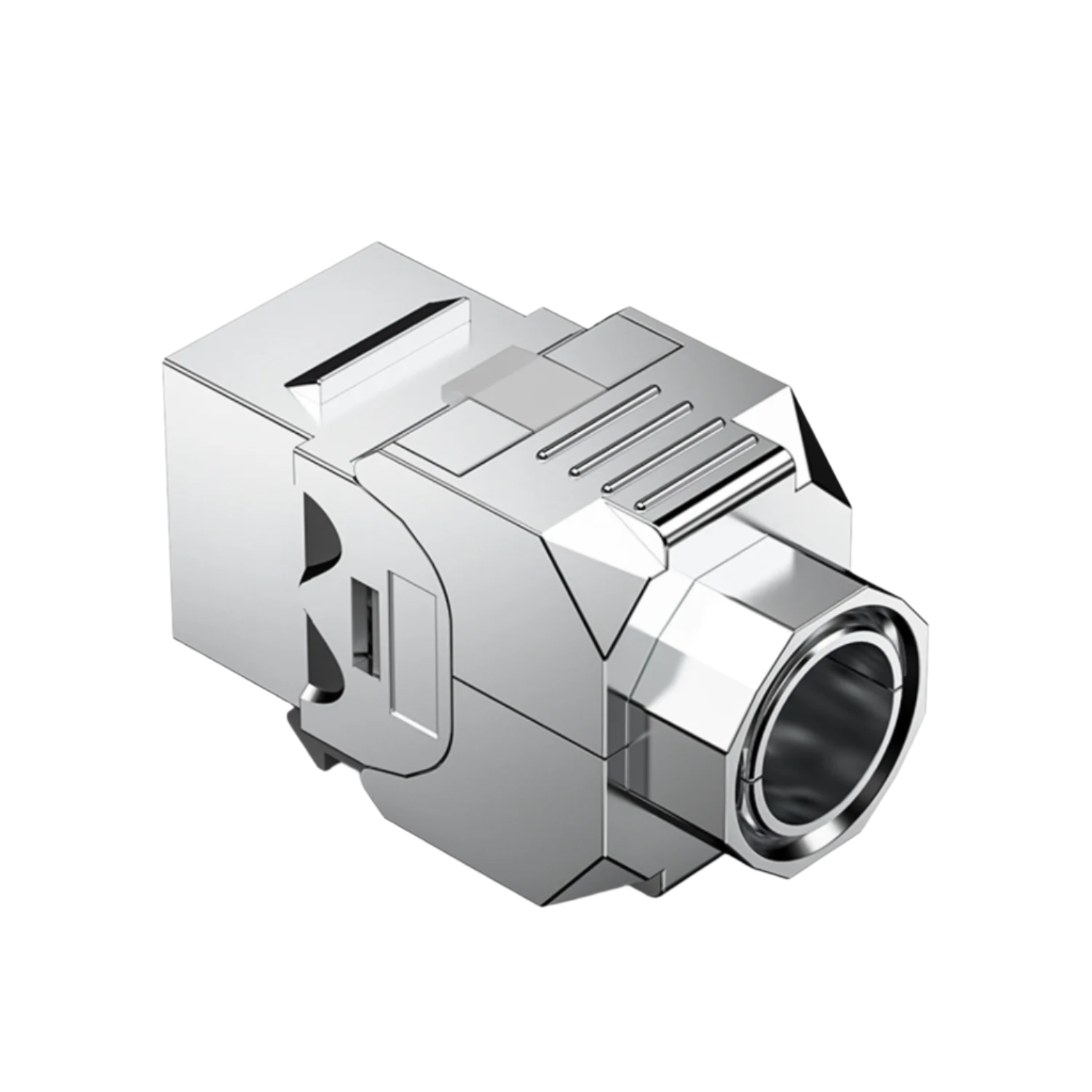

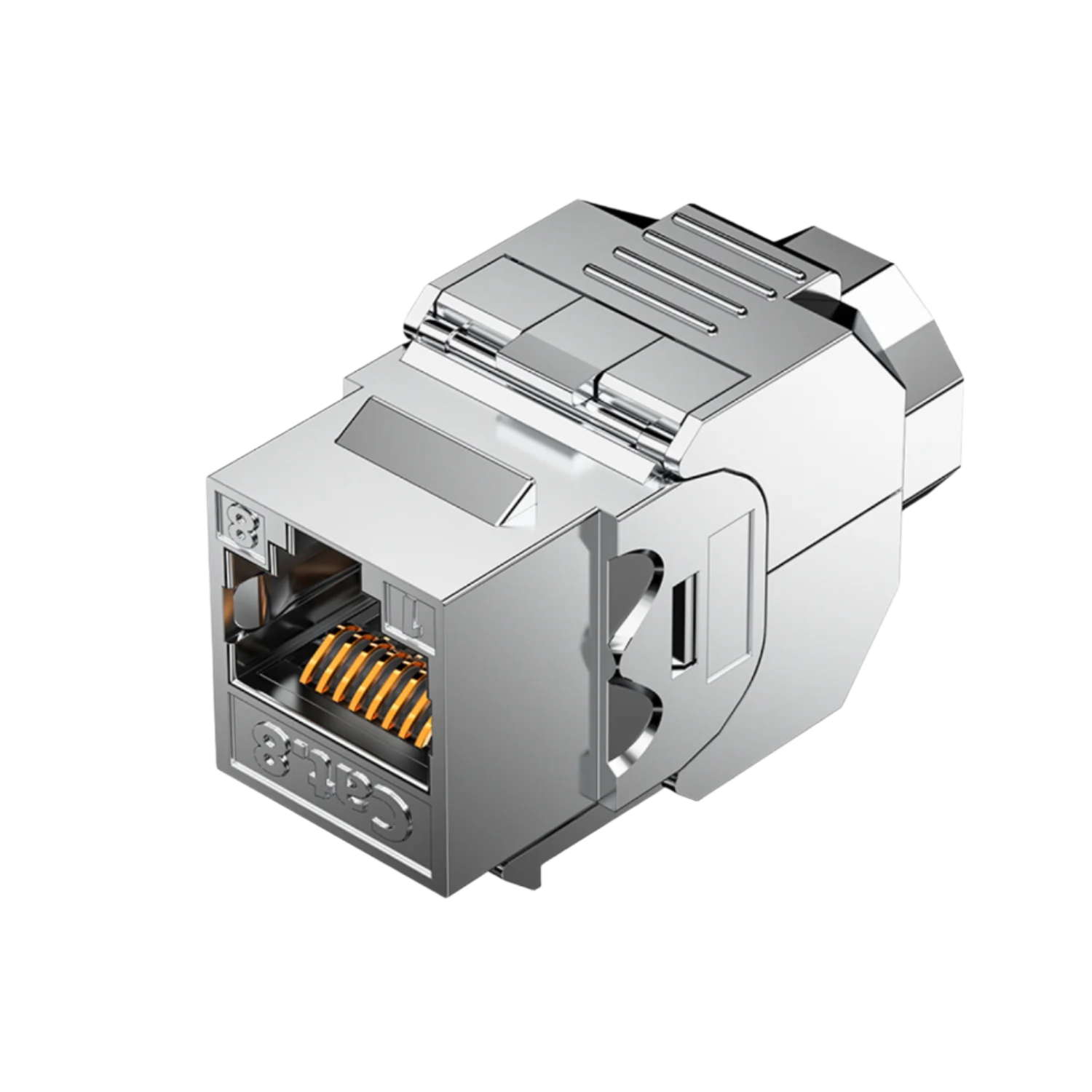

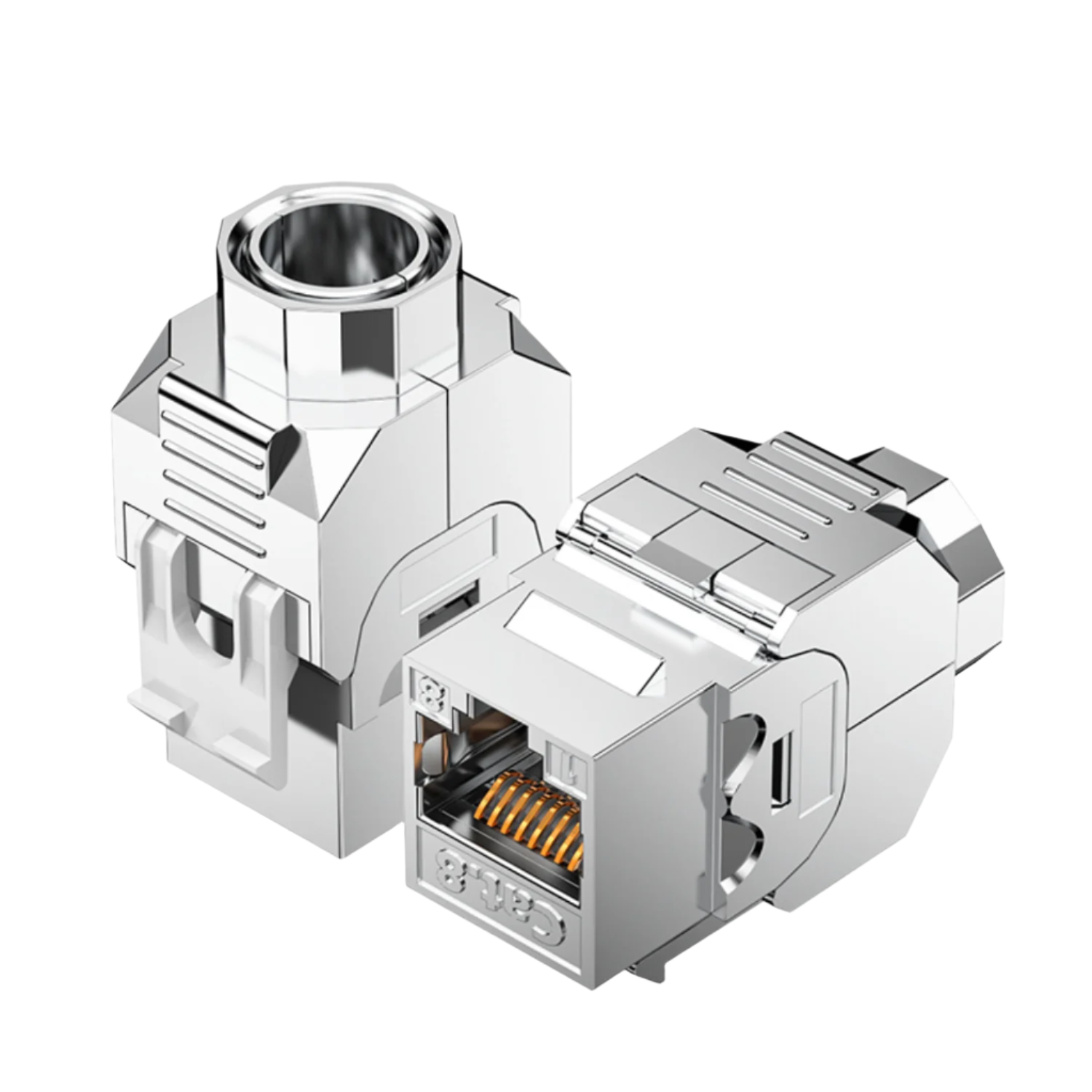

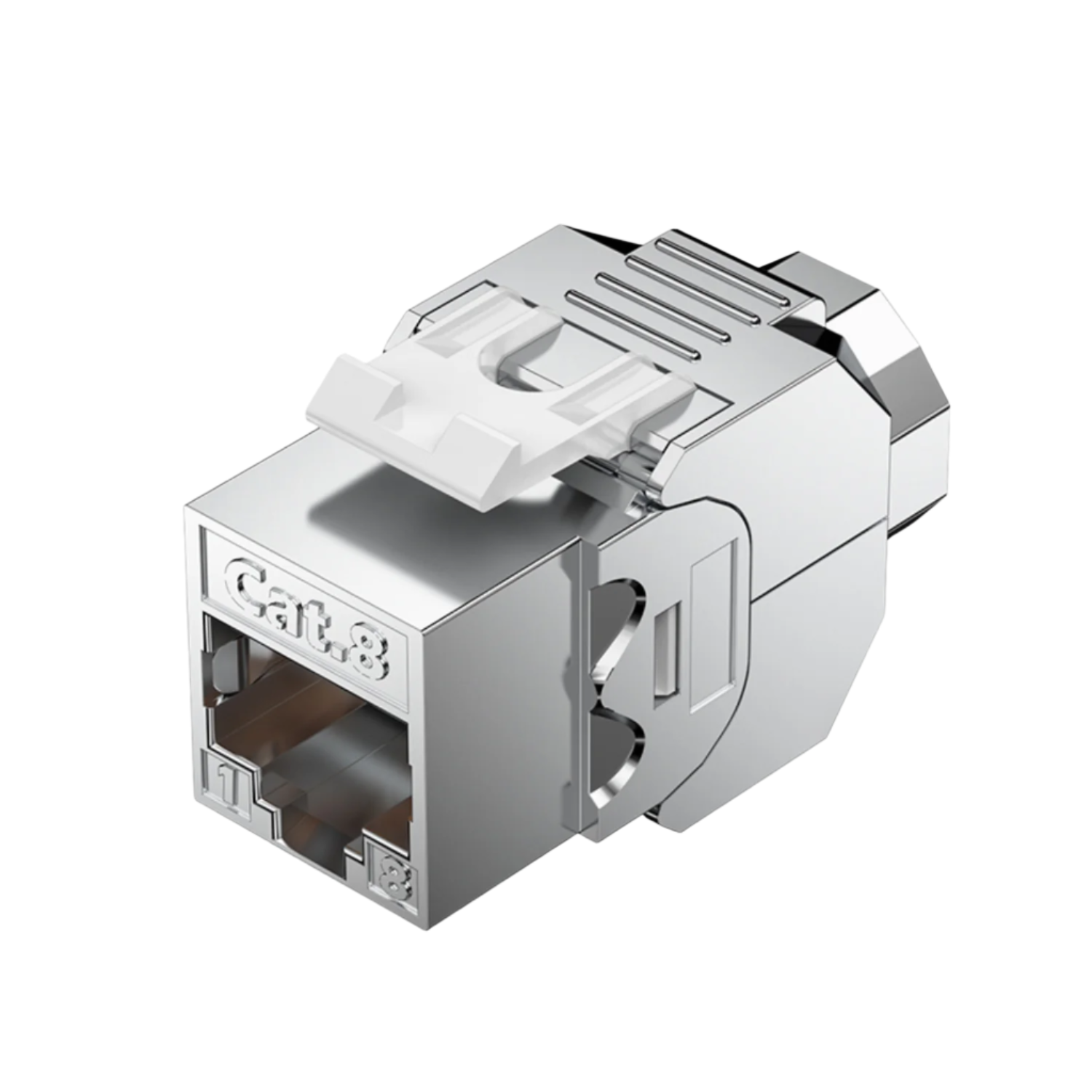

HYCONNECT Premium 180-Degree Shielded FTP Toolless RJ45 Keystone Jack With Locking Nut For Easy & Secure Network Connections

Description:

This High-performance networking component is engineered with zinc alloy plastic parts, providing a robust and durable housing. Installation is streamlined and highly efficient thanks to the inclusion of a standard 110 and LSA dual-use punching tool, facilitating versatile deployment. The innovative 180-degree angled IDC (Insulation Displacement Connector) clips are designed to establish a consistently reliable and secure termination for network cables, minimizing potential connection failures. Conforming strictly to ISO/IEC 11801 and TIA/EIA 568-B.2 Cat.6 industry standards, this component ensures optimal compliance and high-speed data transfer capabilities. Internally, the synergy of gold-plated pins, gold-plated IDC clips, and a meticulously designed internal PCB board optimizes electrical conductivity and signal integrity, contributing to superior network performance.

To combat oxidation and extend the product's operational lifespan, the entire pin is nickel-plated, with the critical contact pins featuring a 6μ gold plating. The IDC clips themselves are constructed from tinned phosphor bronze with a nickel plating, offering exceptional mechanical and electrical dependability, rated for 250 reliable connections.

Specifications:

• Model Number: HKJ-803FM-LM

• Material: zinc alloy

• gold plated: 3u"-50u"

Electrical Characteristics

• DC Resistance: ≤300mΩ

• Contact Resistance: ≤20mΩ

• Dielectric strength: 1000V(AC750V)1min

• Insulation Resistance: ≥1000MΩ

Physical Characteristics

• Phosphor bronze with nickel-plated, connector pins with golden plated 6μ

• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26 AWG cables

• Inserting Duration: ≥750 times

• Punching Duration: ≥250 times

• Jack housing plastic part: UL 94V-0, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available

• Termination caps material UL94V-0

• Working temperature: -25ºC~60ºC

Features:

• Plastic parts are made from robust zinc alloy for enhanced longevity.
• Features a standard 110 and LSA dual-use punching tool for easier operation.
• IDC clips with a 180-degree angled design ensure reliable cable connections.
• Meets ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6 standards.
• Gold-plated pins, IDC clips, and internal PCB board work together for superior performance.
• Nickel-plated pins with 6μ gold-plated contact points prevent oxidation, extending service life.
• Tinned phosphor bronze, nickel-plated IDC clips offer 250 reliable connections.

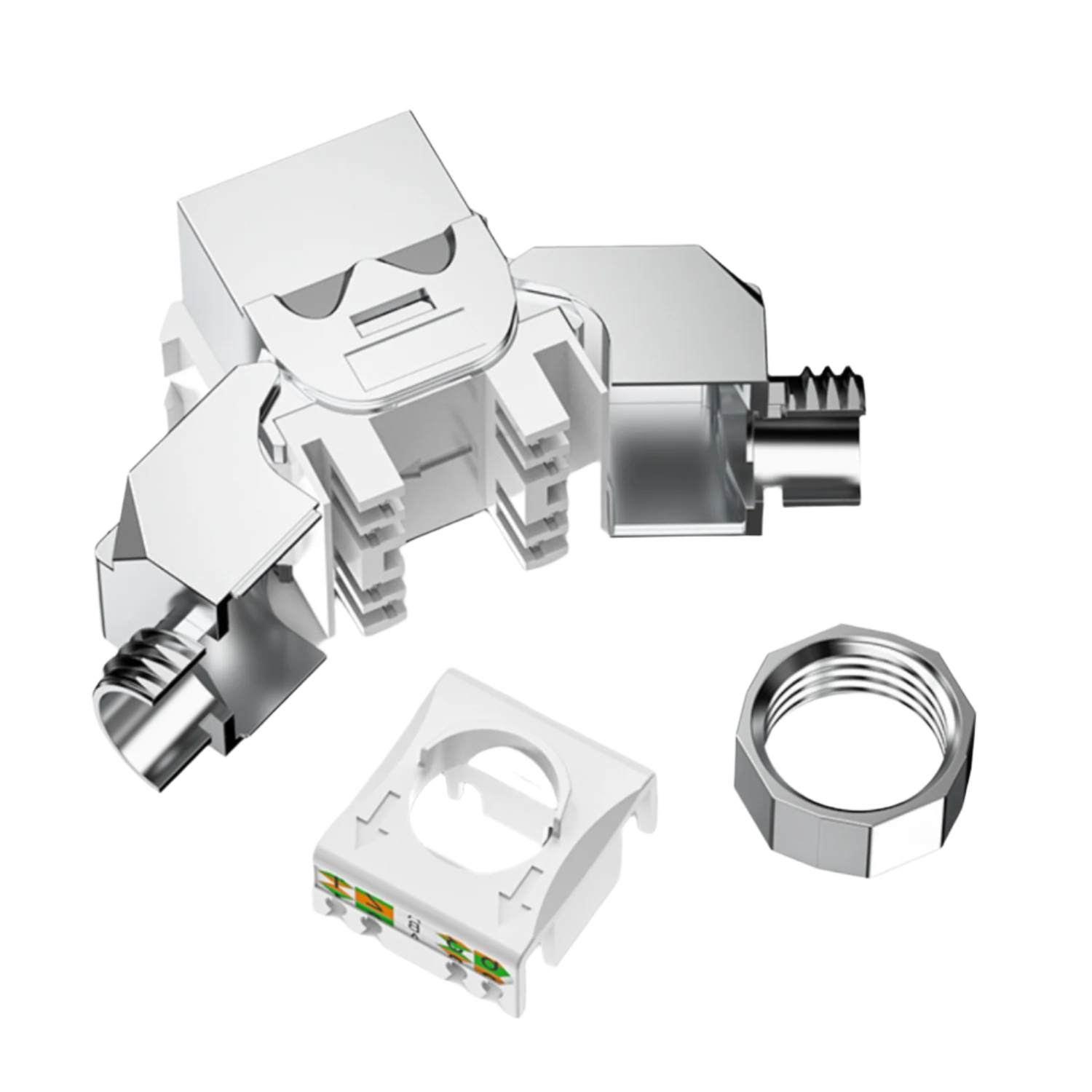

Schematic:

Applications:

• Network
• Structured cabling transmits data, voice, and video
• Applied for Cat.6 and E Classes
• Suitable for working area, central room, managing room, equipment room, and subsystem applications.

Standards:

• ISO/IEC11801
• TIA/EIA-568B.2-1
• EN50173
• UL 94V-0

Package Included:

1 x Premium 180-Degree Shielded FTP Toolless RJ45 Keystone Jack With Locking Nut
