Description:

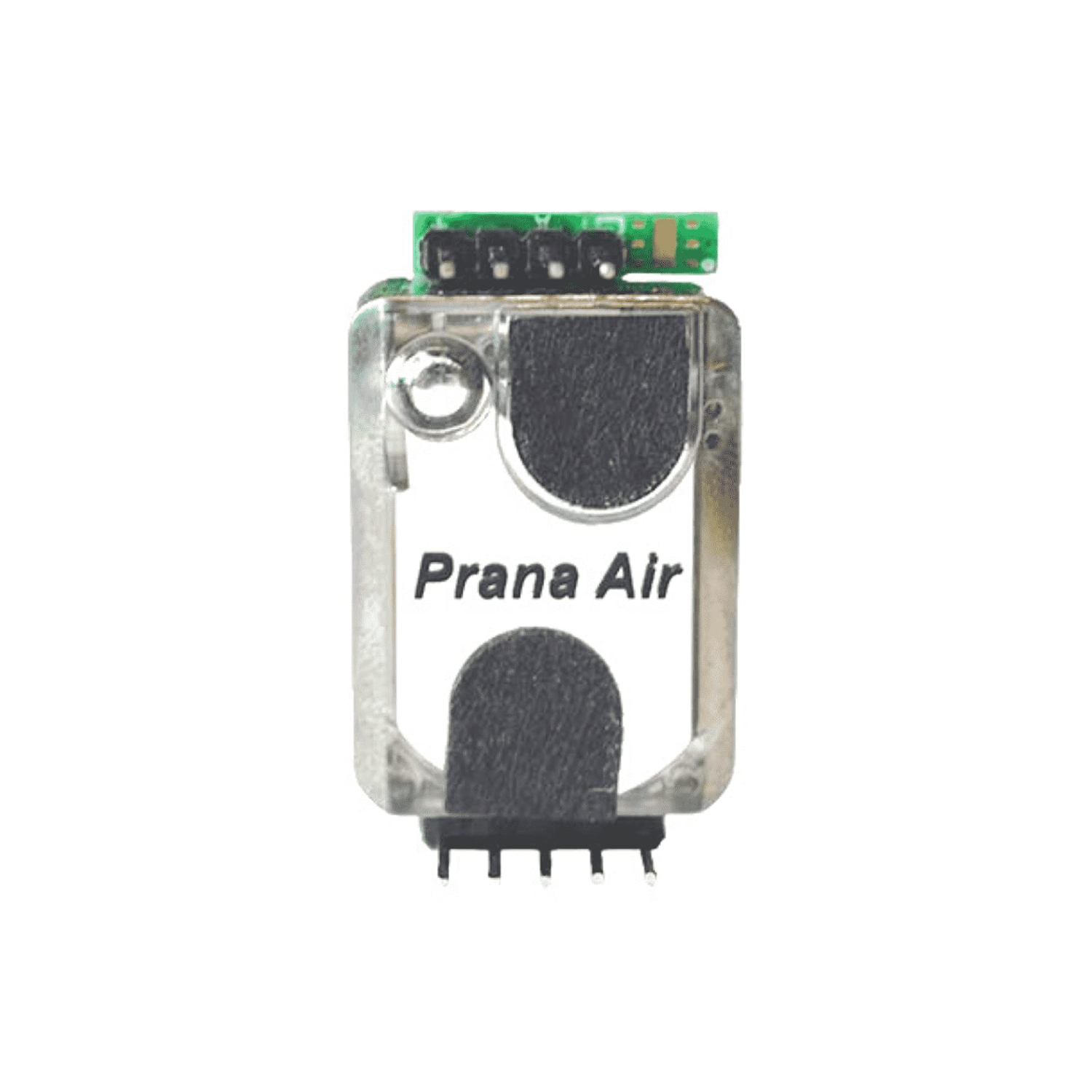

Prana Air CO2 sensor is a non-dispersive infrared NDIR sensor with 1 PPM resolution and a 10,000 PPM range. It is very accurate and responsive. These sensors are the most sought-after sensors for monitoring carbon-based gases in the world. Our sensor provides accurate and reliable observations that can be used not only at the consumer level but also for experimental and research purposes. The sensor consists of an infrared source, an optical filter, and a detector.
Carbon dioxide is the gas that most of us already know. We have heard the ill effects of CO2 on global warming, pollution, and damage to our health. It is both important and dangerous for our environment. Carbon dioxide monitoring is the primary step to knowing its effects on our surroundings and health.
Specifications:
- Measurement Range : 0 to 10,000 ppm
- Type of Sensor: NDIR
- Resolution: 1 ppm (instrumentation dependent)
- Accuracy : ± 50 ppm ± 5% of reading
- Response time: 15s (90%)
- Working temperature: 0℃~50℃
- Working humidity : 0~95%RH（non-condensing)
- Storage temperature: -40℃~70℃
- Storage humidity : 0~95%RH（non-condensing)
- Power supply DC : 5.0V+5%; ripple wave＜50mV
- Working current Average: ≤20mA@1s
- Signal output: UART_TTL, PWM
Package Included:
1 X NDIR CO2 Gas sensor
