Particulate matter is a mixture of dust, dirt, and soot with liquid droplets. These particles cannot be seen with naked eyes. The size of PM is as small as the tip of your hair. These dust particles are very small in size and can enter into lungs and bloodstream leading to health discomforts.
Description :

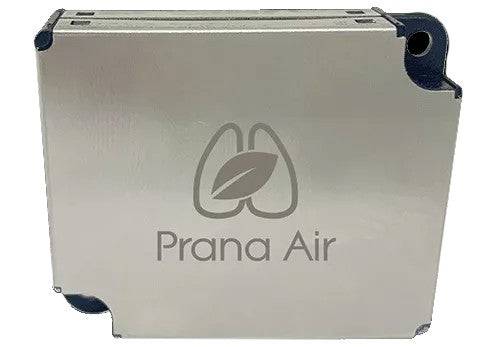

Particulate matter is a mixture of dust, dirt, and soot with liquid droplets. These particles cannot be seen with naked eyes. The size of PM is as small as the tip of your hair. These dust particles are very small in size and can enter into lungs and bloodstream leading to health discomforts. Prana Air Particulate Matter sensor (PAS-IN-01) is created with high precision and accuracy. The sensor is capable to give real-time data for both PM2.5 and PM10. The sensor is applicable to commercial/industrial and consumer-grade. The sensor comes with a built-in laser and photoelectric receiving module. The sensor is based on 90o light scattering technique. The packaging is ultra-thin, compact, and cost-effective allowing easy inclusion in all kinds of monitoring and regulating solutions for particulate. Effective concentration of PM 2.5 and PM10 is 0-1500 ug/m3 and 0-2000 ug/m3 respectively.
Specification :
| Dimension | 4.5 x 4.5 x 2 cm |
| Rated voltage | 5V |
| Rated current | 70mA |
| Communication Port Level | 3.3 V |
| Working Temperature | -20~70 C° |
| Storage Temperature | -20~85 C° |
| Working Humidity | 0~99C%RH (No condensation) |
| Particle Size Resolution | 0.3 um |
| Effective range of PM2.5 mass concentration | 0-1500 ug/m3 |
| Effective range of PM10 mass concentration | 0-2000 ug/m3 |
| Mass concentration data resolution | 1 ug/m3 |
| Consistency of PM2.5 mass concentration | +10% or +10 ug, whichever is greater |
| Consistency of PM10 mass concentration | +15% or +15 ug, whichever is greater |
| Mean time between failures | >30,000 hours |
Package Included :
1 x PM2.5 Dust Sensor
