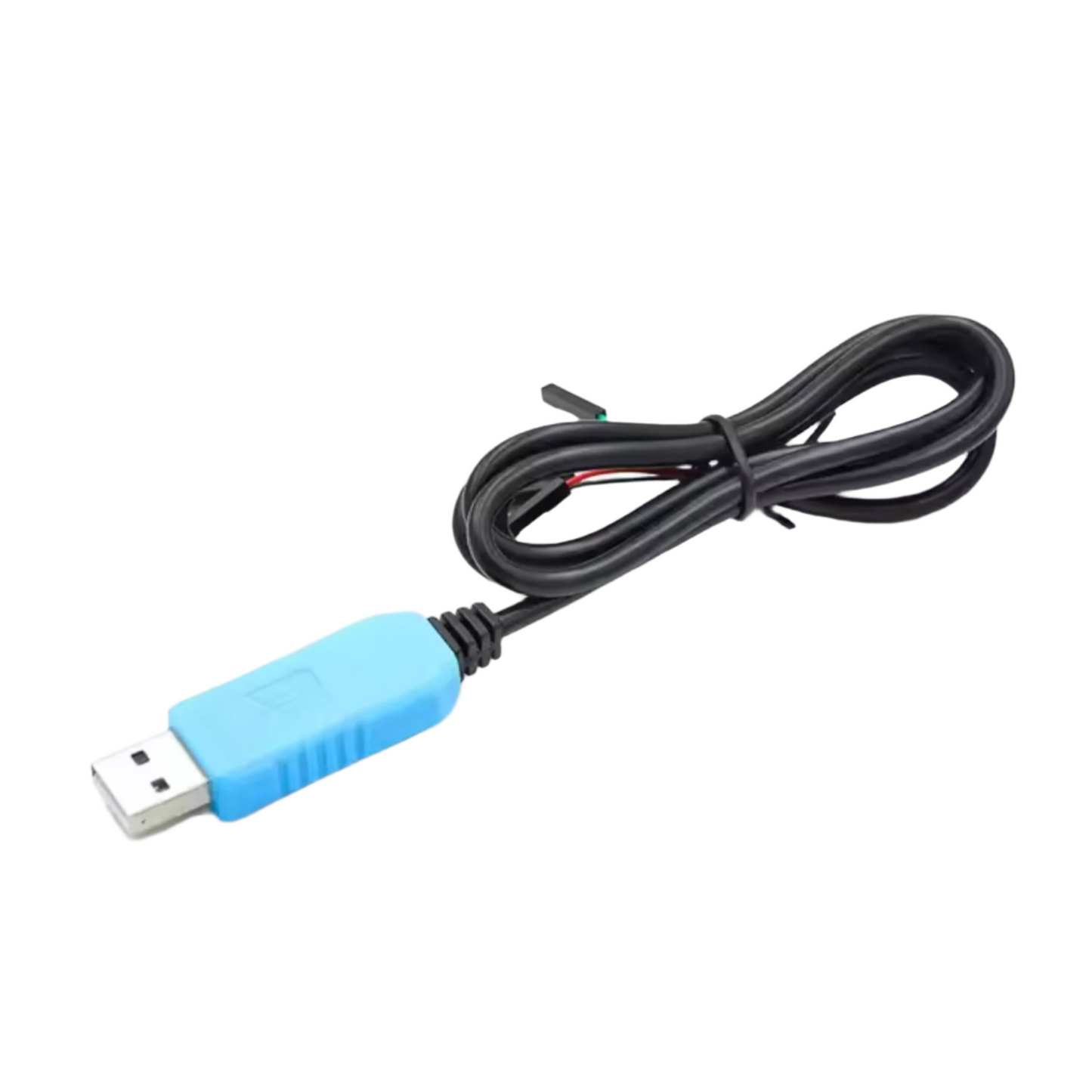

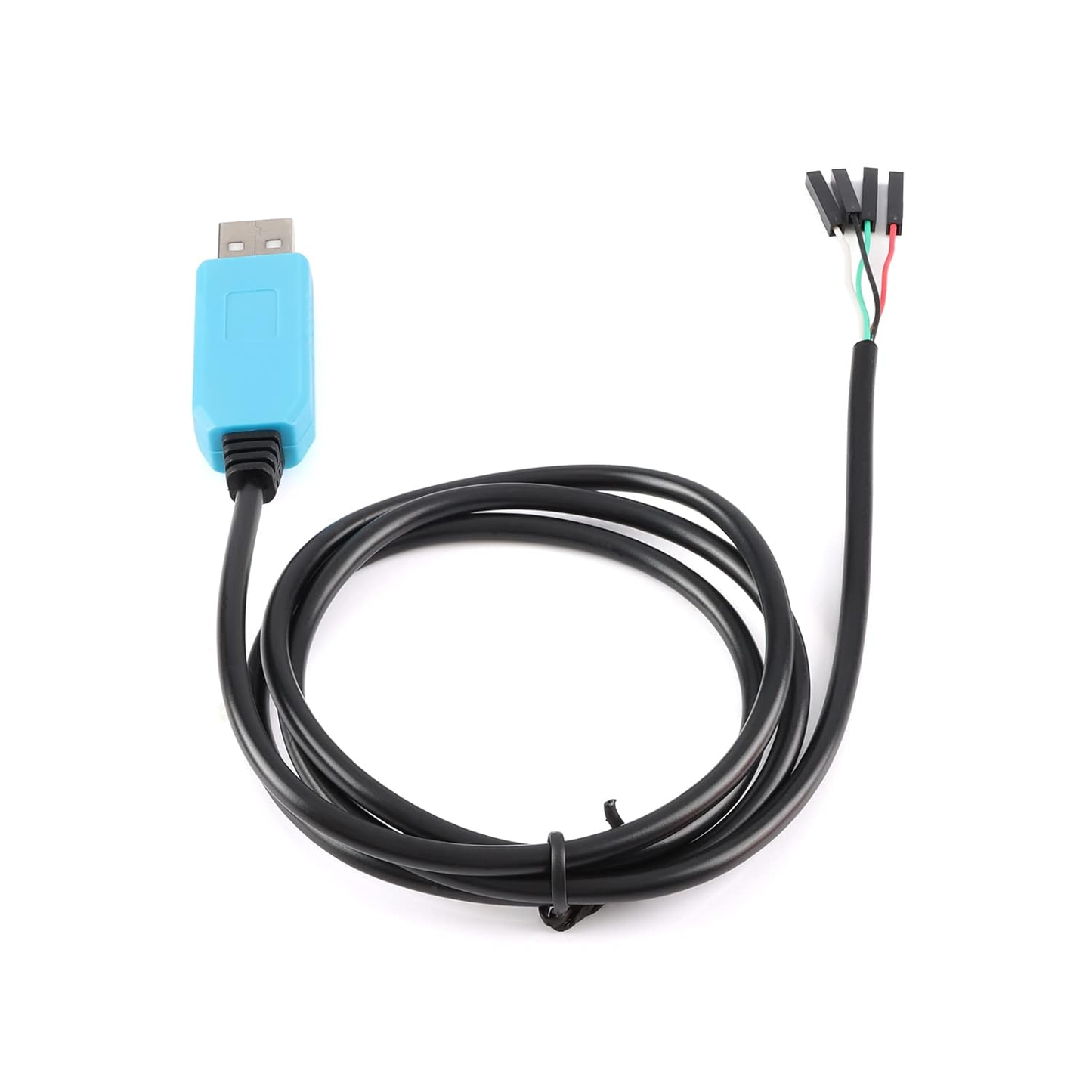

PL2303 TA Download Cable USB to TTL RS232 Module Upgrade USB to Serial Port Download Cable - AA186

PL2303 TA Download Cable USB to TTL RS232 Module Upgrade USB to Serial Port Download Cable - AA186

SKU:AA186

In stock

Regular price Rs. 115.00
Regular price Sale price Rs. 115.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Built-in TTL COM PC-PL2303HX Chip.
  • Standard USB type and TTL 4 pin connector
  • Length: Approx 1M
  • Simple and Easy way to give USB support to your designs
  • Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8

Description:

PL2303 TA Download Cable provides a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL2303TA highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready without having to rewrite the COM port software application. By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL2303TA is capable of achieving higher throughput compared to traditional UART (Universal Asynchronous Receiver Transmitter) ports. When real RS232 signaling is not required, a baud rate higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of PL2303TA could be programmed to generate any rate between 75 bps and 6M bps. PL2303TA is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit into any connectors and handheld devices. With very small power consumption in either operating or suspend mode, PL2303TA is perfect for bus-powered operation with plenty of power left for the attached devices. The flexible signal level requirement on the RS232-like serial port side also allows PL2303TA to connect directly to any 3.3V~1.8V range devices.

Features:

  • Built-in TTL COM PC-PL2303HX Chip.
  • Standard USB type and TTL 4 pin connector
  • Length: Approx 1M
  • Simple and Easy way to give USB support to your designs
  • Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8

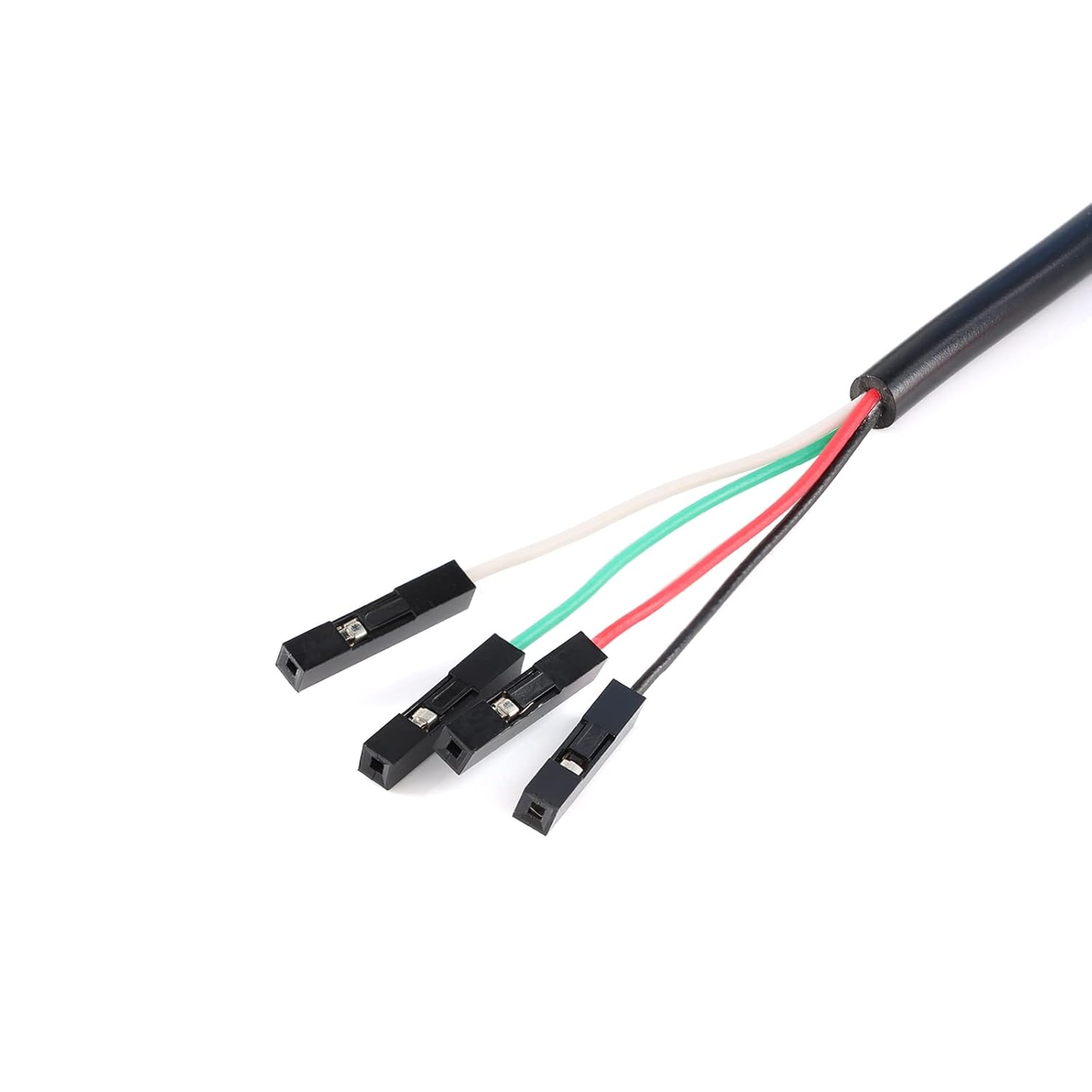

Pin Description:

PL2303 TA Download Cable is designed for laboratory, product testing, low-cost MCU communications, and other applications, there is four lead.

  • Red +5 V
  • Black GND
  • White RDX
  • Green TXD

Applications:

  • Single-chip upgrade solution for Legacy RS232 devices to USB interface
  • USB to RS232 converters/cables/dongles
  • Healthcare/Medical USB Interface Data Transfer Cable
  • Personal Infotainment/Media Player Docking USB Interface
  • Cellular/PDA USB Interface Data Transfer Cable
  • Serial-over-IP Wireless Solution
  • USB Barcode/Smart Card Readers
  • GPS/Navigation USB Interface
  • Point-of-Sale (POS) Terminals/Printers
  • PC Docking Station/Port Replicators
  • Industrial/Instrumentation/Automation Control USB Interface

Package Included:

1 x PL2303 TA Download Cable USB to TTL RS232 Module Upgrade USB to Serial Port Download Cable
