PL2303 - PL2303HX USB to TTL Serial UART Converter Module - RK025

PL2303 - PL2303HX USB to TTL Serial UART Converter Module - RK025

SKU:RK025

602 in stock

Regular price Rs. 55.00
Regular price Sale price Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Input Supply Voltage: 3.3 ~ 5V
  • Model: PL2303
  • Support: Windows 98 to Windows 7 (32 bit and 64 bit), Mac OS 8 to OS X (32 bit and 64 bit), Linux

Description:

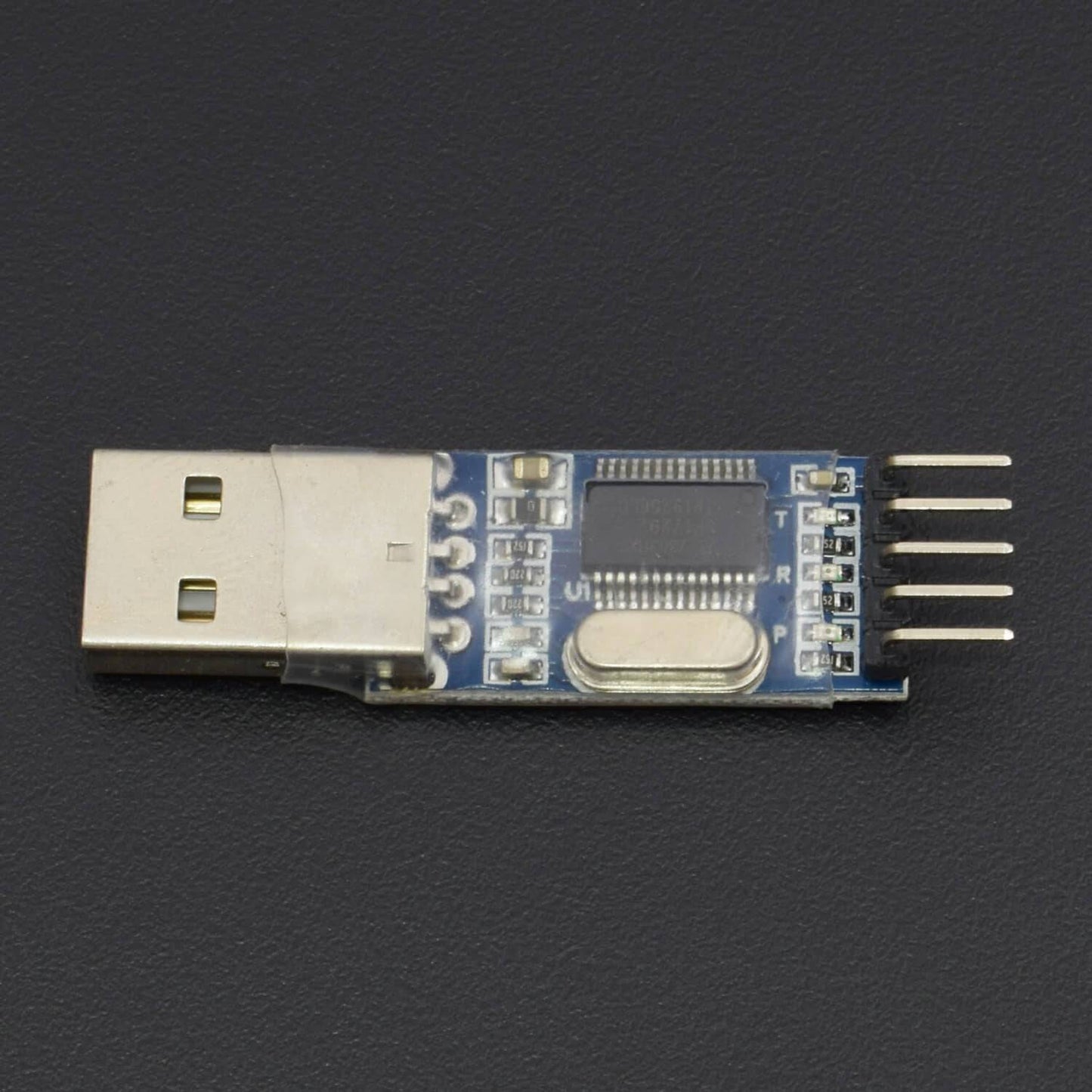

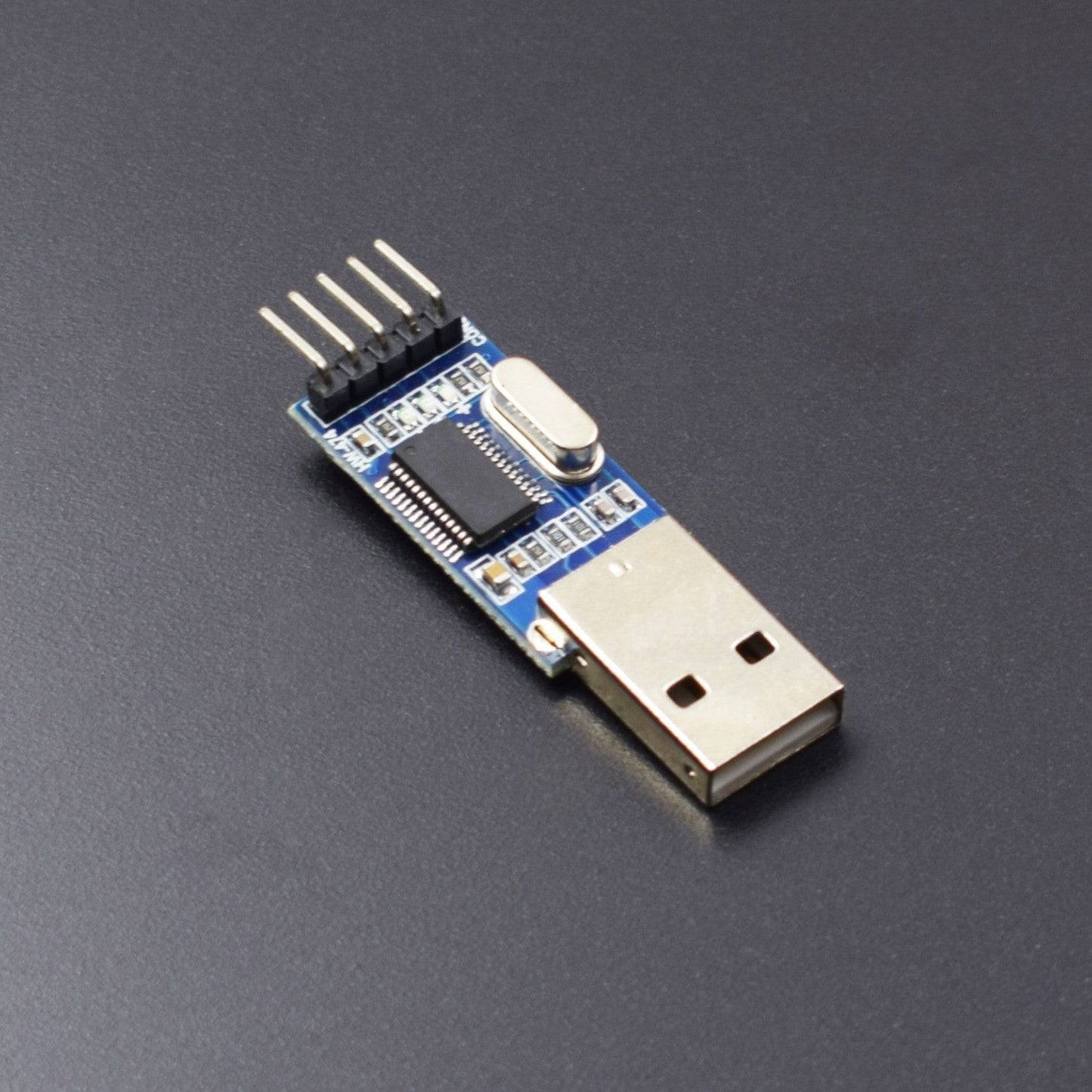

A handy USB to TTL converter based on the PL2303HX.3 LEDs are on-board to indicate power, data reception, and data transmission. A 5V and 3.3V output are available--you can power your project directly from the USB port, so it functions as a USB power supply, too. The 5-pin I/O is clearly labeled on the board. A handy USB to TTL converter based on the PL2303HX. It's a small USB to TTL serial tool, using the PL2303 chip. You can use it to connect some serial device to your PC via a USB port.

Specification :

  • Input Supply Voltage: 3.3 ~ 5V
  • Model: PL2303
  • Support: Windows 98 to Windows 7 (32 bit and 64 bit), Mac OS 8 to OS X (32 bit and 64 bit), Linux

Features:

  • Imported original control chip PL2303HX,
  • A high-speed stable brush machine set two data transmission indicators can monitor the status of data transmission for 3.3V and 5V pin interface,
  • Different voltage power supply systems need a convenient brush pin interface and parallel board,
  • Rather than a vertical installation and board,
  • Leads to the DuPont line convenient brush machine of the entire circuit board with high-quality transparent heat shrinkable coating,
  • The piece circuit and the outside into the insulating state In order to protect the metal board from the accidental short circuit and burned,
  • Due to the use of transparent material, it does not affect the board and watches the lights mouth screen monitoring effect

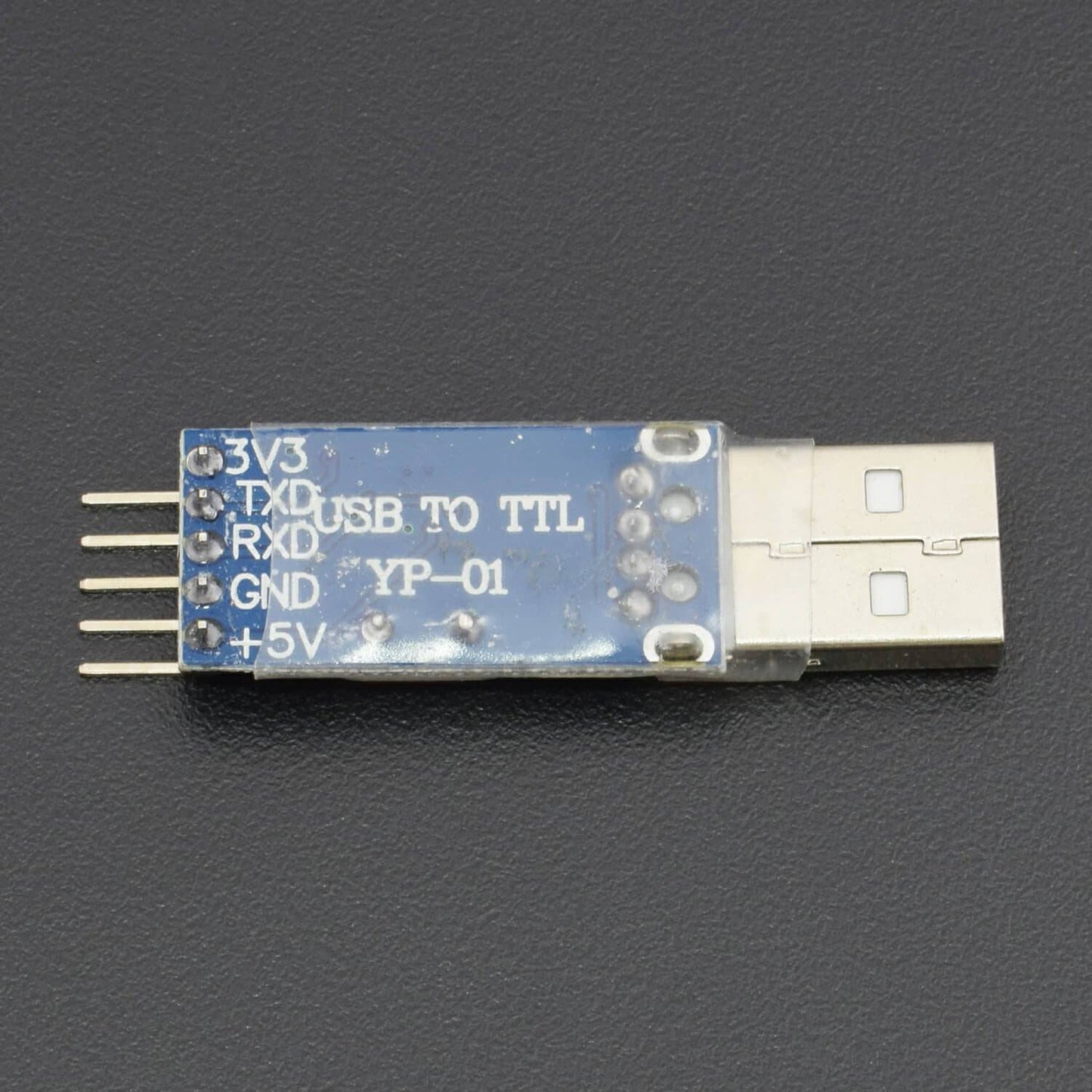

  • The 5-pin I/O is clearly labeled on the board. Excellent driver support--drivers are available for Windows 98 to Windows 7 (32-bit and 64-bit), Mac OS 8 to OS X (32-bit and 64-bit), and Linux. Even Android is supported!

Application:

  • All kinds of satellite set-top box upgrades.
  • Router, HDD, ADSL, broadband modem firmware upgrade, or cracked upgrade.
  • cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash, and so on.
  • Burn writes STC MCU, NXP MCU, Renesas MCU, NEC MCU, and so on.
  • Simple UART communication commonly used UART debugging tools in the supper terminal.
  • USB signal transferred to the TTL signal may be used by electronic enthusiasts.

Package Included:

1 x PL2303 USB to Serial Module for Arduino Raspberry PI & Other MCU
