Description:
The Pixhawk I2C Splitter expands the I2C port to allow up to four additional peripheral connections for Pixhawk. Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle. It is a useful tool and very convenient to connect.
Pixhawk/APM flight controls only one I2C interface, such as the need to connect more than one I2C peripheral, you can use the line board; Pixhawk – I2C points line board with five completely parallel vertical 1.25 4 a socket, convenient connection in the form of 1 drag 4 four I2C peripherals, for example, at the same time use the external compass and RGB modules. I2C line board and Pixhawk flight control the appearance of the connection.
Specifications:
- No. of Ports: 5
- Colour: As shown the images
- PCB Size: 34x12mm
Features:
- The I2C splitter expands the I2C port to allow up to four additional peripherals to connect to Pixhawk.
- Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle.
Package Included:

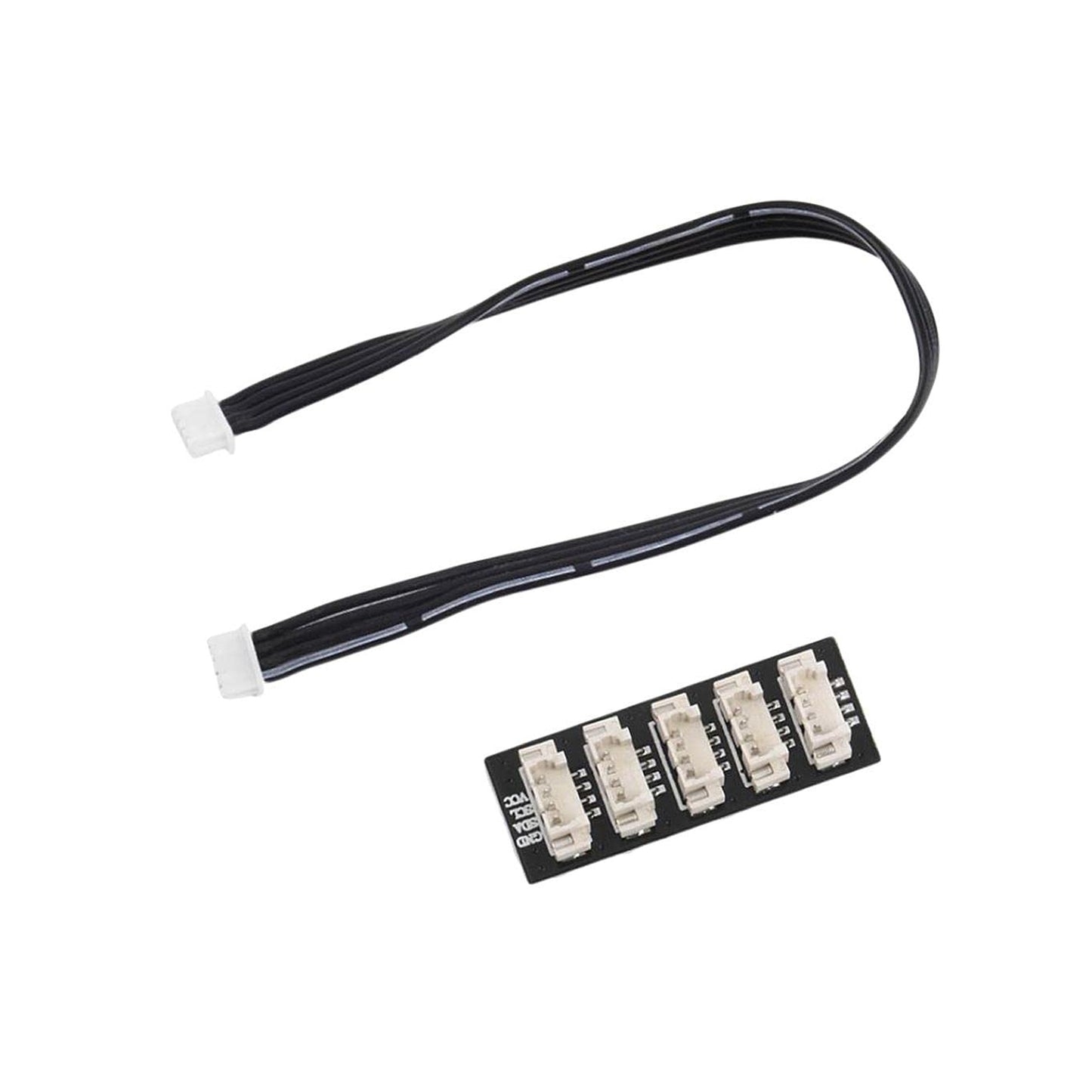

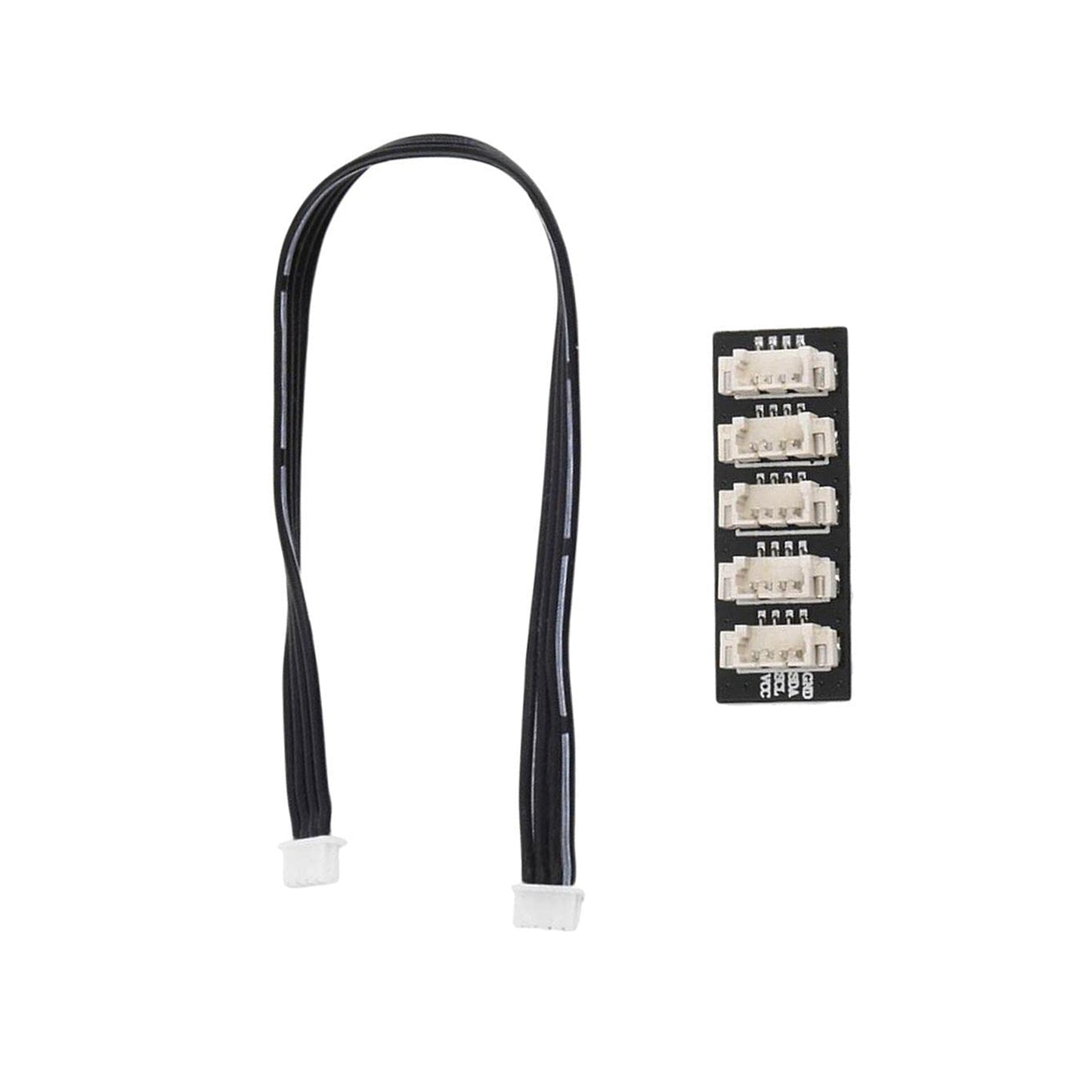

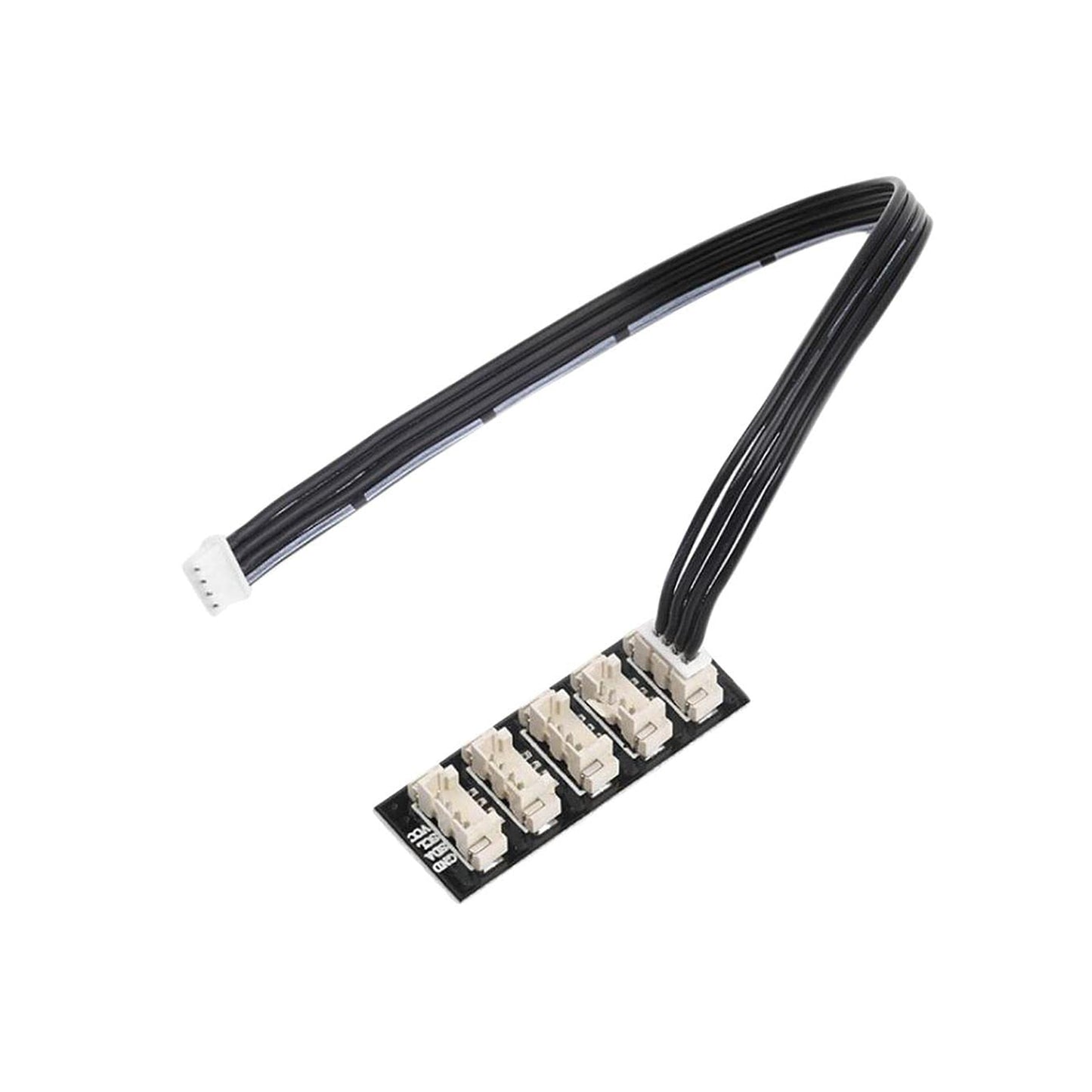

1 x Pixhawk I2C Splitter Pixhawk I2C Port Expand Board with Cable
